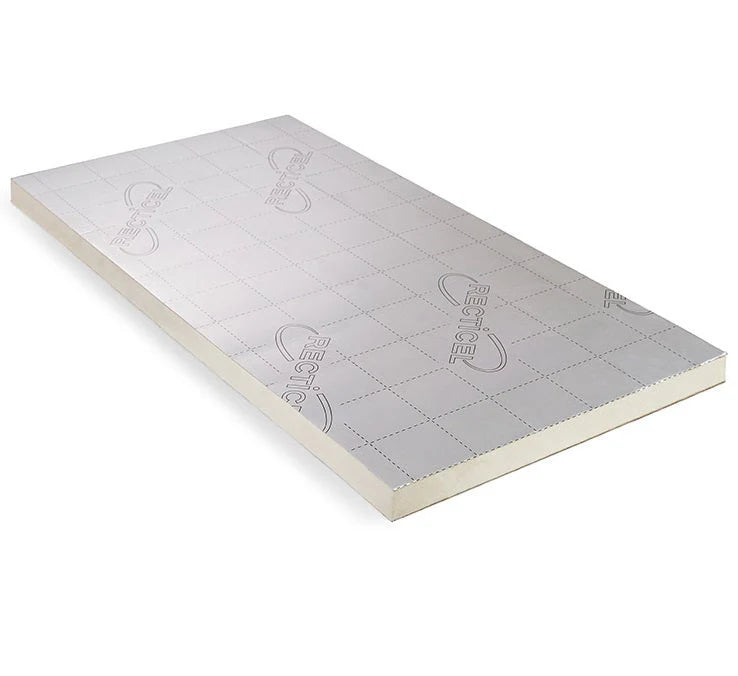

Recticel Eurothane® Eurodeck Flat Roof Insulation 2400mm x 1200mm x 100mm

Recticel Eurothane® Eurodeck PIR Flat Roof Insulation Board 100mm

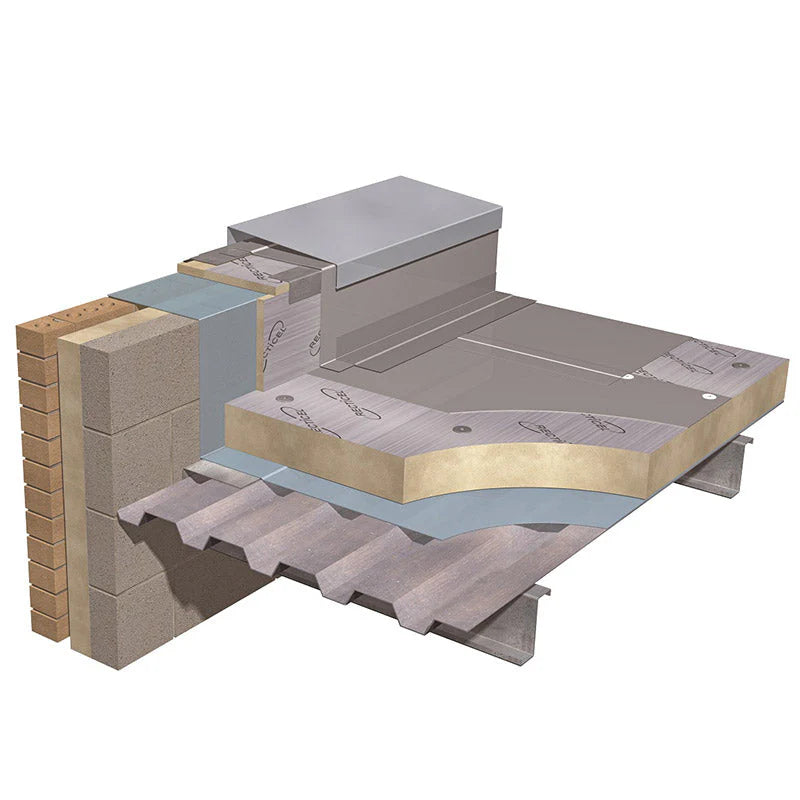

Recticel Eurothane® Eurodeck is a high-performance PIR insulation board designed for warm flat roof constructions beneath mechanically fixed single-ply waterproofing systems. Manufactured with a rigid polyisocyanurate (PIR) foam core and faced on both sides with a gas diffusion-tight multilayer foil, it delivers excellent thermal efficiency, outstanding compressive strength and long-term dimensional stability for both new-build and refurbishment projects.

With a low thermal conductivity of just 0.022 W/mK, Eurothane Eurodeck helps achieve excellent U-values whilst reducing roof build-up thickness. Its high compressive strength of 150 kPa makes it suitable for demanding commercial and residential roofing applications, providing a stable substrate for mechanically fixed waterproofing membranes.

Key Features & Benefits

• High-performance PIR flat roof insulation
• Designed for warm flat roof systems
• Suitable for mechanically fixed single-ply membranes
• Excellent thermal conductivity of 0.022 W/mK
• High compressive strength (≥150 kPa)
• Rigid polyisocyanurate (PIR) foam core
• Gas diffusion-tight multilayer foil facings
• Outstanding dimensional stability
• Lightweight and easy to install
• Straight edge boards
• Suitable for new-build and refurbishment projects
• Manufactured to EN 13165
• BBA Certified
• ISO 9001 & ISO 14001 manufactured

Applications

• Warm flat roofs
• Commercial roofing
• Residential flat roofs
• New-build developments
• Roof refurbishment projects
• Mechanically fixed waterproofing systems
• Single-ply roofing systems

Technical Information

• Product Type: PIR Flat Roof Insulation Board
• Thickness: 100mm
• Board Size: 2400mm × 1200mm
• Coverage per Board: 2.88m²
• Boards per Pack: 4
• Total Coverage per Pack: 11.52m²
• Thermal Conductivity (λD): 0.022 W/mK
• Thermal Resistance (R-value): 4.50 m²K/W
• Compressive Strength: ≥150 kPa
• Density: Approximately 30kg/m³
• Edge Profile: Straight Edge
• Facing: Gas diffusion-tight multilayer foil (both sides)
• Fire Classification: Euroclass F
• Product Standard: EN 13165:2012 + A2:2016
• BBA Certificate: 95/3113

Frequently Asked Questions

What is Eurothane Eurodeck used for?

It is designed to provide thermal insulation in warm flat roof constructions beneath mechanically fixed single-ply waterproofing systems.

What is the thermal conductivity?

Eurothane Eurodeck has a declared thermal conductivity of 0.022 W/mK, providing excellent insulation performance.

What is the coverage per pack?

Each pack contains four boards, covering a total of 11.52m².

Can it be used on refurbishment projects?

Yes. Eurothane Eurodeck is suitable for both new-build and refurbishment flat roof applications.

What is the compressive strength?

The boards provide a compressive strength of 150 kPa at 10% deformation, making them suitable for mechanically fixed roofing systems.

Downloads

Data Sheet

BBA Certificate
