RiveStop Tie-Bolt Hole Waterproofing

RiveStop System – Revolutionary Tie-Bolt Hole Sealing for Concrete Structures

The UK’s leading waterproofing innovation, the RiveStop System is a patented, high-performance solution for sealing tie-bolt holes in concrete walls. Offering massive time and cost savings, RiveStop outperforms traditional mortar-based methods, delivering up to 90% savings in both man-hours and materials.

How RiveStop Works

The RiveStop System is composed of three key components designed to streamline the waterproofing process:

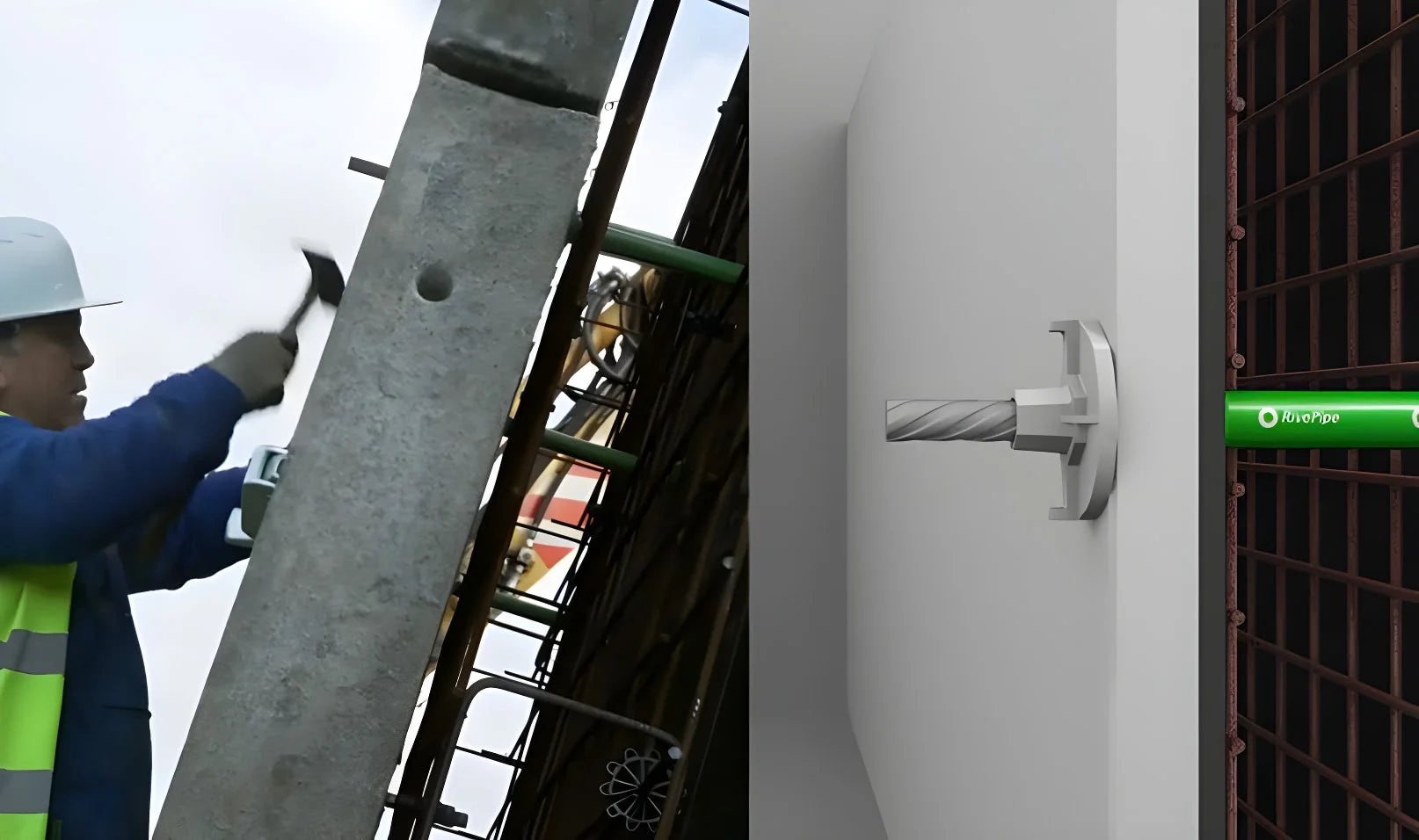

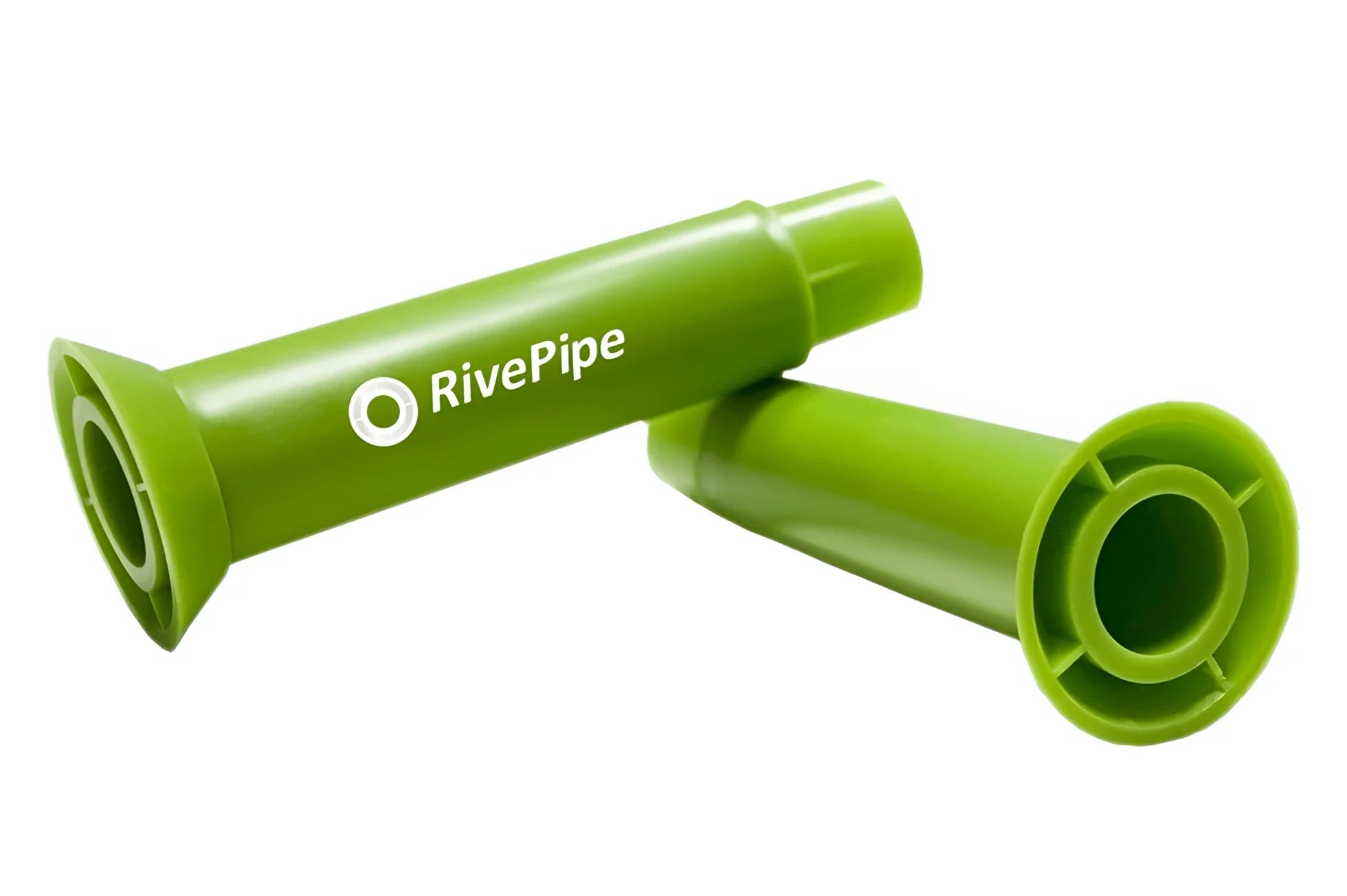

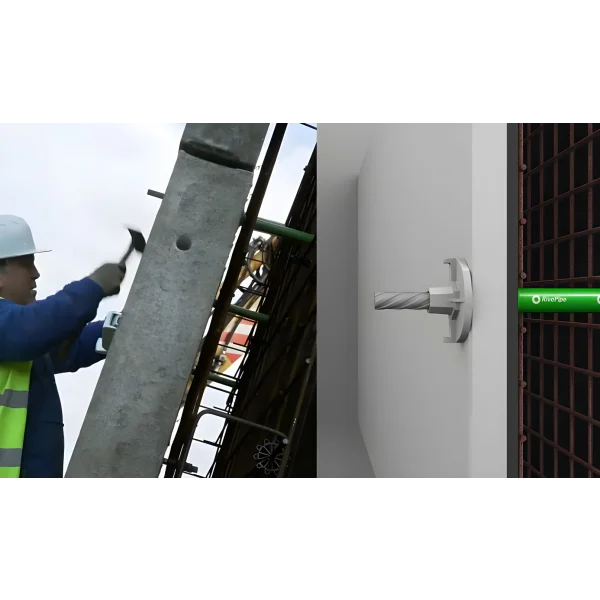

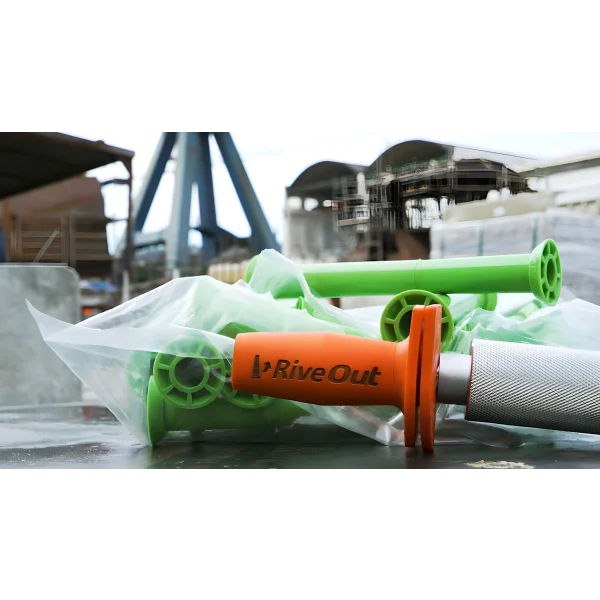

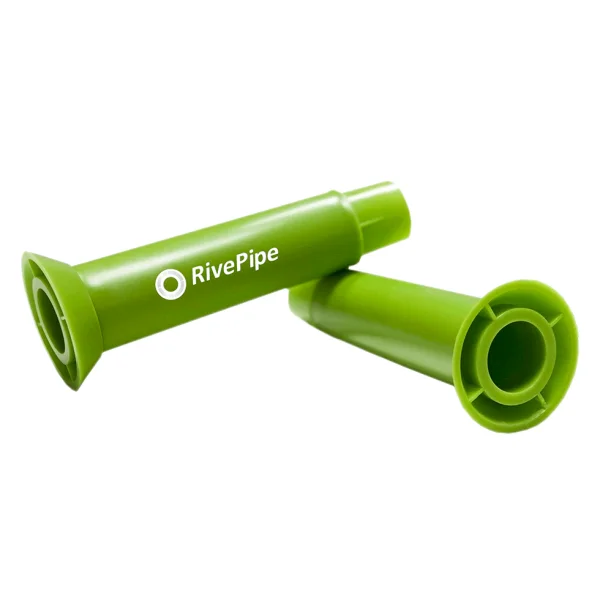

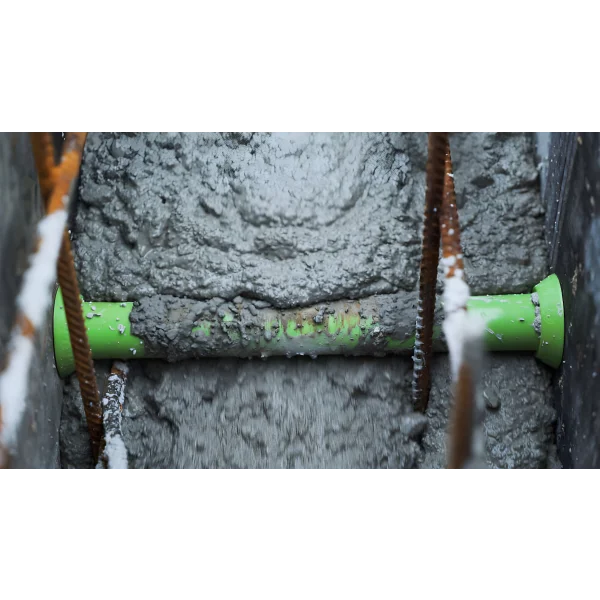

✔ RivePipe – A reusable, recyclable formwork tube that protects tie bars inside concrete and ensures a clean, uniform tie-hole upon removal.

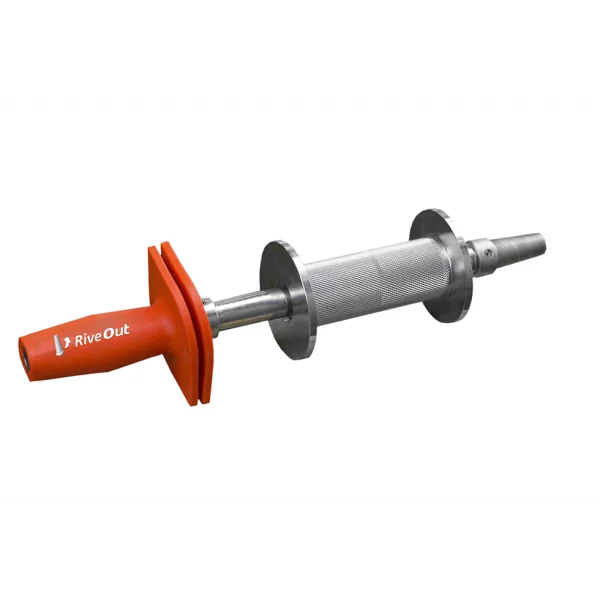

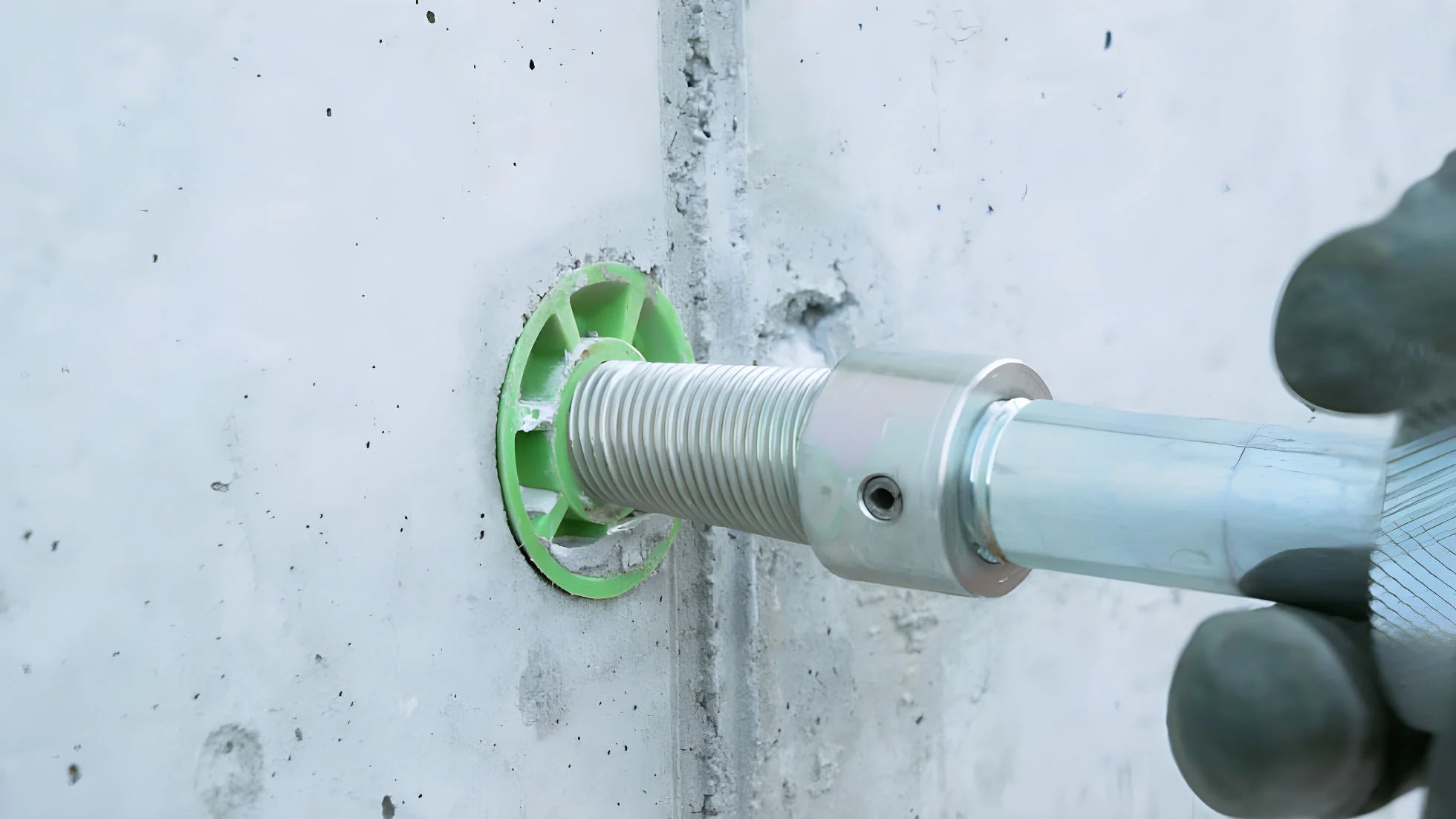

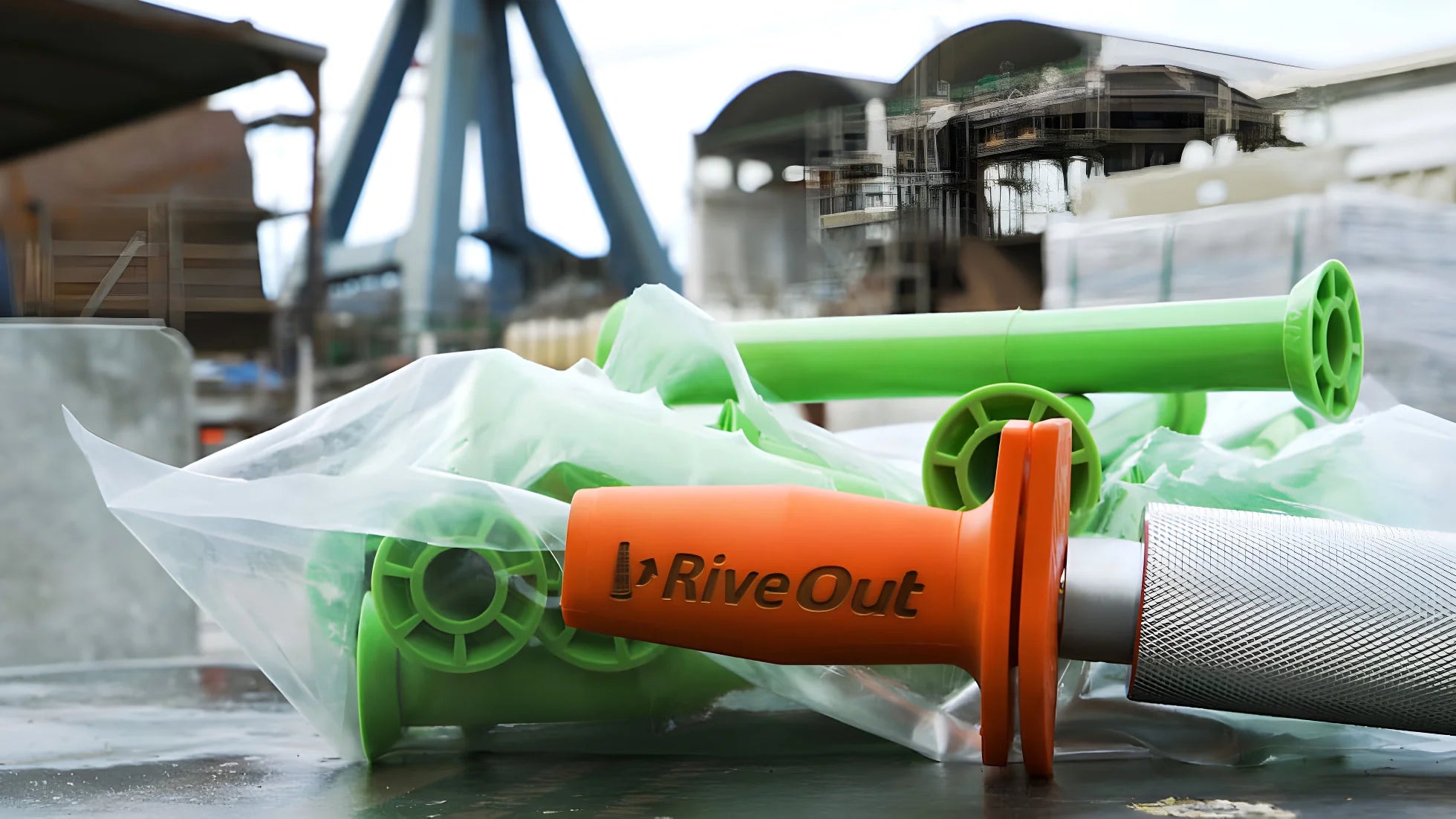

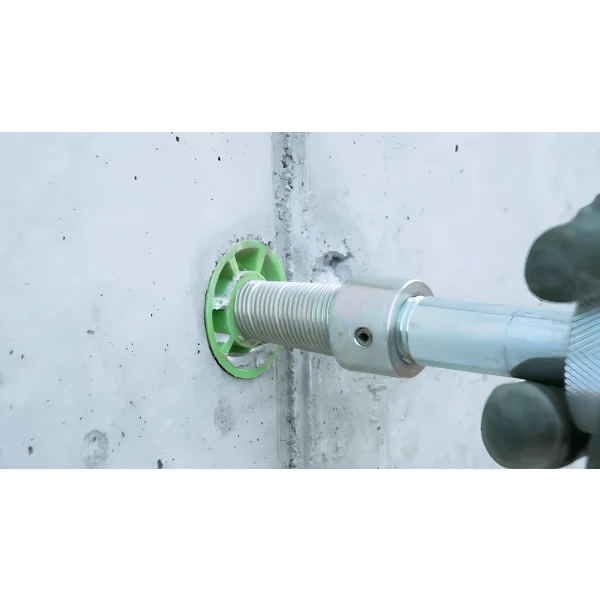

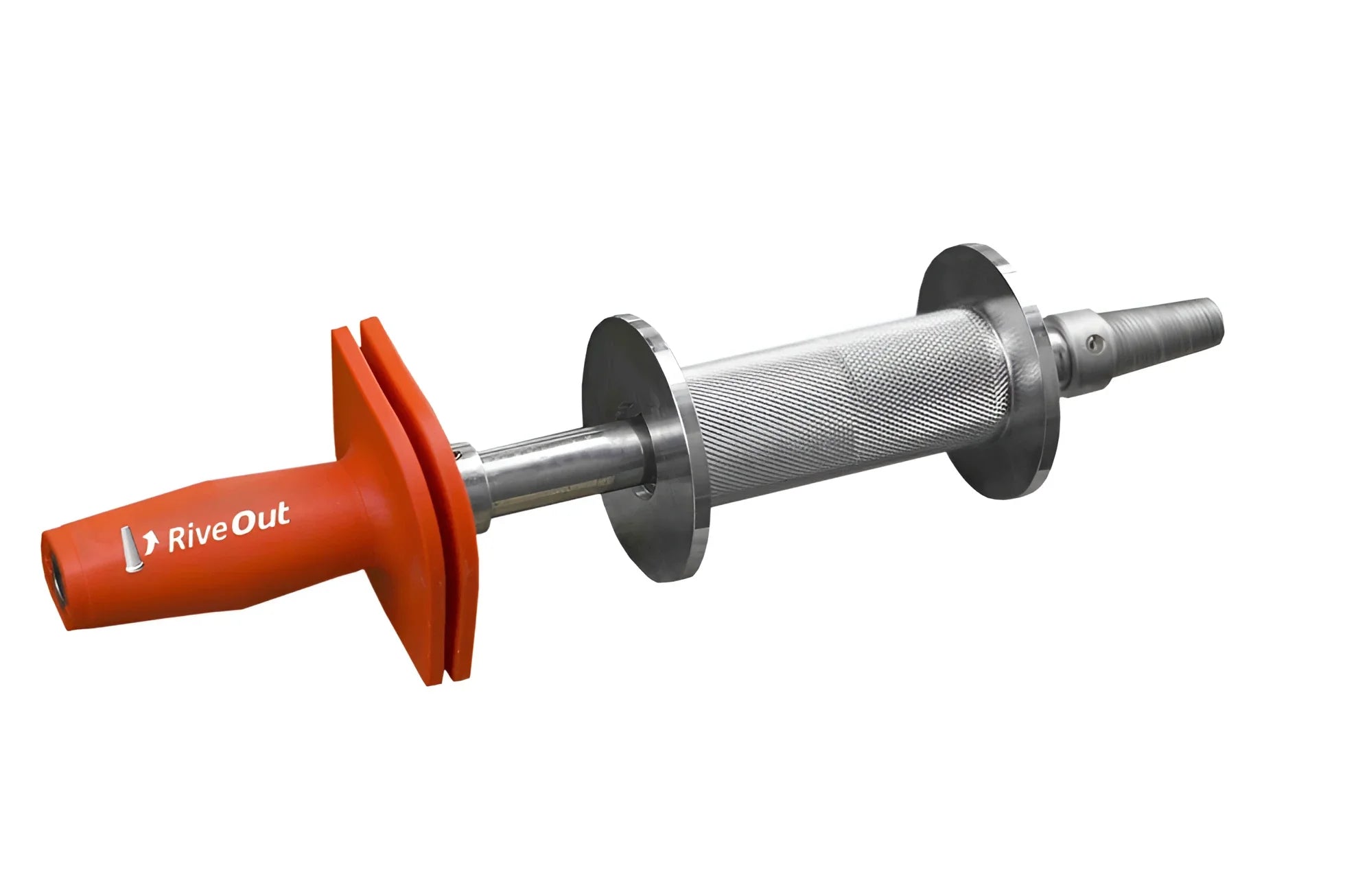

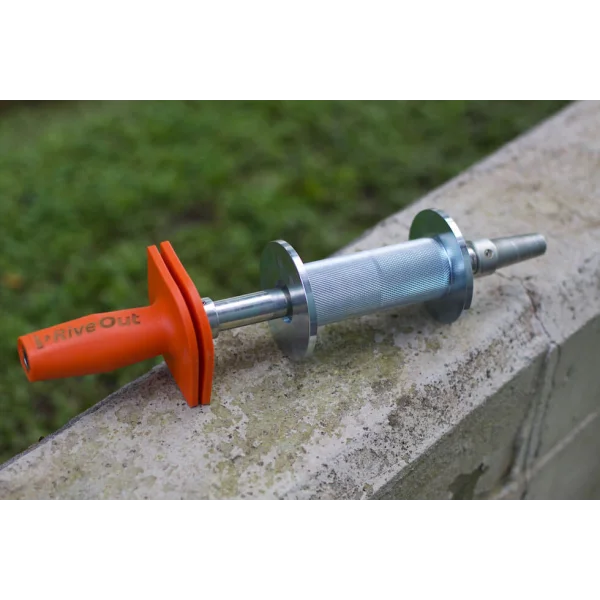

✔ RiveOut – A manual extraction tool that removes RivePipe tubes from concrete walls in seconds.

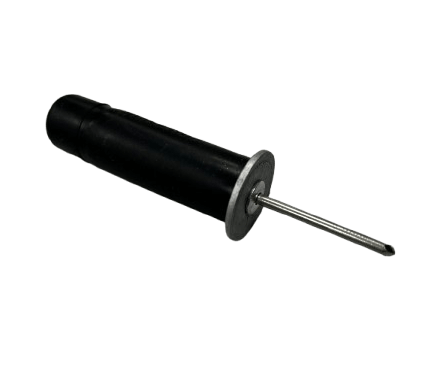

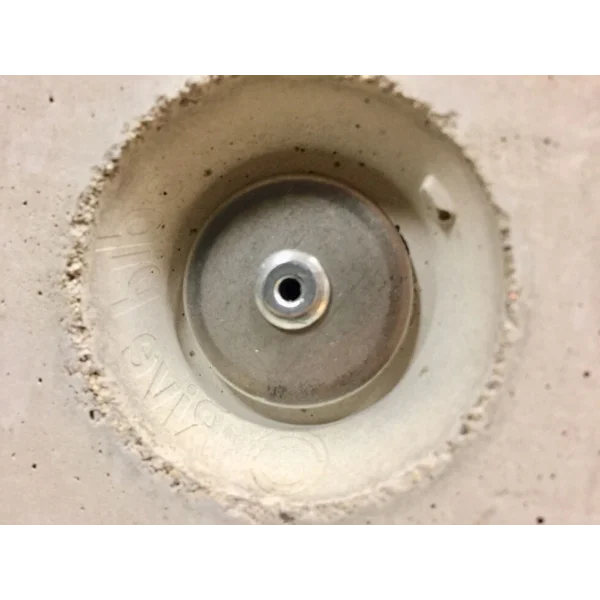

✔ RiveStop – A patented rivet system that expands up to 50% of its original diameter, providing a hermetic, permanent waterproof seal for tie-bolt holes.

Installation Steps:

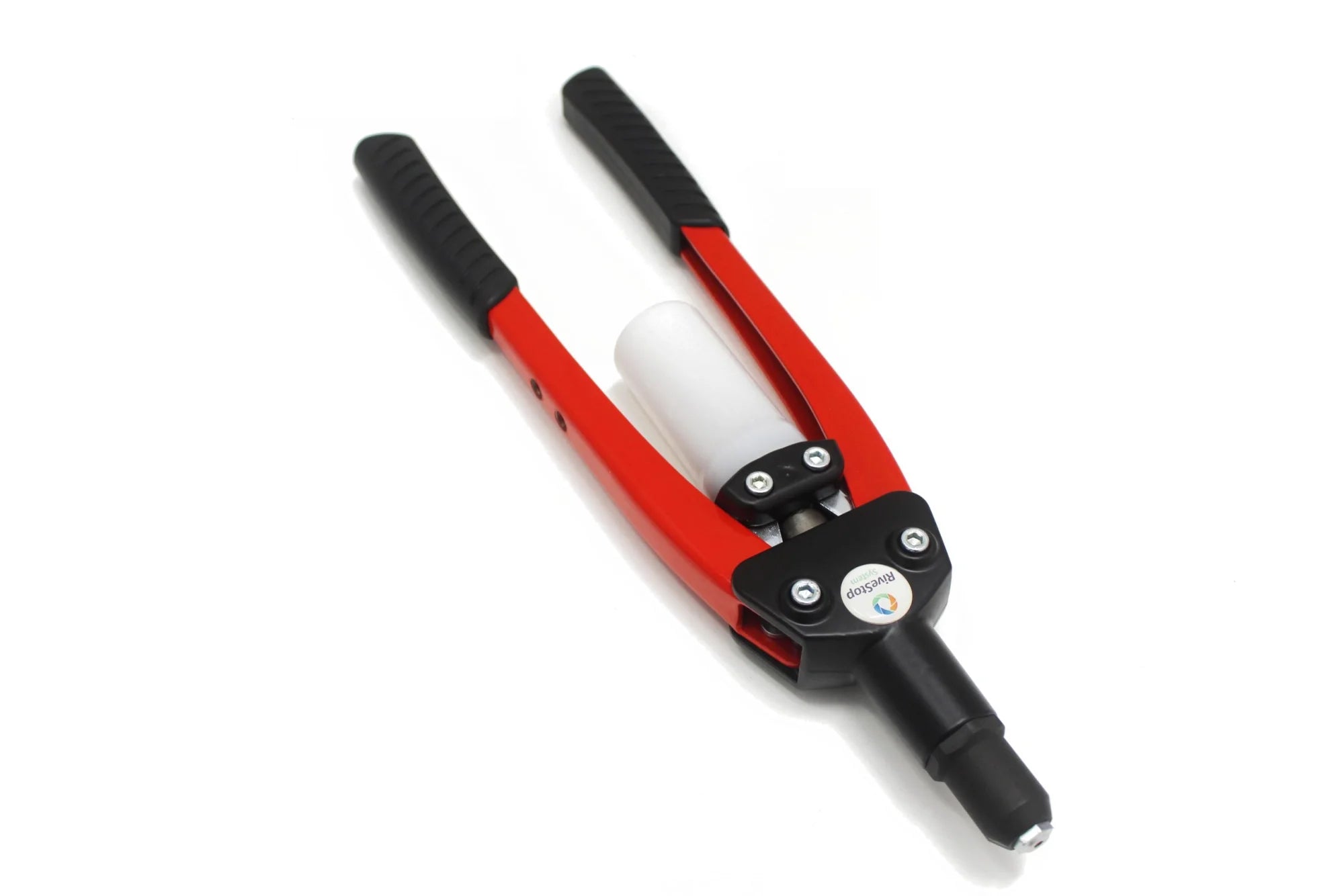

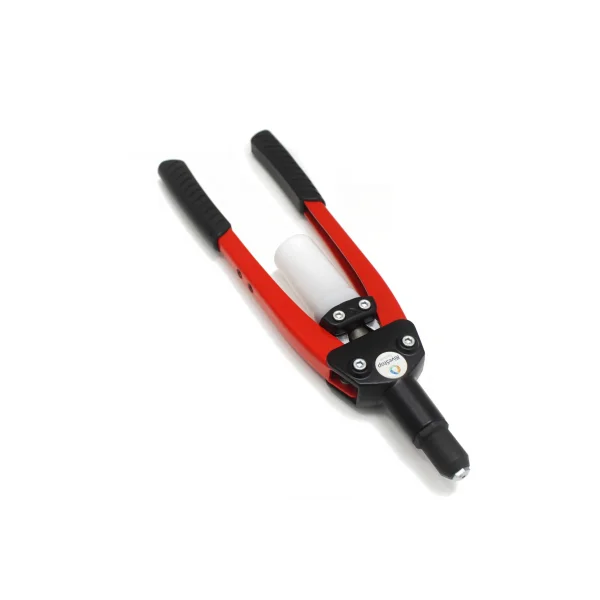

1️⃣ Insert RiveStop into the riveting machine.
2️⃣ Place into the hole to be sealed.
3️⃣ Rivet until the rivet shank is cut—sealing the tie-bolt hole instantly.

✅ No special training required – The system can be installed by anyone in any weather conditions.

Key Benefits

✔ Reliable – 100% waterproof and gas-tight, outperforms traditional PVC tube sealing methods.
✔ Reusable – RivePipe can be reused up to 20 times, reducing waste and material costs.
✔ Ultra-Fast Installation – 10x faster than mortar-based solutions—achieving up to 500 RiveStop installations per hour with an electric rivet method.
✔ Adaptable – Available in various lengths and diameters to suit all concrete wall thicknesses.
✔ Certified & Safe – Provides barriers against water pressure, sound pollution, fire, acidic and saline solutions, and radon gas.
✔ Durable – The expanding rivet mechanism adjusts to the shape of the hole, delivering a permanent, watertight seal for the entire lifespan of the structure.

Typical Applications

RiveStop is the ideal solution for any water-retaining or concrete structure, including:

🏗 New residential, office, and commercial buildings
🏢 Architectural facades
🚗 Underground car parks
💧 Pools and waterparks
🌉 Bridges, roads, tunnels, and metro systems
🏭 Water treatment plants and desalination plants
💦 Reservoirs, dams, and water tanks
⚡ Wind turbine platforms

Product Data

✔ Code: RS-J41236
✔ Packaging: 225 units per bucket
✔ Material: Rubber body, Aluminium rivet, Zinc-plated steel mandrel
✔ Application: Suitable for tie holes 24mm to 27mm

📞 For expert advice or bulk pricing, call us at 01268 472358.

Downloads

•  Download RiveStop Technical Data Sheet

•  Download RivePipe Technical Data Sheet

•  Download RivePipe Installation Manual

•  Download RiveStop Installation Manual
