Description

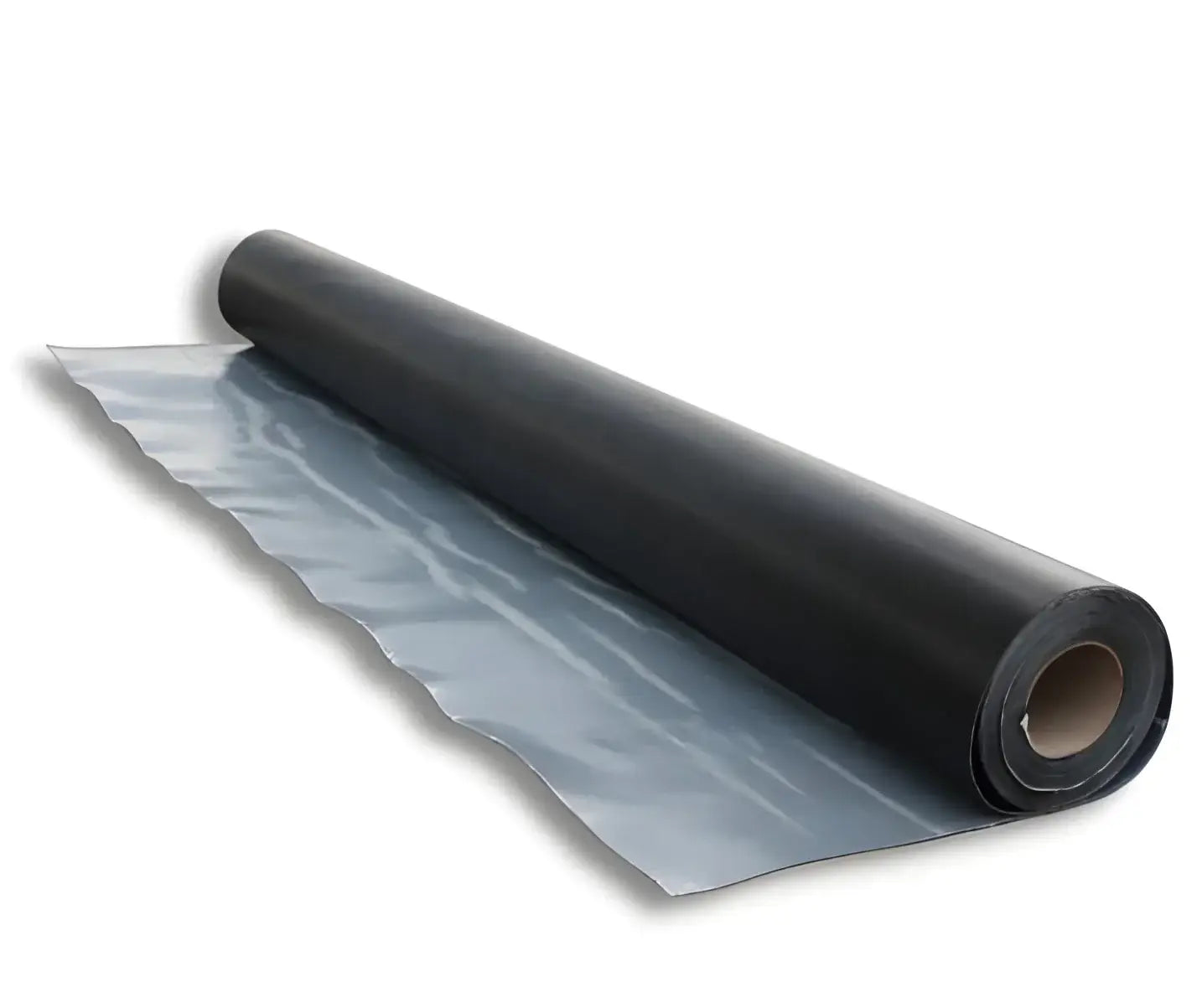

PEELAFFIX20 is a self-adhesive EPDM waterproofing membrane composed of vulcanised EPDM synthetic rubber and a side that is fully adhesive. The self-adhesive side is preserved by a white-coloured silicone film.
20 Year Manufacturers Warranty (50 Years Life Expectancy)
Cost per Roll £180 plus VAT
Applications: All waterproofing, metal roofs, flat and sloping wooden roofs, bitumen, pir panels and other roofs, including all types of gutters and window frames.
No primer required for wood or indeed most substrates.
Technical Specification
|
Technical data of external EPDM side |
||||
|
Property |
STANDARD |
PeelaFix20 100 |
PeelaFix20 120 |
PeelaFix20 130 |
|
EPDM Nominal Thickness |
EN 1849-2 |
0,8 mm |
1,0 mm |
1,1 mm |
|
Tensile strength (L/T) |
EN 12311-2 |
≥ 9 MPa |
||
|
Lengthening (L/T) |
EN 12311-2 |
≥ 400 % |
||
|
Impact resistance |
EN 12691 (A) |
≥ 200 mm |
||
|
Tear resistance |
EN 12310-2 |
≥ 30 N |
||
|
Watertightness |
EN 1928 (B) |
Pass |
||
|
Lap peeling resistance |
EN 12316-2 |
≥ 40 N/50 mm |
||
|
Lap shearing resistance |
EN 12317-2 |
≥ 210 N/50 mm |
||
|
Folding at low temperature |
EN 495-5 |
≤ -45o C |
||
|
Dimensional Stability |
EN 1107-2 |
≤ 0,5 % |
||
|
External fire behaviour |
EN 13501-5 |
B ROOF (t1) |
||
|
Reaction to fire |
EN 13501-1 |
E |
||
|
Technical data of EPDM adhesive side |
||
|
Polyacrylate-based dispersion adhesive Adhesive intermediate mesh netting layer |
||
|
PROPERTY |
STANDARD |
PeelaFix20 |
|
Adhesive weight approx. |
190 g/m2 |
|
|
Adhesive total thickness |
0,19 mm |
|
|
Peeling resistance |
AFERA 5001 |
≥ 29 N/25 mm |
|
Thermal stability |
(internal test) |
-40 °C a 130 °C |
Properties
-
Excellent resistance to ozone, UV radiation and weathering.
-
Elasticity from -45 oC to 130 oC.
-
Easy and quick to install.
-
High adhesive power with immediate effect.
-
Homogeneous adhesion on the entire surface.
-
Avoids manual dosing and application of adhesives.
-
No waiting time for drying and/or evaporation of adhesive solvents.
-
Excellent resistance to moisture and weathering after bonding.
-
Clean and environmentally friendly system by saving on consumables such as brushes, rollers, cans, and others.
Application

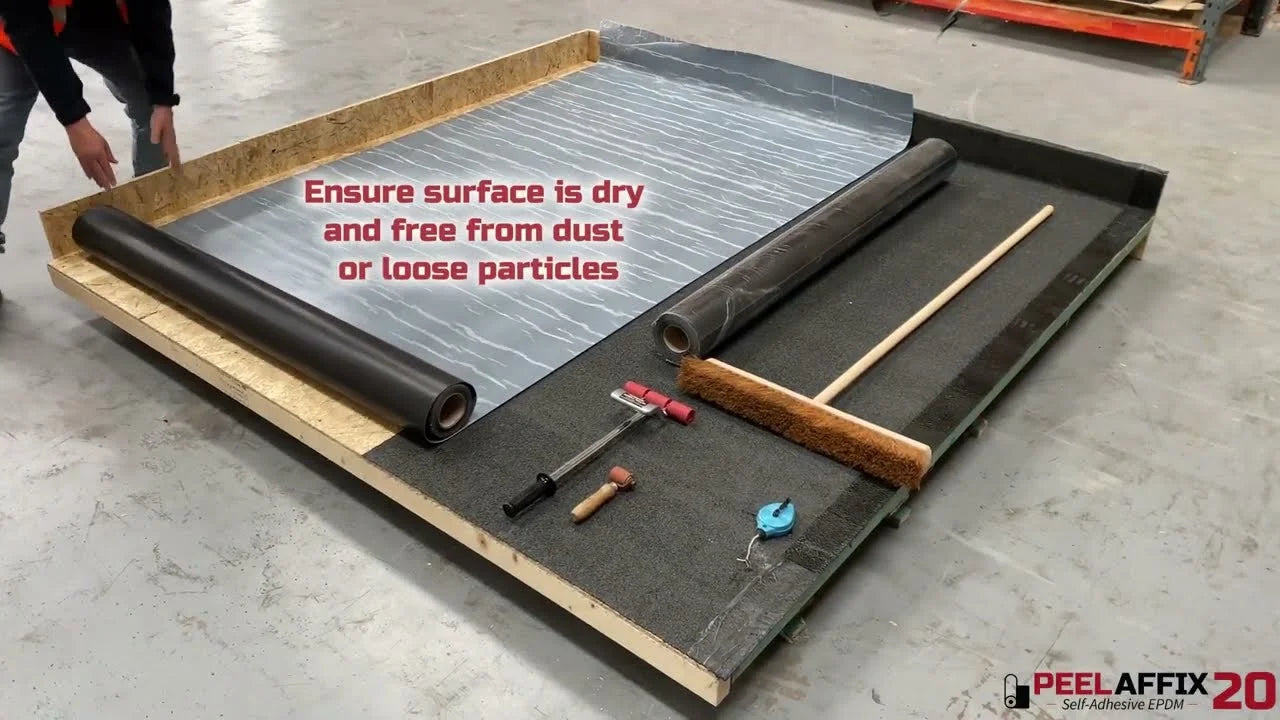

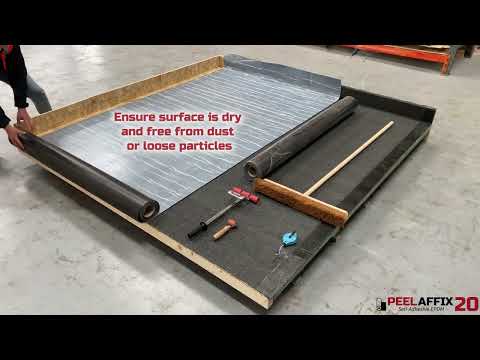

Substrates must be inherently solid, stable, and free of loose particles. At time of application, they must be clean, dry, free of dust and/or grease. In case of poor substrates where the material forms dust or granules, or porous or fragile substrates, it is recommended to apply a consolidating primer to prepare the surface for proper adhesion. Adhere to an application temperature from 5 °C to 35 °C.

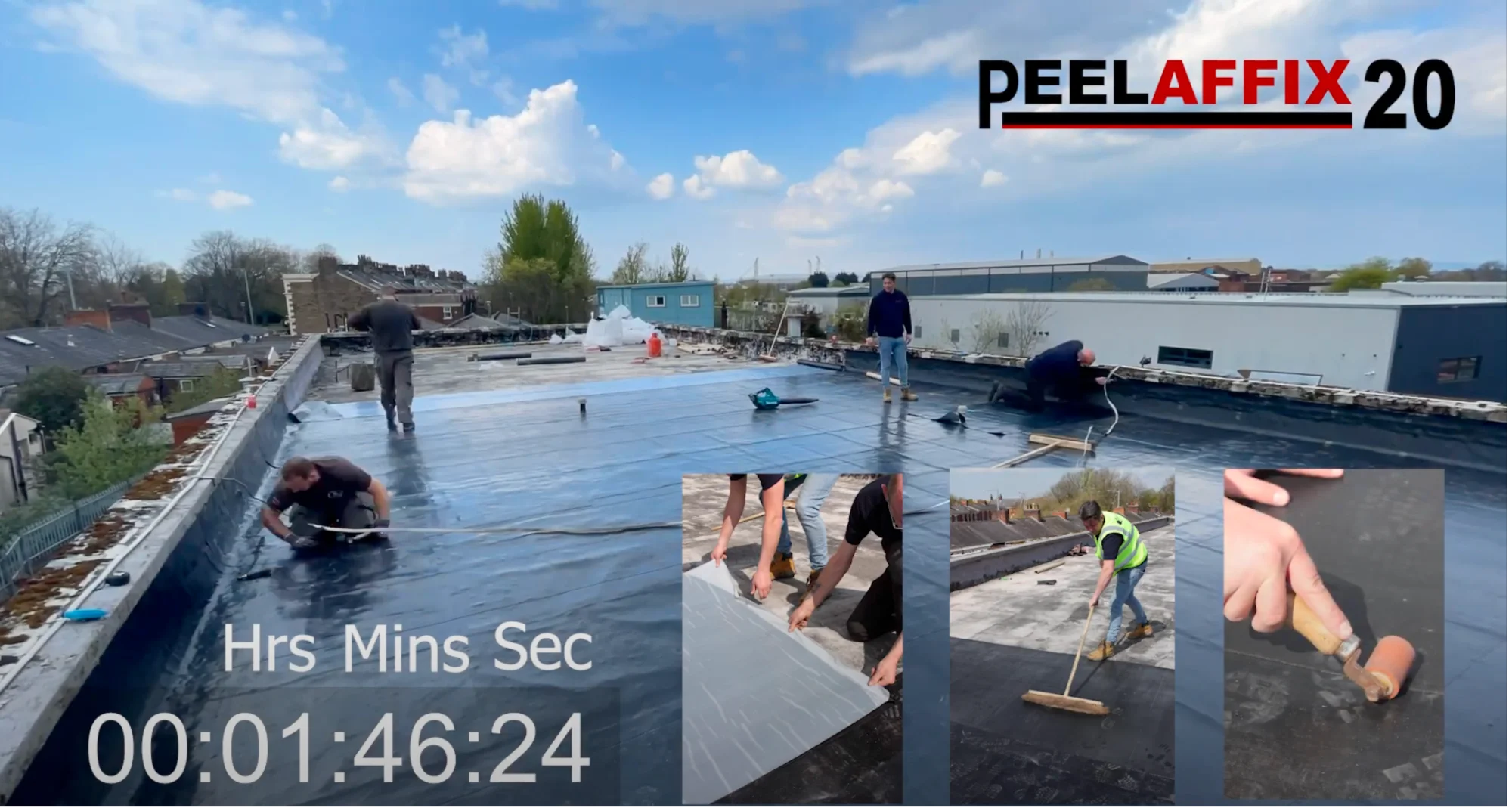

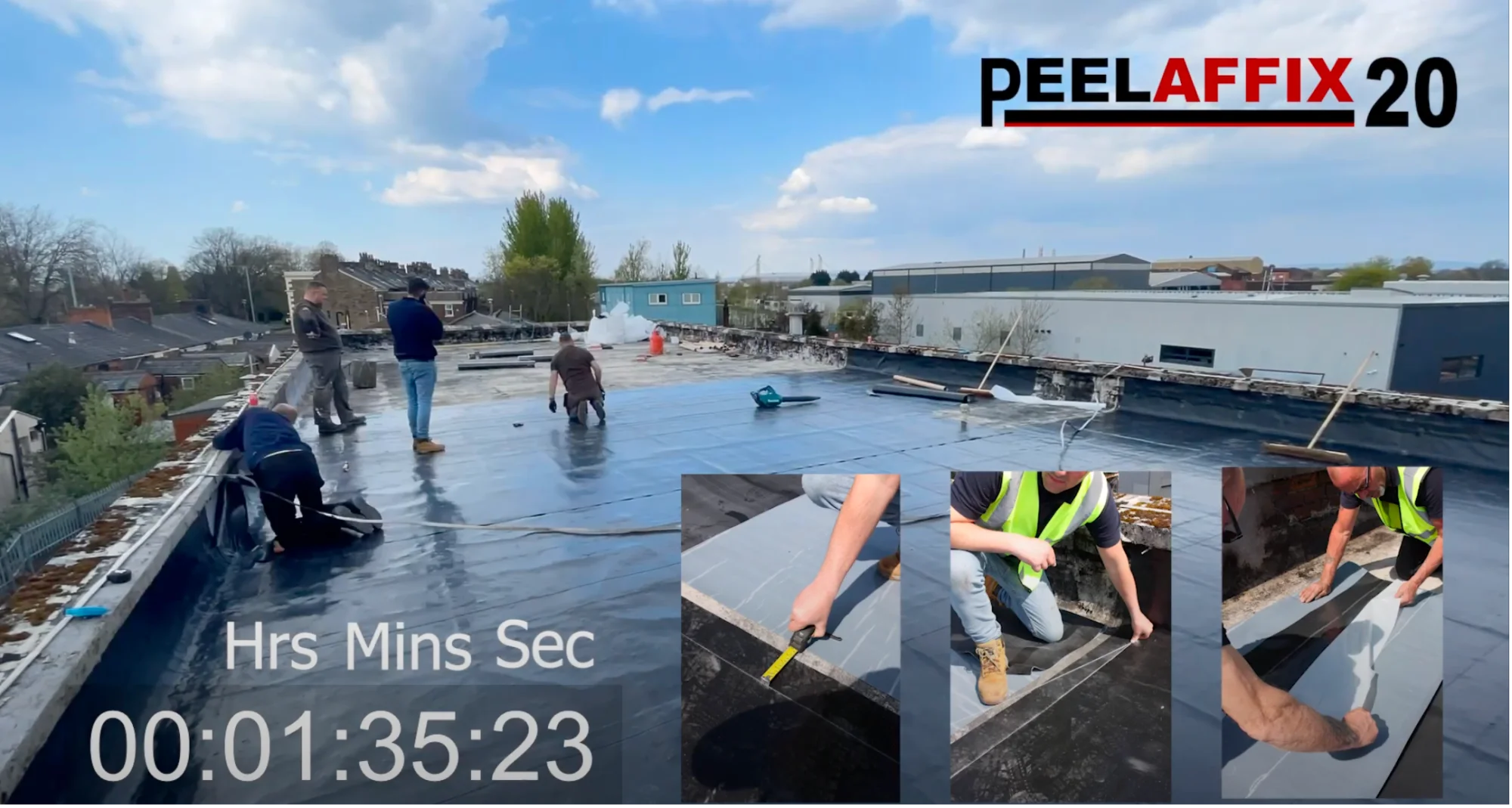

Once the membrane has been unwound and positioned on the surface in its final position, making sure not to create wrinkles or tensions, let it rest for about 30 minutes to release the winding tensions. Remove the white silicone protective film without moving the membrane from its position by stretching it horizontally at a 45° angle. To start the bonding process, brush with a stiff bristle brush (non-metallic) from the centre of the roll outwards to the sides and finally run the system’s silicone roller over the film to ensure it is in contact with the substrate over the entire surface.

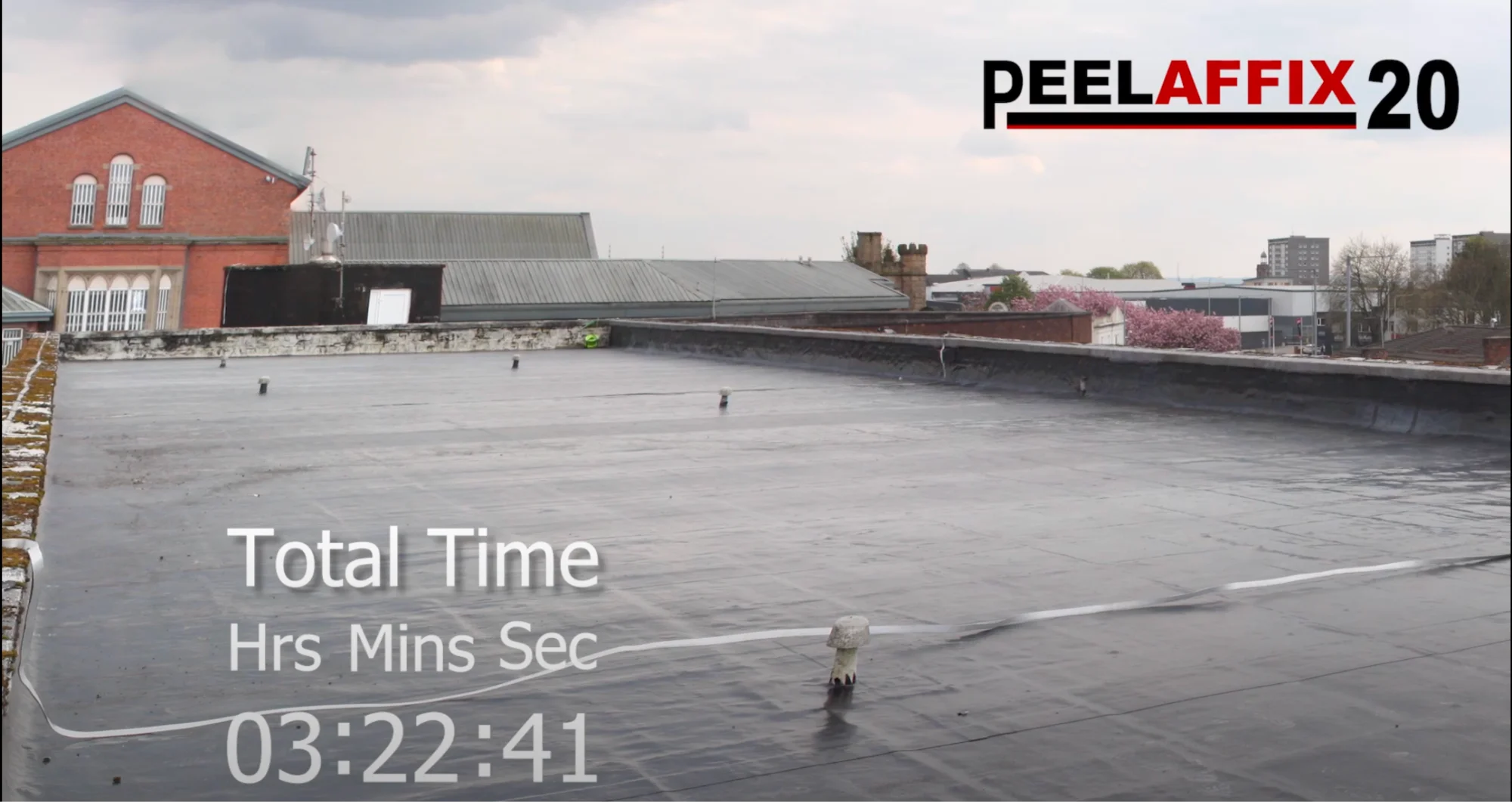

The joints between the sheets must overlap by at least 10 cm. Run the silicone roller over them while applying pressure and finally apply a sealing bead on the edge with PEELAFFIX20 Bond, bevelling it with a spatula. To fix singular points in 3D, where the membrane must be moulded to three different planes, the system has the Flashing mouldable strip, after priming with Primer, to mould it to these forms, following the same instructions concerning the state of the substrate as mentioned above.
Data Sheet
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also be interested in
Trade Customer?
Get all the benefits of being a trade customer by signing up for an account
- Monthly Trade Discount Codes
- Dedicated technical support team
- Certified hands-on training courses
