Ancillaries - Plugs, Tapes and Mastic

Key Benefits

The ancillaries comprise of a range of products that deal with fixing the Newton CDM System to different substrates and surfaces, sealing the membranes, and dealing with protrusions and condensation.

Typical Applications

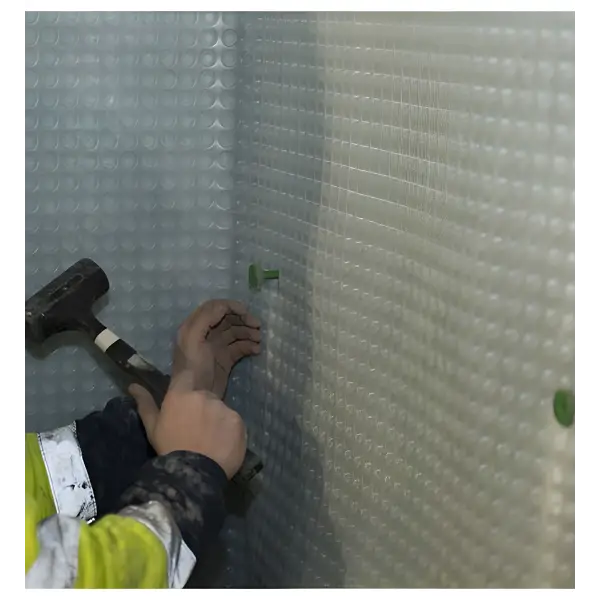

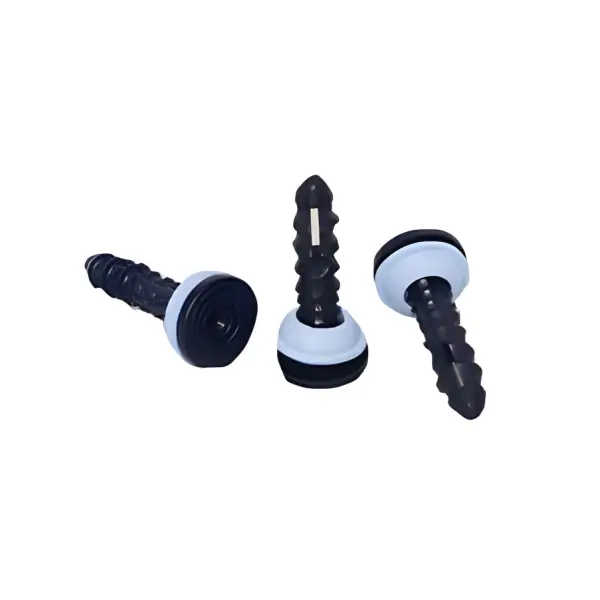

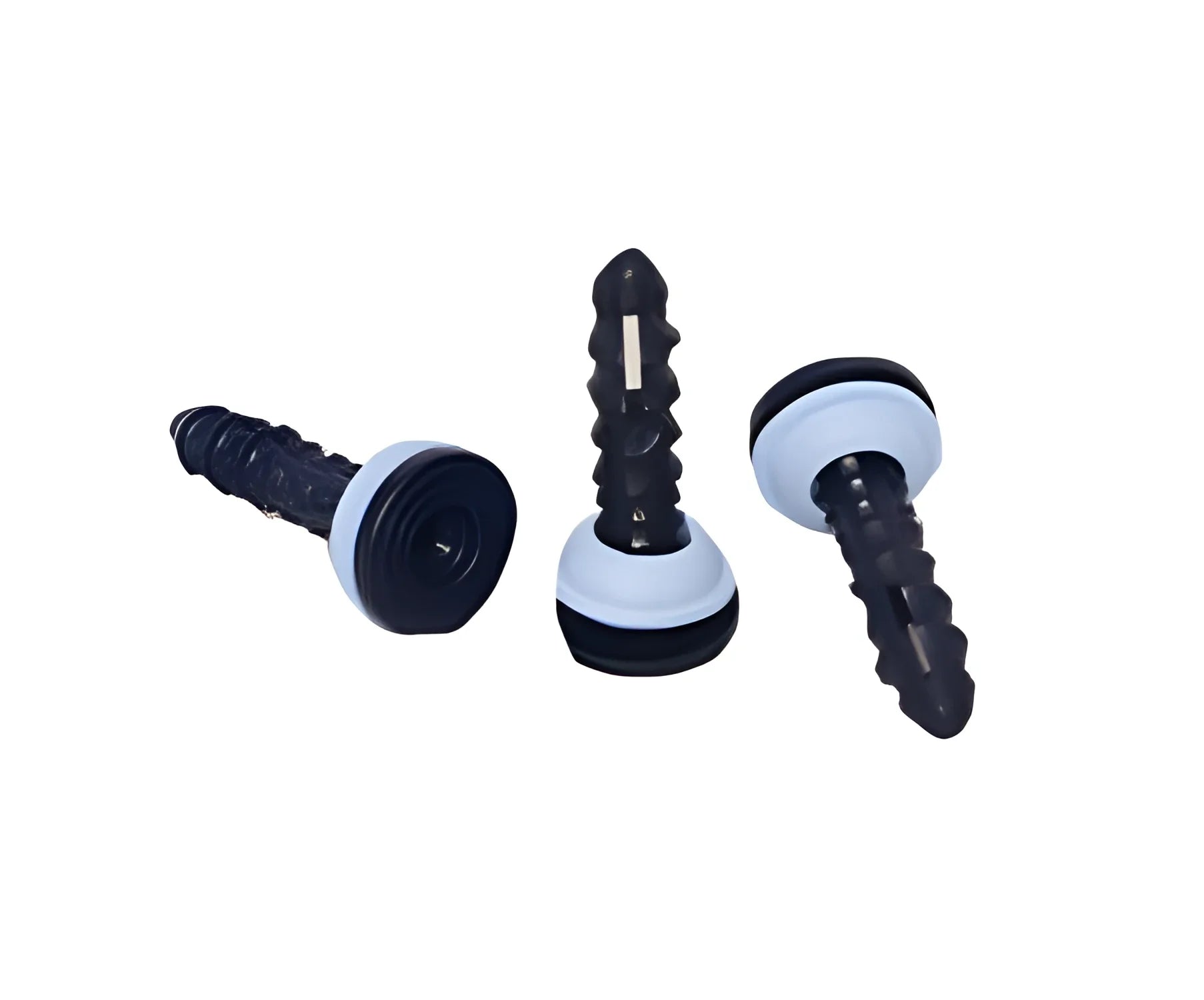

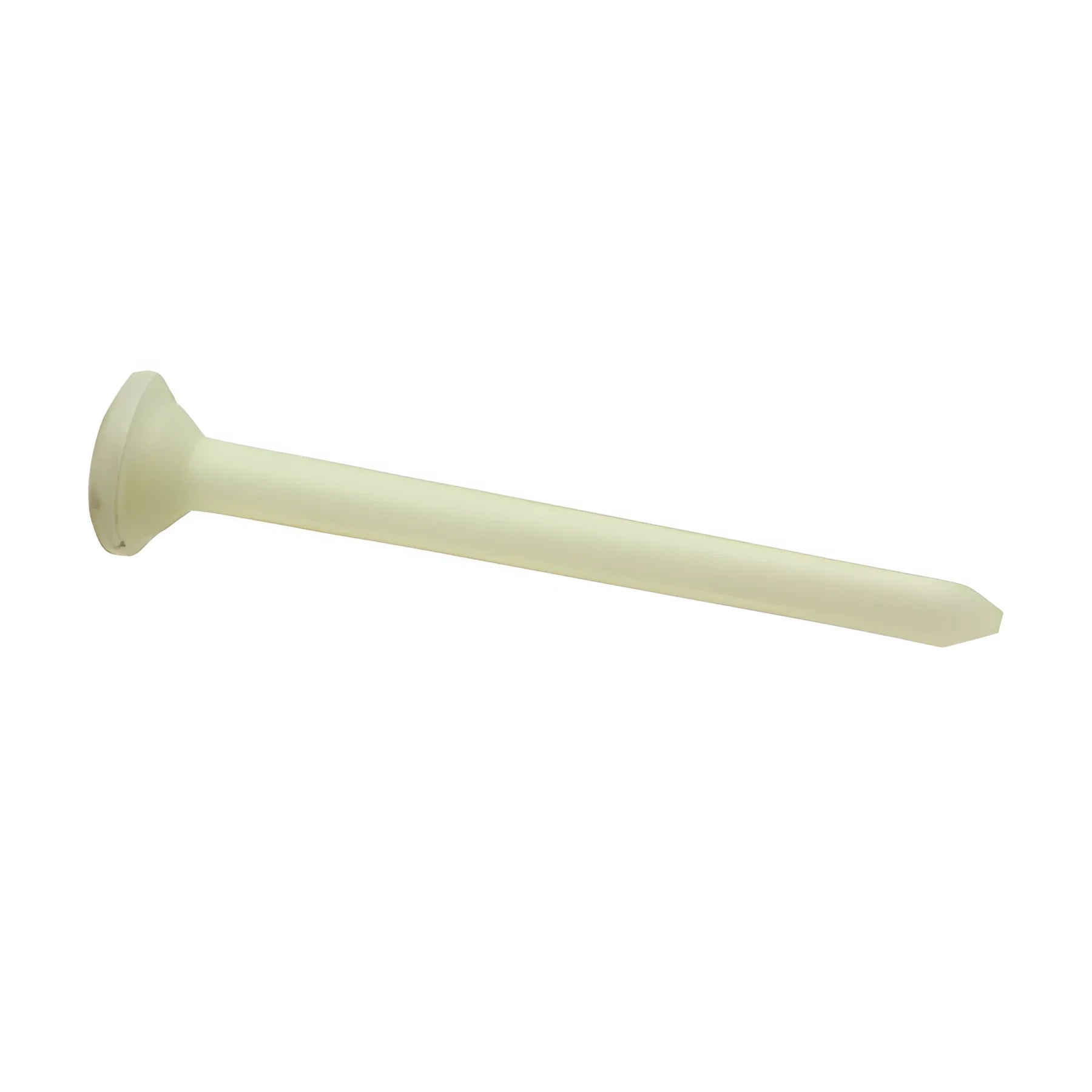

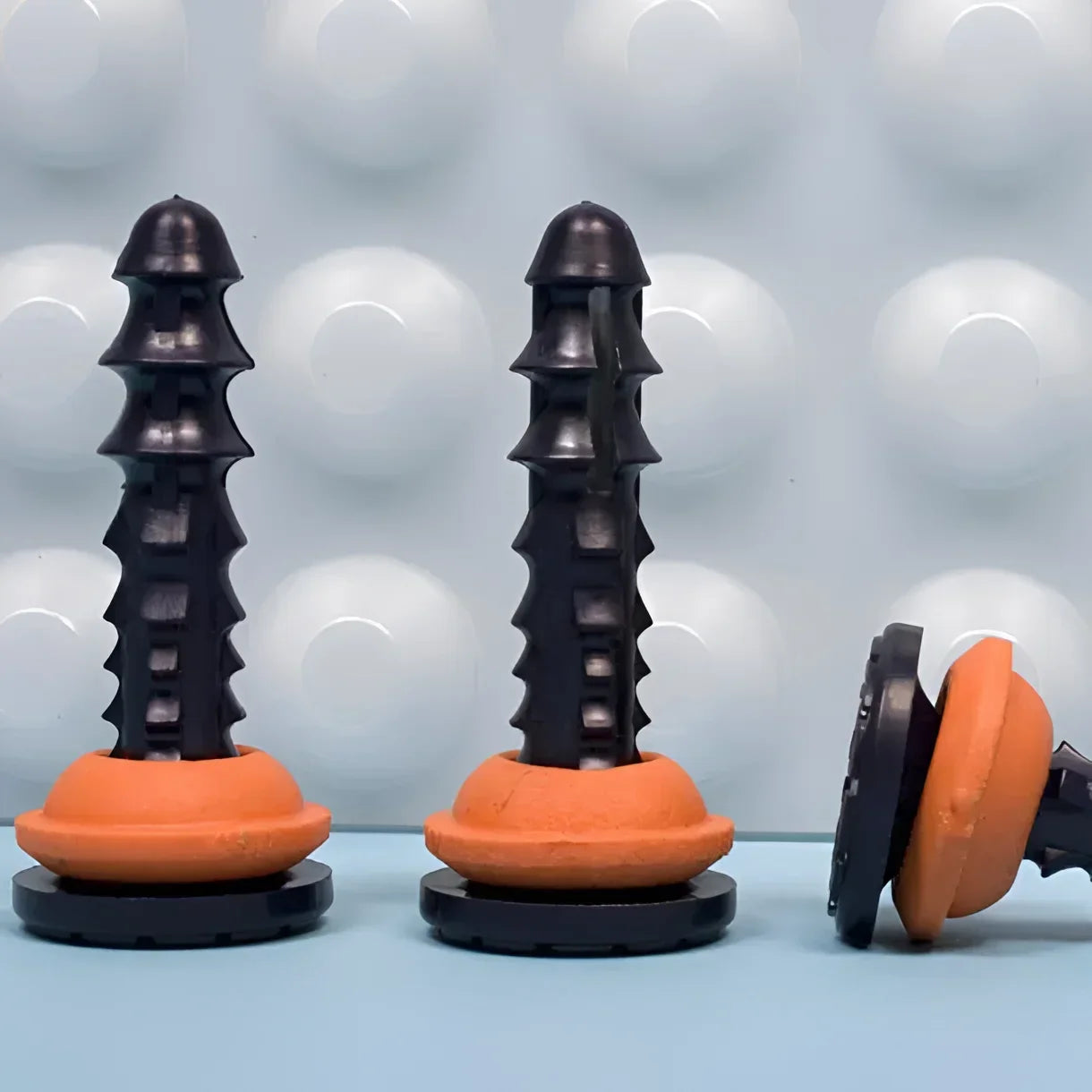

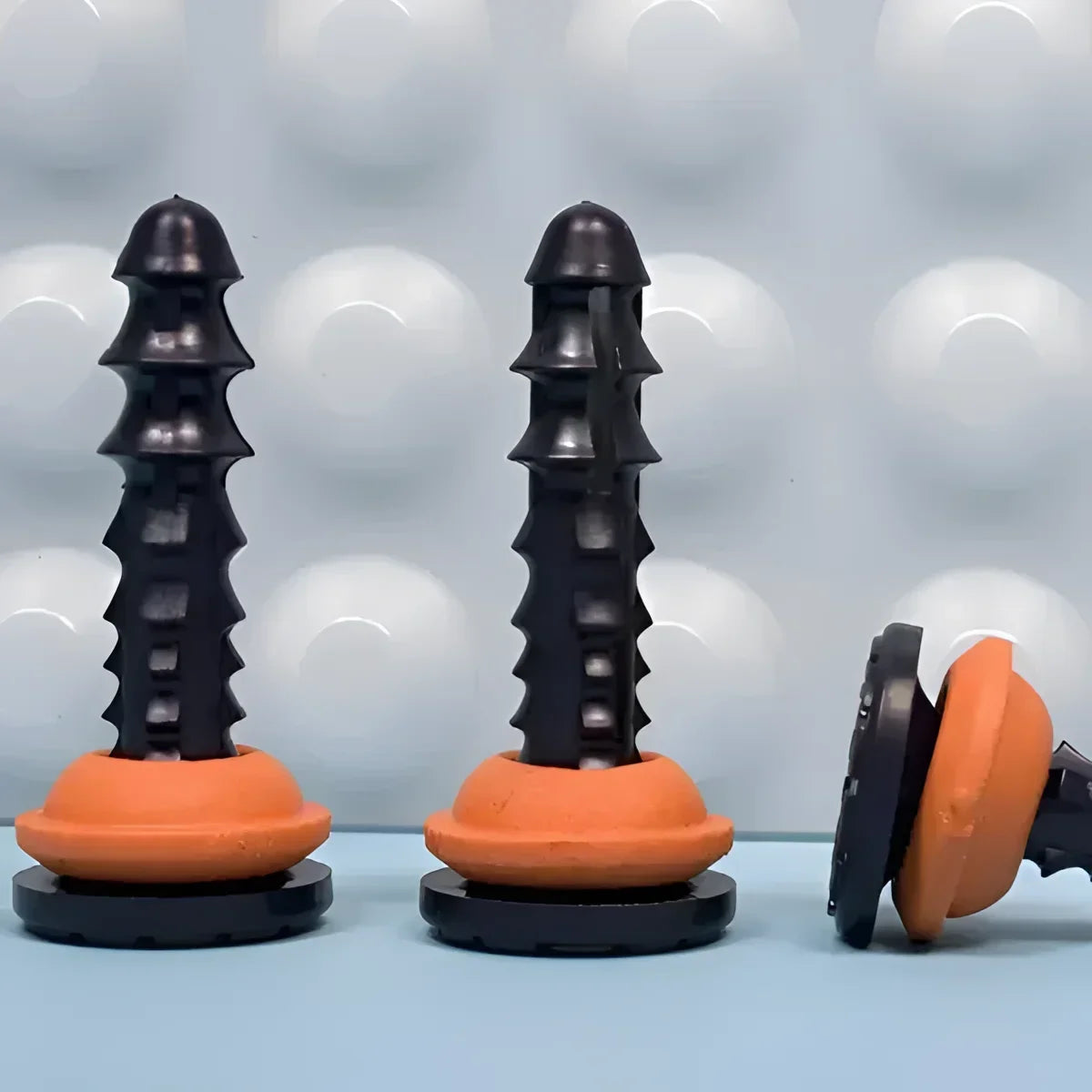

• CDM MultiPlug (A1) – For securing Newton System 500 membranes to the wall and for providing a fixing point for 5mm screws and the CDM Helical MultiPlug Tie

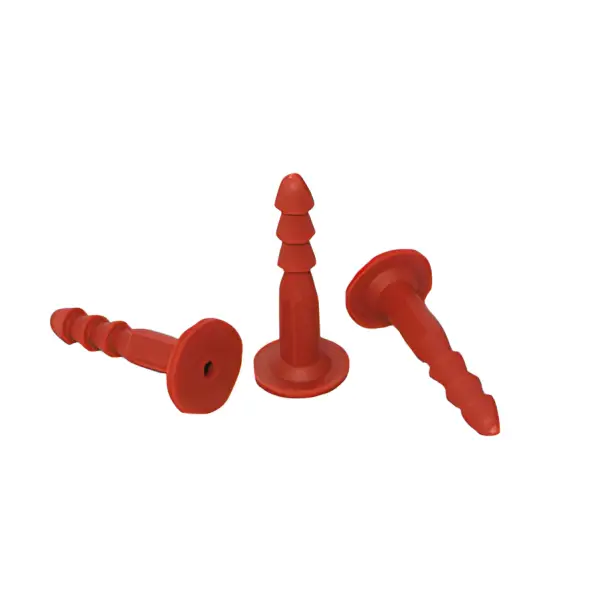

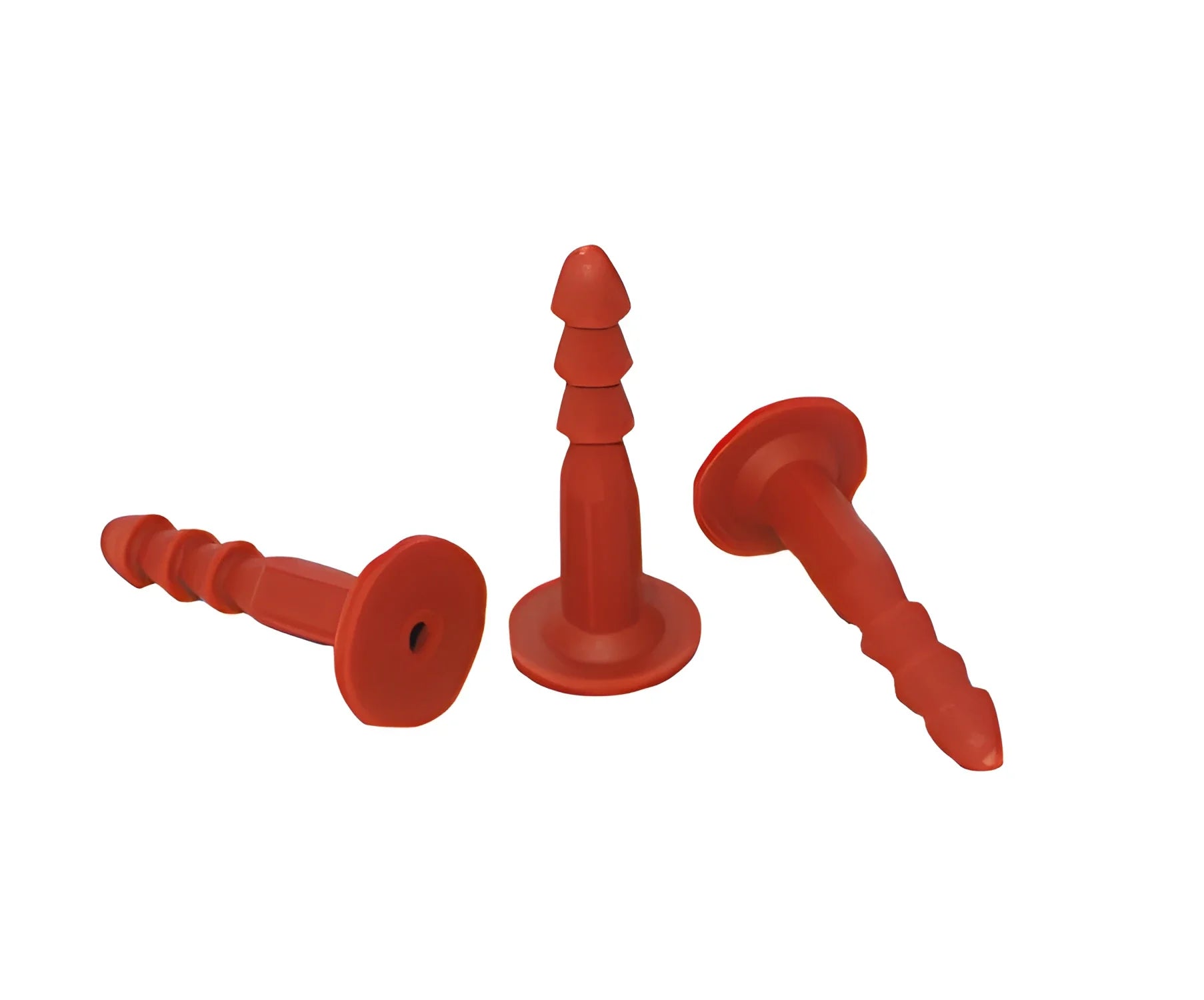

• CDM NuSeal Plugs (A2, A3) – For fixing the membrane to vaulted ceilings and sloping soffits
• CDM Helical MultiPlug Ties (WT 155 to 325) – For fixing into the head of the CDM MultiPlugs for the tying in of block or brick internal walls that are built in front of the Newton CDM System

• Insulation Fixing Plugs (IF90) – For fixing CDM Fibran XPS-500C insulation spacer to the slab/raft where lightweight floor finishes are to be used

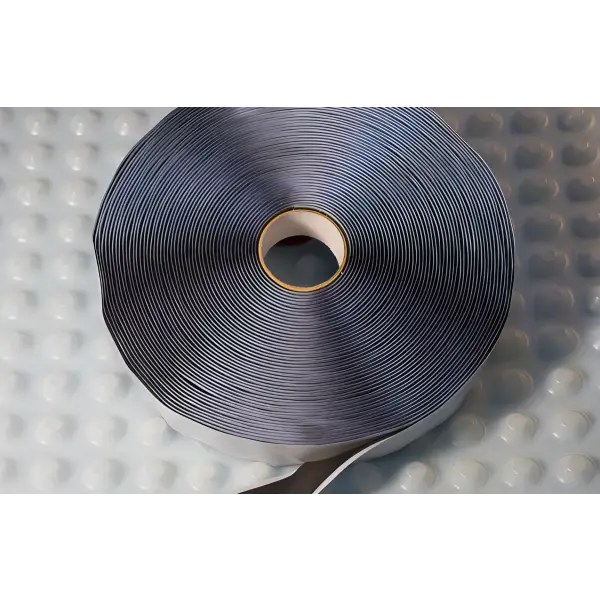

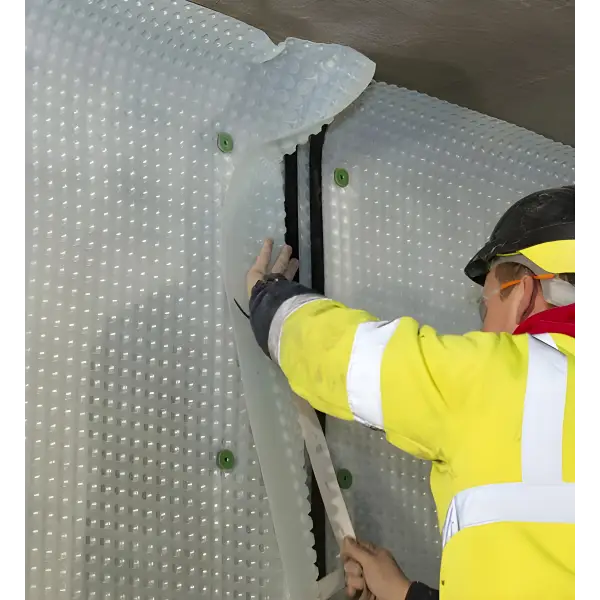

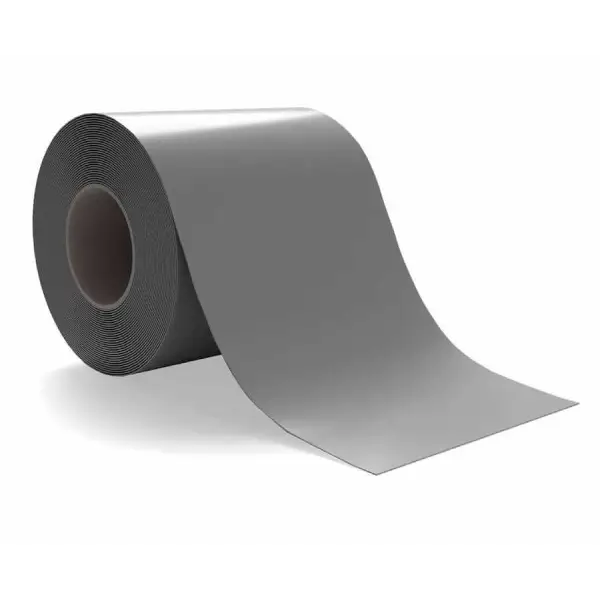

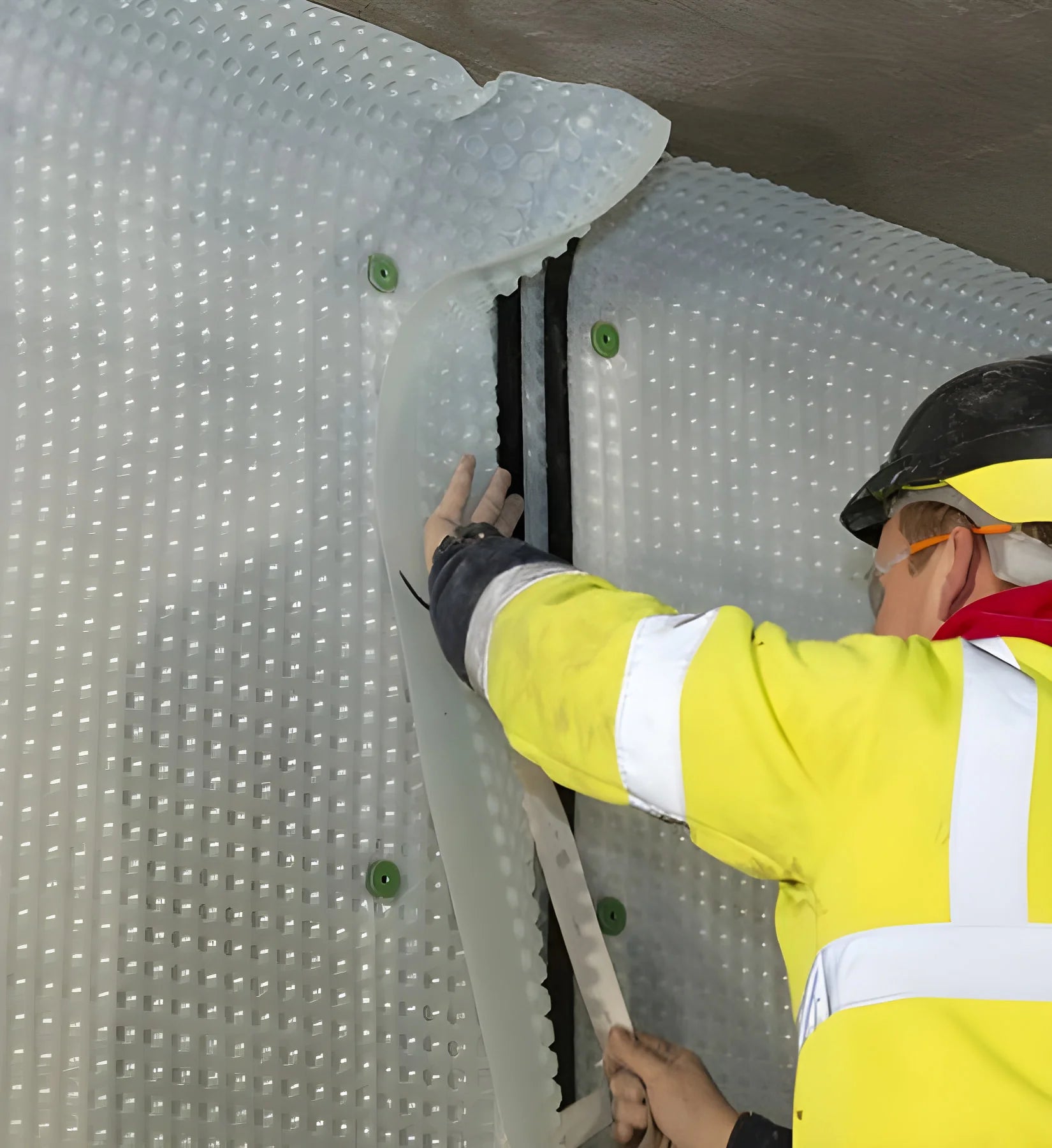

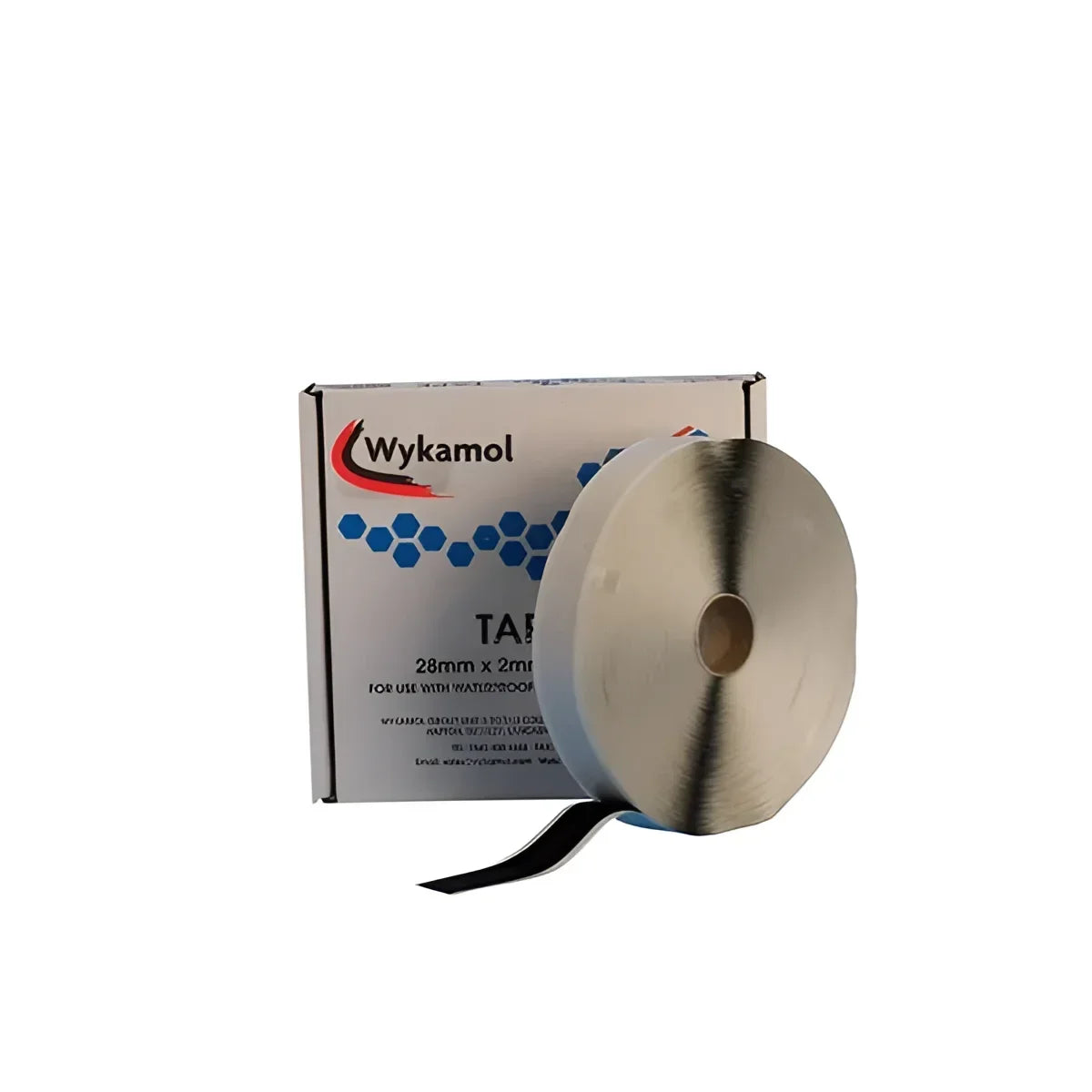

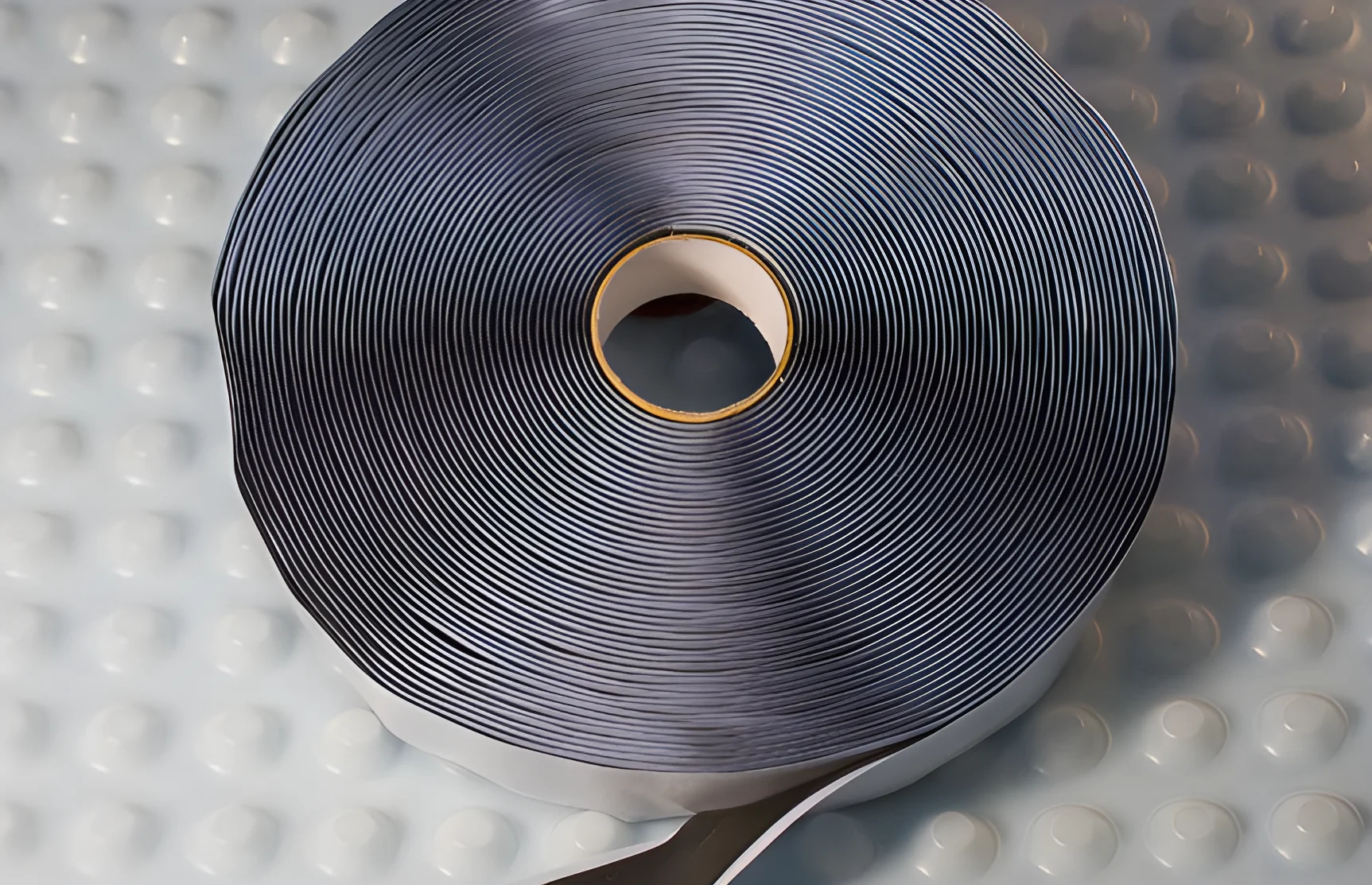

• CDM Tape (A5, A5W) – Double-sided butyl sealing tape used to seal adjacent sheets of Newton membranes

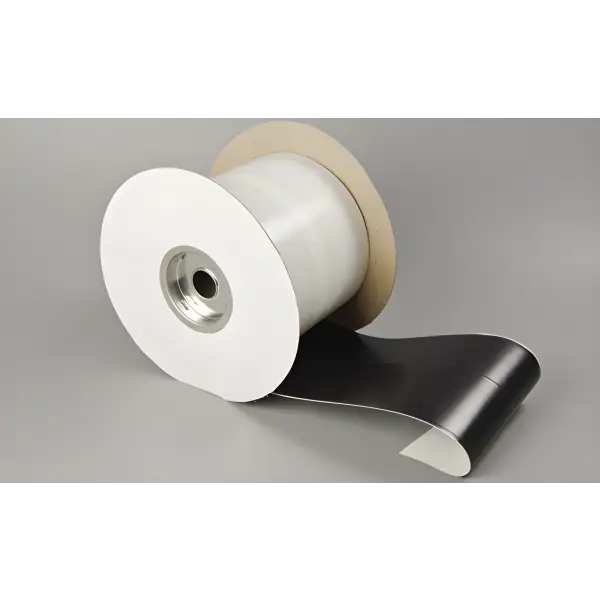

• CDM OverTape (A7, A8, A9) – Single-sided butyl tape used to seal the Newton PAC-500 Radon System and around protrusions at 3D detailing

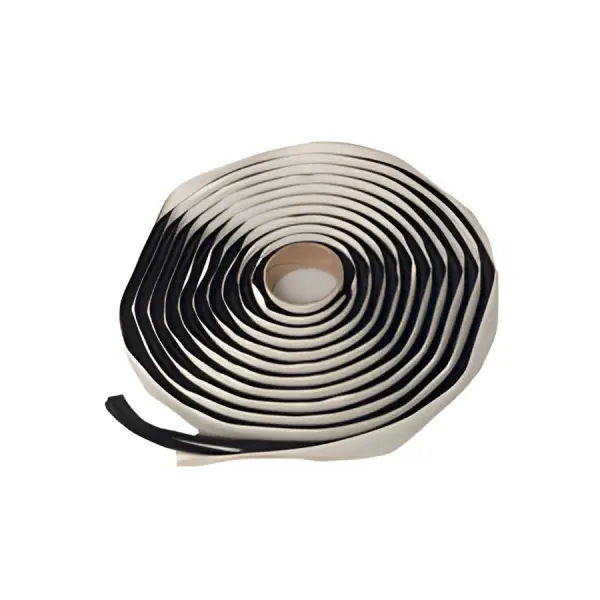

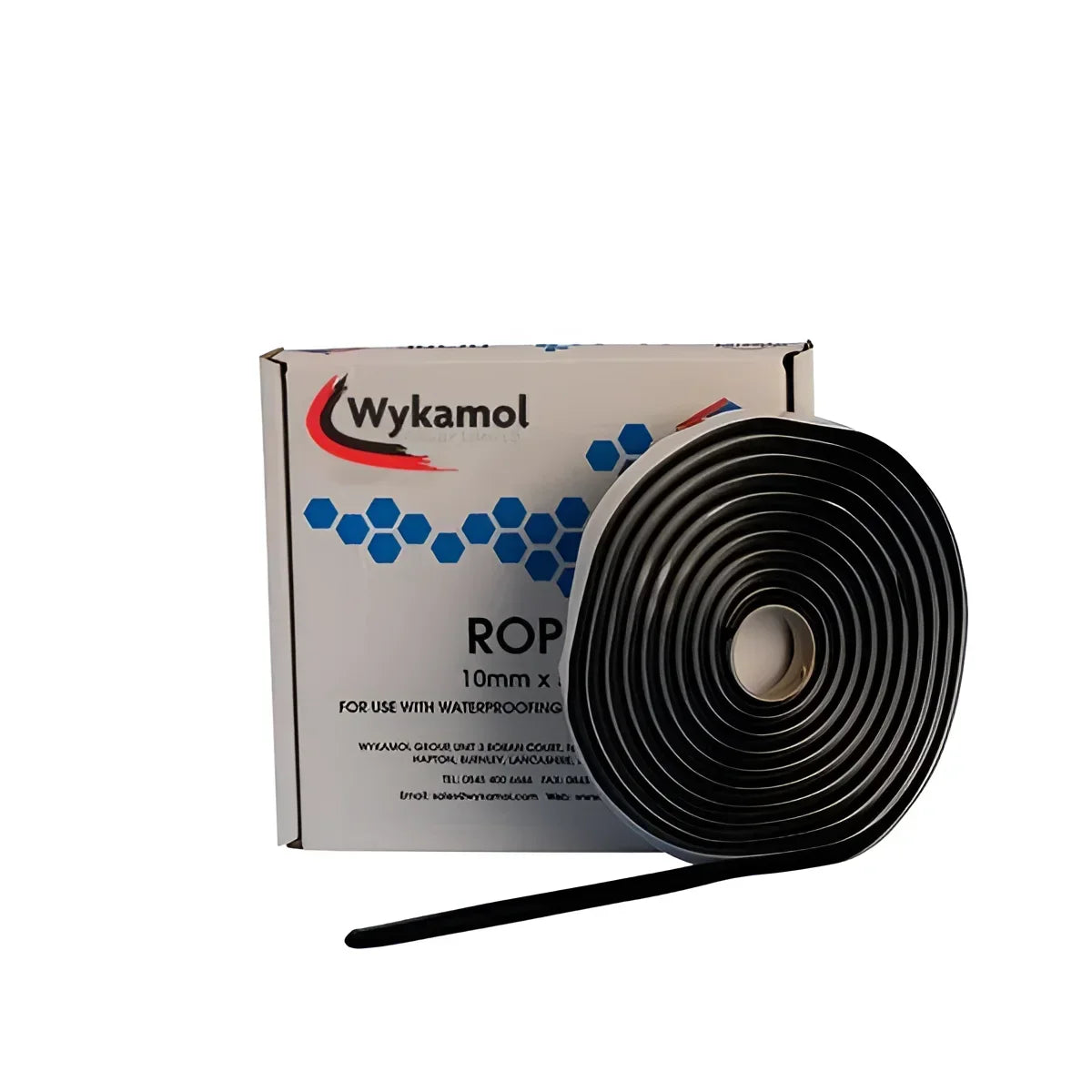

• CDM Rope (A6, A6w) – Butyl bead for sealing the base of the CDM NuSeal Plugs for fixing to vaults and soffits

• Mesh Tape (A25) – A meshed variant of the CDM OverTape for Newton meshed membranes

• CDM Condensation Strip (M14) – For collecting condensation into the CDM BaseDrain and not on internal finishes

• Pipe Collar (A35) – Preformed pipe seal for sealing a flat membrane to a protruding pipe

• Newtonite Pipe Sleeve (BX3) – Preformed waterproof sleeve for 110mm pipe

• Newtonite Joist Liner (BX4) – Waterproof lining for steels and joist ends, size: made to order


Downloads

•  Download CDM System Ancillaries Data Sheet

•  Download CDM Condensation Strip Declaration Of Performance
