Description

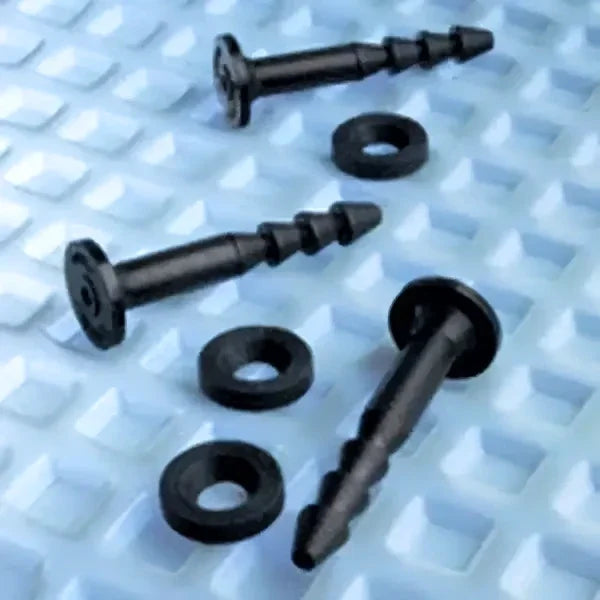

RIW Cavity Drain Brick Plugs
RIW Cavity Drain Brick Plugs are specially designed fixings for mechanically securing RIW Cavity Drain R20 and RIW Cavity Drain R7 studded membranes to masonry and concrete walls in below-ground waterproofing systems. Manufactured from durable polyacetal, each 75mm long plug features a uniquely shaped 30mm conical head that matches the profile of the cavity drain membrane studs, ensuring effective load transfer and a secure fixing without compromising the waterproofing system. When used in conjunction with RIW Sealing Rope, Brick Plugs create a sealed fixing point that maintains the integrity of the cavity drainage membrane.
Designed for use in pre-drilled soft brick or stone substrates, RIW Brick Plugs provide a reliable fixing solution for dry lining systems, timber battens and masonry lining walls. A 5mm hole through the shank allows additional fixings such as screws or screw-in brick ties to be installed, making them an essential component of professional basement waterproofing and cavity drain membrane installations.
Key Benefits
- Designed for RIW Cavity Drain R20 and R7 membranes
- Securely fixes cavity drain membranes to masonry and concrete
- Manufactured from durable polyacetal
- Conical head matches membrane stud profile
- Provides excellent load transfer to the substrate
- Creates sealed fixing points when used with RIW Sealing Rope
- Suitable for dry lining systems
- Compatible with timber battens and masonry lining walls
- Simple installation into pre-drilled masonry
- Ideal for professional basement waterproofing systems
Applications
- Basement waterproofing
- Cavity drain membrane installations
- Below-ground waterproofing
- Masonry walls
- Concrete walls
- Soft brick substrates
- Dry lining systems
- Timber batten installations
- Masonry lining walls
Technical Information
- Product Type: Cavity drain membrane fixing
- Material: Polyacetal
- Length: 75mm
- Plug Diameter: 10mm
- Head Diameter: 30mm
- Pilot Hole Diameter: 10mm
- Minimum Drill Depth: 90mm
- Screw Hole Diameter: 5mm
- Suitable Screw Diameter: 5–6mm
- Maximum Screw Penetration: 30mm
- Compatible Membranes:
- RIW Cavity Drain R20
- RIW Cavity Drain R7
- Pack Size: 100 plugs per box
Frequently Asked Questions
What are RIW Cavity Drain Brick Plugs used for?
They are used to mechanically secure RIW Cavity Drain R20 and R7 membranes to masonry and concrete walls in below-ground waterproofing systems.
Do I need to use Sealing Rope with the Brick Plugs?
Yes. RIW recommends using Sealing Rope with the Brick Plugs to create a sealed fixing through the cavity drain membrane.
What size hole should I drill?
A 10mm diameter hole should be drilled to a minimum depth of 90mm in suitable soft brick or stone.
Can the Brick Plugs support timber battens?
Yes. The 5mm hole through the shank allows screws to secure timber battens or screw-in brick ties as part of a dry lining or masonry lining system.
How many Brick Plugs are supplied per box?
Each box contains 100 RIW Cavity Drain Brick Plugs.
