Description

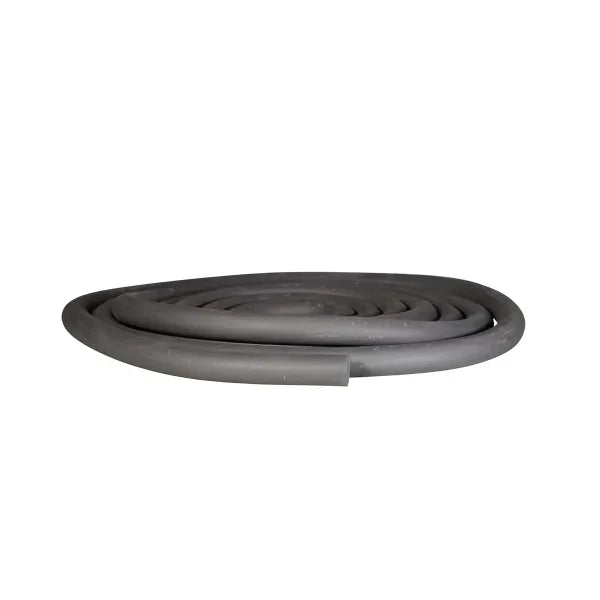

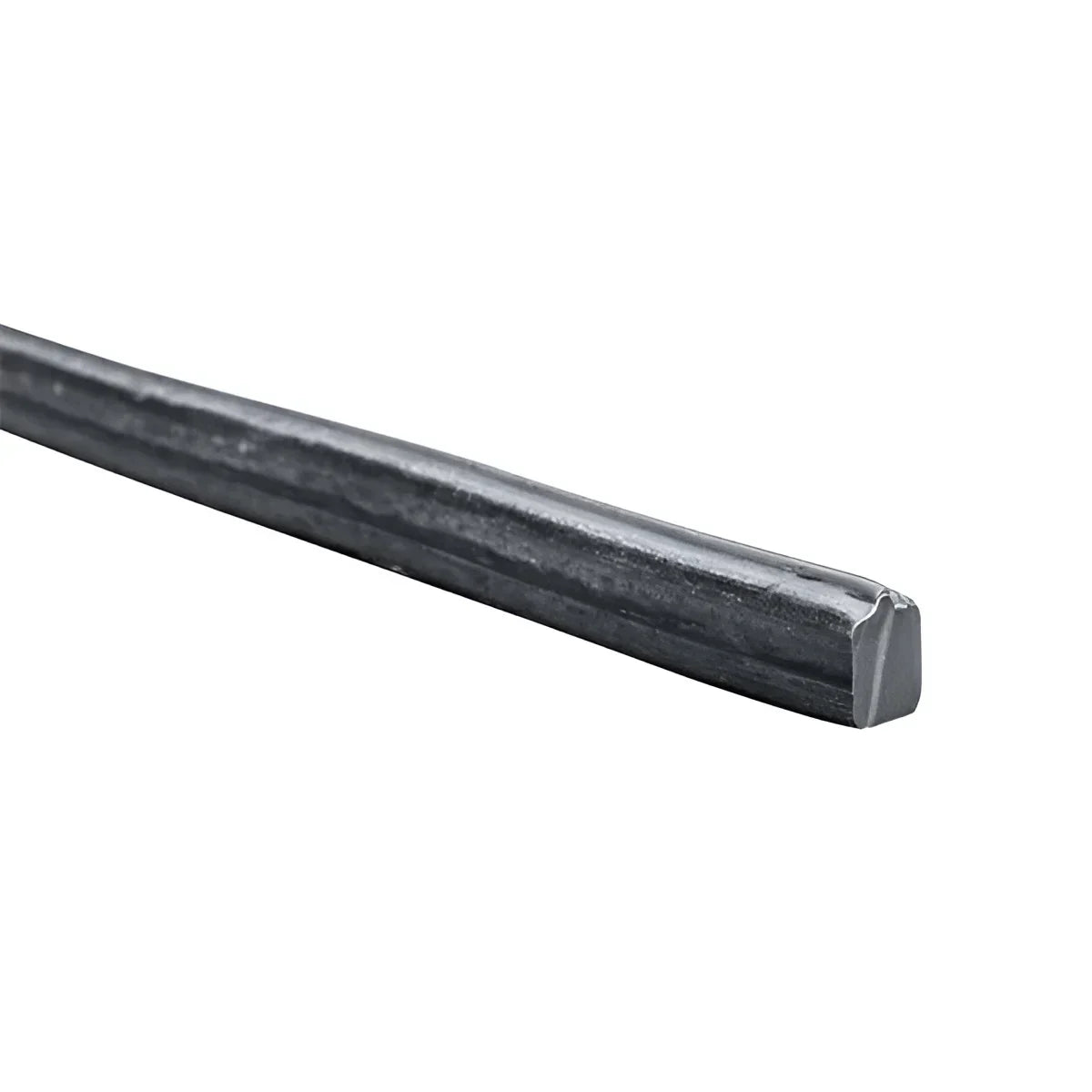

SwellMax Waterstop PLUS – Advanced Bentonite Waterbar for Concrete Joints
SwellMax Waterstop PLUS is a high-performance bentonite-based waterbar with a unique protective coating, preventing premature swelling for up to 3 days. Engineered to stop water ingress through non-movement joints in reinforced concrete structures, this waterbar ensures a long-lasting and secure seal.
Key Features & Benefits
✔ Independently tested for 7 Bar of water pressure resistance
✔ Special protective coating prevents premature swelling for up to 3 days
✔ Suitable for non-movement construction joints in reinforced concrete
✔ WRAS Approved – Safe for use in potable water applications
✔ Up to 500% swelling capacity for maximum water-tight performance

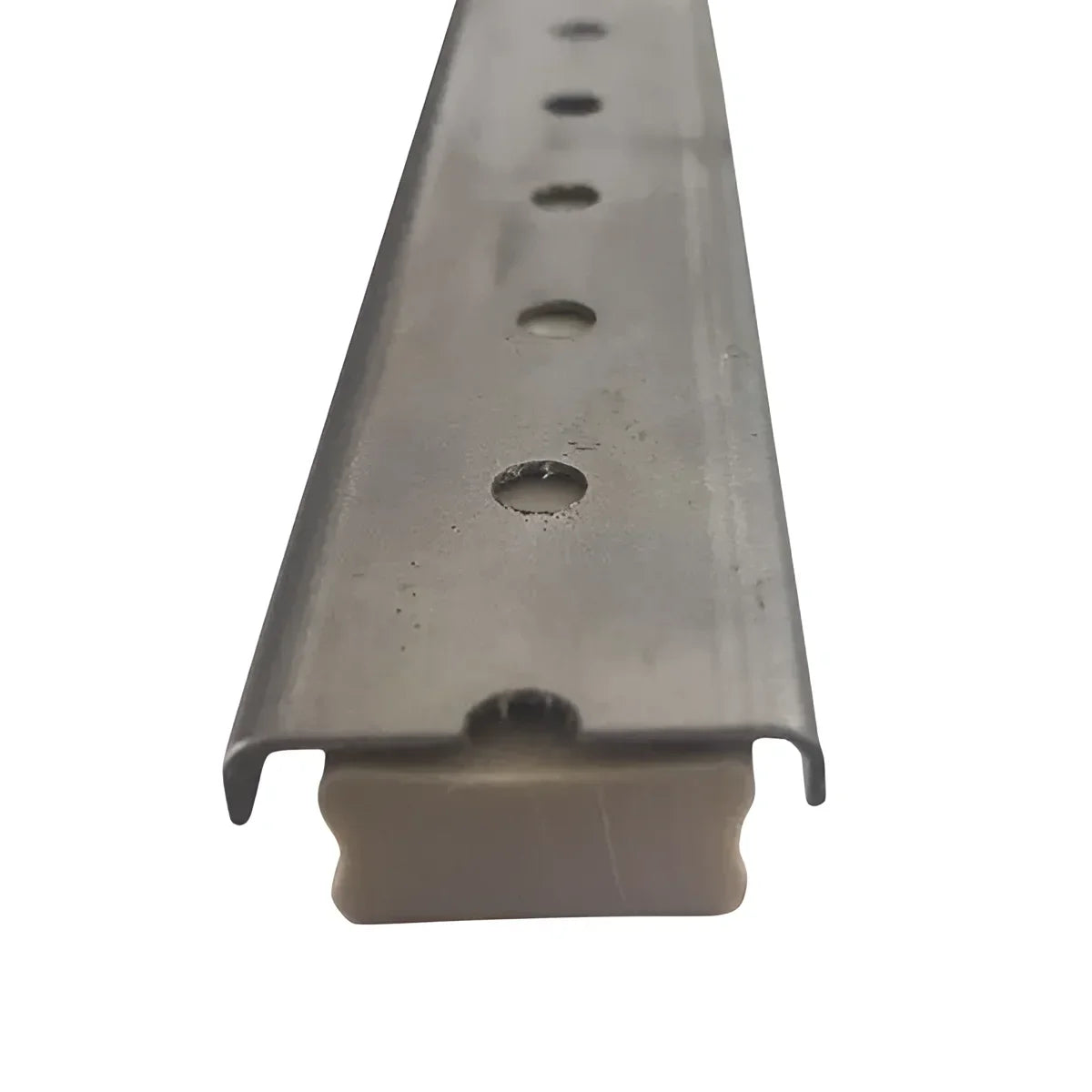

✔ Can be installed using adhesive or fixing rail
✔ Ideal for vertical & horizontal applications
✔ No sticky protection tape needed before use
✔ Durable – Swelling and shrinking process lasts for decades
Applications
✅ Precast concrete wall panel systems
✅ Shield-driven tunnels, such as subways
✅ Water supply & sewage systems
✅ Basement concrete slabs

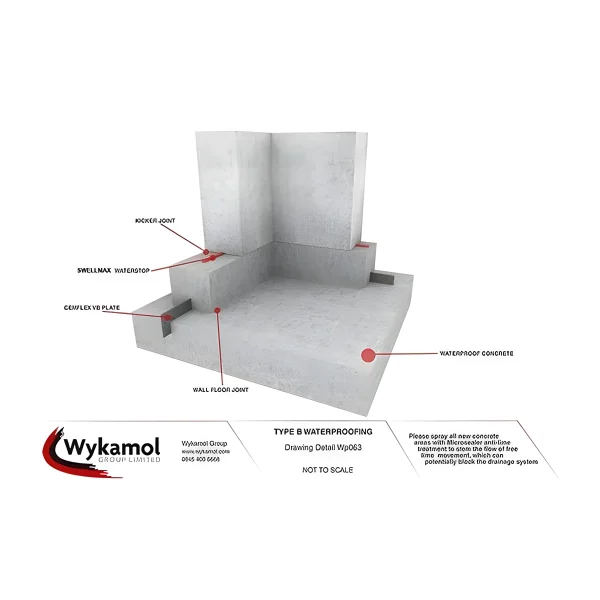

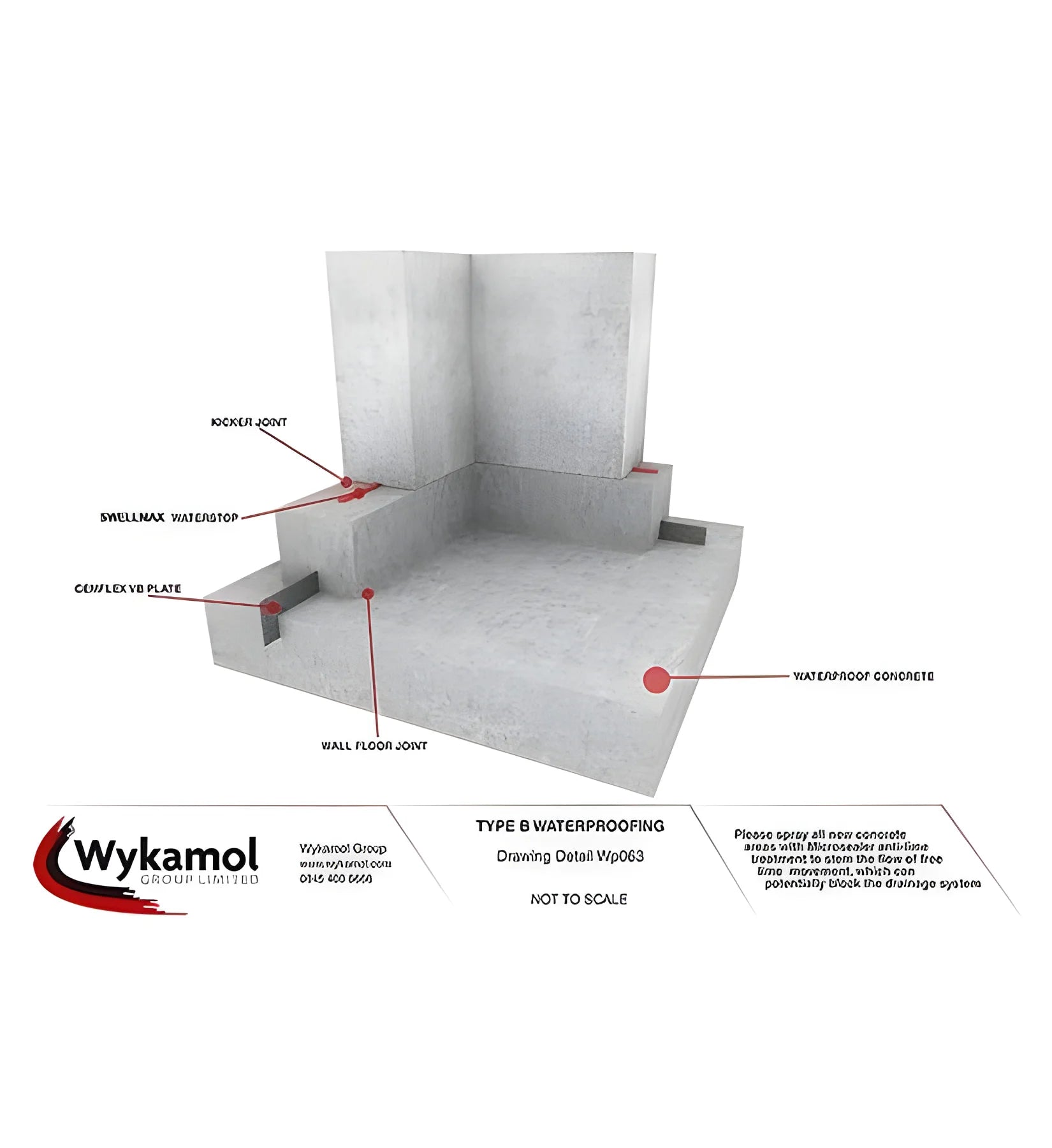

✅ Vertical and horizontal concrete joints
Why Choose SwellMax Waterstop PLUS?
With its innovative delay-coating technology, SwellMax PLUS prevents premature activation, ensuring precise and controlled expansion. It provides a robust, flexible, and long-term solution for waterproofing non-movement concrete joints in various construction applications.
🔹 Order now for next-day UK delivery! 🚛💧
TDS
TDS SwellMax Waterstop WPTDS26 2019 03
Details
Product Description | SwellMAX Waterstop |
Product Code | SWELLMAXPLUS20 |
Packaging and Size | 20mm x 25mm |
Coverage | 30 m (each pack contains 4 x 5 m rolls) |
Storage | Store in dry conditions, protected from direct sunlight, forst and water, in temperatures > 5°C and < 70°C. Please note once wet this product will swell and will not return to original size. |
Life Expectancy | 3 years when stored correctly. |
