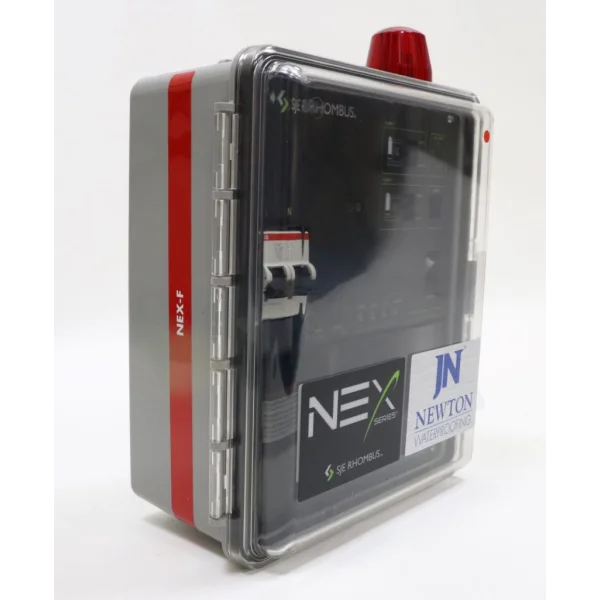

NEX Pump Control Panel

The Newton NEX is a sophisticated duplex pump control panel with many unique features, that includes advanced pump operation, protection, diagnostic and telemetry features. The panel is available in two versions, one suitable for pumping foul water and a version designed to be used for pumping surface and groundwater that features separate mains and inverter power supplies:

• NEX-F for foul pumping

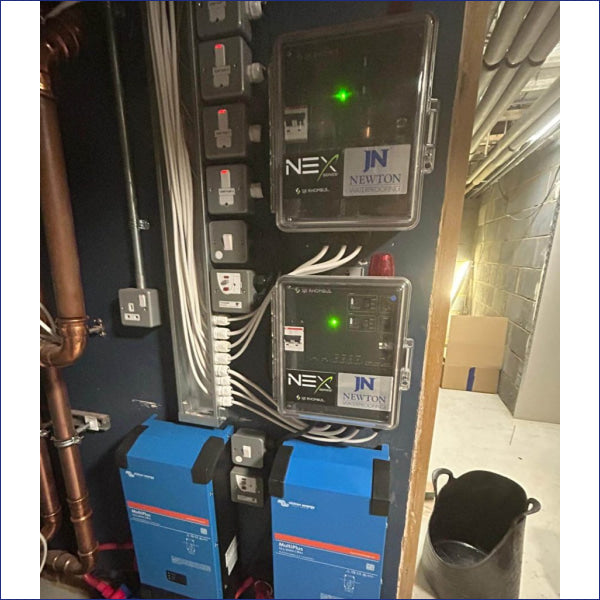

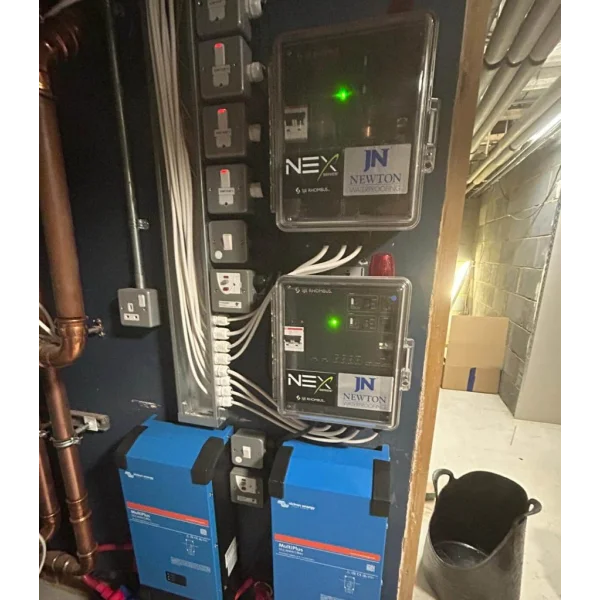

• NEX-CDM for surface and groundwater pumping operations for use with the Newton CDM System

Self-diagnostic programs test the pumps on a weekly basis to prevent clog or seizure and to test pump performance parameters.

The NEX control panel will operate two 230V AC pumps to a maximum rated current of 12.5 amps and features advanced Machine Learning Technology developed specifically for pumping applications. The proprietary algorithm continuously monitors the tank fill time and discharge times and “learns” what is normal. Should the pump performance drop due to clogging, impeller damage, or changes in head conditions, the PSE function will trigger an alarm. This intelligent solution is not affected by flow variations into the tank and can detect pump Dry Run conditions.

Key Benefits

• High level alarm
• Pump fault detection and automatic pump switching
• Multiple pump control modes
• Float switch fault detection
• Weekly pump test run function
• Protection against short circuits, pump overload and pump over-temperature
• Intelligent system fault detection, including pump clogged, shaft / impeller damage, check valve damage, pipe broken, dry run, etc
• 360° visual alarm beacon

Typical Applications

• Newton CDM Systems cavity drain waterproofing installations
• Lift pump chambers
• Sump pump basins
• Holding Tanks
• Other ground water and wastewater/sewage applications

Data Sheets

• NEX Control Panel Data Sheet
• NEX-CDM Quick Guide
• NEX CE12 Operational Manual
• NEX Series CE12 Features
