Newton HydroSeal Monoflex Adhesive (Base) – High-Performance Joint Sealing System
Product Code: HS-MFA

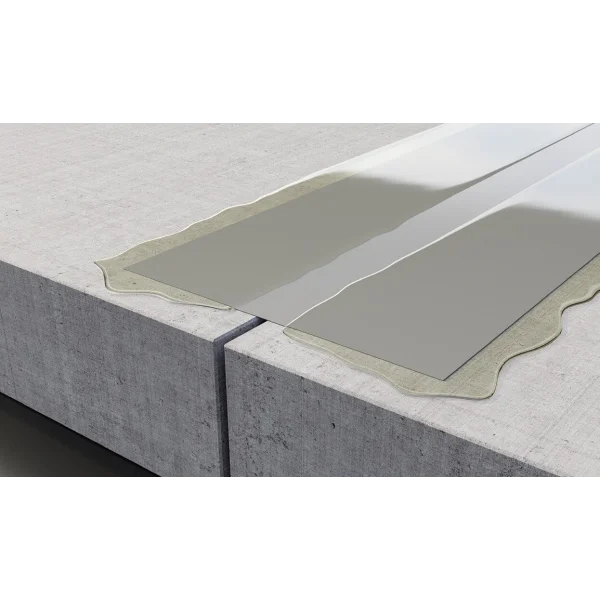

Newton HydroSeal Monoflex Adhesive is a two-component, solvent-free epoxy adhesive designed for sealing construction, movement, and expansion joints. It is part of the Newton HydroSeal Monoflex System, an advanced joint sealing solution used in below-ground and water-retaining structures where high movement and water resistance are required.
This high-performance bonding agent is specifically formulated for use with Newton HydroSeal Monoflex waterproofing tape, ensuring long-lasting adhesion even in damp conditions. The HydroSeal Monoflex system is an integral component of the Newton HydroSeal System, providing internally applied Type A waterproofing for projects requiring maximum water ingress resistance.
Key Benefits
✔ No Primer Required – Saves time and costs on-site.
✔ Excellent Adhesion – Bonds to most construction materials, including damp surfaces.
✔ High Chemical Resistance – Durable against water, weathering, and aggressive chemicals.
✔ Easy to Mix & Apply – Colour-coded components ensure correct and simple mixing.
✔ Resists High Water Pressure – Suitable for extreme waterproofing applications.
✔ Flexible & Durable – Withstands significant joint movement without compromising waterproof integrity.
Typical Applications
🏗 Waterproofing & Joint Sealing for:
- Construction & movement joints
- Pipe penetrations & cracks
- Basements, tunnels & culverts
- Sewage & water treatment plants
- Swimming pools & hydroelectric structures
HydroSeal Monoflex Tape – Technical Data
Property |
Result |
Material |
Flexible polyolefine (FPO) |
Thickness |
1.0 mm |
Weight |
930 g/m² |
Tear Resistance (Lengthwise/Across) |
15 N/mm² |
Elongation at Break (Lengthwise/Across) |
620% / 670% |
Water Tightness – 60 kPa/24h |
Watertight |
Water Tightness – 400 kPa/72h |
Watertight |
Burst Pressure |
≥ 4.0 bar |
UV Resistance |
≥ 6500 hours |
Reaction to Fire |
Class E |
HydroSeal Monoflex Adhesive – Technical Data
Property |
Result |
Type |
Two-component liquid epoxy adhesive |
Colour |
Light grey |
Specific Gravity |
1.5 g/cm³ |
Application Temperature Range |
+3°C to +30°C |
Curing Time (20°C) |
10 to 12 hours |
Compressive Strength (1 day/7 days) |
40 MPa / 75 MPa |
Tensile Strength |
18 MPa |
Shrinkage on Curing |
Negligible |
Moisture Resistance (28 days) |
< 0.4% |
Product Data
📦 Product Codes & Packaging:
-
HS-MF-100: 100 mm x 20 m roll (2 m²)
-
HS-MF-200: 200 mm x 20 m roll (4 m²)
-
HS-MFA: 5 kg adhesive (in two containers)
📏 Colour: Grey
🔗 For expert guidance, call our technical team at 01268 472358.
