Description

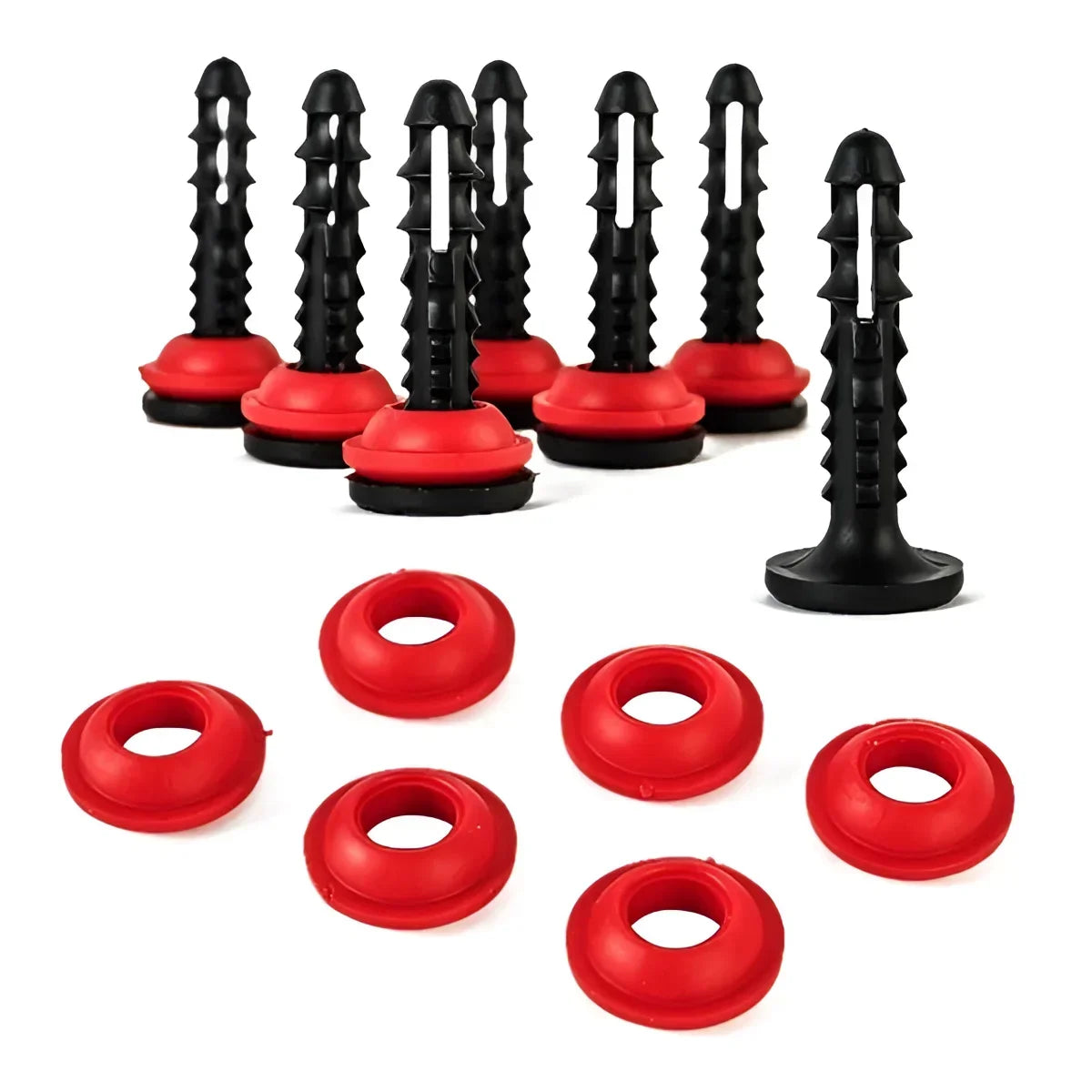

Wykamol CM Brick Plugs – 60mm Cavity Drain Membrane Fixings (Pack of 100)
Wykamol CM Brick Plugs are specialist mechanical fixings designed to secure cavity drain membranes to suitable masonry substrates in basement, cellar and other waterproofing applications. Compatible with Wykamol CM3, CM8 and CM20 cavity drain membrane systems, these fixings provide a secure attachment for membrane installations.
Featuring a reinforced 35mm serrated head and 60mm fixing length, the plugs are available with or without pre-fitted thermoplastic elastomer waterproof seals. Replacement seals can also be purchased separately. Each standard pack contains 100 plugs or 100 replacement seals, depending on the selected option.

Complete Your Wykamol Cavity Drain System
Installing cavity drain membranes? Make sure you have the essential fixings, jointing tapes and sealing accessories required for your installation. Clever Shield stocks a comprehensive range of Wykamol waterproofing products, allowing you to purchase compatible system components together.
Wykamol Cavity Drain Membranes
Choose from the Wykamol CM membrane range for different cavity drainage and waterproofing applications.
- Wykamol CM3: 3mm studded cavity drain membrane.
- Wykamol CM8: 8mm studded cavity drain membrane.
- Wykamol CM20: 20mm high-capacity cavity drain membrane.
- Wykamol Geotextile Membranes: Drainage and protection membranes incorporating a bonded filtration layer.
Wykamol Membrane Jointing & Sealing Tapes
Suitable jointing and sealing products are important when completing membrane overlaps, junctions and detailing. Explore the Wykamol range:
- Double-Sided Joint Tape: For joining compatible membrane overlaps.
- Overseal Tape: For suitable membrane joint sealing and detailing.
- Corner Strip Tape: For floor-to-wall junctions and corner details.
- Membrane Sealing Accessories: Additional products for compatible membrane installations.
Key Features & Benefits
- Compatible with CM Membranes: Designed for Wykamol CM3, CM8 and CM20 cavity drain membrane systems.
- 60mm Fixing Length: Designed for securing membranes to suitable masonry substrates.
- 35mm Reinforced Head: Provides a substantial fixing head for membrane installation.
- Serrated Head Design: Provides a suitable surface for subsequent finishing applications.
- Optional Waterproof Seals: Thermoplastic elastomer seals help seal membrane fixing penetrations when correctly installed.
- Multiple Substrates: Suitable for use with appropriate brick, stone and concrete backgrounds.
- Convenient Pack Size: Supplied in packs of 100 for everyday installation requirements.
- Replacement Seals Available: Separate packs of 100 replacement seals can also be purchased.
Typical Applications
- Basement and cellar waterproofing.
- Fixing Wykamol CM3 cavity drain membranes.
- Fixing Wykamol CM8 cavity drain membranes.
- Fixing Wykamol CM20 cavity drain membranes.
- Below-ground cavity drainage systems.
- Retaining walls and suitable masonry structures.
- Above-ground damp-proofing and waterproofing applications.
Available Product Options – Packs of 100

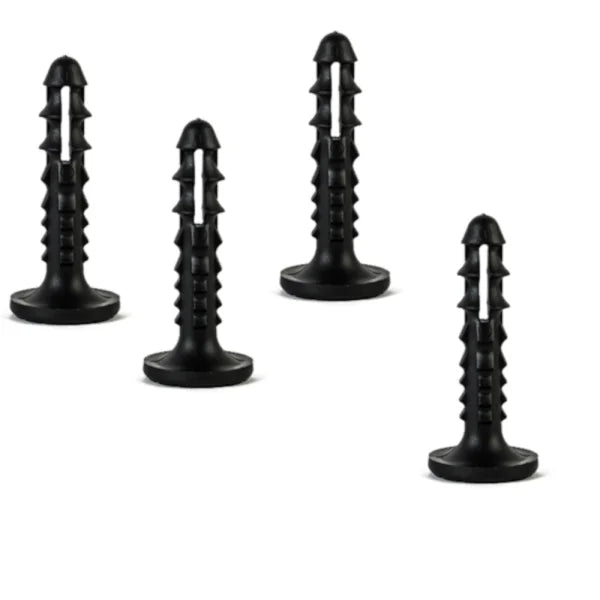

- CM Brick Plugs Without Seals: Pack of 100.
- CM Brick Plugs With Seals: Pack of 100.

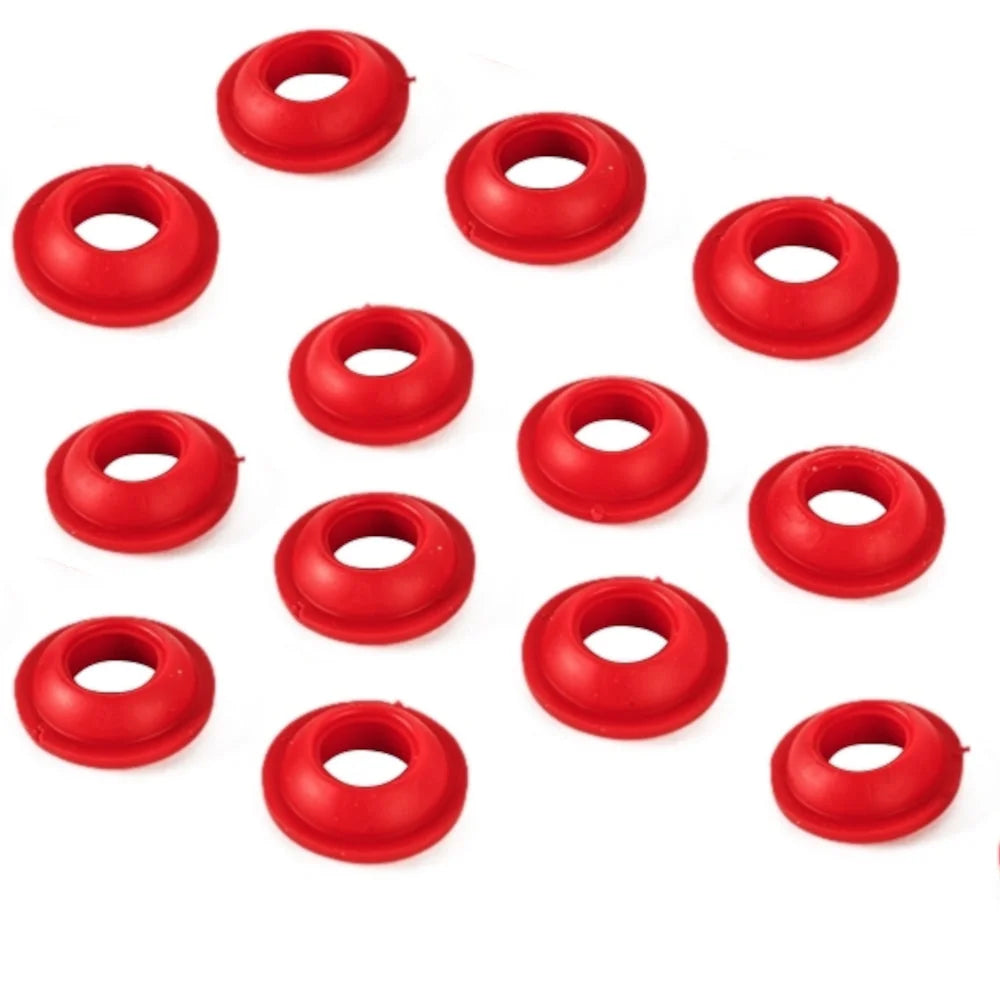

- CM Brick Plug Seals Only: Pack of 100 replacement seals.
Select the required product option from the available variants. Please check carefully when ordering replacement seals only, as these do not include brick plugs.
Installation Instructions
Wykamol CM Brick Plugs are installed through the cavity drain membrane and into a suitable prepared masonry substrate.
- Position the membrane: Place the cavity drain membrane against the prepared wall surface.
- Drill the fixing hole: Drill a 10mm diameter hole through the fixing position and into the substrate, to a sufficient depth for the 60mm plug.
- Check the seal: Ensure the appropriate sealing component is fitted where required.
- Insert the plug: Push the plug through the membrane and into the drilled hole.
- Secure the fixing: Gently tap the plug until the head sits flush against the membrane and the sealing component is correctly compressed.
- Check the installation: Ensure the membrane is securely held and the fixing is correctly seated.
For below-ground waterproofing applications, use the appropriate sealed fixing arrangement and follow the manufacturer's installation guidance. Unsealed fixings should not be assumed to provide a watertight membrane penetration.
Technical Specifications
- Manufacturer: Wykamol
- Product: CM Brick Plugs
- Plug Length: 60mm
- Head Diameter: 35mm
- Plug Material: Polypropylene
- Seal Material: Thermoplastic elastomer
- Drill Hole Diameter: 10mm
- Colour: Green
- Pack Size: 100 plugs or 100 replacement seals, depending on selected option
- Compatible Membranes: Wykamol CM3, CM8 and CM20
- Suitable Substrates: Brick, stone and concrete
Storage Instructions
Keep the products in their original packaging and store away from extreme temperatures and direct sunlight. Protect plugs and seals from damage before installation.
Frequently Asked Questions
What are Wykamol CM Brick Plugs used for?
They are mechanical fixings used to secure Wykamol cavity drain membranes to suitable masonry substrates in waterproofing installations.
Are CM Brick Plugs compatible with CM3, CM8 and CM20?
Yes. They are designed for use with Wykamol CM3, CM8 and CM20 cavity drain membrane systems.
How many brick plugs are in a pack?
Each standard pack contains 100 brick plugs. The replacement seal option is also supplied in packs of 100.
Do the plugs come with waterproof seals?
There are options with pre-fitted thermoplastic elastomer seals and options without seals. Replacement seals can also be purchased separately.
What size drill bit is required?
The specified fixing hole diameter is 10mm. Refer to the manufacturer's technical datasheet for installation requirements.
Can the plugs be used in concrete and stone?
Yes. Wykamol identifies brick, stone and concrete as suitable substrate types, subject to the condition and suitability of the individual substrate.
What other products do I need when installing cavity drain membranes?
Depending on the installation, additional materials may include cavity drain membranes, double-sided joint tape, overseal tape, corner strip tape, drainage channels and sump pumping equipment. Explore our Wykamol membrane range and membrane tapes and fixings.
Technical Datasheet
Download Wykamol CM Membrane Plugs Technical Datasheet (PDF)
Installation & Product Videos
Clever Shield and Wykamol Waterproofing Products
Basement Conversion Video
Buy Wykamol Membrane Fixings from Clever Shield
Clever Shield supplies Wykamol cavity drain membranes, brick plugs, membrane jointing tapes, sealing accessories and associated waterproofing products throughout the UK.
Whether you need a single pack of 100 CM Brick Plugs, replacement seals, additional membrane rolls or jointing tapes, explore our range of Wykamol waterproofing products.
Need product information? Contact Clever Shield on 01268 472358.
Product Supply Notice: Clever Shield supplies waterproofing products and materials. We do not undertake project design or specify products for individual buildings. Customers should establish product suitability for their application and follow the manufacturer's current technical documentation and installation guidance.
