Description
Clever Shield Brick Plugs for Cavity Drain Membranes (100 Pack)
Clever Shield Brick Plugs are professional-grade fixings designed to securely anchor cavity drain membranes to masonry substrates in both above-ground and below-ground waterproofing systems.
Engineered for strength, reliability and fast installation, these membrane fixing plugs provide secure mechanical fixing into brick, blockwork, stone and concrete, ensuring membranes remain firmly fixed during installation and throughout the lifespan of the waterproofing system.
Each plug features a large 35mm serrated head designed to hold cavity membranes securely while allowing plaster or render finishes to bond effectively. For installations requiring enhanced protection, an optional waterproof sealing washer can be used to maintain the integrity of the waterproofing system.
Need technical advice or bulk pallet pricing?
📞 Call our waterproofing specialists on 01268 472358
Key Features
- Designed for cavity drain membrane installations

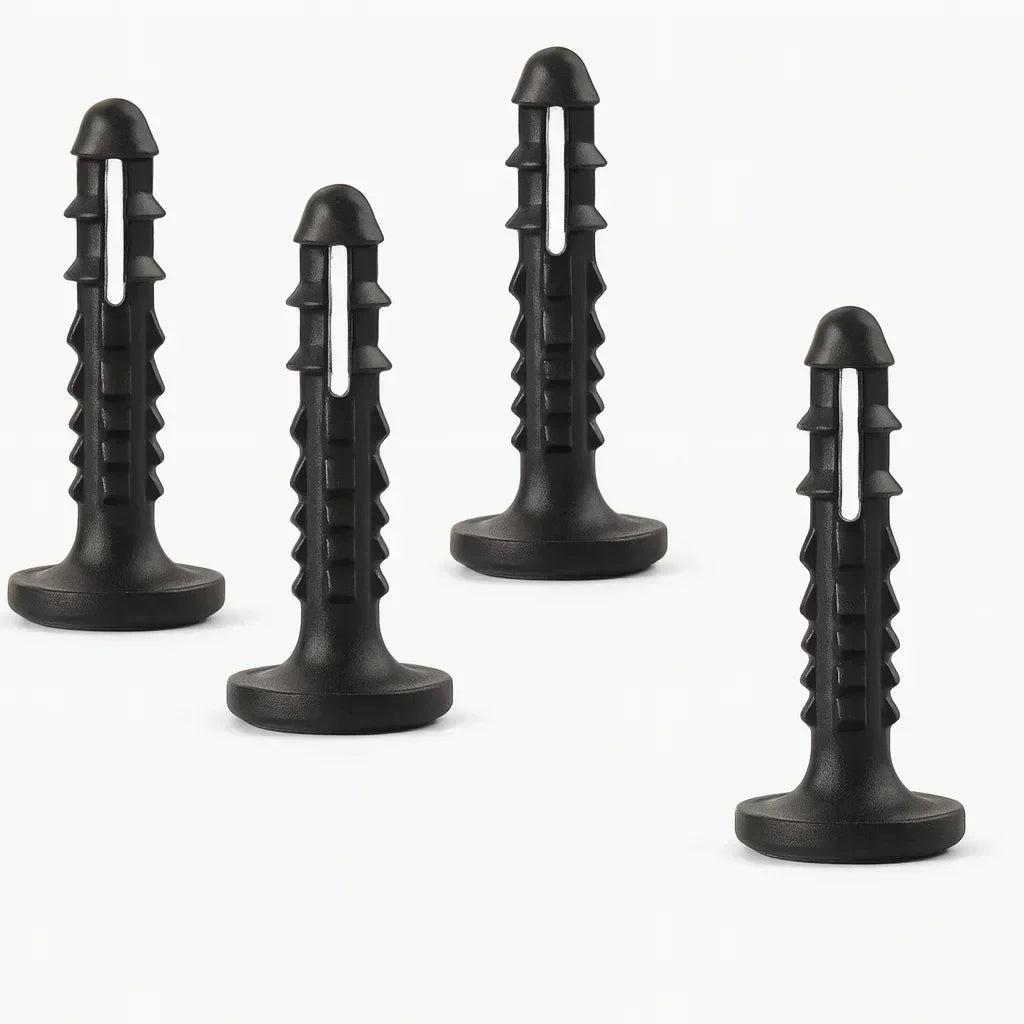

- Large 35mm serrated head for secure membrane fixing
- 60mm plug length suitable for masonry substrates
- Compatible with brick, stone, concrete and blockwork

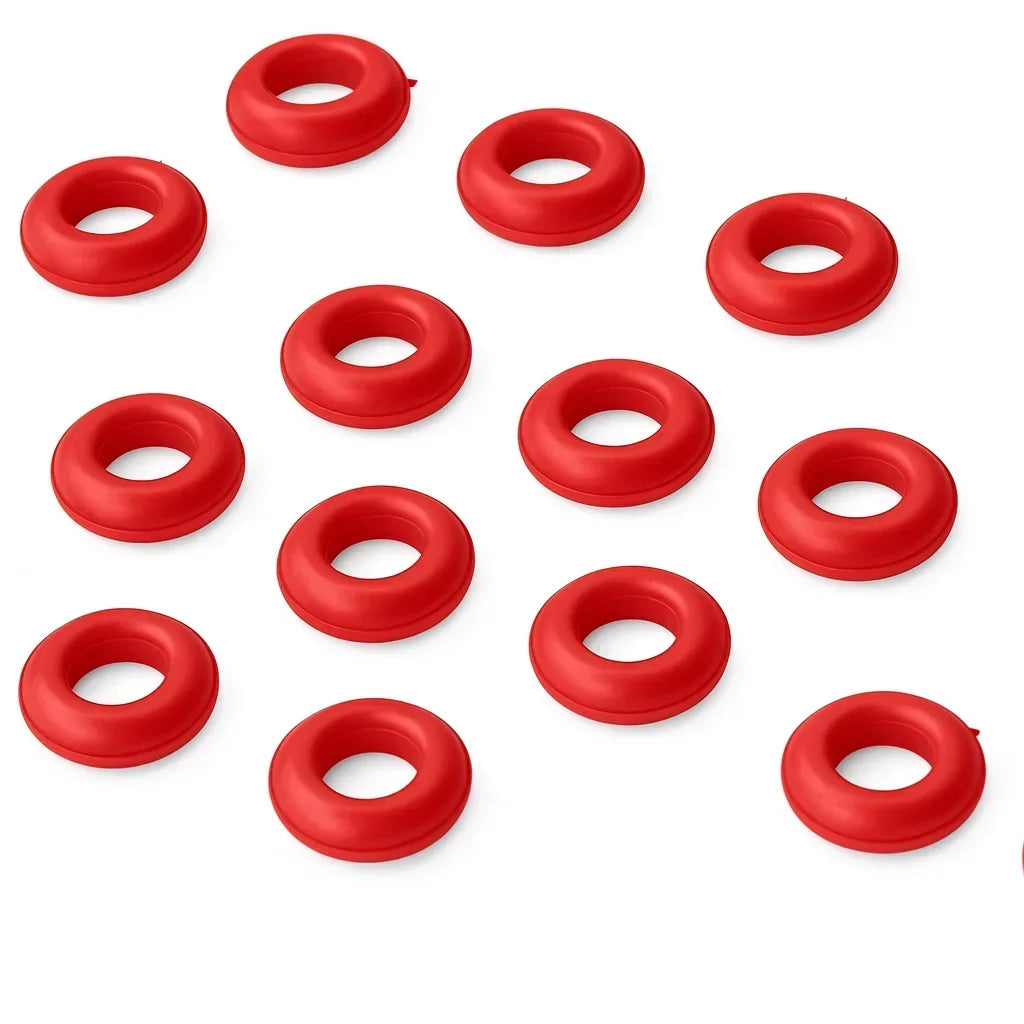

- Optional waterproof sealing washer for watertight fixing points
- Reinforced head design prevents installation damage
- Fast installation using standard SDS drill bits
- Ideal for basement waterproofing and tanking systems
Product Specifications
- Head Diameter: 35mm
- Plug Length: 60mm
- Drill Size Required: 10mm
- Material: High-strength polymer fixing plug
- Pack Size: Box of 100
- Application: Fixing cavity drain membranes to masonry walls
Installation Guide
- Drill a 10mm hole into the wall to a depth greater than 60mm.
- Position the cavity drain membrane against the wall.
- Insert the Clever Shield Brick Plug through the membrane into the drilled hole.
- Tap the plug gently with a hammer until the head sits flush with the membrane surface.
- Where required, install with a waterproof sealing washer.
Typical Applications
- Basement waterproofing systems
- Cellar conversions
- Cavity drain membrane installations
- Below-ground tanking systems
- Retaining walls
- Damp-proofing systems
Available Options
- Clever Shield Brick Plugs – Box of 100

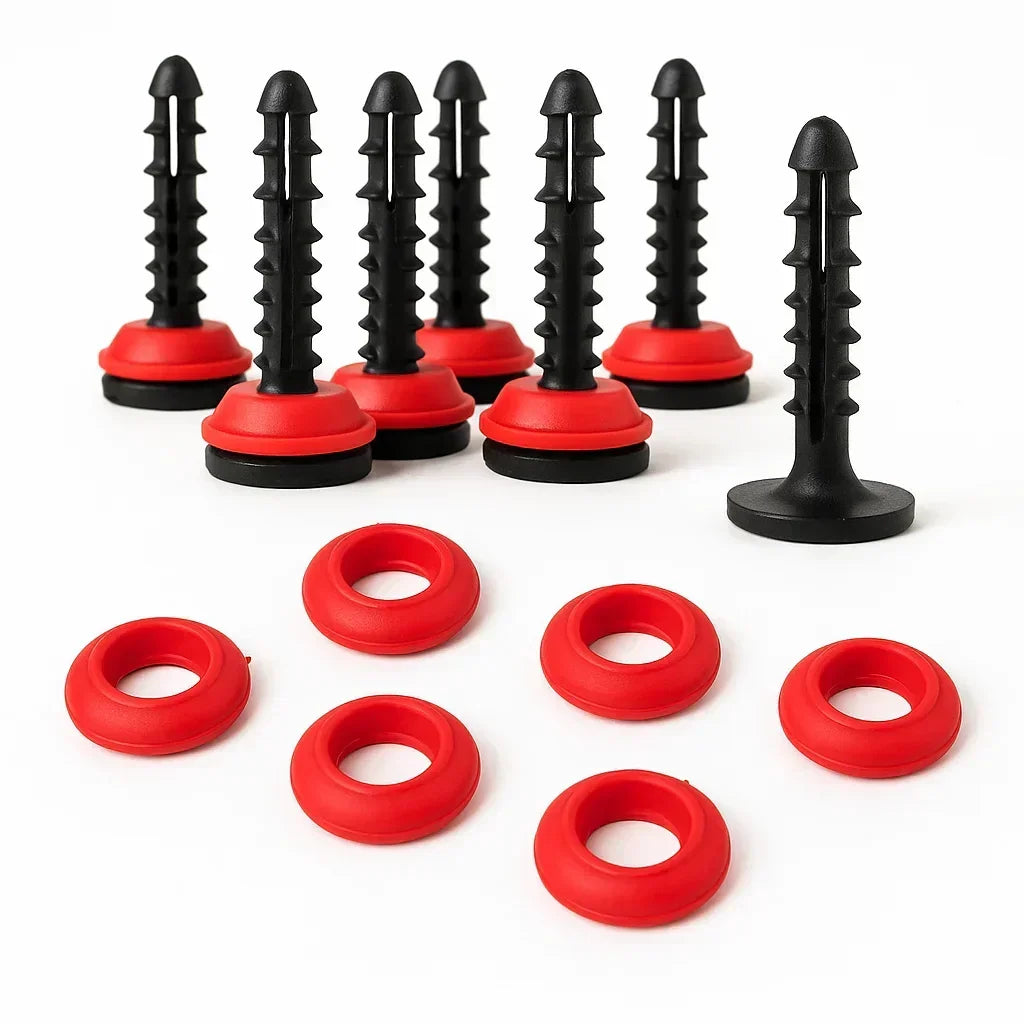

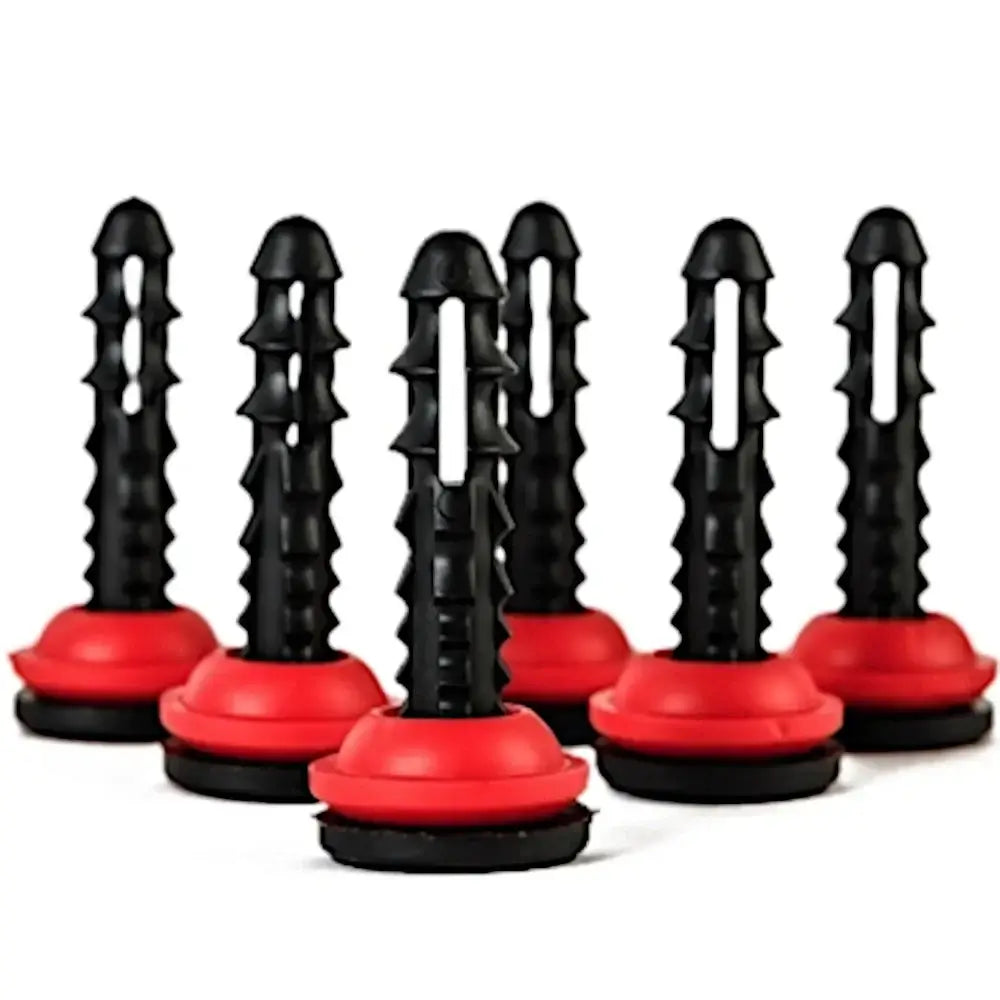

- Clever Shield Brick Plugs with Sealing Washers – Box of 100
- Clever Shield Sealing Washers – Pack of 100
Storage
Store in original packaging in a cool, dry environment. Protect from direct sunlight and extreme temperatures.
Technical Support
Clever Shield supplies professional waterproofing systems used by contractors, surveyors and structural waterproofing specialists across the UK.
If you need help selecting the correct membrane fixing system, contact our technical team.
📞 Technical Support: 01268 472358
📦 Bulk Orders & Pallet Rates Available for Orders over £600 inc VAT
Frequently Asked Questions
What are brick plugs used for in waterproofing systems?
Brick plugs are used to mechanically secure cavity drain membranes to masonry walls while allowing water to drain behind the membrane system.
Are Clever Shield brick plugs compatible with other membrane brands?
Yes. They are compatible with most cavity drain membrane systems used in basement waterproofing.
Do I need sealing washers?
Sealing washers are recommended for below-ground waterproofing systems where a watertight fixing point is required.
What drill bit size should I use?
A 10mm masonry drill bit should be used when installing Clever Shield Brick Plugs.
Can these be used in concrete walls?
Yes. Clever Shield Brick Plugs can be installed into brick, concrete, stone and blockwork substrates.
