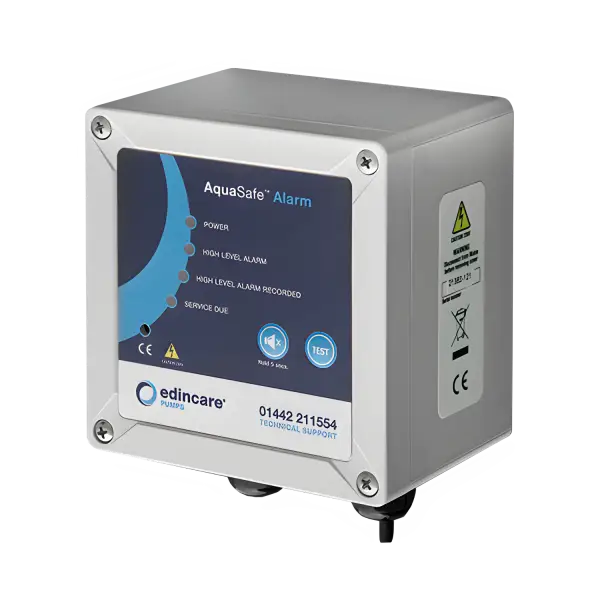

Aquasafe - High Level Water Alarm

Aquasafe Mini

The AquaSafe Alarm is a warning system which alerts the end user when there is:

• A power failure to the AquaSafe Alarm
• A high level situation in the chamber/sump
• A high level situation recorded
• A service due

There is a battery incorporated within the panel to power itself in case of mains power failure. The system activates via a mini float switch (sump float version available), which is located inside the chamber/sump. It is set to activate higher than the activation point of the primary pump.

Key Features

• Three volt-free contacts for connection to external systems
• Can be retrofitted
• An internal battery ensures the alarm can operate for 24 hours in the event of mains failure
• Includes a mini float switch with a 5m cable

The Aquasafe Sump

The AquaSafe Alarm is a warning system which alerts the end user when there is:

• A power failure to the AquaSafe Alarm
• A high level situation in the chamber/sump
• A high level situation recorded
• A service due

There is a battery incorporated within the panel to power itself in case of mains power failure. The system activates via a sump float switch (mini float version available), which is located inside the chamber/sump. It is set to activate higher than the activation point of the primary pump.

Key Features

• Three volt-free contacts for connection to external systems
• Can be retrofitted
• An internal battery ensures the alarm can operate for 24 hours in the event of mains failure
• Includes a double-action sump float with a 10m cable

Fox Float Switch with Anchor Weight 5m

• Maximum depth of 10 metres
• Single or double function

• Up to 60°C

• Cost effective

• Supplied with 10m cable


The FOX level switch is one of the most popular styles of level switch and is used throughout industry.

This level regulator is extremely cost effective and can be used in many ways for
automated control of liquid levels in various applications.

Water pumps

Professional plumbing systems automation
