Edincare 2198 Battery Backup Pump System 24V

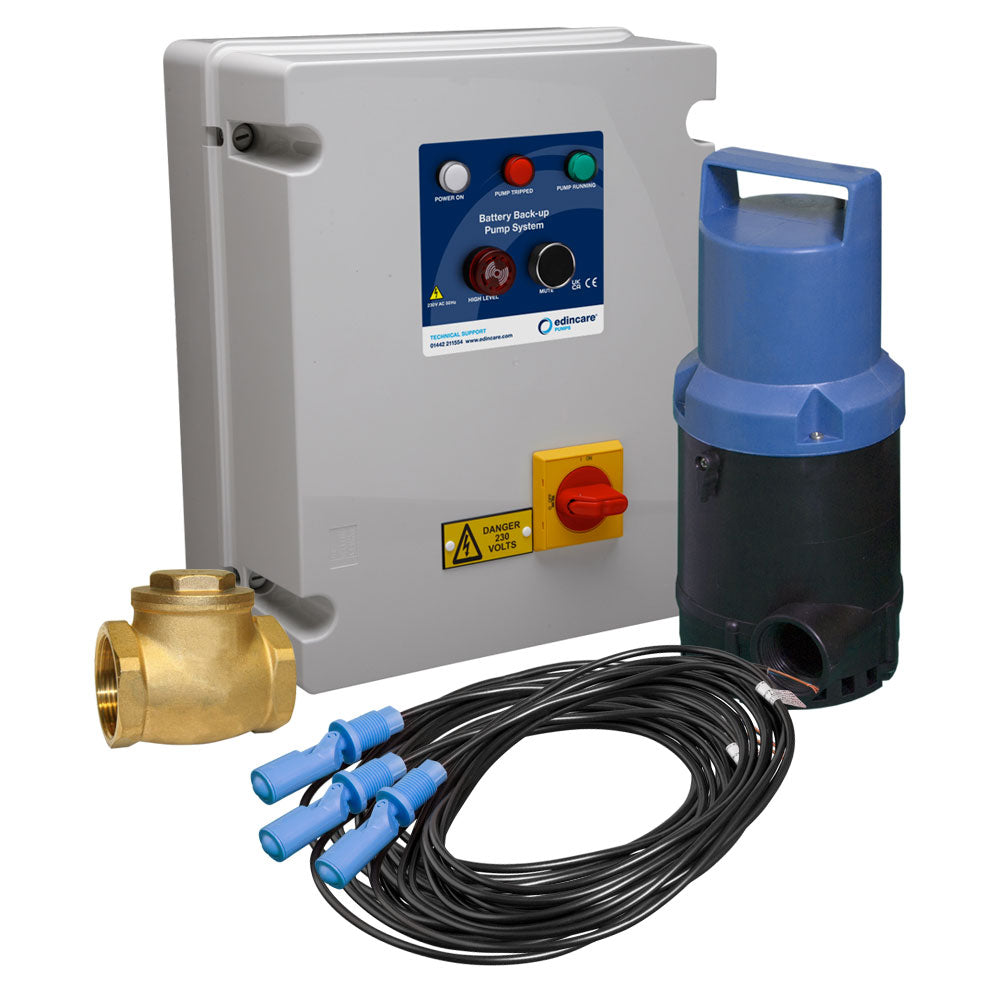

The Edincare 2198 Battery Backup Pump System 24V is designed to help protect properties against flooding when a primary pump fails due to a pump fault or loss of mains power. The system comprises a 24V DC backup pump, control panel, three mini float switches and a non-return valve, providing backup pumping and high-level alarm functions.
Suitable for ground water, surface water and stormwater applications, the system includes a control panel that displays system status, audible and visual high-level alarms, and trickle charging to maintain the battery in a charged condition. It is also specified as suitable for SumpFlush wastewater pumping systems.
Key Benefits
-
Provides backup pumping if the primary pump fails or mains power is lost
-
24V DC backup pump
-
Control panel with system status display
-
Visual and audible high-level alarm
-
Trickle charging to maintain battery charge
-
Three mini float switches for pump activation and high-level alarm
-
Integrated non-return valve to help prevent backflow
-
Suitable for ground water, surface water and stormwater
-
Compatible with SumpFlush wastewater pumping systems
-
Optional 24V remote alarm connection
-
Optional volt-free contacts for external monitoring
Applications
The Edincare 2198 battery backup pump system is designed for properties where primary pump failure or loss of electrical power could result in serious water damage.
Typical applications include:
-
Basement and below-ground drainage systems
-
Groundwater pumping
-
Surface water removal
-
Stormwater pumping
-
Sump pumping installations
-
SumpFlush wastewater pumping systems
-
Properties requiring backup protection for a primary pumping system
The system's suitability for a particular installation should be confirmed against the pumping requirements and the manufacturer's installation guidance.
Technical Information
-
Product: Edincare 2198 Battery Backup Pump System
-
Pump power supply: 24V DC
-
Control panel power supply: 230V AC
-
Motor rating: 280W
-
Rated current: 13A
-
Maximum vertical output: 6m
-
Maximum flow rate: 150 litres/minute
-
Maximum liquid temperature: Below 40°C
-
Discharge connection: 1¼ inch
-
Cable length: 3m
-
Pump weight: 4.8kg
-
Pump colour: Blue/black
-
Impeller type: Vortex
-
Control: Manual
-
Float switches: Three mini float switches
-
Guarantee: 12 months, subject to the manufacturer's terms and conditions
Dimensions
|
Component |
Length |
Width |
Depth |
|---|---|---|---|
|
Control panel |
495mm |
370mm |
200mm |
|
Pump |
130mm |
150mm |
320mm |
Frequently Asked Questions
1. What is the Edincare 2198 Battery Backup Pump System used for?
It provides backup pumping where failure of a primary pump or loss of mains power could lead to flooding or serious property damage.
2. What power supply does the backup pump use?
The backup pump operates on 24V DC, while the control panel has a 230V AC power supply.
3. What is the maximum pumping capacity?
The datasheet specifies a maximum flow rate of 150 litres per minute and a maximum vertical output of 6 metres. Actual flow depends on the pumping head and installation conditions.
4. Does the system include an alarm?
Yes. The control panel provides visual and audible high-level alarms. Three mini float switches are provided to activate the pump and high-level alarm.
5. Does the system include battery charging?
Yes. The system includes trickle charging to condition the battery and maintain its charge. Confirm the required battery specification and supply arrangements with the manufacturer before installation.
Installation & Important Information
The manufacturer's installation diagram shows the backup system connected alongside a 230V mains pump, with the control panel, float switches and non-return valve forming part of the arrangement. It also identifies suitably rated dedicated breakers and a 13A unswitched fused spur. Optional connections are available for volt-free contacts and a 24V remote alarm.
Installation should be undertaken by a suitably qualified professional in accordance with the manufacturer's instructions and the requirements of the site.
Please check the required battery specification and whether a battery is included in the supplied package before ordering, as the datasheet describes the battery charging function but does not clearly confirm the battery's inclusion or specification.
