Description

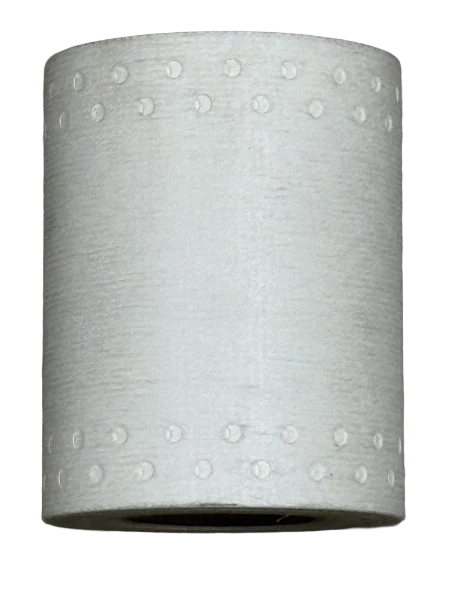

CEMPROTEC 2000-S Flexible Waterproof Sealing Tape
CEMPROTEC 2000-S is a high-performance, flexible waterproof sealing tape designed to provide a highly flexible and impermeable seal over live cracks, expansion joints and construction joints. The composite elastomeric tape is tear-resistant, breathable and permanently flexible, with typically over 600% elongation and the ability to accommodate joint movement of up to 100% of the joint width.
Designed to be embedded within compatible polymer-modified cementitious waterproofing coatings, CEMPROTEC 2000-S provides a durable flexible joint detail for demanding waterproofing applications. It can be used for cracks, construction joints, expansion joints, wall/floor junctions and wall/floor angle details. The tape is impermeable to water under pressures of up to 10 bar and is WRAS approved for use in contact with potable water.
CEMPROTEC 2000-S is compatible with CEMENTITIOUS COATING 851, CEMPROTEC 851F, CEMPROTEC E942, CEMPROTEC ELASTIC and CEMPROTEC E-FLOOR and E-FLOOR HB. For joints where a high degree of movement is expected, CEMPROTEC ELASTIC can be used as the finishing coat.
Key Benefits
- Flexible waterproof sealing tape for cracks and joints
- Permanently elastomeric composite construction
- Typically over 600% elongation
- Accommodates typically 100% joint movement
- Impermeable to water under 10 bar hydrostatic pressure
- Tear-resistant construction
- Designed to be embedded within cementitious waterproofing coatings
- Suitable for live cracks, construction joints and expansion joints
- Suitable for wall/floor junction and angle details
- WRAS approved for contact with potable water
- Can be used in high-movement applications with a compatible flexible finishing coating
- Available in multiple widths and roll lengths
Applications
CEMPROTEC 2000-S can be used for flexible waterproof joint detailing in:
- Live cracks
- Construction joints
- Expansion joints
- Wall/floor joints
- Wall/floor angle details
- Concrete waterproofing applications
- Potable water structures
- Areas requiring flexible waterproof joint sealing
The product data sheet's detail drawings on page 2 show typical applications including wall/floor angles, wall/floor joints, construction joints or cracks, expansion joints and double-tape expansion joint details.
Compatible CEMPROTEC Coatings
CEMPROTEC 2000-S can be used in conjunction with:
- CEMENTITIOUS COATING 851
- CEMPROTEC 851F
- CEMPROTEC E942
- CEMPROTEC ELASTIC
- CEMPROTEC E-FLOOR
- CEMPROTEC E-FLOOR HB
Application Guidance
The substrate should be sound, clean and free from dust, oil, grease, corrosion products and organic growth. Smooth surfaces should be roughened and loose material and surface laitance removed. The concrete sub-base should have a minimum strength of 20MPa, with surfaces fully saturated but free from standing water.
For cracks and joints, the tape is installed centrally over the joint and embedded into a compatible CEMPROTEC cementitious coating. The data sheet specifies applying a 1mm coating layer extending at least 20mm beyond each edge of the tape, embedding the CEMPROTEC 2000-S without wrinkles and then applying a final coating layer to fully encapsulate the tape.
For expansion joints, additional slack should be left in the tape to accommodate the designed joint movement. Where additional protection is required, a second tape can be installed. Externally exposed joints and cracks should have the tape fully encapsulated to protect it from UV exposure.
For tape intersections and overlaps, the data sheet specifies using a 100mm length of CEMPROTEC 2000-BJT self-adhesive butyl strip or alternatively joining an additional length of tape with a 1mm layer of compatible cementitious coating and a 100mm overlap.
Technical Information
- Product Type: Flexible waterproof sealing tape
- Basis: Elastomeric membrane encapsulated in backing fabric
- Colour: White
- Thickness: 0.4mm
- Elongation: Typically 600% (ASTM D-638)
- Typical Joint Movement: 100% of joint width
- Impermeability: Resists 10 bar water pressure
- Temperature Range: -20°C to +90°C
-
Width Options:
- 120mm
- 200mm
-
Roll Length Options:
- 120mm × 10m
- 120mm × 50m
- 200mm × 50m
Frequently Asked Questions
What is CEMPROTEC 2000-S used for?
CEMPROTEC 2000-S is used to provide a flexible, impermeable waterproof seal over live cracks, construction joints and expansion joints within waterproofing systems.
How much movement can CEMPROTEC 2000-S accommodate?
The technical data sheet states that the tape typically accommodates joint movement of 100% of the joint width, with typically 600% elongation.
What water pressure can CEMPROTEC 2000-S resist?
CEMPROTEC 2000-S is stated to resist 10 bar water pressure, equivalent to approximately 100 metres head of water.
Can CEMPROTEC 2000-S be used around expansion joints?
Yes. The tape is specifically designed for expansion joint detailing. Additional slack should be incorporated into the tape to allow for the designed degree of joint movement.
Is CEMPROTEC 2000-S suitable for potable water applications?
Yes. The product data sheet states that CEMPROTEC 2000-S is WRAS approved for use in contact with potable water.
