Use Clever Shield Remedial Wall Ties for Quick and Reliable Wall Tie Replacement and Brick Pinning Solutions

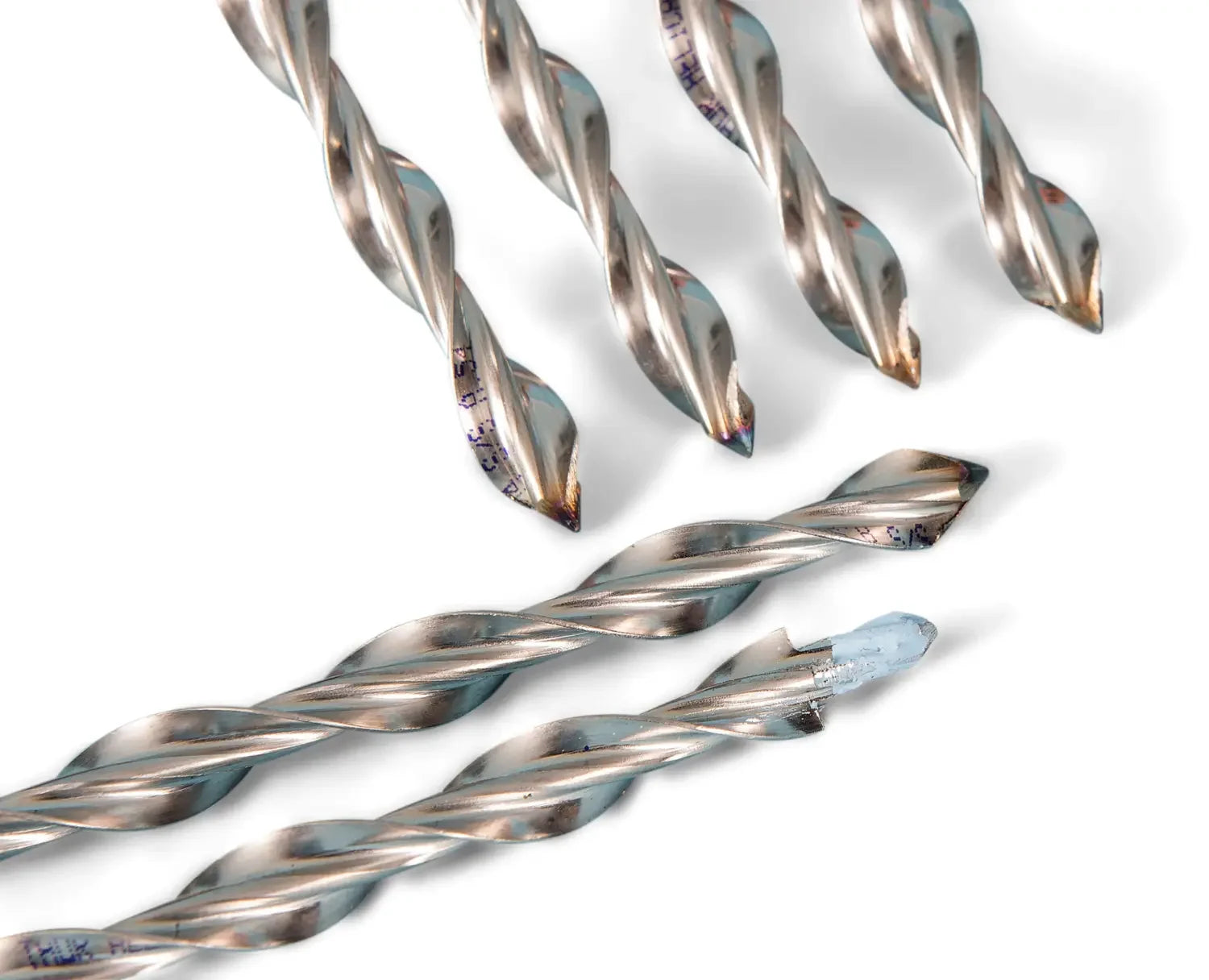

Clever Shield's stainless steel helical ties are the preferred choice for professionals when securing and reinforcing existing walls. These ties provide a fast and effective solution for cavity wall tie failure. The setting tool, sold separately, is designed for easy installation, ensuring quick and secure driving of the ties.

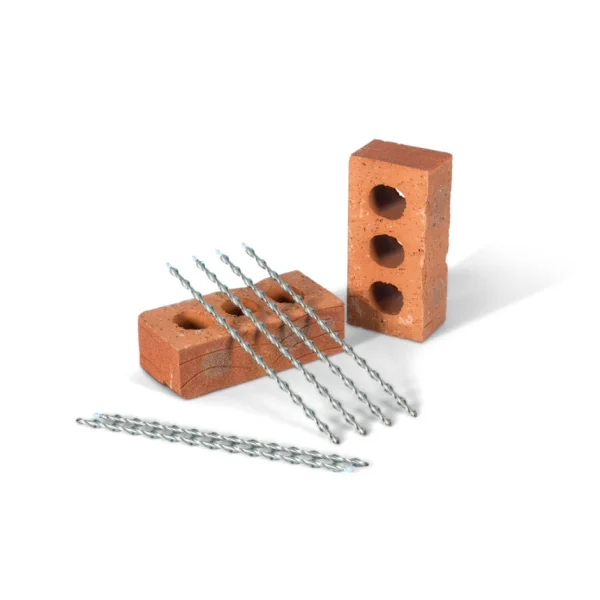

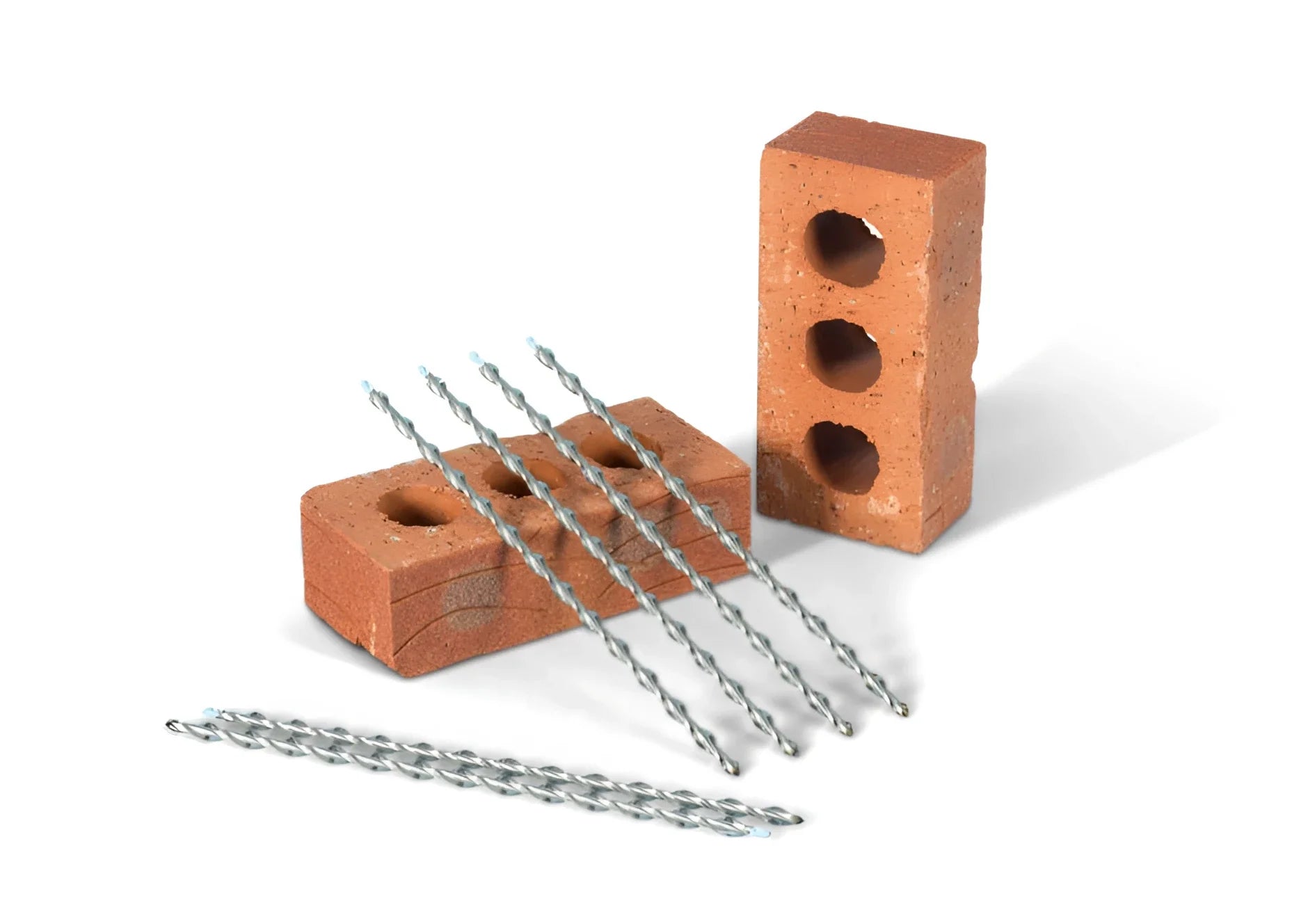

Our 9mm Helical Remedial Wall Ties are engineered to screw into brick, masonry, or concrete when hammered into pilot holes using a hammer drill’s impact action. These ties anchor securely within undercut helical grooves, applying minimal stress to surrounding brickwork. The unique design ensures that the ties provide a reliable and fast solution for wall tie failure.
What Wall Tie Length Do You Need?
Cavity Width (mm) |
Recommended Tie Length (mm) |
0 – 25 |
180 |
25 – 45 |
205 |
50 – 70 |
230 |
75 – 95 |
255 |
100 – 120 |
280 |
125 – 145 |
305 |
150 – 170 |
330 |
175 – 200 |
355 |
200 – 250 |
400 |
250 – 300 |
450 |
These lengths are ideal for walls constructed with 110 mm bricks. If working with 100 mm metric bricks, adjust the measurements accordingly.
To Install Clever Shield Remedial Wall Ties, You Will Need:
-

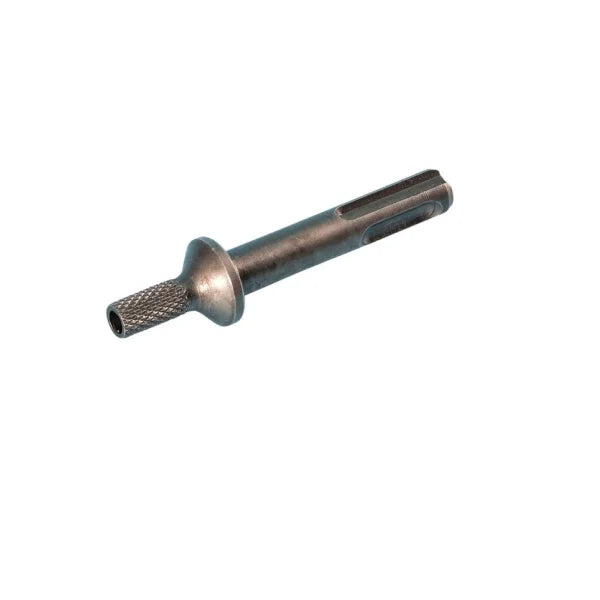

A Remedial Wall Tie Setting Tool
The tool spins the tie and delivers hammer action for secure and easy installation.
-
SDS Drill Bits
-
For 180–280 mm ties, use a 6 mm x 360 mm SDS drill bit.
-
For 305–450 mm ties, use a 6 mm x 450 mm SDS drill bit.
-
For engineering bricks or structural-grade concrete, use a 7 mm drill bit.
-
For perforated bricks, use a 5 mm pilot hole.
Ensure the pilot hole is at least 10 mm deeper than the tie length for proper recessing.
Pricing Summary:
-
180mm Tie – £115.40
-
205mm Tie – £123.00
-
230mm Tie – £136.31
-
255mm Tie – £149.39
-
280mm Tie – £167.30
-
305mm Tie – £178.99
-
330mm Tie – £201.86
-
355mm Tie – £215.11
-
400mm Tie – £238.90
-
450mm Tie – £290.24
9mm SDS Tool – £25.20
Each pack contains 100 ties.
