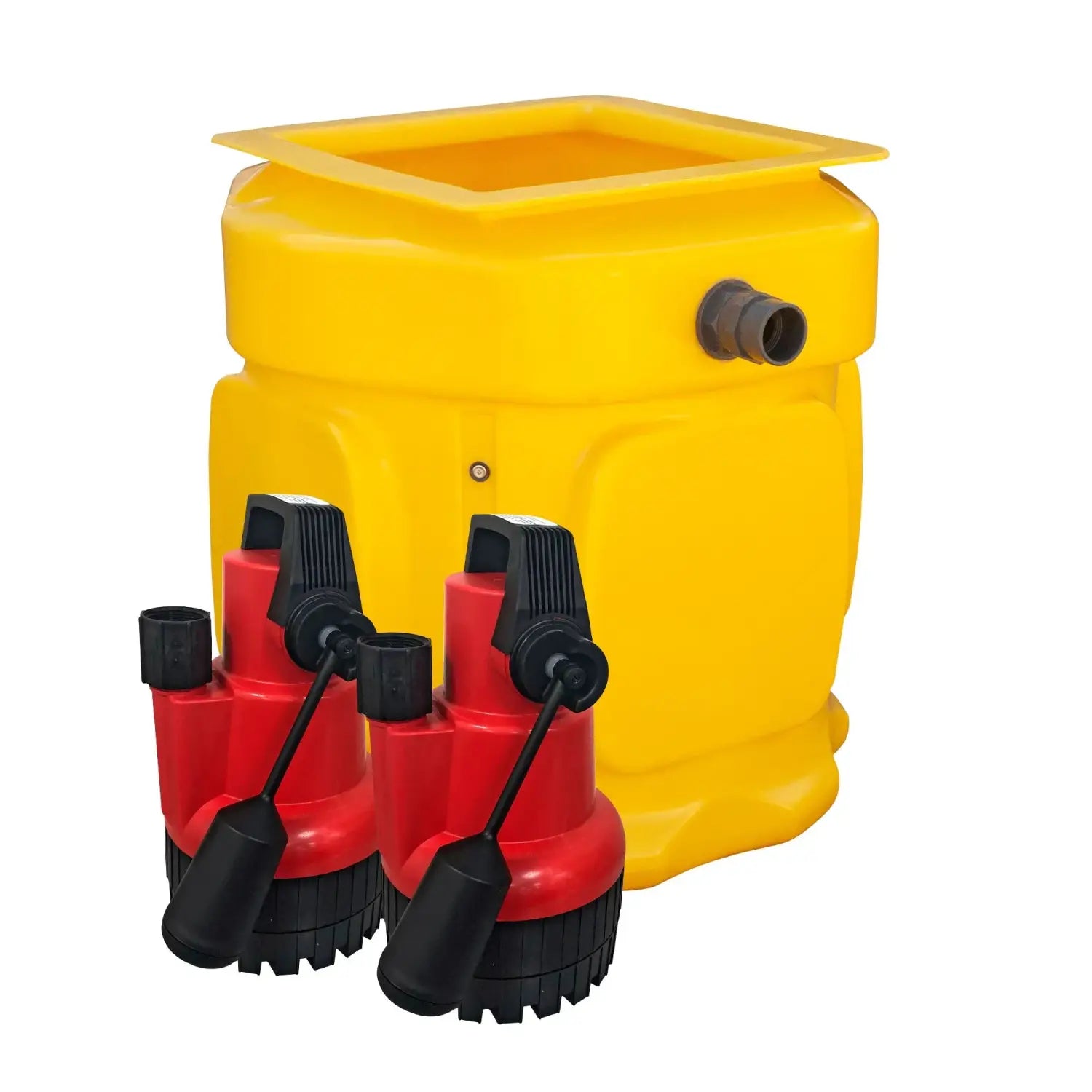

CleverSump Pro Twin – Dual-Pump Automatic Wastewater Pumping System

The CleverSump Pro Twin is a high-performance automatic wastewater pumping system featuring two powerful submersible vortex pumps. Designed to manage surface water and groundwater, it pumps collected water to a higher discharge point where gravity drainage is not possible or economical.
With two 500W pumps, a maximum stated flow rate of 4 litres per second per pump and a maximum vertical output of 12.5 metres per pump, the CleverSump Pro Twin is suited to demanding residential, commercial and industrial drainage applications.
The system features a durable polyethylene chamber with up to 65 litres of storage capacity, depending on the inlet depth. It is suitable for basement drainage, cavity membrane systems, extensions, outbuildings, car parks and other areas requiring pumped surface or groundwater removal.
Key Features and Benefits
- Powerful twin-pump system: Two automatic 500W submersible vortex pumps provide backup should one pump fail.
- High pumping performance: Maximum stated vertical output of 12.5m and flow rate of 4.0 litres per second per pump.
- 65-litre chamber: Provides up to 65 litres of storage capacity, depending on inlet position.
- Robust chamber construction: Structurally reinforced, virgin tank-grade polyethylene chamber.
- Flexible inlet positioning: Inlet connections can be positioned to suit the installation, within the manufacturer's permitted connection areas.
- Pre-fitted internal pipework: 1¼-inch Class E PVC pipework and discharge connection.
- Service-friendly design: Socket unions allow straightforward pump removal for servicing.
- Optional safety accessories: High-level alarms, battery backup systems and remote alerts are available separately.
- Optional access cover: The galvanised steel locking access cover can be purchased separately.
What Is Included
- CleverSump Pro Twin polyethylene chamber
- Two automatic high-performance submersible vortex pumps
- Internal pipework and fittings
- 1¼-inch Class E PVC discharge arrangement
- Rubber wall seals – 50mm and 110mm
Important – Access Cover Sold Separately: The galvanised steel access cover is not included in the standard CleverSump Pro Twin package. It is available as a separate purchase and must be added to your order if required. Please check the separate access cover listing or contact us before ordering if you need assistance identifying the correct cover.
Optional Galvanised Steel Access Cover
A solid-top galvanised steel access cover with a four-screw locking arrangement is available to purchase separately.
- Material: Galvanised steel
- Cover type: Solid top
- Locking: Four-screw locking system
- Loading classification: FACTA AA
- Clear opening: 300 x 300mm
- Overall dimensions: 370 x 370 x 47mm
Typical Applications
- Basement waterproofing and cavity drainage systems
- Residential extensions and below-ground rooms
- Outbuildings and garages
- Commercial and industrial premises
- Car parks and car wash drainage
- Floor drainage and collected surface water
- Groundwater and stormwater management
- Downpipes and other suitable drainage connections
Pump Technical Specifications
| Number of pumps | 2 |
| Pump type | Automatic submersible vortex |
| Power supply | 230V AC |
| Rated current per pump | 4.9A |
| Motor rating (P2) per pump | 500W |
| Motor speed | 2,800rpm |
| Discharge size | 1¼ inch |
| Free passage | 10mm |
| Maximum vertical output per pump | 12.5m |
| Maximum flow rate per pump | 4.0 litres/second |
| Maximum liquid temperature | Below 40°C |
| Cable length | 5m |
| Weight per pump | 6.9kg |
Chamber Technical Specifications
| Chamber material | Structurally reinforced virgin tank-grade polyethylene |
| Maximum storage capacity | 65 litres |
| Chamber dimensions | 600 x 600mm |
| Clear chamber opening | 350 x 350mm |
| Internal pipework | 1¼-inch OD Class E PVC |
| Discharge pipework | 1¼-inch OD Class E PVC |
| Inlet connection | 110mm |
| Cable duct | 50mm |
| Lifting eyes | Not fitted |
Installation and Additional Options
The CleverSump Pro Twin features a 110mm inlet connection and a 50mm cable duct. Their positions can be arranged to suit the installation, subject to the manufacturer's permitted connection positions. Additional inlet connections may also be available.
The standard discharge arrangement uses 1¼-inch Class E PVC pipework with a solvent-welded connection. Optional reducer kits are available to increase the external discharge pipe diameter to 1½ inches or 2 inches, helping to reduce friction losses where appropriate.
Additional accessories can be purchased separately, including:
- High-level water alarms and remote alert options
- UPS and battery backup systems
- 24V battery backup options
- Additional inlet connections
- Discharge reducer kits
- Optional galvanised steel access cover
For groundwater and surface water applications where inflow cannot be controlled, the manufacturer recommends a suitable high-level alarm and battery backup system in accordance with BS 8102:2022 and PCA Guidelines. The correct arrangement depends on the installation and its requirements.
Important Product Suitability Information
The CleverSump Pro Twin is designed for pumping surface water and groundwater. It is not suitable for foul sewage or toilet waste. A suitable foul water pumping station is required for applications involving sewage or toilet waste.
Maximum pump performance figures are manufacturer-stated values. Actual flow and pumping head will depend on the installation, discharge pipework and operating conditions. Always check the manufacturer's datasheet and installation instructions before installation.
Frequently Asked Questions
Does the CleverSump Pro Twin include an access cover?
No. The galvanised steel access cover is optional and must be purchased separately if required. It is not included in the standard chamber and twin-pump package.
How powerful are the pumps?
The system contains two automatic 500W submersible vortex pumps. Each pump has a maximum stated flow rate of 4.0 litres per second and a maximum vertical output of 12.5 metres.
Does the twin-pump arrangement provide backup?
Yes. The two-pump configuration provides backup should one of the pumps fail.
How much water can the chamber hold?
The polyethylene chamber provides up to 65 litres of storage capacity. The actual capacity depends on the installed inlet depth.
Can the CleverSump Pro Twin be used for foul sewage?
No. It is designed for surface water and groundwater and is not suitable for foul sewage or toilet waste.
Are alarms and battery backup included?
No. High-level alarms, remote alerts and battery backup systems are optional accessories and can be purchased separately.
