Wykamol CM3 Waterproof Membrane Kit 40m² – Non-Mesh with Brick Plugs
The Wykamol CM3 Waterproof Membrane Kit 40m² is a 3mm studded cavity drain membrane kit designed for below-ground waterproofing and above-ground damp-proofing applications. Supplied with a 40m² roll of CM3 membrane, 100 brick plugs and joint sealing tape, it provides a convenient package for professional installation.

Manufactured from high-density polyethylene (HDPE), CM3 features a slim 3mm studded profile that creates a cavity between the membrane and the wall or floor. This non-mesh version is particularly suitable for applications where the membrane will be covered with a suitable dry-lining or battened finishing system rather than plastered directly.
Key Benefits
- 40m² of Wykamol CM3 cavity drain membrane
- Non-mesh membrane suitable for dry-lining applications
- Slim 3mm stud profile where space is limited
- Manufactured from high-density polyethylene (HDPE)
- Includes 100 brick plugs and joint sealing tape
- Suitable for selected above-ground and below-ground applications
- Can form part of a Type C cavity drainage waterproofing system
- BBA-certified membrane
- Manufacturer-stated life expectancy for the lifetime of the structure when stored and installed in accordance with the datasheet

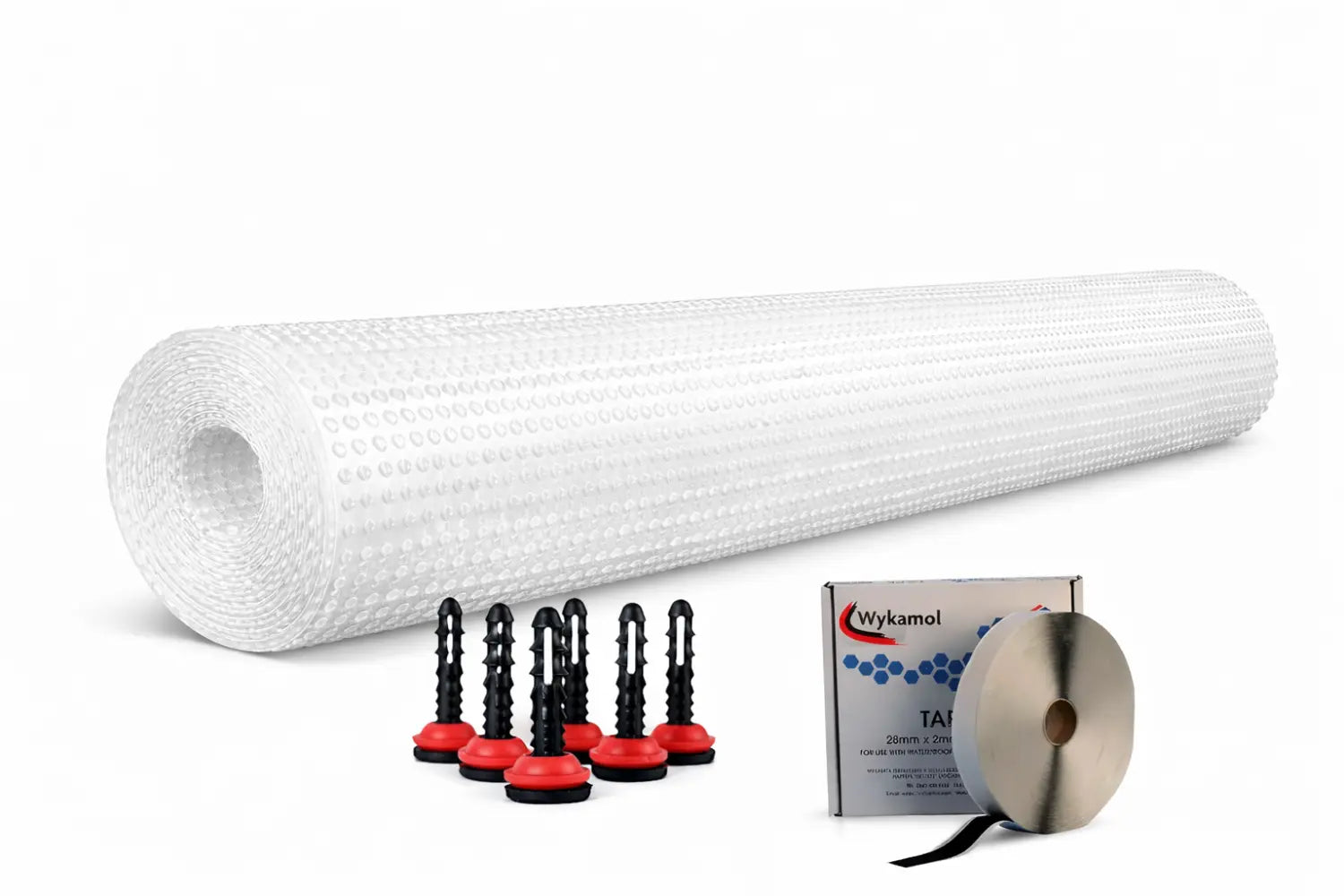

What's Included in the Kit?
- 1 x Wykamol CM3 non-mesh membrane roll – 2m x 20m (40m²)
- 100 x Wykamol CM brick plugs
- Joint sealing tape
Typical Applications
- Basement and cellar wall waterproofing
- Below-ground floors and walls as part of a suitable drainage system
- Above-ground damp-proofing applications
- Walls affected by penetrating damp
- Rubble-filled walls and older buildings
- Timber batten and dry-lining installations
- Suitable vault and tunnel applications
Installation and System Requirements
CM3 is installed with the studs facing towards the wall. Fixing is carried out using suitable Wykamol CM Plaster Plugs or CM Brick Plugs, following the manufacturer's installation guidance.
For below-ground waterproofing applications, plugs with seals should be used. Membrane joints, flanges, corners and junctions must be sealed using the appropriate Wykamol accessories.
For basement installations, suitable drainage arrangements should be provided to direct collected water towards an appropriate discharge point. A sump and pump system will normally be required unless a suitable passive drainage arrangement is available.
Where direct plastering or rendering onto the membrane is required, choose the separate Wykamol CM3 Mesh Membrane rather than this non-mesh version.
Need More Coverage? Choose the 80m² Bulk Kit
For larger projects, we also offer an 80m² Wykamol CM3 Non-Mesh Waterproof Membrane Bulk Kit. Supplied with two 2m x 20m membrane rolls, 200 brick plugs and two rolls of joint sealing tape, it provides a convenient bulk option for larger installations.
View the Wykamol CM3 80m² Bulk Kit
Technical Information and Downloads
Download Wykamol CM3 Non-Mesh Technical Data Sheet
Installation Video
Why Buy from Clever Shield?
Clever Shield Coatings UK supplies professional waterproofing and building protection products from leading manufacturers, including Wykamol. We offer UK-wide delivery to contractors, builders and trade customers.
Asset Protection: Roof to Basement and Beyond!
Important Information
This kit supplies the membrane and listed accessories only. It does not constitute a complete waterproofing design or guarantee a particular internal environment. Product suitability, drainage arrangements and installation details must be established for the individual building. Clever Shield supplies products only and does not design or specify waterproofing systems for individual projects. Always follow the manufacturer's current technical documentation.
