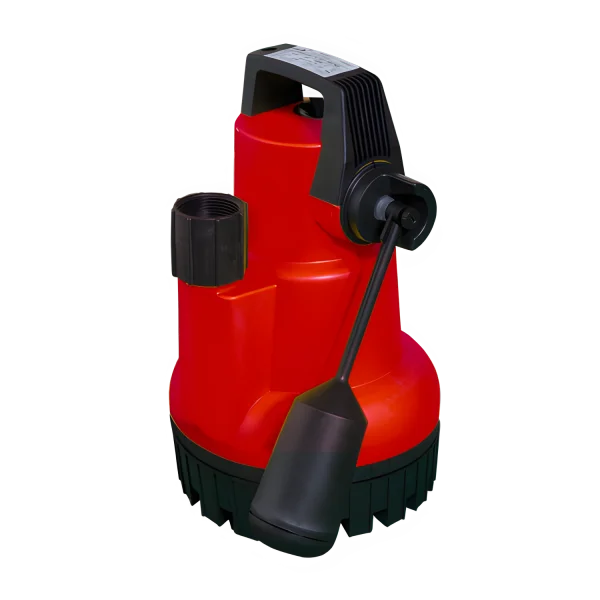

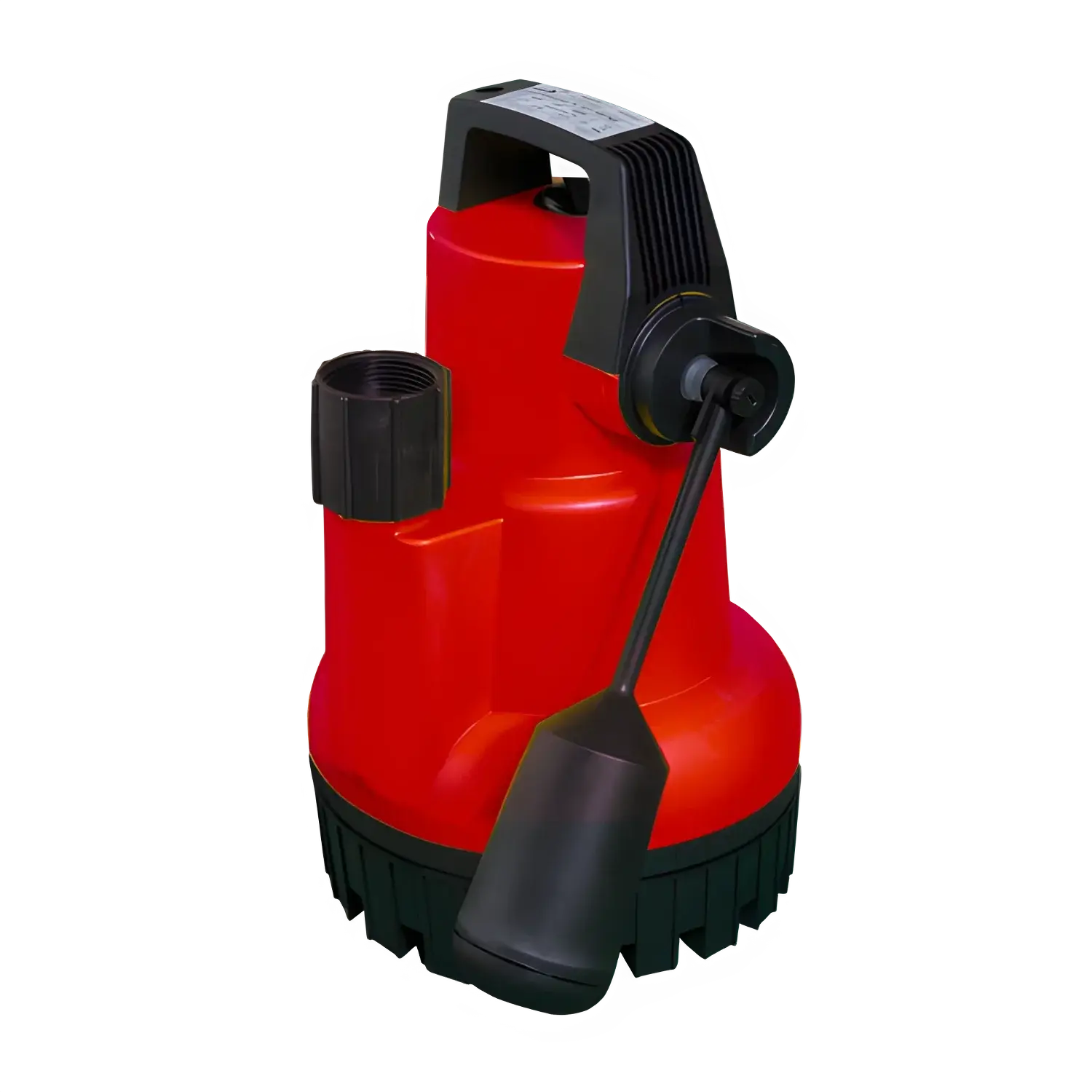

Edincare EA31 Pump (Automatic)

The Edincare EA31 is an automatic submersible pump designed for efficient pumping of ground, surface, storm, and grey water in residential, commercial, and light industrial drainage applications. Supplied as a 240V single-phase pump with a pre-fitted 10 metre power cable, it is well suited to deeper chambers and remote installations.

A vortex impellor combined with advanced hydraulic design supports smooth, blockage-resistant operation. The integrated magnetic float switch provides automatic level control, while a locking disk allows simple conversion to manual or external control systems when required.

Automatic Level Control

The EA31 is fitted with an adjustable magnetic float switch housed in polypropylene, allowing variable start and stop levels to suit site conditions. The float includes a maximum travel stop to support consistent and reliable operation in sump chambers.

Key Features

• 240V single-phase automatic submersible pump
• Supplied with 10 metre pre-fitted power cable
• Free-standing installation with no mounting bracket required
• Vortex impellor design for clog-resistant pumping
• Integrated magnetic float switch with variable level control
• Locking disk for conversion to manual or external control
• Internal thermal motor protection
• GRP pump casing
• Noryl impellor
• Nickel steel motor shaft

Typical Applications

• Ground and surface water management
• Storm water and grey water drainage
• Basements, car parks, and general drainage systems
• Extensions, outbuildings, and cavity membrane installations

Technical Overview

Downloads

Manufacturer & Support

For pump selection, duty advice, or compatibility with control panels and backup systems, contact our technical team for guidance.
