Description

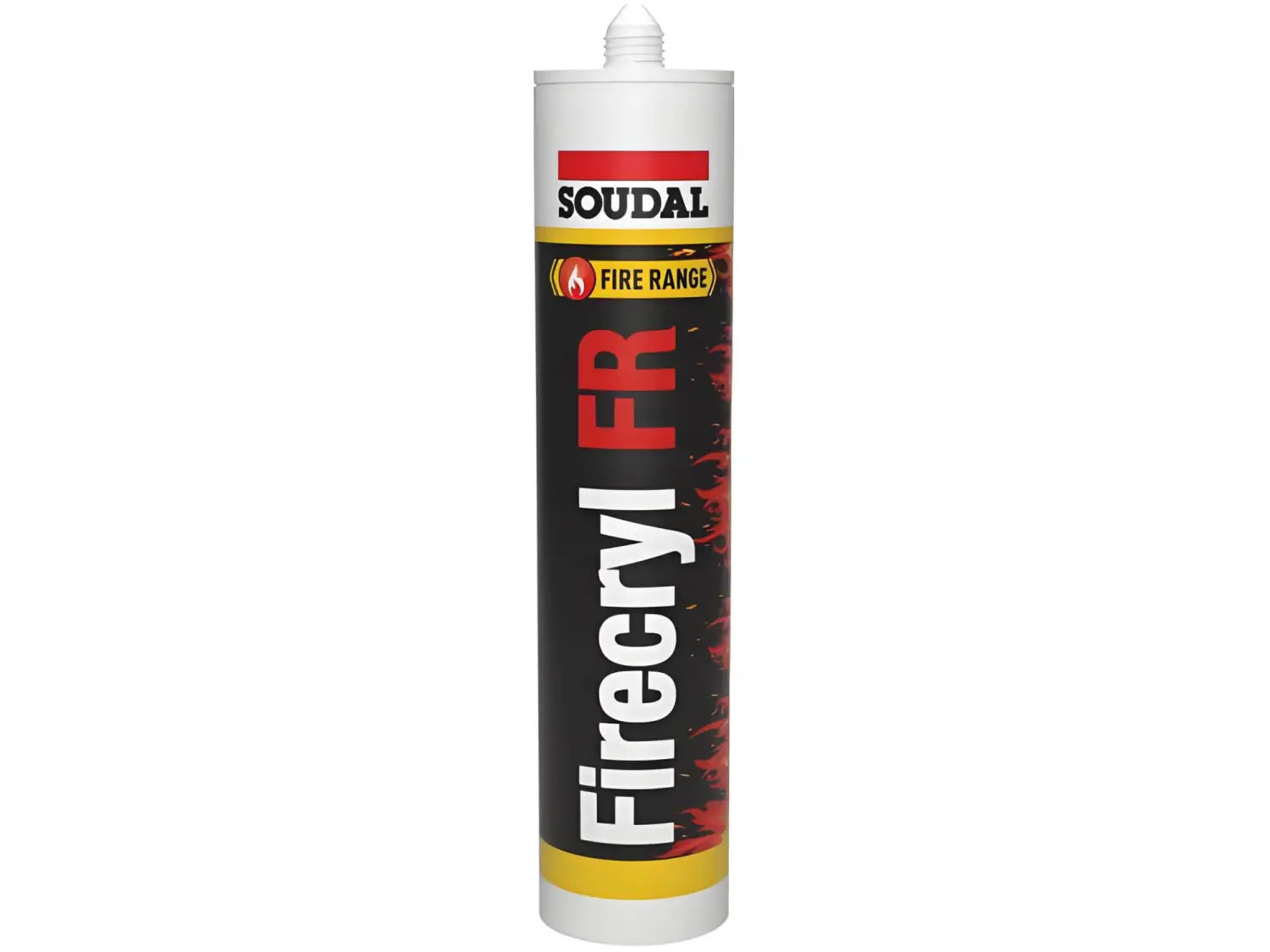

Soudal Firecryl FR Fire Rated Acrylic Sealant – 310ml
Soudal Firecryl FR is a one-component, intumescent fire-resistant acrylic sealant and filler designed for passive fire protection applications. It provides a flexible, smoke-tight seal for suitable joints, gaps and openings in walls and ceilings, helping to prevent the passage of fire and smoke through building compartments.
When exposed to temperatures above 120°C, Firecryl FR expands through an intumescent reaction, helping to close gaps and maintain fire compartmentation. It can achieve fire resistance of up to 240 minutes (4 hours) in suitable tested joint configurations, subject to the joint dimensions, construction, backing material and installation requirements.
Once cured, Firecryl FR remains plasto-elastic, is waterproof and colourfast, and can be painted over with suitable coatings. It is particularly suitable for internal fire-resistant joints, connection joints, fire-retardant window and door frame installations, and the fire-resistant filling of cracks in concrete and plasterwork.

Key Features and Benefits
- Fire-resistant, smoke-tight acrylic sealant and filler
- Fire resistance of up to 4 hours in suitable tested joint configurations
- Intumescent formulation expands at temperatures above 120°C
- Helps prevent the passage of fire and smoke
- Remains permanently elastic after curing
- Waterproof and colourfast after curing
- Can be painted over after curing
- Good adhesion to many common porous building materials
- Suitable for fire-resistant joints and connection joints
- Suitable for fire-retardant filling of cracks in concrete and plasterwork
- Easy application using a standard sealant gun
Fire Performance and Testing
- Fire resistance: Up to 240 minutes, depending on the tested joint configuration
- Fire testing: EN 1366-4 for linear joint seals
- Fire classification: EN 13501-2
- Intumescent activation: Above 120°C
- Fire and smoke protection: Helps resist the passage of fire and smoke
- Backing material: PE backing rod where specified by the tested installation
Important: The 4-hour fire-resistance rating is not a universal rating for every joint or application. Performance depends on the substrate, joint width and depth, backing material, construction and installation method. Always consult the relevant manufacturer's fire-test reports and installation instructions before using Firecryl FR in a fire-compartment application.
Suitable Applications
- Fire-resistant joints in internal walls and ceilings
- Fire-resistant connection joints in building construction
- Fire-resistant window frame installations
- Fire-resistant door frame installations
- Suitable penetration-sealing configurations
- Internal garage fire protection applications
- Fire compartmentation joints
- Fire-retardant filling of cracks in concrete
- Fire-retardant filling of cracks in plasterwork
- Internal passive fire protection systems
Suitable Substrates
Firecryl FR adheres to many common porous building materials, including:
- Concrete
- Plaster
- Masonry
- Brickwork
- Other suitable porous construction materials
Not suitable for: Natural stone, bituminous substrates, glass and metal. Soudal recommends carrying out preliminary adhesion and compatibility tests on substrates before application.
Technical Information
- Manufacturer: Soudal
- Product: Firecryl FR
- Product type: Intumescent fire-resistant acrylic sealant
- Base: Acrylic dispersion
- Consistency: Paste
- Curing system: Physical drying
- Packaging: 310ml cartridge
- Available colours: White and grey, subject to selected variant
- Density: Approximately 1.57g/ml
- Skin formation: Approximately 20 minutes at 23°C and 50% relative humidity
- Maximum permitted joint movement: Approximately 12.5%
- Shrinkage: Approximately 15%
- Application temperature: +5°C to +30°C
- Temperature resistance: -20°C to +80°C after curing
- Fire resistance: Up to 240 minutes, depending on the tested joint configuration
- Shelf life: At least 12 months in unopened packaging when stored correctly
- Storage conditions: Dry storage between +5°C and +25°C; protect from frost
Application Instructions
1. Surface preparation
Ensure the substrate is rigid, clean, dry and free from dust, grease and other contaminants. Remove loose material before application. Highly porous surfaces should be primed using Firecryl FR diluted with water at a ratio of 1 part Firecryl FR to 2 parts water, in accordance with the manufacturer's instructions.
2. Joint preparation
Use a suitable PE backing rod where required by the specified joint design. Joint width, depth and backing arrangement must follow the manufacturer's relevant fire-test documentation and installation instructions. Do not assume that a standard joint dimension will achieve a particular fire rating.
3. Application
Apply Firecryl FR using a handheld or pneumatic sealant gun. Fill the joint evenly and ensure good contact with the joint faces. Smooth the sealant with a suitable filling knife to achieve a continuous finish.
4. Finishing and curing
Uncured material can be cleaned from tools with water. Allow the sealant to dry fully before painting. Suitable water-based paints and varnishes can be used, but the coating should have sufficient flexibility to accommodate movement in the sealant. A preliminary compatibility test is recommended.
Important Application Limitations
- For internal fire-resistant applications.
- Do not use in applications subject to continuous water immersion.
- Do not apply when rain or frost is imminent during curing.
- Protect the sealant from frost while curing.
- Do not use on natural stone, bitumen, glass or metal.
- Fire resistance depends on the complete tested joint arrangement, not simply the sealant.
- Always consult the manufacturer's fire-test certificates and installation instructions for the required fire-resistance period.
Frequently Asked Questions
What is Soudal Firecryl FR used for?
Firecryl FR is used for fire-resistant and smoke-tight sealing of suitable joints and gaps in internal walls and ceilings. It is also suitable for fire-retardant filling of cracks in concrete and plasterwork.
What fire rating does Firecryl FR achieve?
Firecryl FR can achieve fire resistance of up to 240 minutes (4 hours) in suitable tested joint configurations. The actual rating depends on joint dimensions, substrate construction, backing material and installation details.
Does Firecryl FR expand when exposed to heat?
Yes. Firecryl FR is intumescent and expands when exposed to temperatures above 120°C, helping to close gaps and restrict the passage of fire and smoke.
Can Firecryl FR be painted?
Yes. Once fully cured, Firecryl FR can be painted over with suitable paints and varnishes. The coating should be sufficiently flexible to accommodate movement in the sealant.
Does Firecryl FR remain flexible after curing?
Yes. Firecryl FR is a plasto-elastic sealant that remains elastic after curing, with a maximum permitted joint movement of approximately 12.5%.
Can Firecryl FR be used externally?
Firecryl FR is intended for internal fire-resistant applications. It should not be used where continuous water immersion is possible, and it must be protected from rain and frost during curing.
Can Firecryl FR be used with a backing rod?
Yes. A PE backing rod is used where required by the tested joint configuration. The correct backing material, joint depth and width are essential to achieving the specified fire performance.
Order Soudal Firecryl FR from Clever Shield
Clever Shield supplies Soudal Firecryl FR fire-rated acrylic sealant for contractors, builders and passive fire protection applications throughout the UK.
For product enquiries, trade pricing or assistance with Soudal fire-resistant sealants, contact our team.
Technical Downloads
Important: Clever Shield supplies products and materials only and does not design or specify passive fire protection systems. Customers must establish suitability for their particular application and follow the latest manufacturer's technical data sheets, fire-test documentation and installation instructions. Where fire-compartmentation design or specification is required, consult a suitably qualified fire-protection professional.
