Flexcrete Tiefill – Waterproof Tie Hole Filler

Flexcrete Tiefill – Class R4 Waterproof Tie Hole Filler

Flexcrete Tiefill is a rapid-setting, Class R4 waterproof tie-hole filler designed specifically for filling and sealing concrete tie holes created by formwork bolts and through-tie systems. This polymer-modified, fibre-reinforced repair mortar delivers a high-strength, durable and waterproof solution for tie holes, grout holes and voids around fixings in precast concrete.

Up to 10 Bar Water-Pressure Resistance

For applications where high water-pressure resistance is critical, Flexcrete Tiefill provides a waterproof seal capable of withstanding up to 10 bar water pressure after 72 hours' curing. This compares with BeSealed Sealing Plugs, advertised up to 6 bar, and RiveStop, advertised up to 8 bar depending on the product reference.

Tiefill is supplied as a single-component powder, requiring only the addition of clean water on site. Its high bond strength, low permeability and excellent low-sag properties make it ideal for creating a durable, watertight seal where protection against water ingress is critical.

Tiefill sets in approximately 30 minutes at 20°C, providing a rapid and effective solution for sealing concrete tie holes.

Key Benefits

• Class R4 structural repair mortar in accordance with BS EN 1504-3

• Specifically designed for filling and sealing concrete tie holes

• Suitable for formwork bolt and through-tie holes

• Rapid-setting formulation

• Waterproof, with resistance to up to 10 bar water pressure after 72 hours' curing

• High bond strength for durable, monolithic repairs

• Polymer modified and fibre reinforced

• Low permeability helps protect against moisture ingress and chlorides

• Excellent low-sag properties

• Suitable for sealing grout holes and voids around fixings in precast concrete

• Generally requires no substrate or inter-layer primer

• Part bags can be mixed to help minimise material waste

• WRAS approved for use in contact with potable water when cured

• CE marked in accordance with BS EN 1504-3

• Complies with Highways Agency Standard BD 27/86

Typical Applications

Flexcrete Tiefill is suitable for a wide range of concrete construction, tie-hole filling and repair applications, including:

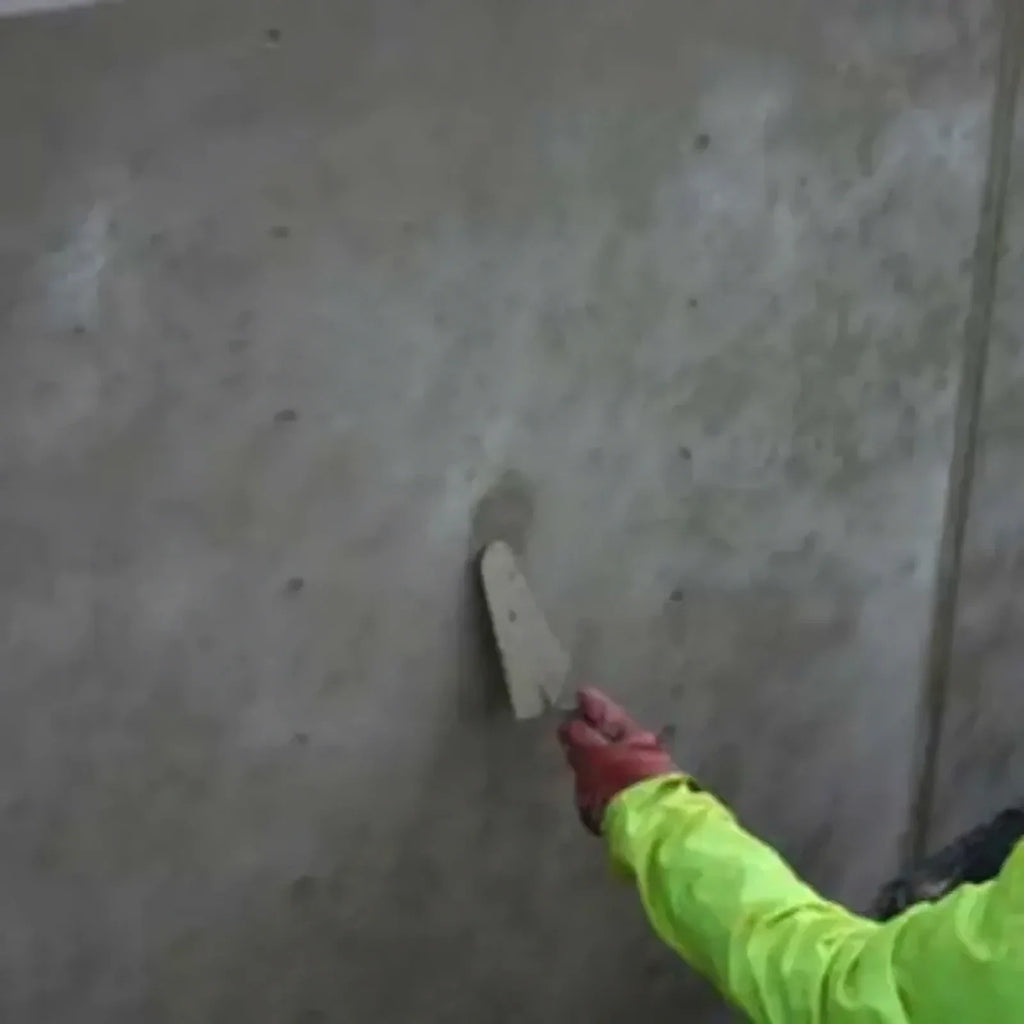

• Filling concrete tie holes

• Sealing formwork bolt holes

• Sealing through-tie holes

• Sealing grout holes

• Filling voids around fixings in precast concrete

• Waterproofing tie holes in water-retaining structures

• New-build concrete construction

• Concrete repair and refurbishment

• Water and wastewater structures

• Civil engineering and infrastructure projects

Flexcrete has used Tiefill for waterproofing tie holes in reinforced concrete structures, including water and wastewater facilities.

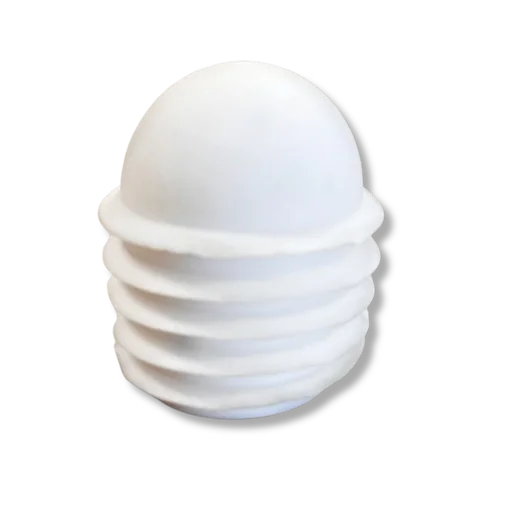

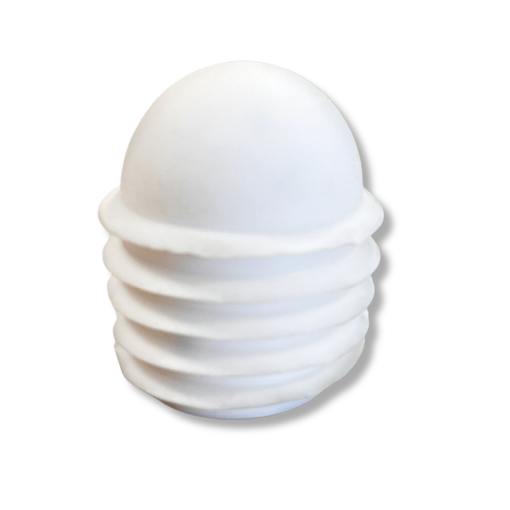

Flexcrete Flupp Plugs

For through-tie applications, Flexcrete Flupp Plugs are available in 22 mm, 26 mm and 32 mm sizes.

The appropriate plug is inserted into the prepared tie-hole sleeve to help prevent water tracking around the remaining plastic tube before the void is filled with Tiefill. This provides a practical approach to sealing the tie-hole and creating a durable, waterproof finish.

The plug should be selected to suit the particular formwork tie system and hole configuration. Always follow the manufacturer's current installation instructions.

Coverage

An 8 kg pack of Flexcrete Tiefill produces approximately 4.1 litres of mixed mortar.

Actual coverage depends on the diameter, depth and configuration of the tie hole, as well as the particular formwork tie system being used.

For accurate material calculations, determine the volume of the individual tie holes and refer to the latest Flexcrete Tiefill Technical Data Sheet before application.

Technical Information

Technical performance, preparation and application requirements should always be checked against the latest Flexcrete Tiefill Technical Data Sheet before use.

Why Choose Flexcrete Tiefill?

Where concrete tie holes need to be filled, sealed and protected against water ingress, Flexcrete Tiefill provides a high-strength, rapid-setting and waterproof repair solution.

With water-pressure resistance of up to 10 bar after 72 hours' curing, Tiefill is designed for applications where reliable protection against water ingress is critical. Combined with Class R4 performance, high bond strength and low permeability, it provides a durable solution for demanding concrete construction, repair and waterproofing applications, including water-retaining structures and infrastructure projects.

When used with the appropriate Flexcrete Flupp Plug, Tiefill provides a practical system for sealing through-tie holes and helping prevent water tracking around the tie-hole sleeve.

Clever Shield supplies Flexcrete Tiefill for professional concrete construction, concrete repair, tie-hole filling and waterproofing applications.
