Description

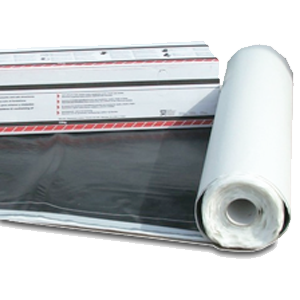

Fosroc Proofex 3000 Waterproofing & Radon Barrier Membrane
Fosroc Proofex 3000 is a high-performance self-adhesive waterproofing membrane designed to provide long-term protection for basements, foundations and below-ground structures. Combining a cross-laminated HDPE carrier film with a polymer-modified bitumen adhesive layer, it creates a robust barrier against water ingress, water vapour, radon gas and aggressive ground contaminants.
Designed in accordance with BS 8102:2022 Type A waterproofing systems, Proofex 3000 offers reliable protection for concrete structures exposed to groundwater, soluble sulphates and chlorides. Its self-adhesive application system allows for fast, simple installation while maintaining excellent waterproofing performance and long-term durability.
With independently certified BBA approval and a design life expectancy of up to 125 years, Proofex 3000 is trusted throughout the construction industry for waterproofing basements, retaining walls, lift pits, tunnels and below-ground concrete structures.
Key Features & Benefits
- High-performance waterproofing membrane
- Self-adhesive installation system
- Waterproof, vapour barrier and radon barrier
- BS 8102 Type A waterproofing protection
- Cross-laminated HDPE carrier film
- Excellent puncture and tear resistance
- Resistant to groundwater
- Resistant to sulphates and chlorides
- Flexible for detailing around corners and penetrations
- Fast and reliable installation
- Dimensionally stable
- BBA Approved Certificate 22/6063
- Independently tested performance
- Life expectancy up to 125 years
- Suitable for vertical and horizontal applications
- Protects concrete from aggressive ground conditions
Applications
- Basement waterproofing
- Foundation waterproofing
- Retaining wall waterproofing
- Lift pit waterproofing
- Underground structures
- Concrete substructures
- Water excluding structures
- Radon protection systems
- Ground gas barrier applications
- Car park basements
- Residential developments
- Commercial construction projects
- Civil engineering structures
- Below-ground concrete protection
Technical Information
- Product Type: Self-adhesive waterproofing membrane
- Membrane Thickness: 1.5mm
- Roll Size: 1m x 20m
- Roll Coverage: 20m²
- Roll Weight: 32kg
- Edge Laps: 75mm minimum
- End Laps: 150mm minimum
- Application Temperature: +5°C to +45°C
- Service Temperature: -40°C to +80°C
- Water Absorption: 0.09%
- Water Vapour Resistance: μ = 90,000 ±30%
- Watertightness: Pass at 6 bar for 24 hours
- Radon Permeability: 5.7 × 10⁻¹² m²/s
- Life Expectancy: 125 years
- Reaction to Fire: Class E
- Shelf Life: 12 months
Performance Data
Tensile Strength
- Longitudinal: >215 N/50mm
- Transverse: >220 N/50mm
Elongation at Break
- Longitudinal: >310%
- Transverse: >240%
Tear Resistance
- Longitudinal: >135 N
- Transverse: >135 N
Joint Performance
- Peel Resistance: >100 N/50mm
- Shear Resistance: 350 N/50mm
Frequently Asked Questions
What is Fosroc Proofex 3000 used for?
Proofex 3000 is used to waterproof basements, foundations and below-ground structures whilst also providing protection against radon gas and water vapour.
Is Proofex 3000 self-adhesive?
Yes. It features a self-adhesive backing system which allows quick and reliable installation onto prepared substrates.
Can Proofex 3000 be used as a radon barrier?
Yes. It complies with BRE 211 permeability requirements for radon protection.
What type of waterproofing system is Proofex 3000?
It is classified as a Type A barrier waterproofing membrane under BS 8102:2022.
How long does Proofex 3000 last?
The membrane has an assessed life expectancy of up to 125 years when correctly installed.
Can it be used on walls and floors?
Yes. Proofex 3000 is suitable for both vertical and horizontal waterproofing applications.
