Description
Mapei Idrostop – Hydrophilic Expanding Waterstop for Construction Joints

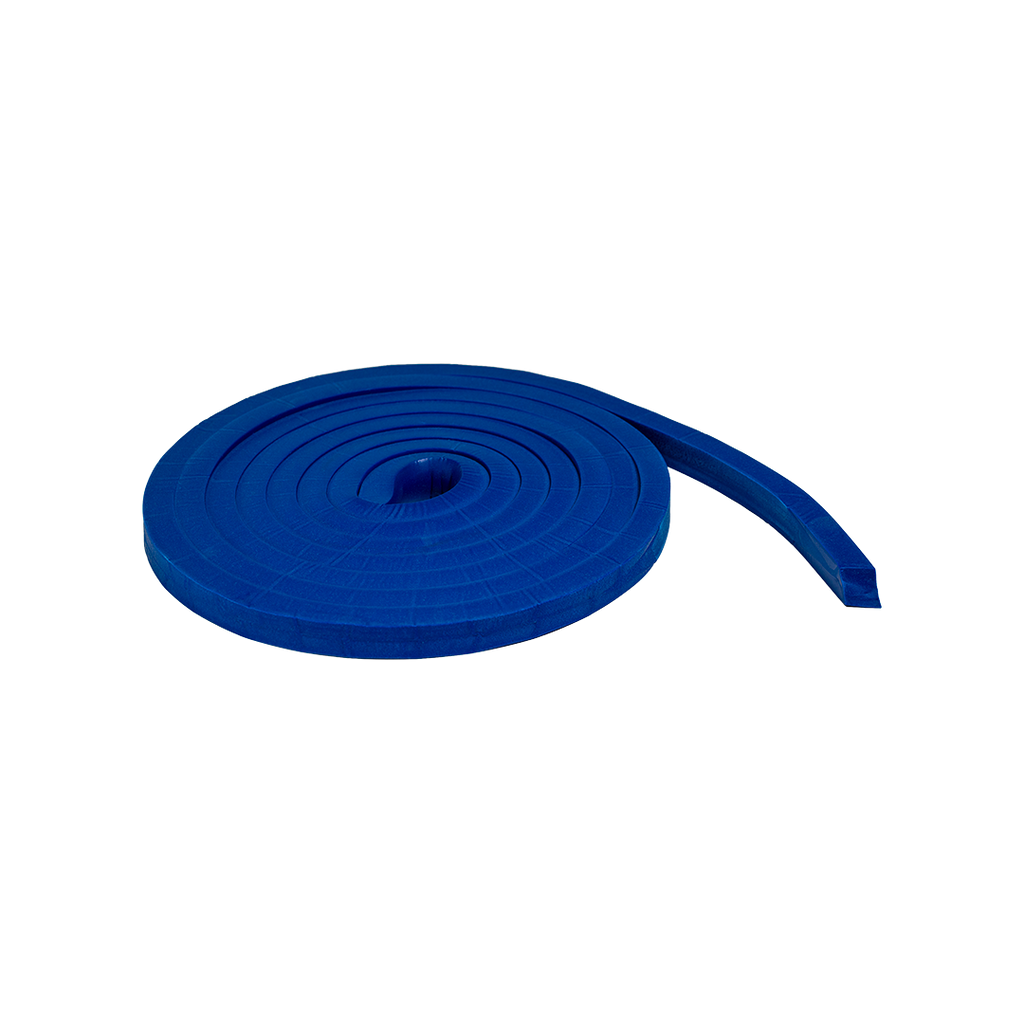

Mapei Idrostop is a pre-formed, hydrophilic expanding rubber profile designed to create watertight construction joints in concrete structures. Made with an acrylic polymer base, it expands gradually when in contact with water, forming an active sealing barrier within the joint.
Suitable for civil engineering, industrial and hydraulic construction, Idrostop can be used in concrete joints, pipe penetrations and other areas where a reliable waterstop is required. It is bentonite-free and designed to maintain its sealing properties through repeated wetting and drying cycles.

Key Features and Benefits
- Hydrophilic expansion: Expands gradually when exposed to water to help seal construction joints.
- Acrylic polymer base: Flexible, pre-formed rubber profile.
- Bentonite-free: Does not contain bentonite.
- Waterproofing performance: Watertight joint performance up to 5 atm hydraulic pressure under the manufacturer's stated test conditions.
- Wet and dry cycling: Designed to maintain its properties through repeated expansion and contraction cycles.
- Aggressive environments: Suitable for applications involving salt water and wastewater, subject to the manufacturer's guidance.
- Flexible installation: Can be fixed using Idrostop Mastic or suitable mechanical fixings.

Applications
- Waterproofing construction joints between concrete floor slabs and walls.
- Sealing joints between concrete and other materials.
- Sealing PVC and steel pipe penetrations through concrete.
- Swimming pools and sewage treatment tanks.
- Water reservoirs and hydraulic structures.
- Tunnels, dams and civil engineering projects.
- Construction joints where conventional waterstops are difficult to install because of dense reinforcement.

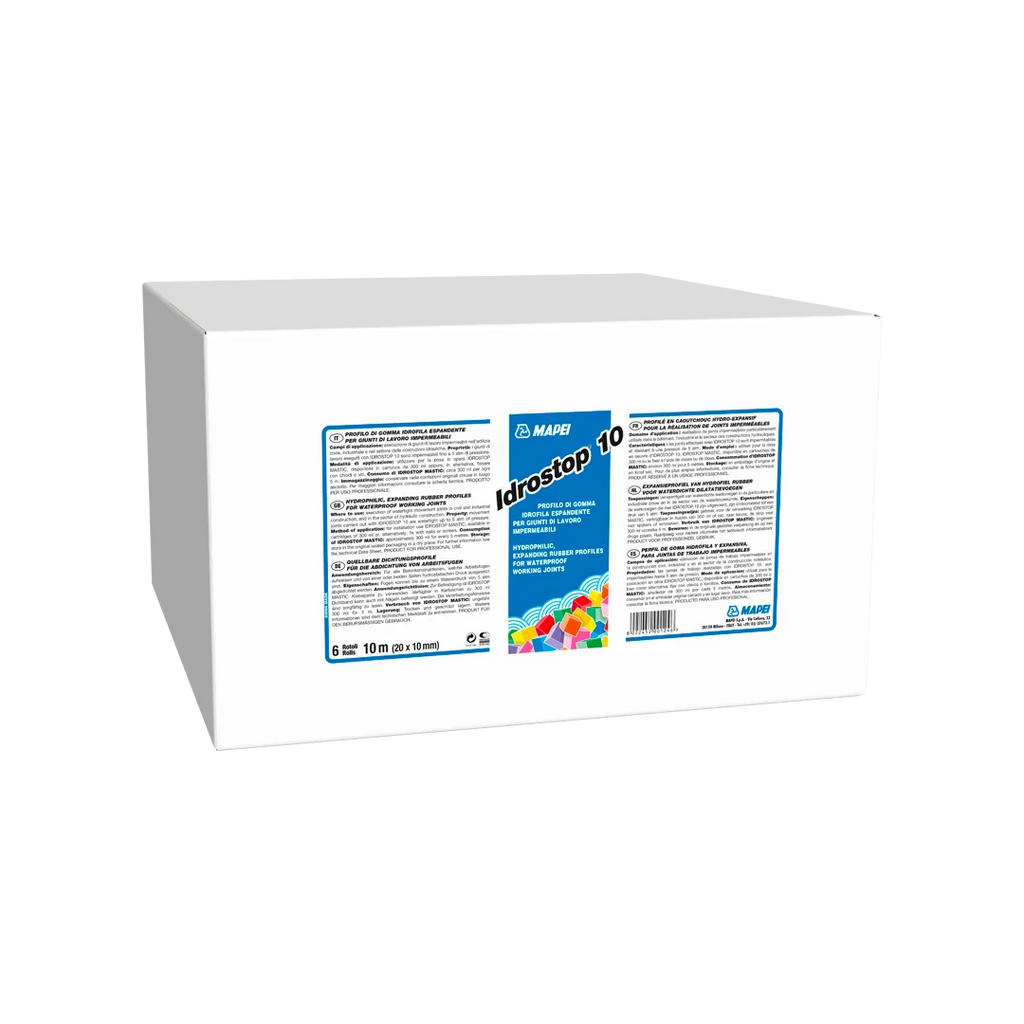

Sizes and Packaging
- Idrostop 10: 20 x 10mm – 6 rolls of 10m per box (60m total).
- Idrostop 15: 20 x 15mm – 6 rolls of 7m per box (42m total).
- Idrostop 25: 20 x 25mm – 6 rolls of 5m per box (30m total).
Technical Specifications
- Product type: Pre-formed hydrophilic expanding rubber profile.
- Base material: Acrylic polymer.
- Colour: Blue.
- Available sizes: 20 x 10mm, 20 x 15mm and 20 x 25mm.
- Maximum joint width: 7mm.
- Waterproofing performance: Up to 5 atm hydraulic pressure.
- Expansion in water: Approximately 120% after 7 days under the manufacturer's test conditions.
- Temperature stability: -30°C to +50°C.
- Application temperature using Idrostop Mastic: +10°C to +40°C.
- Storage: 36 months in a dry place at temperatures between +10°C and +40°C.
Installation Guidelines
The concrete surface must be clean and sound before installing Idrostop. Remove loose material, dust and contamination. The profile must not be installed while the structure is immersed in water. Remove any free water from the surface and allow it to dry for several hours before installation.
- Using Idrostop Mastic: Apply the adhesive to the prepared substrate and press the Idrostop profile firmly into position.
- Mechanical fixing: The profile can also be secured using suitable nails or screws.
- Concrete casting: Allow 24 hours before pouring concrete when the profile has been fixed using Idrostop Mastic. No waiting period is required when secured using nails or screws.
- Joint connections: Mapei recommends overlapping the ends by approximately 2–3cm to help achieve a continuous seal.
- Vertical installation: For vertical surfaces, Mapei recommends installing the profile in lengths of approximately 1m.
Follow the current Mapei technical datasheet for the complete installation procedure, including fixing details and joint arrangements.
Frequently Asked Questions
What is Mapei Idrostop used for?
Idrostop is used to waterproof construction joints in concrete structures. Typical applications include floor-to-wall joints, pipe penetrations, swimming pools, tanks, tunnels and other hydraulic structures.
How does Idrostop work?
It expands gradually when in permanent contact with water. This expansion creates pressure against the surrounding concrete and helps seal the construction joint.
Does Mapei Idrostop contain bentonite?
No. Idrostop has an acrylic polymer base and does not contain bentonite.
What sizes are available?
Idrostop is available in three sizes: 20 x 10mm, 20 x 15mm and 20 x 25mm, supplied in different roll lengths and box quantities.
How much water pressure can Idrostop withstand?
Mapei states waterproofing performance up to 5 atm hydraulic pressure under the manufacturer's test conditions. Actual performance depends on correct installation and the surrounding concrete construction.
Can Idrostop be installed on a wet surface?
It must not be installed while the structure is immersed in water. Free water should be removed from the concrete surface and the substrate allowed to dry for several hours before installation.
How long should I wait before pouring concrete?
Allow 24 hours when Idrostop is installed using Idrostop Mastic. When the profile is fixed using nails or screws, no additional waiting period is required before casting.
Technical Downloads
Idrostop is classified by Mapei as an article and does not require a Safety Data Sheet under the applicable REACH requirements. Follow the manufacturer's technical documentation for handling, installation and application requirements.
Clever Shield supplies Mapei waterproofing products throughout the UK. We supply products and manufacturer documentation but do not provide project-specific waterproofing design or specification.
