Automatic Grey & Foul Water Packaged Pumping Station (UK)

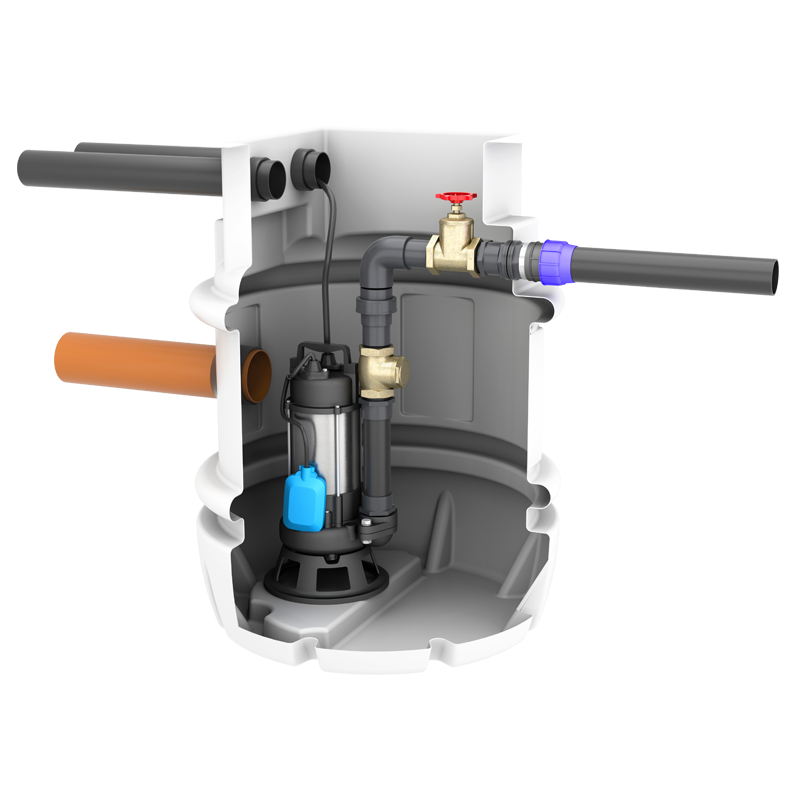

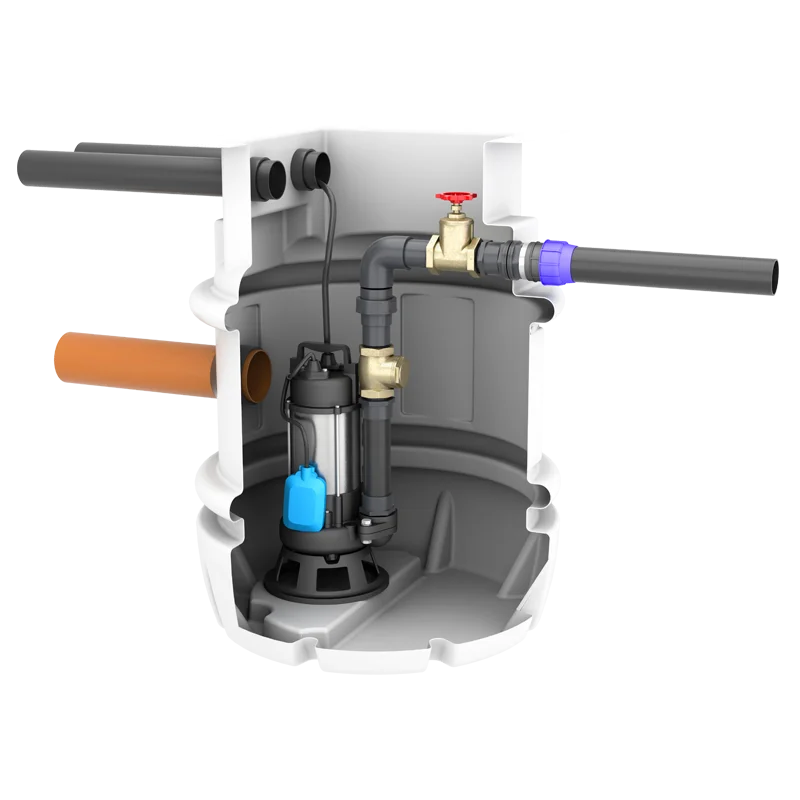

The MagnaPro 650-1000 Macerator is a high-performance automatic packaged pumping station designed to pump grey water and foul water to a higher discharge point when gravity drainage is not possible or practical.
Ideal for UK residential and commercial projects, this compact yet powerful wastewater lifting station provides reliable macerating pump technology, robust chamber construction, and installer-friendly flexibility.
Whether you’re fitting out a basement conversion, building an extension, or installing drainage for an outbuilding, this system delivers dependable performance where traditional gravity drainage cannot.
Designed for Grey & Foul Water Applications
This system complies with BS EN 12050-1:2015, meaning it is suitable for wastewater containing faecal matter.
The integrated grinder (macerator) pump cuts and processes solids before discharge, significantly reducing the risk of blockages and improving long-term reliability.
Perfect for:
- Basement drainage systems
- Residential extensions
- Garden rooms and outbuildings
- Commercial units
- Hospitality and retail premises
- Any installation requiring a foul water pumping station in the UK
Key Features & Benefits
✔ Macerator (Grinder) Impellor – Cutting action reduces blockage risk
✔ Fully Automatic Operation – Hands-free level control
✔ Up to 165 Litres Storage Capacity – Provides buffer during peak flow
✔ Maximum Vertical Lift: 14 Metres – Strong performance capability
✔ Maximum Flow Rate: 6.6 L/sec
✔ Compact Chamber Design – Ideal for restricted spaces
✔ 60° Benching Base – Promotes efficient waste movement
✔ 450 x 450 mm Clear Opening – Easy service access
✔ Secure Locking Galvanised Steel Cover (FACTA A Rated)
✔ Customisable Inlet Positions – Drill on-site or specify at order
✔ Optional Alarms & Remote Monitoring Available
Technical Specification
- Number of Pumps: One
- Impellor Type: Grinder (Macerator)
- Power Supply: 230V AC
- Motor Rating (P2): 750W
- Max Vertical Output: 14m
- Max Flow Rate: 6.6 litres/second
- Max Liquid Temperature: <40°C
- Chamber Material: Tank-grade polyethylene
- Internal Pipework: 2" Class E PVC with brass valves
- Discharge: 63mm OD MDPE (external compression adaptor)
- Clear Opening: 450mm x 450mm
- Access Cover: Solid top, locking, galvanised steel (Pedestrian duty FACTA A)
Built for Easy Installation & Long-Term Reliability
The MagnaPro 650-1000 Macerator is engineered for straightforward installation. Inlet positions can be configured to suit your site layout, and the robust polyethylene chamber ensures durability in underground applications.
The system is also designed for easy servicing, helping reduce downtime and ongoing maintenance costs.
For enhanced protection, we recommend pairing the system with a compatible high-level alarm for added peace of mind.
Why Choose This Packaged Pumping Station?
When you need a reliable foul water pumping station in the UK, the MagnaPro 650-1000 offers:
- Proven macerator pump technology
- Strong lift and flow performance
- Compliance with UK wastewater standards
- Compact, installer-friendly design
- Robust construction built for long service life
This is a dependable solution for modern drainage challenges where gravity systems simply aren’t viable.
