Description
Mapei Mapeheat Cable – Electric Underfloor Heating Cable 230V
Mapei Mapeheat Cable is a free-form, twin-coil electric underfloor heating cable designed to provide radiant floor heating in residential and commercial interiors. Operating at 230V, the cable can be positioned and spaced during installation to achieve the required heating output for the room.
Designed for use with the Mapei Mapeheat Membrane system, the cable features an ultra-thin cold-lead connection and mechanical splice to help simplify installation. Its flexible layout allows the heating cable to be arranged to suit different room shapes and floor areas.
Mapeheat Cable is suitable for ceramic, porcelain and natural stone floor installations, as well as luxury vinyl tile (LVT) when installed in accordance with the manufacturer's requirements. It is also suitable for specified engineered wood flooring systems when used with the appropriate Mapei membrane and smoothing compound build-up.

Key Features and Benefits
- 230V electric radiant underfloor heating cable.
- Free-form twin-coil design for flexible installation layouts.
- 12W per metre heating cable output.
- Can be spaced during installation to achieve different heating outputs.
- Designed for use with Mapei Mapeheat Membrane Maxi.
- Ultra-thin cold-lead splice designed to fit into the membrane system.
- Zero EMF electromagnetic field cable design, as stated by Mapei.
- Suitable for residential and commercial interior applications.
- Suitable for specified wet environments, including showers and steam rooms.
- Manufacturer's limited 12-year warranty, subject to the required documentation and warranty conditions.
Suitable Floor Coverings
- Ceramic and porcelain tiles.
- Granite and marble.
- Natural stone.
- Luxury vinyl tile (LVT), subject to the flooring manufacturer's approval for underfloor heating.
- Specified engineered wood flooring when installed as part of the approved Mapei system build-up.
For engineered wood and resilient floor coverings, the manufacturer's system requirements must be followed. Mapei identifies a suitable smoothing compound system using Ultraplan Renovation Screed 3240, with the heating installation limited to 95W/m² for these applications.
Wet Area Applications
Mapeheat Cable is suitable for specified wet environments, including showers, wet rooms and steam rooms, when installed as part of an appropriate floor construction and waterproofing system.
It must not be installed in areas that are constantly submerged or subject to standing water. Waterproofing and floor preparation must be completed using compatible products and the appropriate manufacturer's installation instructions.

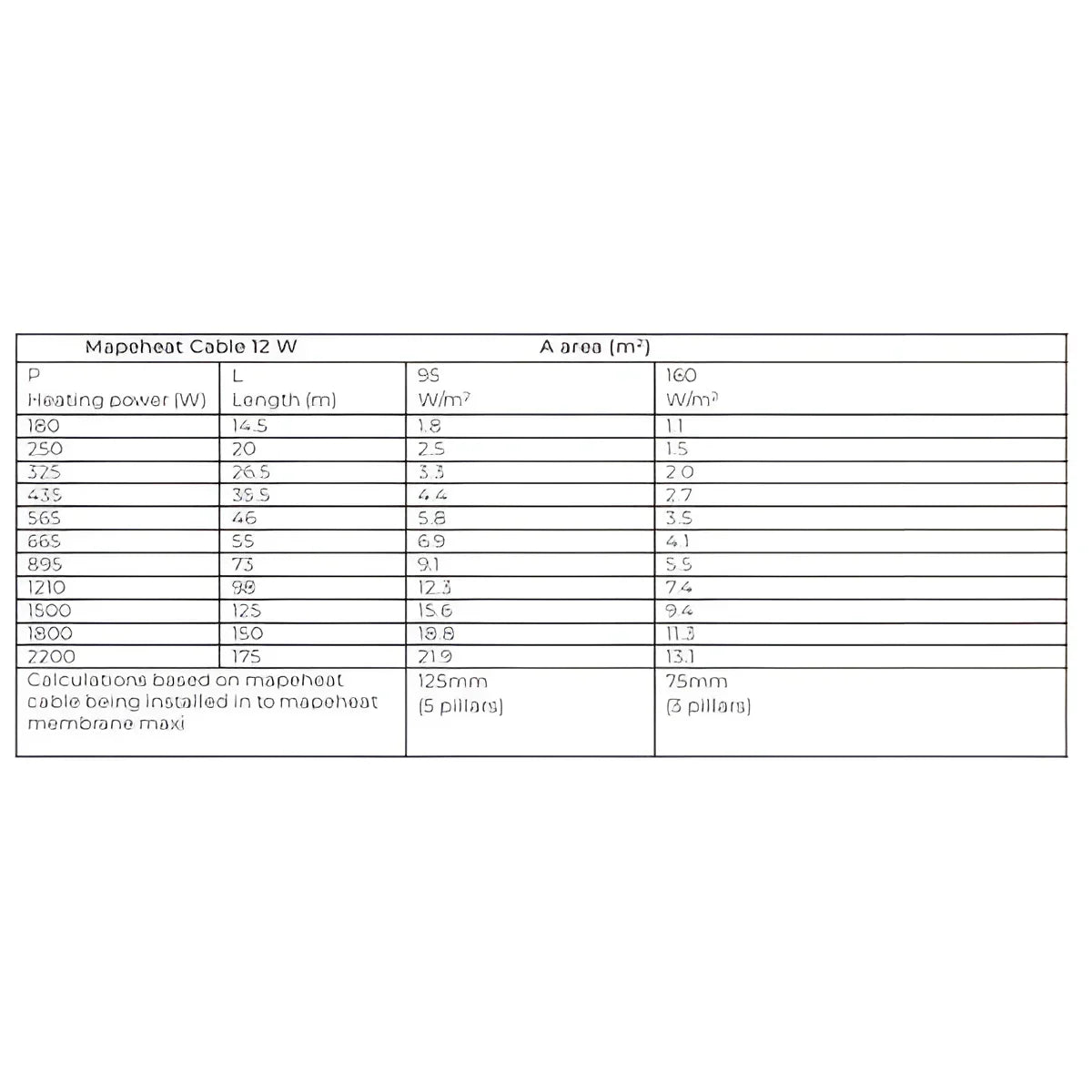

Available Cable Lengths and Heating Coverage
Mapeheat Cable is supplied in complete kits with the accessories required for installation. The UK manufacturer's technical data sheet lists cable lengths from 14.5m to 175m, with coverage depending on cable spacing and the selected heating output.
**Cable length** |
**Heating power** |
**Coverage at 95W/m²** |
**Coverage at 160W/m²** |
| 14.5m | 180W | 1.8m² | 1.1m² |
| 20m | 250W | 2.5m² | 1.5m² |
| 26.5m | 325W | 3.3m² | 2.0m² |
| 35.5m | 435W | 4.4m² | 2.7m² |
| 46m | 565W | 5.8m² | 3.5m² |
| 55m | 665W | 6.9m² | 4.1m² |
| 73m | 895W | 9.1m² | 5.5m² |
| 98m | 1,210W | 12.3m² | 7.4m² |
| 125m | 1,500W | 15.6m² | 9.4m² |
| 150m | 1,800W | 18.8m² | 11.3m² |
| 175m | 2,200W | 21.9m² | 13.1m² |
Coverage figures are based on installation within Mapeheat Membrane Maxi using the cable spacing stated in the manufacturer's technical data sheet. Actual heated floor area must account for fixed fixtures and installation restrictions.
Technical Specifications
- Product: Mapei Mapeheat Cable.
- Product type: Electric radiant floor-heating cable.
- Operating voltage: 230V.
- Power output: 12W per metre.
- Cable diameter: Approximately 4mm.
- Colour: Black.
- Construction: Two-wire grounded, twisted-pair heating cable with PVC outer jacket.
- Available cable lengths: 14.5m to 175m.
- Heating cable minimum bending radius: 30mm.
- Cold-lead minimum bending radius: 15mm.
- Recommended cable spacing: 75mm or 125mm, depending on the required heating output.
- Maximum continuous exposure temperature: +90°C.
- Installation ambient temperature: Above +10°C.
- Required protection: 30mA RCD and 10A Type C circuit breaker.
- Electrical connection: Dedicated electrical circuit.
- Warranty: Manufacturer's limited 12-year warranty, subject to conditions.
Important Installation Requirements
- Mapeheat Membrane Maxi is the approved accessory for securing Mapeheat Cable to the subfloor.
- The heating cable must never be cut, shortened, crossed or allowed to overlap itself.
- The cable must not be installed beneath cabinets, fixtures or appliances.
- The cable must not be installed in direct contact with combustible surfaces.
- The complete heating cable and mechanical joint must be secured and covered with suitable self-levelling underlayment or tile adhesive.
- The system must be connected to a dedicated electrical circuit with the specified RCD and circuit breaker protection.
- The temperature-sensing probe must be installed before the final floor covering is fitted.
- Only a suitably qualified electrician should make the electrical connections.
- Follow the manufacturer's installation manual and applicable UK electrical requirements.
Frequently Asked Questions
What is Mapeheat Cable?
Mapeheat Cable is a 230V electric underfloor heating cable designed to provide radiant heat beneath suitable floor coverings. It is designed to work with Mapei Mapeheat Membrane Maxi.
What is the power output of Mapeheat Cable?
The heating cable produces 12W per metre. The installed heating output per square metre depends on the spacing selected during installation.
What cable lengths are available?
The UK manufacturer's technical data sheet lists cable lengths from 14.5m to 175m, with coverage varying according to the selected cable spacing.
Can Mapeheat Cable be used in showers and wet rooms?
Yes. Mapei identifies the cable as suitable for specified wet environments, including showers and steam rooms. It must not be used in constantly submerged areas or floors subject to standing water.
Can Mapeheat Cable be used beneath engineered wood?
Specified engineered wood flooring can be used as part of the appropriate Mapei system build-up. Mapei identifies a smoothing compound system using Ultraplan Renovation Screed 3240, with the heating installation limited to 95W/m². Solid hardwood flooring is not suitable.
Does Mapeheat Cable include a warranty?
Mapei specifies a limited 12-year warranty, subject to completion of the required documentation and the manufacturer's warranty conditions.
Technical Documentation
Refer to the manufacturer's technical data sheet and installation handbook for full cable specifications, coverage calculations, installation requirements and warranty conditions.
Supply from Clever Shield Coatings UK
Clever Shield Coatings UK supplies Mapei products throughout the UK. Always consult the manufacturer's current technical documentation and installation instructions to confirm the correct cable length, heating coverage, compatible floor construction and electrical requirements.
