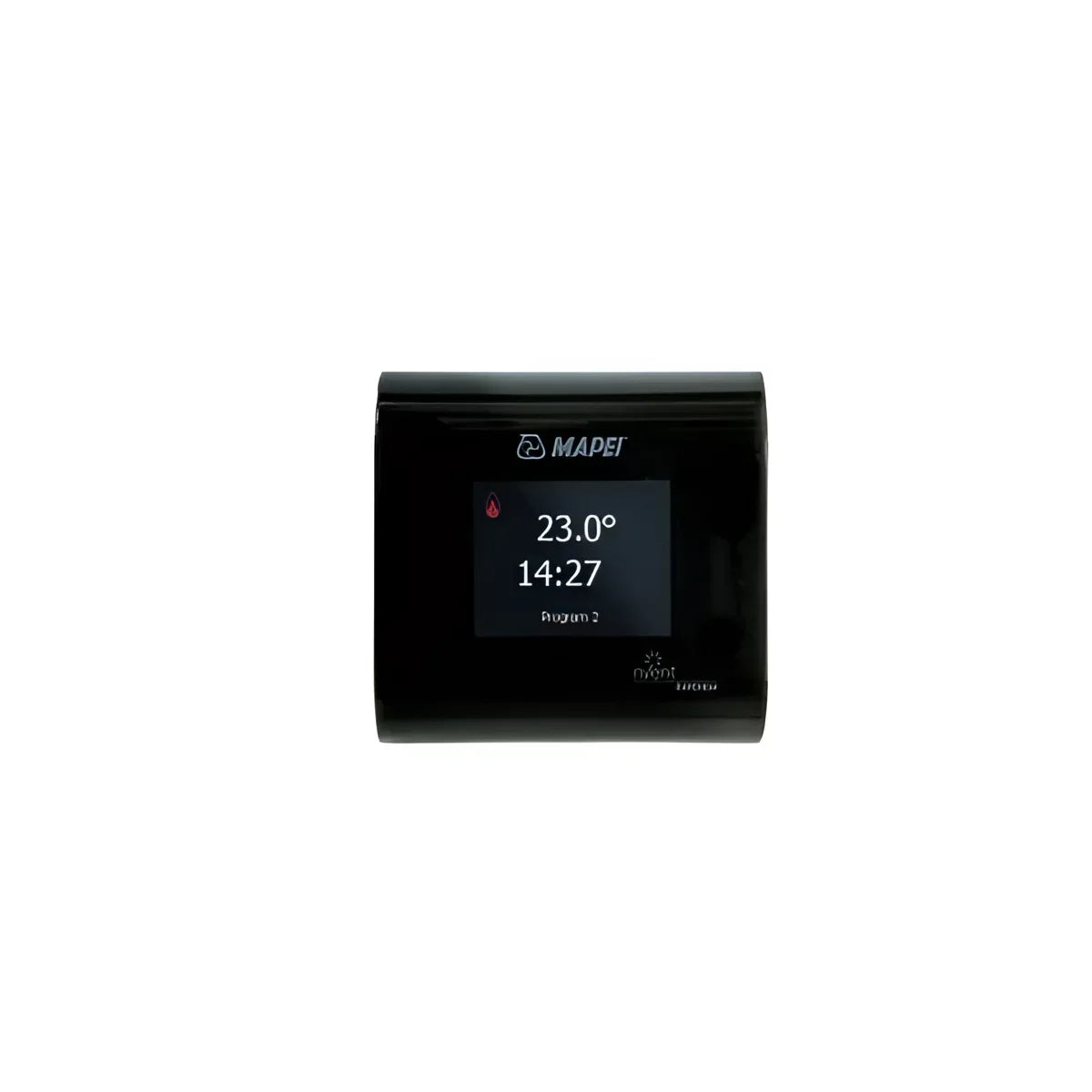

Mapei Mapeheat Thermo Connect – Wi-Fi Smart Underfloor Heating Thermostat
Mapei Mapeheat Thermo Connect is a programmable Wi-Fi smart thermostat designed to control Mapei Mapeheat electric underfloor heating systems. Featuring a full-colour capacitive touchscreen and modern flat-front design, it provides convenient control of your heating through the thermostat or a compatible smartphone.
With Wi-Fi connectivity and the SENZ-WIFI smartphone app for iOS and Android, users can monitor, control and programme their underfloor heating remotely. The thermostat is also compatible with Amazon Alexa and Google Assistant, allowing voice control through supported smart home devices.
Its intelligent adaptive heating function calculates when the system needs to start to reach the selected temperature at the required time. It also monitors energy consumption, helping users manage their heating schedules more efficiently.

Key Features and Benefits
- Programmable Wi-Fi smart thermostat for electric underfloor heating.
- Full-colour capacitive touchscreen.
- Remote control through the SENZ-WIFI smartphone app for iOS and Android.
- Compatible with Amazon Alexa and Google Assistant.
- Seven operating modes, including three programmable economic programmes.
- Intelligent adaptive heating function to calculate when heating should start.
- Energy consumption monitoring.
- Three temperature control options: floor sensing, room sensing and room sensing with floor temperature limiter.
- Child lock to help prevent accidental changes.
- Two display colour schemes, adjustable screen brightness and configurable home screen.
- Can be installed as a standalone thermostat or integrated into compatible single or multiple-gang switchgear frames.
- Manufacturer's limited two-year warranty, subject to completion of the required documentation.
Smart Heating Control
Mapeheat Thermo Connect allows users to manage their heating schedules through the thermostat or the compatible SENZ-WIFI smartphone app.
- Monitor and adjust heating remotely.
- Set heating programmes for different days of the week.
- Choose from three programmable economic programmes.
- Use the adaptive function to calculate when heating should start.
- Monitor energy consumption.
- Control compatible systems using Amazon Alexa and Google Assistant voice commands.
Temperature Control Modes
The thermostat offers different sensing options to suit the heating installation:
- Floor sensing: Uses the external floor sensor to regulate floor temperature.
- Room sensing: Uses the room sensor to regulate the ambient temperature.
- Room sensing with floor limiter: Controls room temperature while limiting the floor temperature using the external sensor.
Compatible Heating Systems
Mapeheat Thermo Connect is designed for use with the following Mapei electric underfloor heating products:
- Mapeheat Cable.
- Mapeheat Mesh.
Installation Options
The thermostat can be mounted as a standalone unit or integrated into compatible single or multiple-gang switchgear frames. Its compact design allows it to fit into a range of interior electrical layouts.
What's Included?
- Mapeheat Thermo Connect thermostat.
- Optional front plate.
- External floor sensor.
- Installation manual.
Technical Specifications
- Product: Mapei Mapeheat Thermo Connect.
- Product type: Programmable Wi-Fi underfloor heating thermostat.
- Supply voltage: 230V AC.
- Frequency: 50Hz.
- Maximum relay output: 13A for 230V heating cable.
- Wi-Fi: 802.11 b/g/n.
- Control method: PID.
- Operating modes: Seven, including three programmable economic programmes.
- Temperature control: Floor sensor, room sensor, room sensing with floor limiter or no sensor.
- Programming: Seven-day operation.
- Clock function: 1–6 events per day.
- Floor sensor temperature range: +5°C to +40°C.
- Room sensor temperature range: +5°C to +40°C.
- Temperature adjustment accuracy: ±0.2°C within the specified operating range.
- Protection rating: IP21.
- Terminal capacity: 2.5mm² screw cage clamp.
- Maximum floor sensor cable length: 100m using 2 x 1.5mm² cable.
- Dimensions: 85.5mm x 84.3mm x 41.9mm.
- Warranty: Manufacturer's limited two-year warranty, subject to the required documentation.
Frequently Asked Questions
What is Mapeheat Thermo Connect?
It is a programmable Wi-Fi thermostat designed to control Mapei Mapeheat electric underfloor heating systems, including Mapeheat Cable and Mapeheat Mesh.
Can I control the thermostat from my phone?
Yes. The thermostat connects to Wi-Fi and can be monitored, controlled and programmed through the SENZ-WIFI smartphone app for iOS and Android.
Does Mapeheat Thermo Connect work with Alexa and Google Assistant?
Yes. Mapei identifies compatibility with Amazon Alexa and Google Assistant for supported smart home voice control.
Does it have an adaptive heating function?
Yes. Its intelligent adaptive function calculates when the heating needs to start to reach the desired temperature at the required time.
Can it control both room and floor temperature?
Yes. It offers floor sensing, room sensing and room sensing with a floor temperature limiter.
Which Mapei heating systems are compatible?
Mapeheat Thermo Connect is designed for use with Mapeheat Cable and Mapeheat Mesh electric underfloor heating systems.
What warranty is included?
Mapei specifies a limited two-year warranty for the UK product, subject to completion of the required warranty documentation.
Technical Documentation
Refer to the manufacturer's technical documentation and installation manual for full operating instructions, wiring requirements, sensor configuration and warranty conditions.
Supply from Clever Shield Coatings UK
Clever Shield Coatings UK supplies Mapei products throughout the UK. Always consult the manufacturer's documentation and ensure the thermostat is installed and configured by a suitably qualified electrician.
