Description

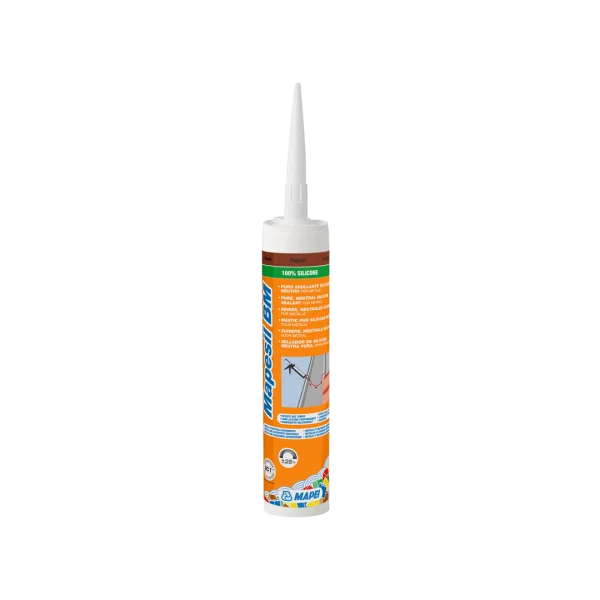

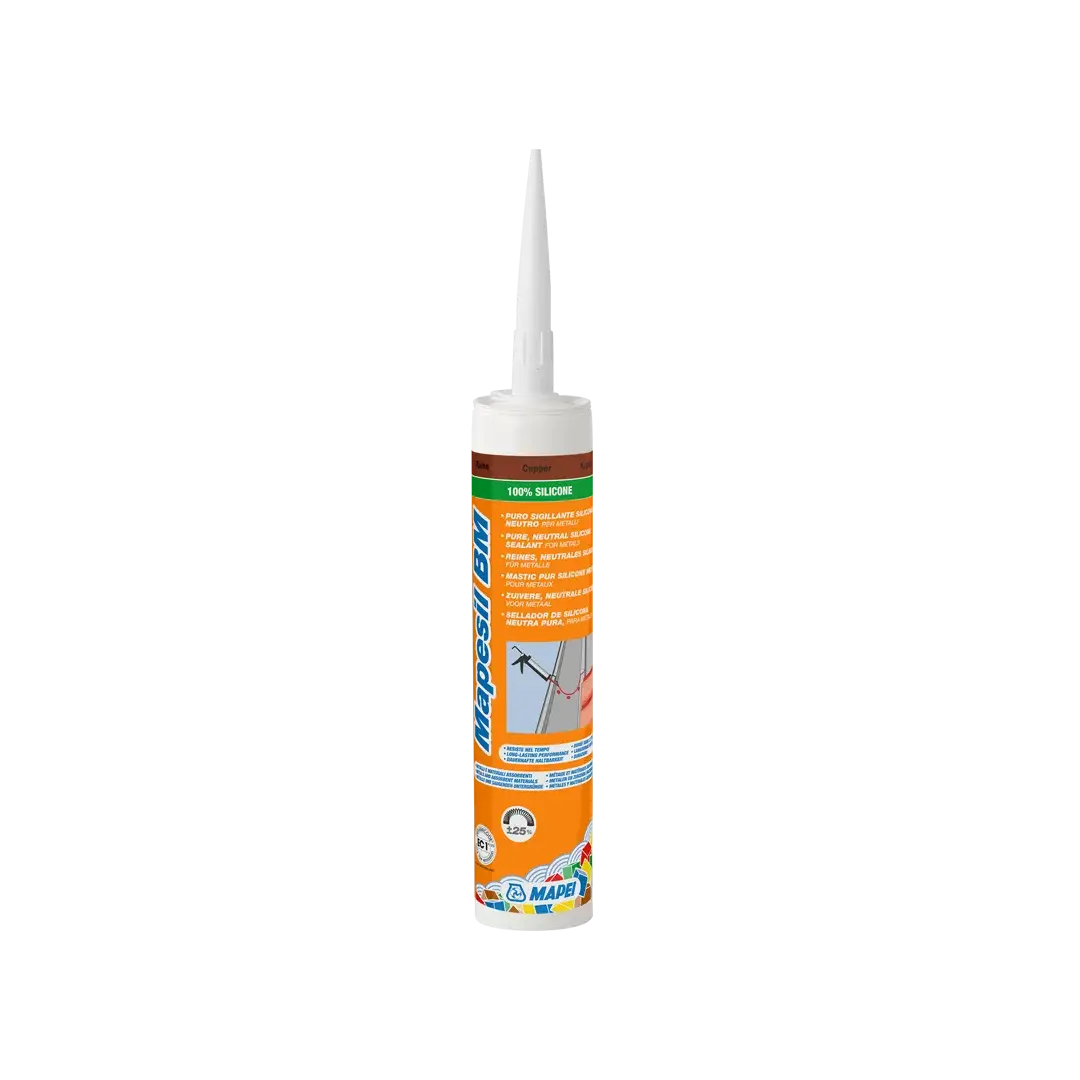

Mapei MAPESIL BM – Neutral Silicone Sealant for Metalwork 310ml
Mapei MAPESIL BM is a one-component, neutral-curing silicone sealant specifically developed for metalwork, roofing and construction joints. Its low-modulus formulation accommodates joint movement of up to 25%, providing a durable, flexible and weather-resistant seal.
MAPESIL BM is particularly suitable for sealing and bonding metal roofing components, including gutters, downpipes, flashings, roof sheets and other metalwork details. It offers excellent adhesion to commonly used roofing metals such as steel, zinc, copper and aluminium, as well as a range of suitable building materials.
Once cured, MAPESIL BM forms a permanently elastic silicone seal that withstands exposure to weathering, ageing and temperature variations. Its neutral cross-linking chemistry makes it suitable for metalwork applications where an appropriate neutral-cure sealant is required.

Key Benefits
- Neutral-curing silicone: Suitable for metalwork applications where neutral cross-linking is required.
- 25% movement capability: Accommodates movement in construction and metalwork joints.
- Low modulus: Flexible formulation reduces stress on joint edges.
- Excellent weather resistance: Resists exposure to rain, atmospheric conditions and ageing.
- Metalwork adhesion: Suitable for steel, zinc, copper, aluminium and pre-painted metal sheets.
- Broad substrate compatibility: Also suitable for selected building materials, including concrete, brick, glass and wood.
- Temperature resistance: Remains flexible over a wide service temperature range.
- Very low emissions: EMICODE EC1 Plus classification.
- Easy application: Supplied in 310ml cartridges for standard sealant guns.
- Four colour options: Transparent, grey, copper and dark brown.
Typical Applications
- Roofing metalwork: Sealing joints between metal roofing components.
- Gutters and downpipes: Sealing joints and connections in metal rainwater systems.
- Roof flashings: Flexible sealing around roof abutments and flashing details.
- Metal roof sheets: Sealing overlaps and joints between metal covering sheets.
- Steel and aluminium structures: Sealing suitable construction joints in metalwork.
- Rivets and fasteners: Sealing around suitable fixings and connections.
- Building joints: Flexible sealing between compatible construction materials.
- Polycarbonate: Suitable for compatible polycarbonate applications using the transparent version, subject to testing.
Suitable Substrates
MAPESIL BM has good adhesion to many commonly used construction and roofing materials, including:
- Steel and galvanised steel
- Zinc and zinc-plated sheet
- Pre-painted metal sheets
- Anodised and pre-painted aluminium
- Copper
- Concrete and cementitious surfaces
- Brickwork and masonry
- Glass and ceramic surfaces
- Varnished and lacquered wood
- Suitable plastics, including polycarbonate in the transparent version
Always check compatibility and adhesion on unfamiliar, coated or plastic substrates before proceeding. Some substrates may require a suitable primer.
Colours Available
| Colour | Typical application |
| Transparent | Suitable for applications where a clear finish is required. |
| Grey | Metal roofing and general metalwork. |
| Copper | Copper roofing and rainwater goods. |
| Dark Brown | Brown metalwork and roofing details. |
Colour availability is subject to stock and manufacturer supply.
Coverage & Consumption
One 310ml cartridge of MAPESIL BM provides approximately 3.1 linear metres of sealant when applied to a 10mm × 10mm joint section.
| Joint section | Approximate coverage |
| 10mm × 10mm | 3.1 linear metres |
Actual consumption will depend on joint dimensions, surface profile, application technique and wastage.
Application Instructions
1. Surface Preparation
- Ensure surfaces are sound, clean and free from dust, grease, oil and other contaminants.
- Clean and degrease metal surfaces thoroughly before application.
- Remove loose coatings, corrosion and other material that may affect adhesion.
- Allow surfaces to dry before applying the sealant.
- Where necessary, use suitable masking tape to achieve clean joint edges.
2. Joint Preparation
- For expansion joints, install a suitable MAPEFOAM closed-cell polyethylene backing cord to control the joint depth.
- Ensure the joint is correctly dimensioned for the expected movement.
- Avoid three-sided adhesion by using a suitable backing material.
- Where required, use the appropriate Mapei primer for the substrate.
3. Application
- Cut the cartridge nozzle to suit the required joint width.
- Insert the cartridge into a suitable 310ml sealant gun.
- Apply a continuous bead, ensuring the joint is completely filled without air pockets.
- Smooth the sealant using a suitable tooling method before skin formation.
- Remove masking tape immediately after tooling.
- Allow the sealant to cure undisturbed.
Primers & Substrate Compatibility
MAPESIL BM adheres to many suitable construction and metalwork surfaces without a primer. However, Mapei recommends the following primers where required:
- MAPEI PRIMERSEAL A: For relevant absorbent substrates and applications.
- MAPEI PRIMERSEAL M: For relevant metal substrates and applications.
Primer selection depends on the substrate and joint conditions. Consult the current Mapei technical data sheet before applying primer. Where prolonged immersion is anticipated, additional primer requirements must be checked with Mapei.
Technical Specifications
| Product | MAPESIL BM |
| Manufacturer | Mapei |
| Product type | One-component neutral-curing silicone sealant |
| Consistency | Thixotropic paste |
| Movement capability | 25% |
| Classification | ISO 11600 F-25-LM and G-25-LM |
| EN 15651-1 | F-EXT-INT-CC |
| EN 15651-2 | G-CC |
| EN 15651-4 | PW-EXT-INT-CC |
| Modulus of elasticity at 100% elongation | 0.35N/mm² |
| Shore A hardness | 25 |
| Tensile strength | 0.6N/mm² |
| Elongation at break | 250% transparent / 400% coloured |
| Maximum joint movement | 25% |
| Tear strength | 4N/mm² |
| Dry solids content | 100% |
| Density | 1.03g/cm³ transparent / 1.25g/cm³ coloured |
| EMICODE | EC1 Plus – very low emissions |
| Skin formation time | 10–20 minutes at +23°C and 50% RH |
| Cross-linking after 1 day | Approximately 4mm |
| Cross-linking after 7 days | Approximately 10mm |
| Application temperature | +5°C to +40°C |
| Service temperature | -40°C to +150°C |
| Packaging | 310ml cartridges |
| Packaging quantity | 12 cartridges per box |
| Shelf life | 12 months in original unopened packaging, stored in a dry place |
Frequently Asked Questions
What is MAPESIL BM used for?
MAPESIL BM is a neutral silicone sealant primarily developed for metalwork and roofing applications. It is used for sealing gutters, downpipes, flashings, roof sheets and other metal construction details.
Can MAPESIL BM be used on copper and zinc?
Yes. MAPESIL BM is particularly recommended for commonly used roofing metals, including copper, zinc, steel, galvanised sheet and aluminium. Always ensure surfaces are clean and properly prepared.
How much movement can MAPESIL BM accommodate?
MAPESIL BM accommodates joint movement of up to 25%, making it suitable for joints subject to thermal expansion and contraction.
How much does one cartridge cover?
A 310ml cartridge provides approximately 3.1 linear metres of sealant when applied to a 10mm × 10mm joint section.
Does MAPESIL BM require a primer?
It adheres to many suitable substrates without primer. However, Mapei Primerseal A or Primerseal M may be required for particular substrates and conditions.
Can MAPESIL BM be used outdoors?
Yes. It is designed for external metalwork and roofing applications and offers excellent resistance to weathering, ageing and atmospheric conditions.
Technical Downloads
Order Mapei MAPESIL BM from Clever Shield Coatings UK. We supply professional Mapei sealants, adhesives and waterproofing products, with UK-wide delivery.
Important supplier notice: Clever Shield supplies products but does not design or specify waterproofing systems. Customers must establish product suitability for their particular project and follow the latest manufacturer's technical data sheet, safety data sheet and installation instructions.
