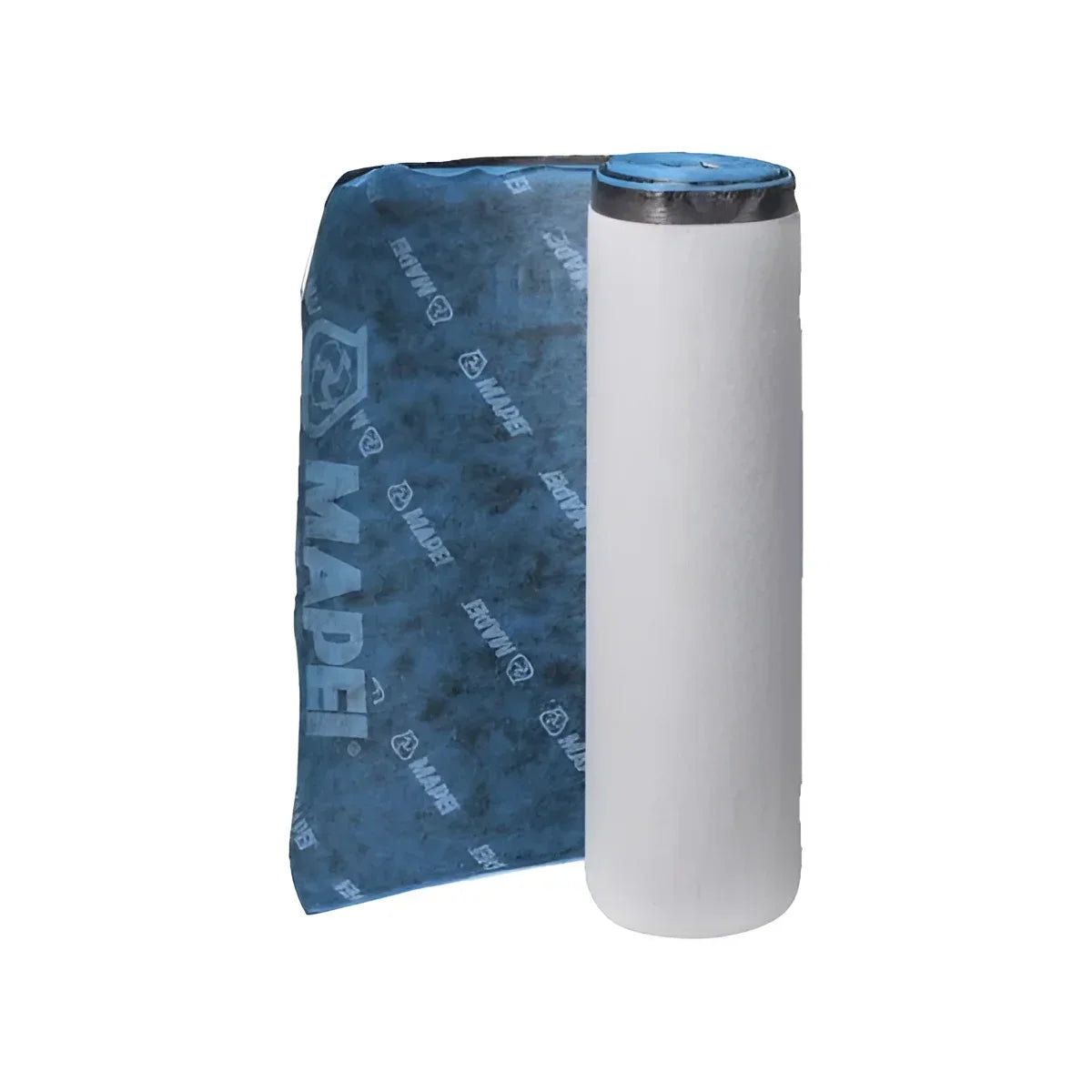

Mapei Mapesilent Roll – Acoustic Soundproofing Membrane for Floating Screeds
Mapei Mapesilent Roll is a high-performance acoustic insulation membrane designed to reduce impact noise transmitted through floors in residential, commercial and other building environments. Installed between the structural floor and a floating screed, it helps minimise the transmission of footsteps and other impact sounds between adjacent rooms and properties.
The membrane features an elasto-plastomeric bitumen and polymer-based layer with polyester reinforcement, combined with a resilient polyester fibre layer. Its blue non-woven polypropylene fabric facing provides a protective surface, while the integrated 5cm self-adhesive border helps create continuous joints between adjoining rolls.
With an 8mm nominal thickness and a thermal resistance of 0.145m²K/W, Mapesilent Roll provides acoustic insulation without requiring a substantial increase in floor build-up. It is suitable for floating screed systems beneath a wide range of finished flooring materials.

Key Benefits
- Designed to reduce impact noise transmitted through floor structures.
- On-site measured impact sound reduction of up to 37dB, depending on the floor construction and installation.
- 8mm nominal membrane thickness.
- Resilient polyester fibre layer for acoustic insulation.
- Elasto-plastomeric bitumen and polymer-based membrane with polyester reinforcement.
- Blue non-woven polypropylene fabric facing.
- Integrated 5cm self-adhesive border along the sides.
- Suitable beneath a wide range of floor finishes.
- Can be combined with underfloor heating systems.
- Compatible with Mapei Mapesilent system accessories.
Applications
Mapesilent Roll is installed as an acoustic insulation layer between the structural floor and a floating screed. It is designed to reduce impact noise transmitted through different types of floor slab.
Suitable flooring finishes include:
- Ceramic and porcelain tiles.
- Natural and manufactured stone.
- Resilient floor coverings.
- Textile and fabric floor coverings.
- Wooden flooring.
- Other suitable flooring materials installed over a compatible floating screed.
Acoustic Performance
Mapesilent Roll is designed to improve acoustic comfort by reducing the transmission of impact noise, particularly footsteps, through floor structures.
- Impact sound reduction measured on site (ΔLw): 37dB.
- On-site impact sound level index (L'n,w): 50dB.
- Apparent dynamic stiffness (S't): 9MN/m³.
- Dynamic stiffness for calculation purposes (S'): 21MN/m³.
- Compressibility class: CP2.
The 37dB figure is an on-site measurement and should not be treated as a guaranteed reduction for every floor construction. Actual acoustic performance depends on the existing structure, floating screed, floor finish, perimeter detailing and installation quality.
Thermal and Physical Properties
- Thermal resistance: 0.145m²K/W.
- Water impermeability: Greater than 100kPa.
- Static puncture resistance: 15kg.
- Impact resistance: 900mm.
- Longitudinal tensile strength: 700N/50mm.
- Transversal tensile strength: 500N/50mm.
- Weight: 1.8kg/m².
- Nominal thickness: 8mm.
Installation Overview
- Prepare the structural floor and ensure it is suitable for the proposed floating screed system.
- Install the appropriate perimeter acoustic insulation components to prevent acoustic bridges.
- Roll out Mapesilent Roll over the floor structure, following the manufacturer's installation instructions.
- Position adjoining rolls with their 5cm self-adhesive borders correctly aligned and bonded.
- Seal joints and overlaps using the appropriate Mapesilent system accessories where required.
- Ensure the acoustic insulation layer remains continuous, including around penetrations and perimeter details.
- Install the specified floating screed over the completed acoustic layer.
- Allow the screed to cure in accordance with its manufacturer's instructions before installing the selected floor finish.
Mapesilent System Accessories
For a complete acoustic installation, Mapei offers complementary products designed to help prevent acoustic bridges and maintain continuity throughout the floor construction.
- Mapesilent Band R: Perimeter insulation band used around walls and other vertical elements.
- Mapesilent Tape: Adhesive sealing tape for joints and overlaps in the acoustic insulation system.
- Mapesilent Door: A system accessory for acoustic detailing at door thresholds.
The correct accessories and detailing should be selected according to the manufacturer's system instructions and the requirements of the project.
Technical Specifications
- Product: Mapei Mapesilent Roll.
- Product type: Acoustic insulation membrane for floating screeds.
- Construction: Elasto-plastomeric bitumen and polymer-based membrane with polyester reinforcement and resilient polyester fibre.
- Surface facing: Blue non-woven polypropylene fabric.
- Nominal thickness: 8mm.
- Roll width: 1m, including the side border.
- Roll length: 10m.
- Coverage per roll: 10m² nominal.
- Self-adhesive border: 5cm along the sides.
- Weight: 1.8kg/m².
- Thermal resistance: 0.145m²K/W.
- Compressibility class: CP2.
- Impact sound reduction measured on site: 37dB.
- Packaging: 10 rolls per pallet layer configuration as specified by Mapei, with 16 rolls per pallet and 160m² total coverage.
Frequently Asked Questions
What is Mapei Mapesilent Roll used for?
Mapesilent Roll is an acoustic insulation membrane installed beneath floating screeds to reduce impact noise, including footsteps, transmitted through floor structures.
How much noise does Mapesilent Roll reduce?
Mapei reports an on-site measured impact sound reduction of 37dB. Actual results depend on the complete floor construction and installation details.
How thick is Mapesilent Roll?
The manufacturer's technical documentation specifies a nominal thickness of 8mm.
What size is each roll?
Each roll measures 1m wide by 10m long, providing approximately 10m² nominal coverage, with a 5cm self-adhesive border along the sides.
Can Mapesilent Roll be used beneath tiles and wooden flooring?
Yes. It is designed for floating screed constructions beneath ceramic tiles, stone, resilient and textile floor coverings and wooden flooring, subject to the complete floor system requirements.
Can Mapesilent Roll be combined with underfloor heating?
Yes. Mapei identifies Mapesilent Roll as suitable for combination with heated floors. The complete floor build-up must be checked for compatibility with the selected heating system and screed.
Does Mapesilent Roll provide waterproofing?
The manufacturer's technical data includes a water impermeability result greater than 100kPa. However, Mapesilent Roll is primarily an acoustic insulation product and should not be selected as a substitute for a dedicated waterproofing system.
Technical Documentation
Consult the manufacturer's technical data sheet for complete product characteristics, installation requirements, acoustic performance information and system detailing.
Supply from Clever Shield Coatings UK
Clever Shield Coatings UK supplies Mapei construction and building protection products throughout the UK. Always consult the manufacturer's technical documentation to confirm the correct acoustic system, floor construction and installation requirements.
