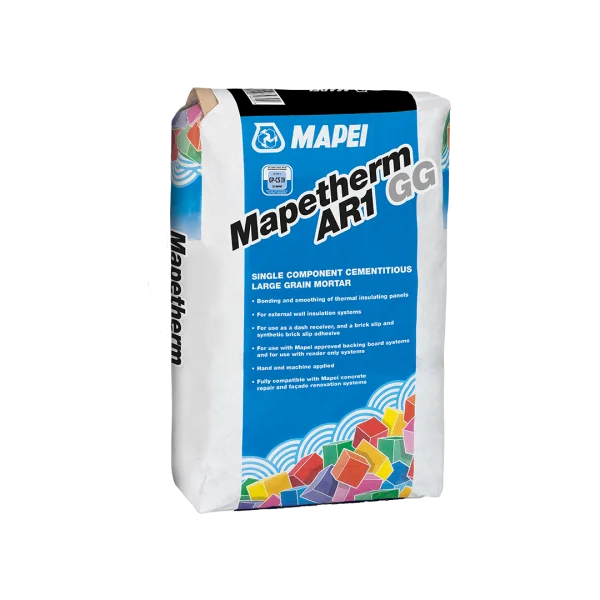

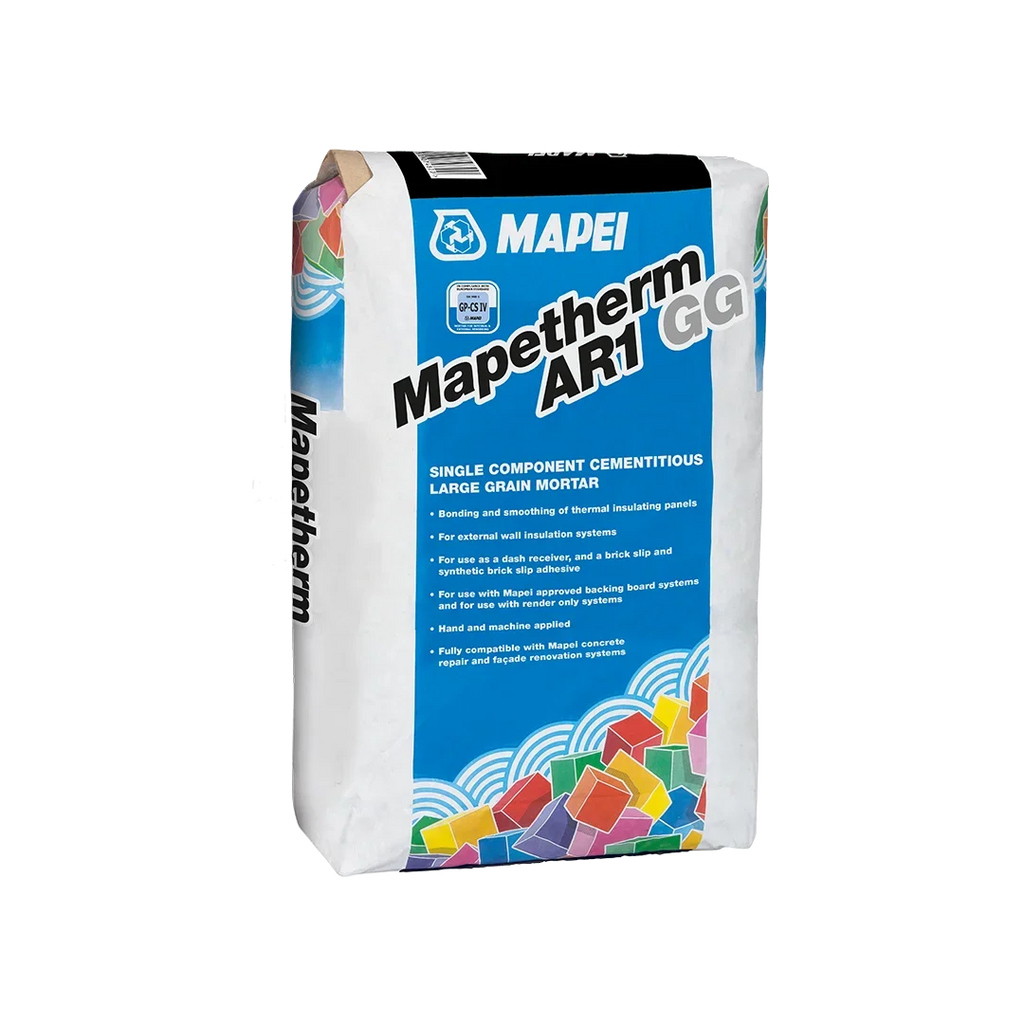

MAPETHERM AR1 GG – Large-Grain Cementitious Mortar for Insulation Panels

MAPETHERM AR1 GG is a high-performance, one-component large-grain cementitious mortar designed for bonding and levelling insulation panels in thermal insulation systems. Suitable for internal and external use, it ensures strong adhesion and a smooth, reinforced finish.

Where to Use

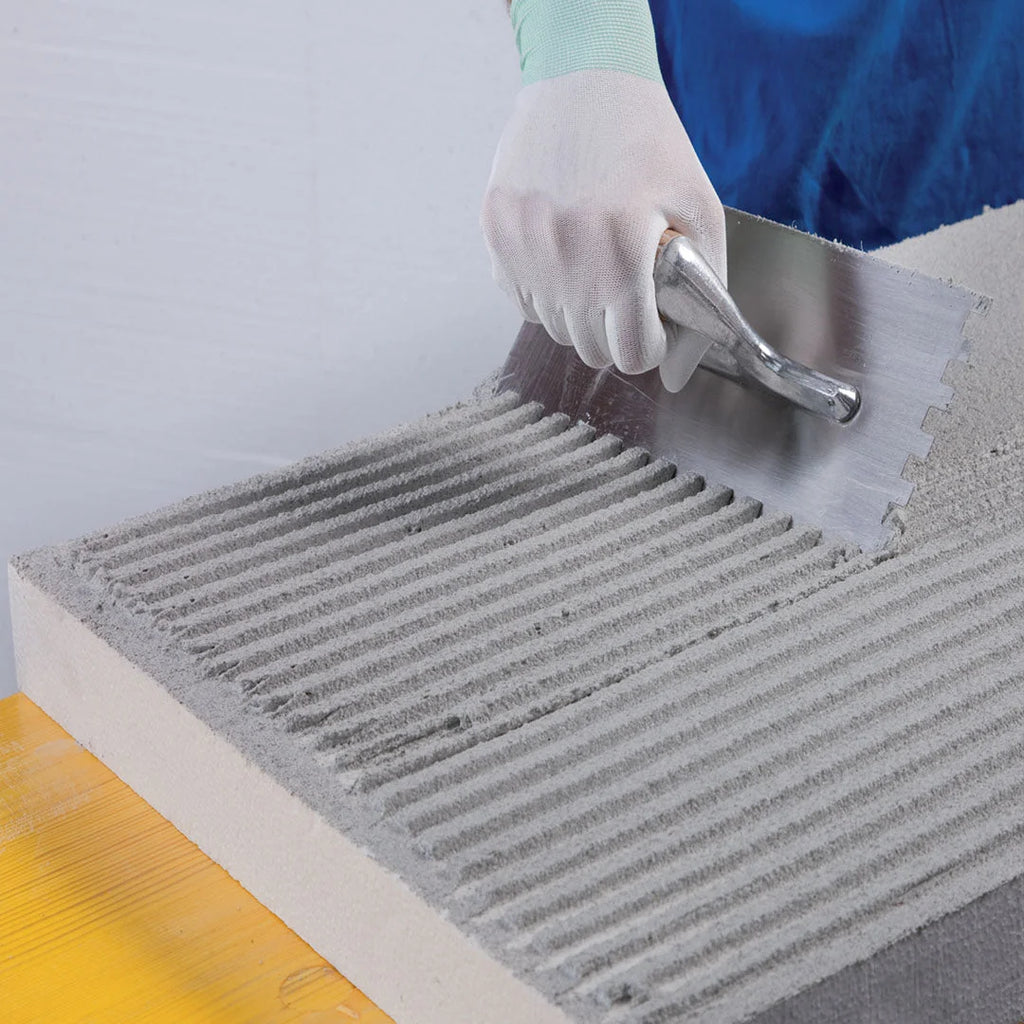

• Bonds thermal-insulating panels such as foam/extruded polystyrene, expanded polystyrene, mineral fibres, and cork directly to render, masonry, or concrete on walls and ceilings.

• Acts as a reinforcing coat for insulation panels with embedded fibreglass mesh in thermal insulation systems.

Recommendations

• Not suitable for bonding panels to metallic surfaces or substrates with large movements.

• Avoid use on panels with smooth surfaces (e.g., kraft paper-coated mineral fibres, skinned extruded polystyrene, coated polyurethane).

Technical Data

• Consistency: Powder

• Colour: Grey or white

• Density of Mix: 1,400 kg/m³

• Application Temperature: +5°C to +35°C

• Mixing Ratio: 21–24% with water (by weight)

• Cleaning: Water

• Application Method: Trowel

• Consumption:

  • 4.0–6.0 kg/m² (bonding)

  • 1.35–1.55 kg/m² per mm (levelling, approx. 4 mm in 2 coats recommended)

• Storage: 12 months

• Packaging: 25 kg paper sacks

• Certifications: ETA 10/0024, ETA 10/0025

Built for long-lasting adhesion and durability, MAPETHERM AR1 GG is ideal for professional installers and construction projects requiring strong, versatile insulation panel bonding and levelling.
