Description
Unique drainage and water-retention membrane for use where a water reservoir is required for extensive green roofs of sedum, herbaceous plants, mosses or grass above decks and roofs.

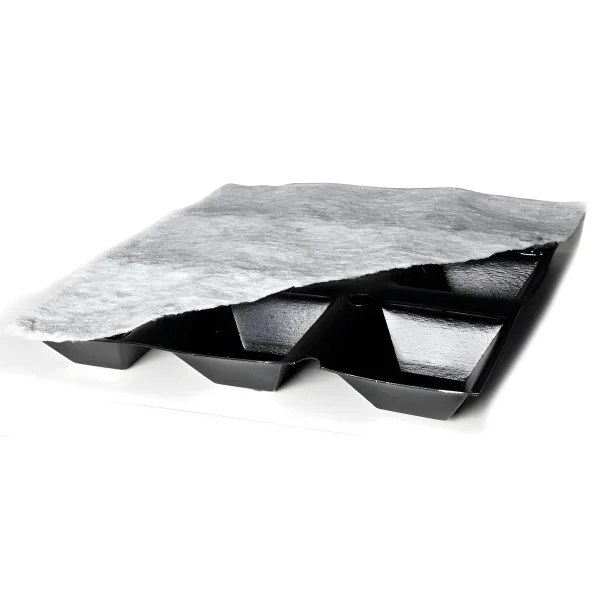

Unlike other products of this type, NewSeal 420 DeckDrain has a bonded geotextile that prevents intrusion of the soil into the water holding cups during back-fill and compression. This results in a permanently larger volume reservoir than any other 20mm-deep green roof membrane.
When the water holding cups are full, the large drainage holes within the HDPE core allow water to easily pass through to the drainage layer below to prevent saturation and waterlogging of the green roof above.
Key Benefits
- Unique bonded geotextile does not sag into the water holding cups as is the case with loose laid geotextiles.
- Large drainage holes allow a much higher drainage flow through the membrane than comparative products, ensuring that when the water holding cups are full, the water drains quickly so as not to waterlog the soil.
- Suspended soil particles (fines) are filtered out by the geotextile layer.
- Large drainage layer created by the 20mm HDPE core.
- Tough and durable.
- Quick and easy to install.
Typical Applications

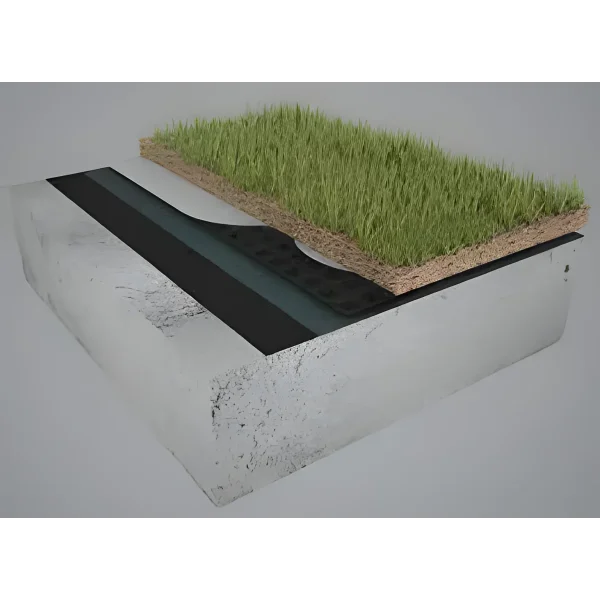

As a water holding and drainage layer above a deck, flat roof or pitched roof where shallow planting is used to create an extensive green roof.
Suitable Substrate
Directly above primary deck or roof waterproofing membrane.
Product Data
Code: M31
Packaging: Roll: 50m x 0.92m
Colour: Black
Area: 46m²
Downloads
Technical Data
| Installed Performance | Result |
| Water-flow at 20 kPa – 1:80 slope – Upper layer | 0.07 l/m/s |
| Water-flow at 100 kPa – 1:80 slope – Upper layer | 0.04 l/m/s |
| Water-flow at 200 kPa – 1:80 slope – Upper layer | 0.02 l/m/s |
| Compressive strength – Temporary loading | >240 kPa |
| Compressive strength – Permanent loading | >120 kPa |
| Water vapour diffusion resistance – Sd value | >604m |
| Water vapour diffusion resistance – µ value | >1208000µ |
| Water vapour diffusion resistance | >3020 MNs/g |
| CBR puncture resistance | 2800.00 N |
| Tensile strength (Machine direction) | 19 kN/m2 |
| Tensile strength (Cross direction) | 10 kN/m2 |
| Chemical resistance | Excellent |
| Oxidation resistance | Excellent |
