Newton FlexProof 106 – Flexible Construction and Movement Joint Waterproofing
Newton FlexProof 106 is a single-component flexible polymer waterproofing compound designed to seal construction joints and movement joints in concrete structures. It forms an elastomeric waterproof membrane that provides excellent flexibility and adhesion to suitable building substrates, helping maintain a watertight seal where joints are subject to movement or deformation.
FlexProof 106 develops a rain-resistant surface within minutes and can resist both positive-side and negative-side water pressure when correctly installed. The system is available in two formulations: FlexProof 106 X1, a thixotropic paste for surface application over joints, and FlexProof 106 NV, a lower-viscosity pourable compound for movement joints.

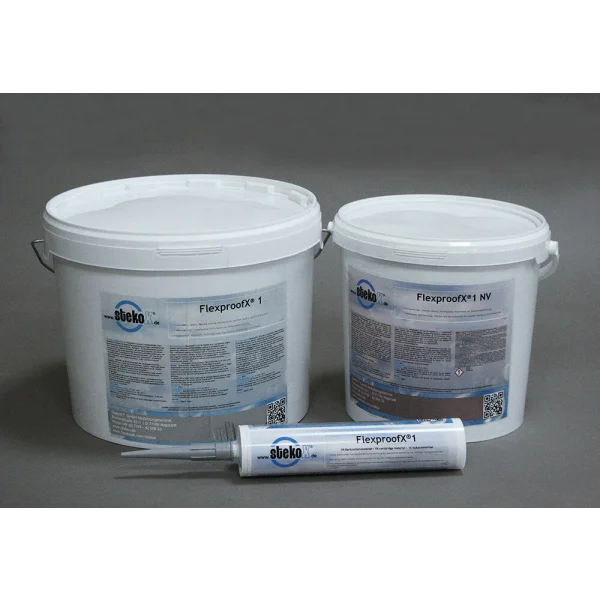

FlexProof 106 Product Variants
- FlexProof 106 X1 – 15kg: Thixotropic paste applied as a surface seal over construction joints and suitable movement joints. Also available in a 290ml cartridge.
- FlexProof 106 NV – 7.5kg: Lower-viscosity, pourable formulation typically used within horizontal movement joints and joints between precast concrete elements.
- FlexProof 106 Primer – Code 916: Primer used to improve adhesion on porous surfaces and seal dusty or absorbent concrete.
- FoamStop Backing Rods – FS1 to FS8: Foam backing rods used to support the correct application depth within movement joints.
Key Benefits
- Single-component formulation – no mixing required
- Forms a rain-resistant surface within minutes
- Highly flexible elastomeric waterproofing membrane
- Resists positive-side and negative-side water pressure
- Suitable for construction and movement joint waterproofing
- Excellent adhesion to suitable building substrates
- 100% waterproof while allowing vapour diffusion
- Resistant to the high alkalinity of concrete
- Maintains performance across a wide service temperature range
- No primer generally required on suitable prepared substrates
- Suitable for detailing joints between different construction materials
Applications
- Construction joints in poured concrete structures
- Movement joints in precast concrete elements
- Basement and below-ground waterproofing
- Retaining walls and concrete foundations
- Concrete floor and wall interfaces
- Joints between dissimilar building materials
- Flexible sealing of construction interfaces
- Detailing within Newton HydroBond waterproofing systems
Application Guidance
FlexProof 106 X1
FlexProof 106 X1 is a thixotropic paste applied directly over the prepared joint using a trowel or putty knife. It is used as a surface-applied waterproofing seal over construction joints. Apply to achieve the specified membrane thickness, ensuring the compound is continuous across the joint and properly bonded to the substrate.
FlexProof 106 NV
FlexProof 106 NV is the lower-viscosity, pourable formulation designed for application within movement joints. The joint should be correctly prepared and fitted with a suitable FoamStop backing rod to control the depth of application. The required compound depth is generally 50% of the joint width, subject to the manufacturer's detailing requirements.
Substrate Preparation and Primer
Surfaces must be suitably prepared, sound and free from contaminants that could affect adhesion. Newton states that primer is not generally required on suitable substrates. However, FlexProof 106 Primer, product code 916, is available to improve adhesion to porous surfaces and seal dusty or absorbent concrete.
Technical Information
| Product | Newton FlexProof 106 |
| Product Type | Flexible polymer waterproofing compound |
| X1 Form | Medium-viscosity thixotropic paste |
| NV Form | Low-viscosity pourable compound |
| Colour | Grey |
| X1 Packaging | 15kg |
| NV Packaging | 7.5kg |
| X1 Cartridge | 290ml |
| Density – X1 | 1.54 |
| Density – NV | 1.44 |
| Application Rate – Over Joints | 3.85kg/m² at 2.5mm thickness (X1) |
| Application Rate – Flat Surfaces | 3.0kg/m² at 2.0mm thickness |
| NV Joint Application | Application depth approximately 50% of joint width |
| Adhesion to Concrete | Greater than 450kPa |
| Tensile Strength – X1 | 1.25N/mm² |
| Tensile Strength – NV | 1.60N/mm² |
| Elongation at Break – X1 | 250% |
| Elongation at Break – NV | 450% |
| Shore Hardness | 40 Shore A |
| Service Temperature | -40°C to +90°C |
| UV Resistance | 10 years (manufacturer test-based extrapolation) |
| Reaction to Fire | Euroclass E |
| Shelf Life | 12 months |
Frequently Asked Questions
What is Newton FlexProof 106 used for?
FlexProof 106 is used to waterproof construction and movement joints in concrete structures. It forms a flexible elastomeric seal that accommodates joint movement and helps prevent water ingress.
What is the difference between FlexProof 106 X1 and NV?
X1 is a thixotropic paste designed for surface application over joints. NV is a lower-viscosity, pourable compound designed for application within movement joints, particularly horizontal joints.
Does FlexProof 106 require a primer?
Primer is not generally required on suitable prepared substrates. However, Newton FlexProof 106 Primer, code 916, can be used to improve adhesion on porous surfaces and seal dusty or absorbent concrete.
How quickly does FlexProof 106 become rain resistant?
FlexProof 106 forms a rain-resistant surface within minutes. Actual curing times depend on temperature and site conditions. Refer to the manufacturer's technical data sheet for the relevant curing information.
Can FlexProof 106 accommodate joint movement?
Yes. FlexProof 106 is an elastomeric waterproofing compound designed to accommodate movement. X1 and NV are selected according to the joint configuration and application method.
What is the coverage of FlexProof 106?
For X1, the manufacturer's typical application rate is 3.85kg/m² over joints at 2.5mm thickness and 3.0kg/m² on flat surfaces at 2.0mm thickness. NV consumption depends on the joint width and specified application depth.
Downloads
Important: Clever Shield supplies products only and does not design or specify waterproofing systems. Joint design, product selection, substrate preparation and installation details must be assessed by the project designer or installer. Always follow the latest manufacturer technical data sheets and installation instructions.
