Description
Newton CDM 503 Mesh – 3mm Meshed Cavity Drain Waterproofing Membrane
Product Code: M11
Size: 2.0m x 20.0m (40m²)
Colour: White/Translucent

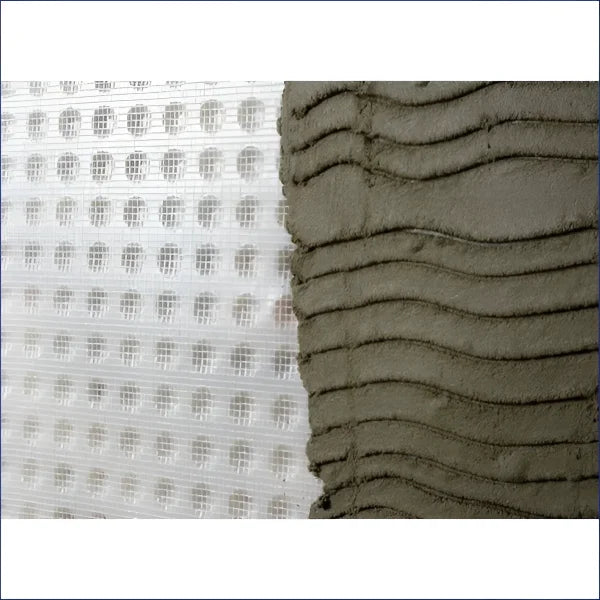

Newton CDM 503 Mesh is a BBA-certified, high-quality 3mm meshed cavity drain membrane designed for internal waterproofing within the Newton CDM System. This system also integrates drainage and pumping solutions for effective below-ground moisture control. The strong polyethylene mesh is thermally welded to the membrane surface, creating an excellent key for plasters and renders, making it ideal for earth-retained walls and vaulted soffits.
Backed by a 30-year warranty and a life expectancy matching the structure’s design life (DIN 9001:2000), CDM 503 Mesh is engineered for durability and performance. It is resistant to water, alkalis, saline solutions, organic acids, bacteria, fungi, and hydrocarbons, ensuring long-term reliability in damp or aggressive environments.
Key Benefits
✔ No Extensive Surface Preparation – Reduces installation time and costs.
✔ Fast & Easy Installation – Designed for efficiency.
✔ BS 8102:2022 Compliant – Capable of providing Grade 3 environments.
✔ Ultra-Thin Profile (3mm Studs) – Ideal for tight spaces.
✔ Meshed Surface – Allows for direct application of plasters and renders.
✔ Highly Durable – Resistant to water, chemicals, and biological growth.
Typical Applications
🏗 Waterproofing & Moisture Control for:
- Basement & cellar walls
- Vaulted soffits & tunnels
- Below-ground structures in need of durable waterproofing
British Standard 8102:2022 Compliance
The Newton CDM System adheres to BS 8102:2022, ensuring maintainable waterproofing solutions. It is recommended that the Newton CDM System be installed by a Newton Specialist Contractor (NSBC) for optimal performance.
Technical Data
| Feature | Result |
|---|---|
| Material | HDPE |
| Density | 505 g/m² |
| Width | 2.0 m |
| Length | 20 m |
| Total Area | 40 m² |
| Membrane Thickness | 0.6 mm |
| Stud Height | 3.0 mm |
| Working Temperature | -50 to 80ºC |
| Softening Temperature | 126ºC |
| Packaged Weight | 20.2 kg |
Installed Performance
| Performance Metric | Result |
|---|---|
| Water Tightness (60 kPa; 24h) | Pass |
| Tensile Strength MD/CD | 416 N / 488 N |
| Resistance to Static Loading | > 20 kg |
| Compressive Strength | 250 kN |
| Fire Resistance | F (Fire-rated membranes available upon request) |
| Type of Application | Type V |
| Life Expectancy | Lifetime of structure |
🔗 For fire-rated versions (B-s2.d0 classification), contact Newton Waterproofing Systems.
Product Data
📦 Product Code: M11
📏 Packaging: 2.0m x 20.0m Roll
🎨 Colour: White/Translucent
📐 Total Coverage: 40m²
📞 Need expert guidance? Call our technical team at 01268 472358.
