Newton CDM BaseDrain & FloorDrain – Perimeter Drainage System
Newton CDM BaseDrain and FloorDrain are essential components of the Newton CDM System (System 500), designed to manage water ingress in below-ground structures. These drainage conduits collect water from structural weaknesses and direct it to a Newton Basement Pumping System or safe drainage outlet, ensuring a dry and protected environment.
The BaseDrain system is installed around the perimeter of the retaining walls, while FloorDrain collects water at floor-level joints and door thresholds.
Key Benefits
✔ Efficient water collection and drainage from below-ground structures.
✔ Perimeter placement for optimal water management.
✔ Pre-drilled 18mm holes to facilitate water entry from insulation boards and spacer zones.
✔ Compatible with Newton sump and drainage systems.
✔ Variety of connectors and fittings for flexible system design.
Typical Applications
🔹 CDM BaseDrain – Perimeter drainage conduit at the base of wall membranes.
🔹 CDM FloorDrain – Floor-level drainage conduit for construction joints and door thresholds.

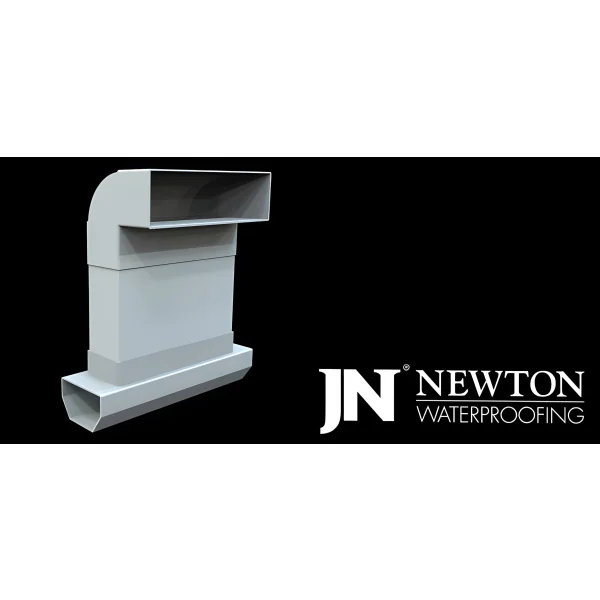

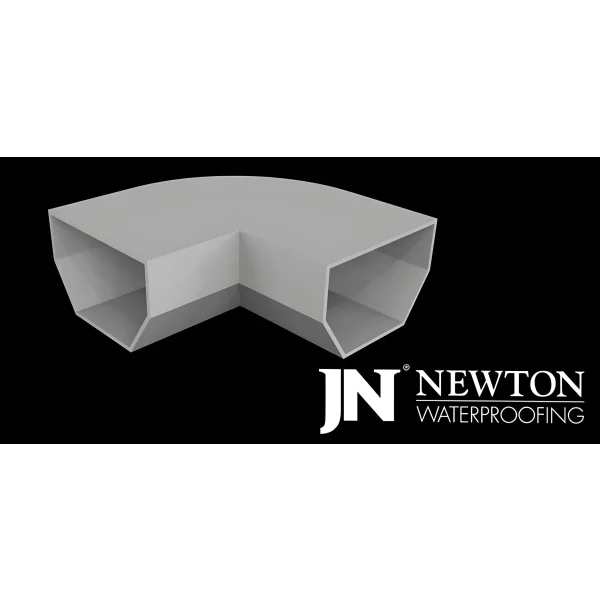

🔹 CDM BaseDrain Corner – 90-degree formed corner for seamless connections.

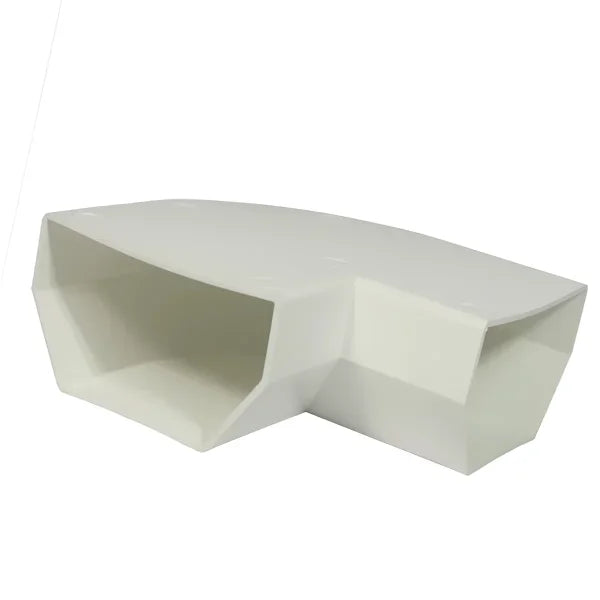

🔹 CDM BaseDrain T-Piece – 90-degree connection to FloorDrain or alternate drainage pathways.
🔹 Inspection & Jetting Ports – Access points for maintenance and system flushing.
Product Overview & Codes
| Product | Code | Description |
|---|---|---|

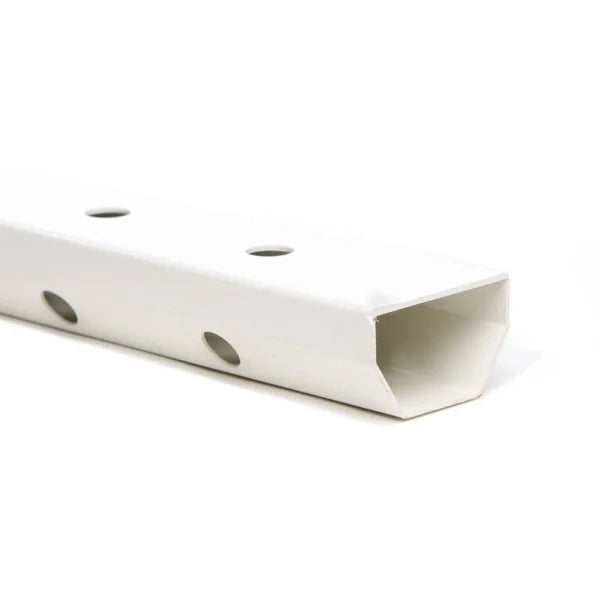

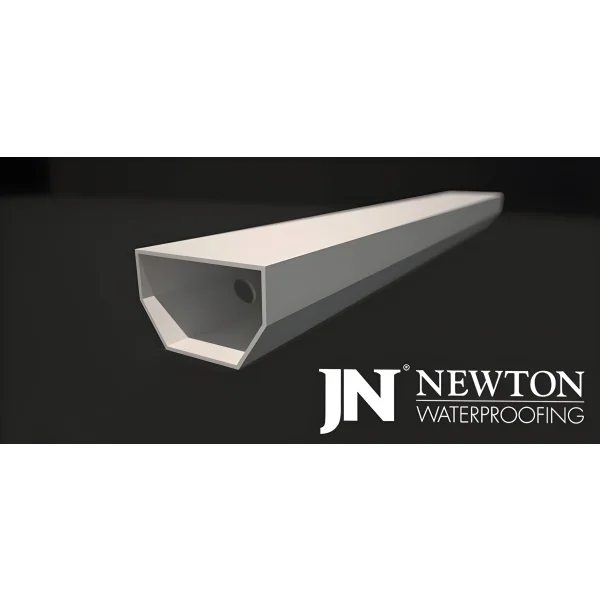

| CDM BaseDrain (2m lengths) | D1 | Perimeter drainage conduit. |
| CDM FloorDrain (2m lengths) | D3 | Floor drainage conduit. |
| CDM BaseDrain Connector | D4 | Connects BaseDrain sections. |
| Flexible Jetting Eye | D5 | Maintenance access for drainage flushing. |

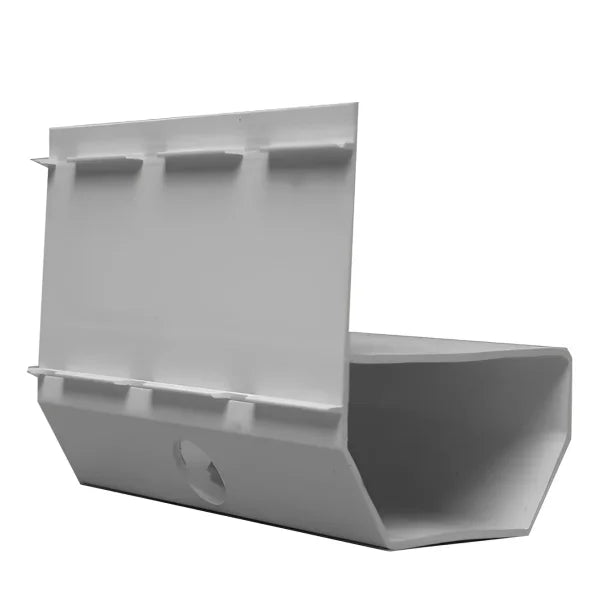

| CDM BaseDrain Corner | D6 | 90-degree formed corner. |

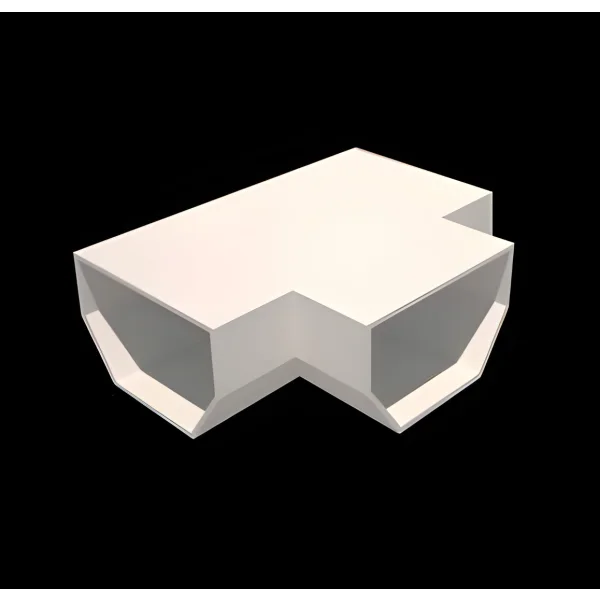

| CDM BaseDrain T-Piece | D7 | 90-degree connection for FloorDrain/BaseDrain. |

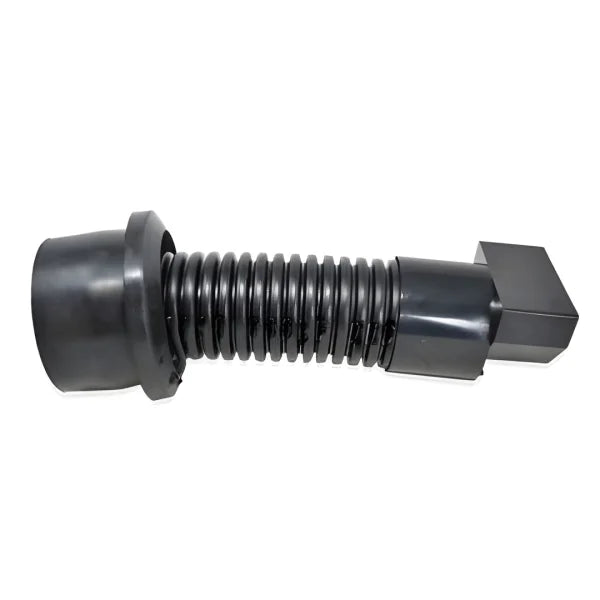

| BaseDrain Sump Connector (1m flexihose) | D21 | Connection to sump system. |

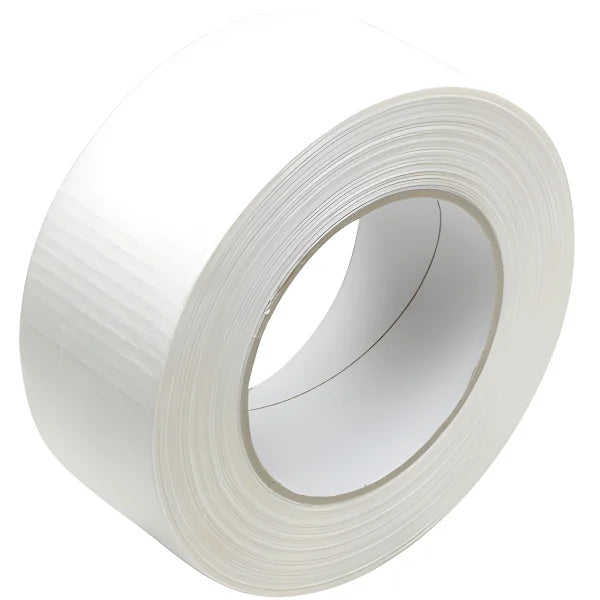

| Jointing Tape (Double-sided butyl sealing tape) | D22 | Secure sealing of drainage membranes. |

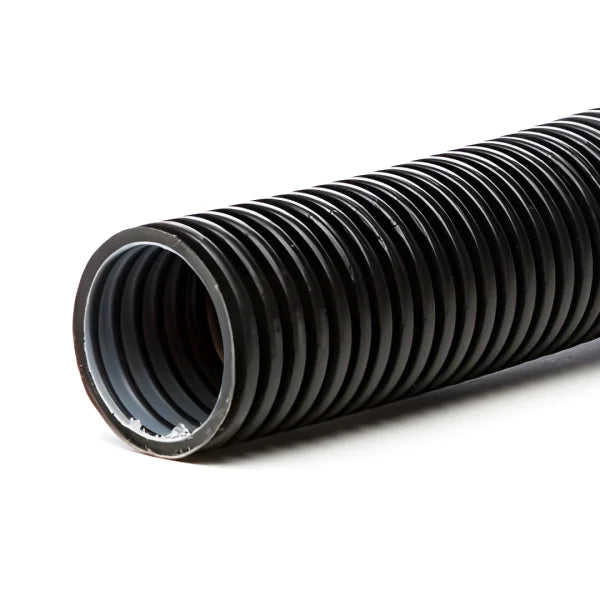

| CDM BaseDrain Flexi Pipe (1m length) | D23 | Flexible drainage pipe. |

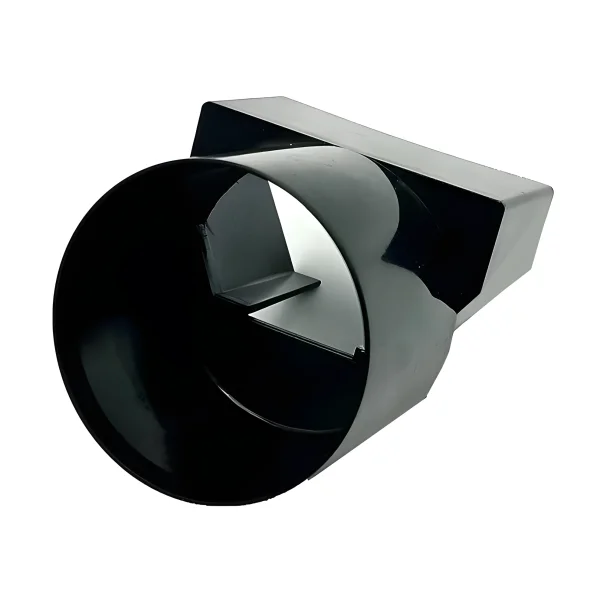

| CDM BaseDrain Adaptor | D24 | Adapts to 63mm O/D pipe. |

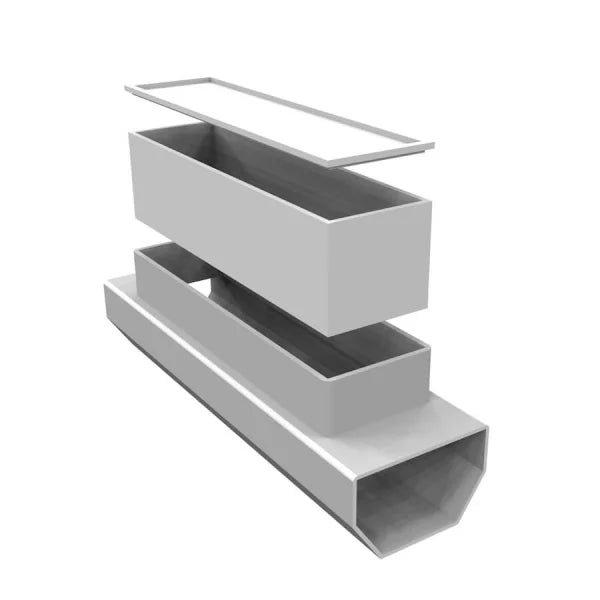

| BaseDrain Inspection Port Kit | D26 | Includes 4 ports, 4 end caps, and 2m duct. |
| CDM BaseDrain Inspection Port 90-degree Bend | D27 | Right-angle bend for inspection access. |
| CDM Inspection Port Riser (2m ducting, 204mm x 60mm) | D28 | Raises inspection ports for easy access. |
| Port Finish / End Cap | D29 | Finish cap for inspection ports. |
| CDM Inspection Port Riser (12m interval access) | D30 | Ducting riser for inspection access. |
For 63mm O/D Pipe connections to Titan-Pro Sump, Titan Sump, or safe drainage, contact Customer Services at 0800 7022176.
