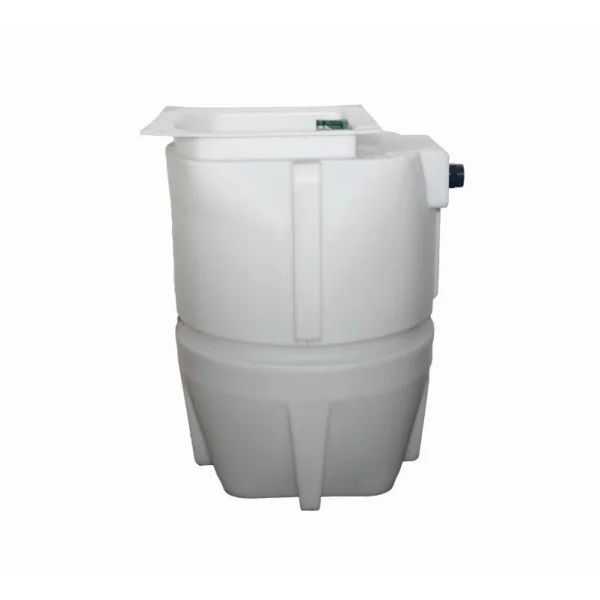

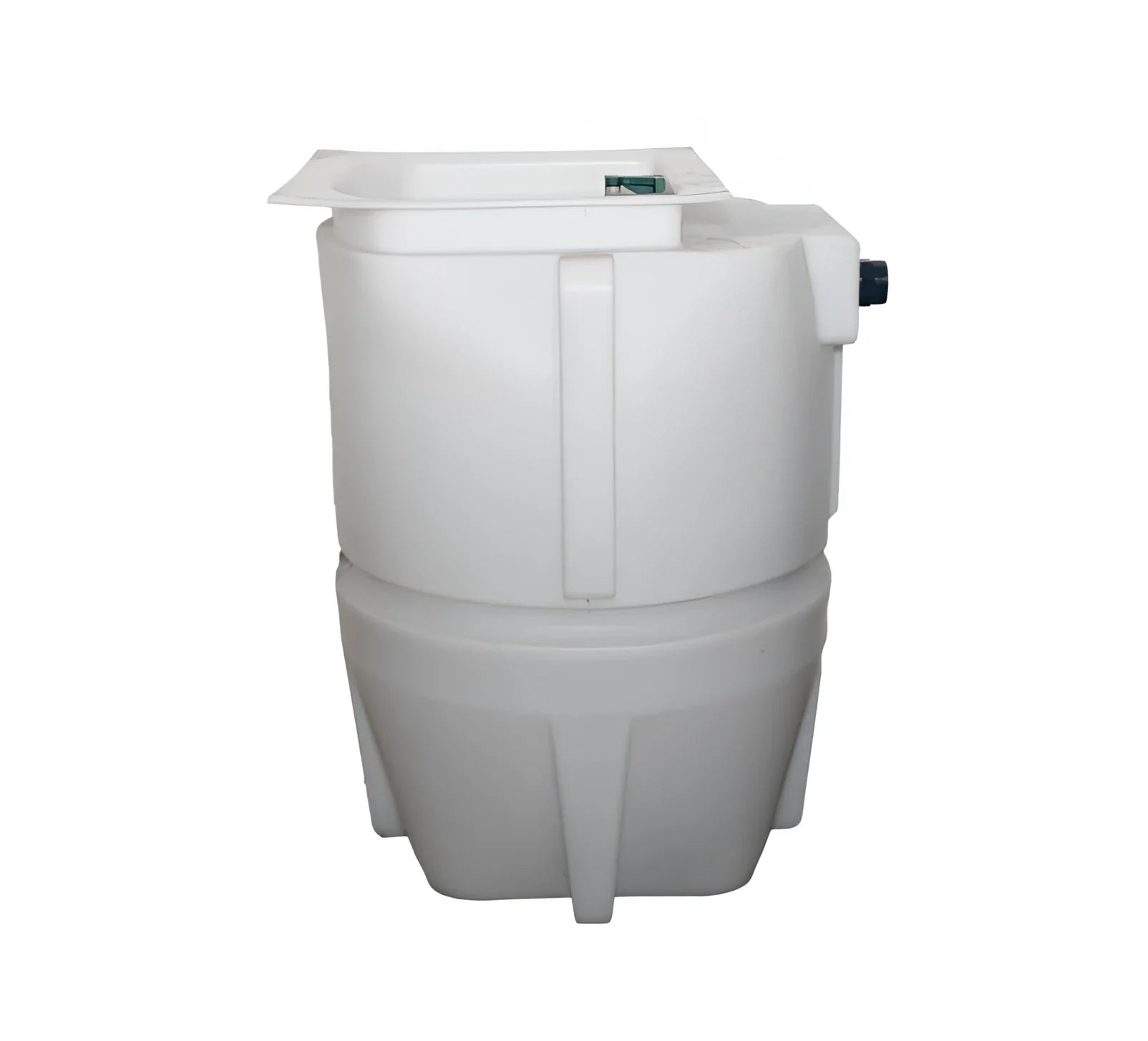

Newton Trojan-Pro Sump Chamber – Versatile Medium-Sized Pumping Solution
The Newton Trojan-Pro is a high-strength, medium-sized sump chamber, designed for sewage lifting, surface water removal, and groundwater pumping. Available in four sizes (1.2m to 2.1m high in 300mm increments), the Trojan-Pro is suitable for a wide range of applications, including residential sewage systems, basement drainage, and Type C Newton CDM System installations.
The Trojan-Pro can be purchased as a bare chamber for custom configurations or as a fully built pumping system with pumps, non-return valves, pipework, alarms, and lid/frame options.
Key Benefits:
✔ Versatile Pump Compatibility – Suitable for sewage, clean water, and greywater applications.
✔ Robust Construction – Strengthened ribs provide a durable structure, reducing risk of flotation in concrete installations.
✔ Customizable Lid Options – Includes double-locked and sealed recessed lids, with high-end solid lid upgrades available.
✔ Large Access Opening – Facilitates easy pump installation and removal.

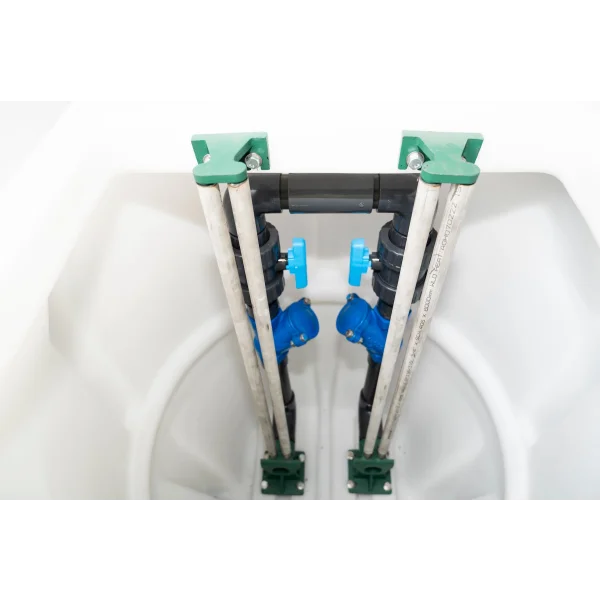

✔ Pre-Built Pumping Systems – Available with auto-coupling and rail systems for quick maintenance.
✔ Various Depth Options – Available in 1.2m, 1.5m, 1.8m, and 2.1m chamber heights.
Typical Applications:
✔ Sewage lifting – Transfers sewage from basements to street sewage systems.
✔ Foul water storage – Can store 24 hours’ worth of waste for small properties.
✔ Surface water drainage – Ideal for large-scale stormwater management.
✔ Groundwater pumping – Integrated into the Newton CDM System for basement waterproofing.
✔ Central sump collection – Used in multi-pump Newton CDM waterproofing systems.
Trojan-Pro Sump Chambers (Bare Chamber – No Lid & Pumps)
| Height |
Weight |
Purchase Code |
| 1200 mm |
38 kg |
TR12 |
| 1500 mm |
45 kg |
TR15 |
| 1800 mm |
- |
TR18 |
| 2100 mm |
- |
TR21 |
Fully Built Pumping Systems – Surface Water Applications
| Pump(s) |
Sump Height |
Alarm Required |
Purchase Code |
| CP400 x 2 Automatic |
1200 mm |
N/A |
S1 |
| CP400 x 2 Manual |
1200 mm |
Pump Controller/Control Panel-Pro |
S2 |
| CP400 x 2 Automatic |
1500 mm |
N/A |
S3 |
| CP400 x 2 Manual |
1500 mm |
Pump Controller/Control Panel-Pro |
S4 |
| NP750 x 2 Manual* |
1500 mm |
Pump Controller/Control Panel-Pro |
S6 |
| NP750 x 2 Manual* |
1800 mm |
Pump Controller/Control Panel-Pro |
S7 |
| NP750 x 2 Manual* |
2100 mm |
Pump Controller/Control Panel-Pro |
S8 |
*Pumps fitted on rails.
Fully Built Pumping Systems – Foul Water Applications
| Pump(s) |
Sump Height |
Alarm Included |
Purchase Code |
| Feka VS 1000 x 2 Manual |
1200 mm |
DAB E.Box |
F1 |
| Feka VS 1000 x 2 Manual* |
1200 mm |
DAB E.Box |
F2 |
| Feka VS 1000 x 2 Manual |
1500 mm |
DAB E.Box |
F3 |
| Feka VS 1000 x 2 Manual* |
1500 mm |
DAB E.Box |
F4 |
| Feka VS 1000 x 2 Manual |
1800 mm |
DAB E.Box |
F5 |
| Feka VS 1000 x 2 Manual* |
2100 mm |
DAB E.Box |
F6 |
*Pumps fitted on rails.
Lids & Frames Options
| Code |
Lid Type & Size |
Material |
| TPSL8 |
Solid lid – 600 x 600 mm |
Galvanised Steel (Double Seal) |
| TPSL9 |
Recessed lid – 600 x 600 mm |
Galvanised Steel (Double Seal) |
📞 Need assistance? Contact our technical team at 01268 472358 for guidance and bulk pricing.
