Newton Hydrotank 301-EP Waterbar

Metal Construction Joint Waterbar – HydroTank 301-EP

HydroTank 301-EP Metal Waterbar is a high-performance, coated metal waterbar system designed for sealing kickerless construction joints in earth-retained concrete structures. Featuring an adhesive reactive polymer coating, it forms a permanent watertight seal immediately upon installation, eliminating the need for swelling as required by hydrophilic waterbars.

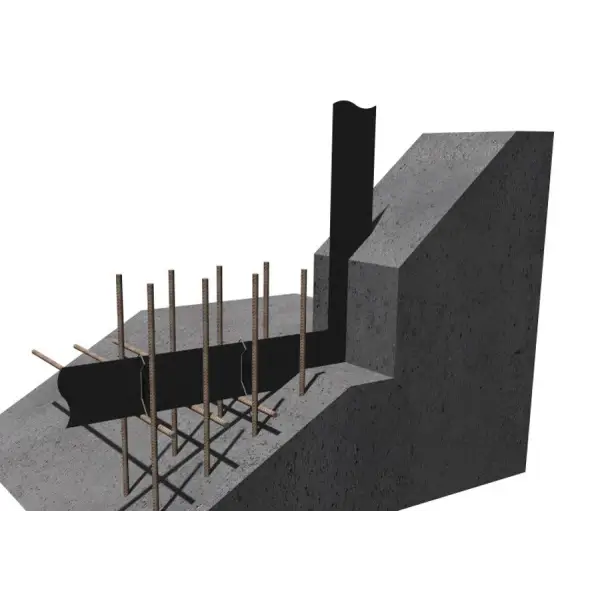

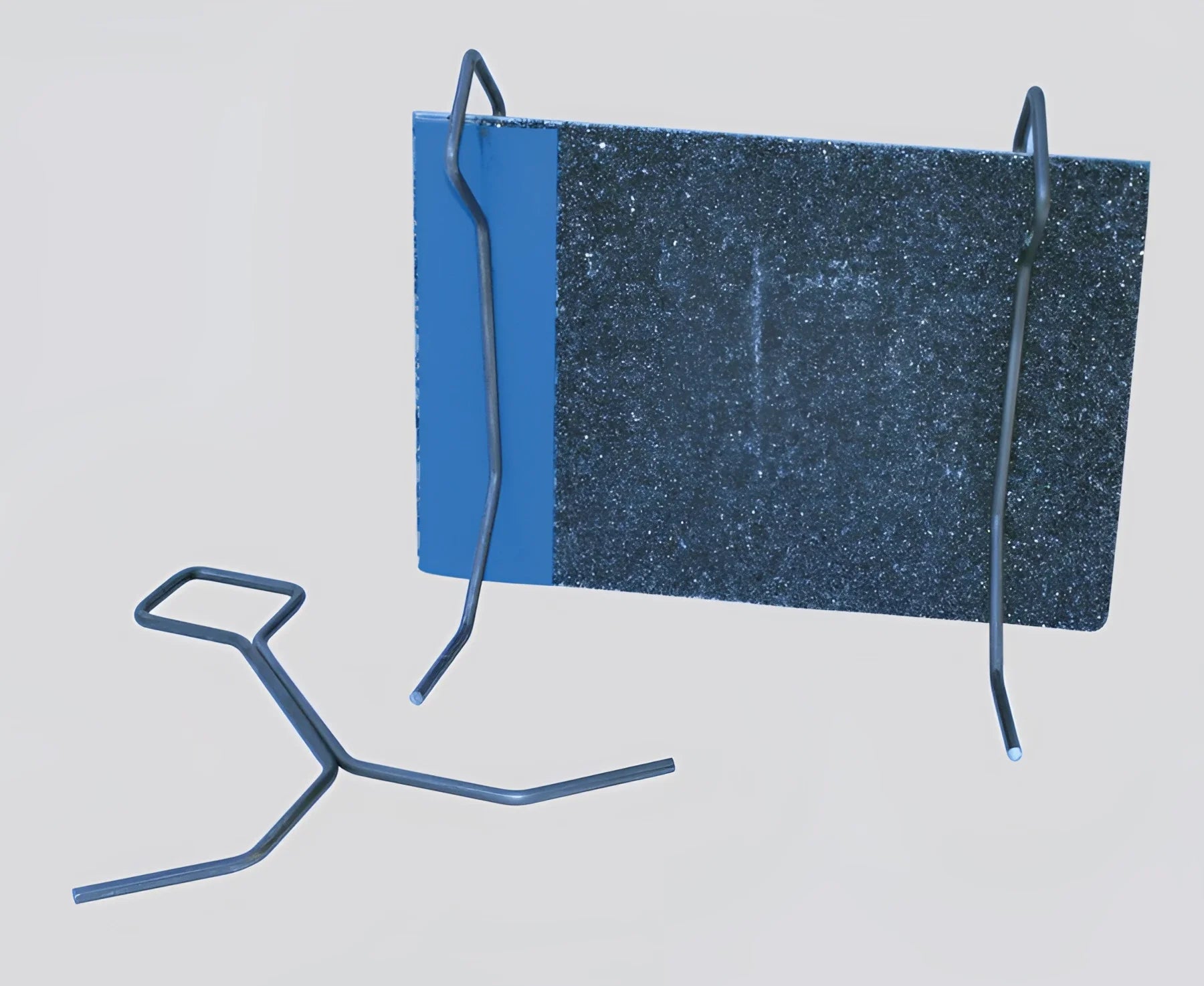

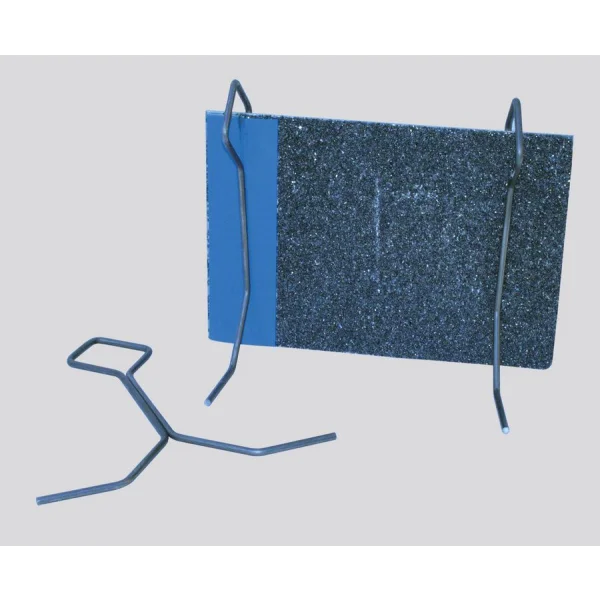

Installation is quick and efficient, with the waterbar secured to reinforcement steel using special clips. Once concrete is placed, HydroTank 301-EP is fully embedded within the adjoining elements, ensuring complete waterproofing by blocking water passage through the joint.

Unlike conventional waterbars, HydroTank 301-EP does not require fixing to one of the concrete elements, making the formation of a kicker unnecessary. For walls formed above a kicker joint, use Newton 315 Polymer Waterbar.

Key Benefits:

✅ Immediate waterproofing protection – Works instantly, with no need to swell
✅ Exceptional bond – Adhesive granular coating ensures no water ingress, even if concrete shrinks slightly during curing
✅ No kicker or rebate required – Reduces site labor costs
✅ Resistant to 5 bar (50m) of water pressure – Superior water-tightness
✅ Preformed corner parts – Allows for quick and easy site installation
✅ More durable than conventional waterbars – Resistant to displacement or damage during concrete placement
✅ All-weather installation – No restrictions on temperature or environmental conditions

Typical Applications:

✔ Waterproofing construction joints between placed concrete elements in earth-retained structures:

• Raft-to-Raft joints
• Raft-to-Wall joints
• Wall-to-Wall joints

Product Specifications:

• Code: SX301-E
• Packaging: 6m Coils
• Colour: Silver or Black

Technical Performance:

• Material: Steel
• Thickness: 2.0mm
• Height: 140mm
• Length: 6.0m
• Shelf Life: 3 Years
• Installation Temperature: No restriction
• Service Temperature: -20°C to +70°C
• Minimum Concrete Embedment: 30mm
• Watertightness: 5 bar

Downloads:

📄 HydroTank 301-EP Metal Waterbar Data Sheet | 📄 NBS Clause

💪 Ensure superior construction joint waterproofing with HydroTank 301-EP Metal Waterbar – Order today!

•  Download HydroTank 301-EP Metal Waterbar Data Sheet

•  Download NBS Clause

Always follow an up to date data sheet when installing or applying this or associated products.

For help and advice on product purchase or application please call our customer services team on 01268 472358.
