Description

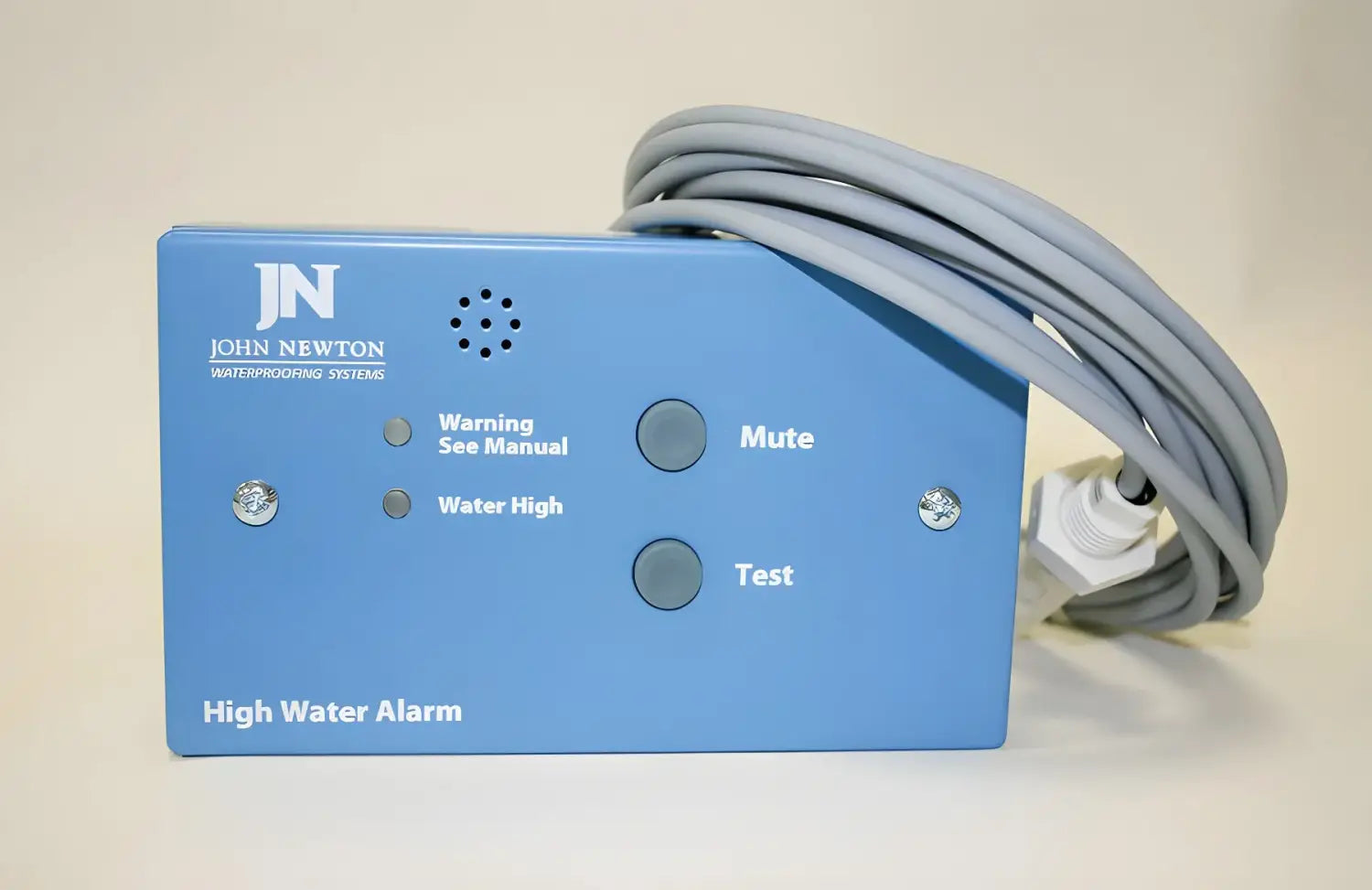

Designed to detect high water levels within pump sump chambers and is included within the Newton Titan-Pro and Newton Titan pumping systems. The alarm is battery operated and uses a standard 9V PP3 battery.
The alarm can be programmed to automatic reset or manual reset after an alarm occurrence. A mute button to the front face silences the alarm once the alarm condition is discovered. A flashing alarm light gives visual indication of an alarm condition and this light will continue to show even when the alarm sounder is muted.
When the unit is to be used within a single pump system, the alarm switch should be positioned just above the point where the single pump should start pumping. When used within a twin pump system, the switch should be set at a height above the point of the start of the lower pump but below the point where the secondary pump would ordinarily start.
Key Benefits
-
Loud 90dB Alarm.
-
Auto or Manual reset options.
-
5m Float Cable.
-
Mute Button.
-
Test Button.
-
Surface mounting of flush mounting to standard electric back box.
-
Battery powered.
-
Zero voltage output to notify Newton PA5 Dialer or BMS (Building Management System) of alarm occurrence.
Typical Applications
Provides alarm function for single or twin pump systems where no control panel is installed.
Warranty
The Newton Pump Controller is supplied with a one year back-to-base warranty which is dated from either the date of purchase or a proven date of installation.
If the unit develops a fault during the warranty period, Newton Waterproofing Systems Ltd will repair or replace the unit under warranty. Contact the Newton sales office for a returns form which explains the returns procedure.
The warranty will be invalidated if the unit is damaged because of improper handling, storage or installation, and in such cases a repair charge may be applicable.
Product Data
Code: PA50 and PA5
Size: 152mm x 92mm x 37mm (8mm if mounted in back box)
Weight: 700g
Power Supply: 9V DC from supplied PP3 battery
