Mapei Primer EP 100W – Solvent-Free Epoxy Primer for Non-Absorbent Surfaces
Mapei Primer EP 100W is a two-component, water-based, solvent-free epoxy primer developed for treating non-absorbent surfaces before applying waterproofing membranes from the Mapei Purtop range. It is particularly suitable for preparing metal substrates where a reliable bond is required.
Primer EP 100W provides an adhesion-promoting base for subsequent waterproofing applications. It can be diluted with up to 20% water and applied by brush, roller or airless spray, with at least two coats recommended depending on the condition and roughness of the substrate.

Key Features and Benefits
- Two-component epoxy primer: Water-based, solvent-free formulation.
- For non-absorbent surfaces: Developed for substrates such as metal before applying Purtop membranes.
- Water-dilutable: Can be diluted with up to 20% water.
- Multiple application methods: Suitable for application by brush, roller or airless spray.
- Two-coat application: At least two coats, depending on substrate roughness.
- Controlled consumption: Approximately 0.15–0.3kg/m² per coat, depending on substrate condition.
Suitable Applications
- Preparation of suitable non-absorbent metal surfaces.
- Priming before applying waterproofing membranes from the Mapei Purtop range.
- Waterproofing applications where the manufacturer's system instructions specify Primer EP 100W.
Surface Preparation and Application
Substrates must be sound, clean and dry, with all oil, grease, old paint and other materials that could affect adhesion removed. Metal surfaces should be prepared by dry sandblasting to SA 2½ where possible. If this is not possible, use an appropriate alternative mechanical preparation method in accordance with the manufacturer's instructions.
Mix the two components separately at low speed, then pour Component B into Component A and mix thoroughly using a suitable electric mixer. Apply at least two coats by brush, roller or airless spray. The product may be diluted with up to 20% water.
Do not apply to wet surfaces or substrates contaminated with oil, grease or other substances that could affect adhesion. Always follow the latest Mapei Technical Data Sheet for substrate preparation, mixing and application requirements.
Technical Information
| Product type | Two-component water-based epoxy primer |
| Solvent content | Solvent-free |
| Mixing ratio | Component A : Component B = 1 : 3 by weight |
| Pot life | Approximately 90 minutes at +23°C (see manufacturer's TDS) |
| Application temperature | +5°C to +35°C |
| Water dilution | Up to 20% |
| Number of coats | At least two, depending on substrate roughness |
| Consumption | Approximately 0.15–0.3kg/m² per coat |
| Dust dry | Approximately 2–3 hours |
| Foot traffic | Approximately 5–6 hours |
| Complete hardening | Approximately 7 days |
| Storage | 12 months in original packaging, stored dry at +5°C to +35°C |
Packaging

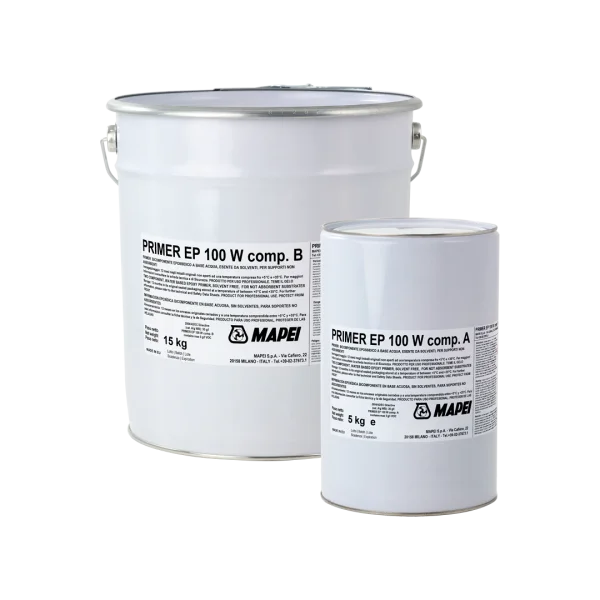

- Component A: 5kg
- Component B: 15kg
- Total kit weight: 20kg
Frequently Asked Questions
What is Mapei Primer EP 100W used for?
It is a two-component epoxy primer for non-absorbent surfaces, such as metal, before applying waterproofing membranes from the Mapei Purtop range.
Can Primer EP 100W be diluted with water?
Yes. The product can be diluted with up to 20% water, following the manufacturer's application instructions.
How many coats are required?
At least two coats are recommended. The number of coats required depends on the roughness and condition of the substrate.
What is the coverage of Primer EP 100W?
Typical consumption is approximately 0.15–0.3kg/m² per coat. Actual consumption depends on the condition and profile of the substrate.
What is the mixing ratio?
The mixing ratio is one part Component A to three parts Component B by weight. The 20kg kit contains 5kg of Component A and 15kg of Component B.
How long does Primer EP 100W take to dry?
At +23°C and 50% relative humidity, the manufacturer's technical data gives a dust-dry time of approximately 2–3 hours. Complete hardening is approximately seven days. Actual times depend on site conditions.
Product Downloads
Important: Clever Shield supplies products and does not design or specify waterproofing systems. Check compatibility with the intended substrate and subsequent coating system, and follow the latest manufacturer's technical and safety documentation before use.
