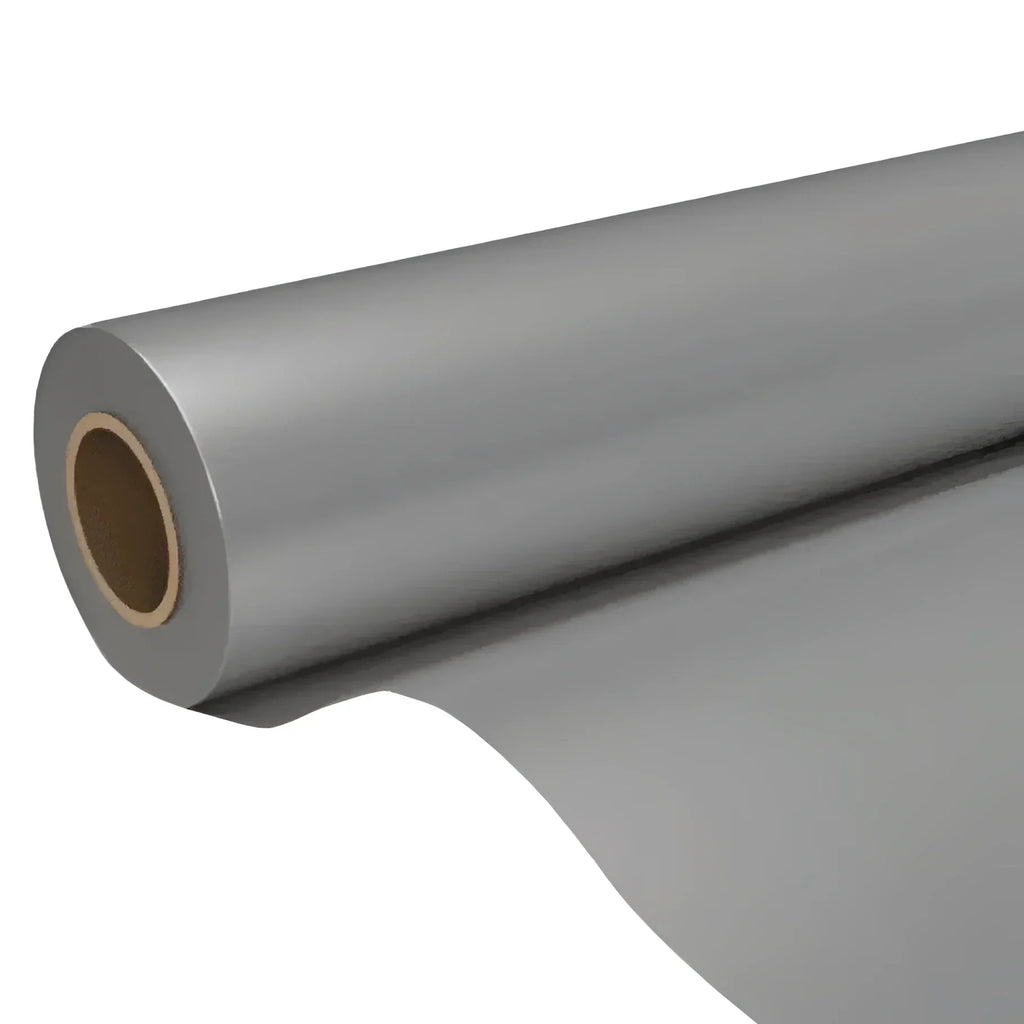

Quadproof Evolution Gas Barrier

Save £250.00 inc.VAT

Size: Quadproof Evolution 1.65m x 61m Gas Barrier
Price:
Sale price£1,334.50 inc.VAT Regular price£1,584.50 inc.VAT

Description

Quadproof Evolution is a high specification co-extruded multi-layer barrier specifically developed for use on construction sites contaminated by Volatile Organic Compounds, Hydrocarbons and other ground gasses such as Methane, Radon and CO2.

The product is 14 layers and contains 2 layers of gas barrier polymer (EVOH) to offer exceptional performance and prevent the ingress of dangerous gasses into buildings. It is manufactured using the latest co-extrusion technology and cannot delaminate. The product will also act as a damp-proof membrane. The membrane is manufactured using High Performance engineering Polymers to give exceptional strength and does not require reinforcement. It can be installed by the use of sealing tapes or can easily be welded.

A NEW GENERATION OF GAS BARRIER

  •  Advanced Fourteen-Layer Barrier
  •  Two layers of Ethylene Vinyl Alcohol Co-Polymer (EVOH)
  •  Outstanding Gas Resistance
  •  Conforms with BS8485:2015+A1:2019 (Table7)
  •  Conforms to BS8102:2022
  •  Conforms to the specification requirements of NHBC Amber 1 & 2 applications
  •  Suitable for all characteristic Gas Situation (CS) ground gas regimes
  •  Excellent Welding Characteristics

BS8485:2015+A1:2019

Meets all the following criteria:

  • Sufficiently impervious to the gases with a methane gas transmission rate <40.0 ml/day/m2/atm (average) for sheet and joints (tested in accordance with BS ISO 15105-1 manometric method)
  • Sufficiently durable to remain serviceable for the anticipated life of the building and duration of gas emissions
  • Sufficiently strong to withstand in-service stresses (e.g settlement if placed below floor slab)
  • Sufficiently strong to withstand the installation process and following trades until covered (e.g penetration from steel fibres in fibres reinforced concrete, penetration of reinforcement ties, tearing due to working above it, dropping tools, etc)
  • Capable, after installation, of providing a complete barrier to the entry of the relevant gas

TECHNICAL DATA

INTENDED USE:

The Pre-Applied Waterproofing Membrane is a flexible sheet for water proofing, for use to damp-proof and waterproof below ground structures and to protect the building from the ingress of water and water vapour, radon, methane and CO², hydrocarbons and VOC’s. Waterproofing membrane tested in accordance with EN 13967:2012+A1:2017 Flexible sheets for waterproofing

Plastic and rubber damp proof sheets including plastic and rubber basement tanking sheet - Definitions and characteristics.

TDS

QUADPROOF-ULTRA-DataSheet-4


QUADPROOF-GAS-DataSheet


QUADPROOF-EVOLUTION-DataSheet
