Description

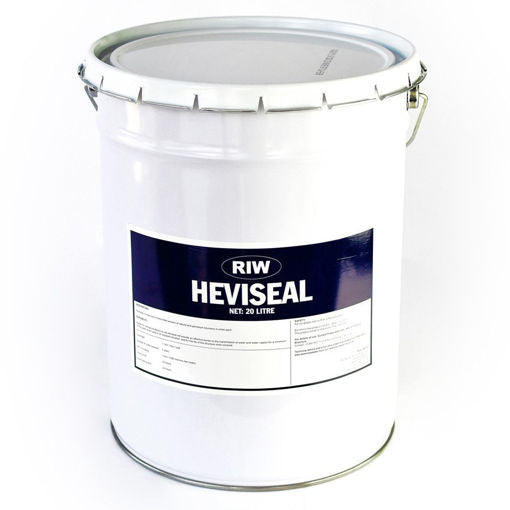

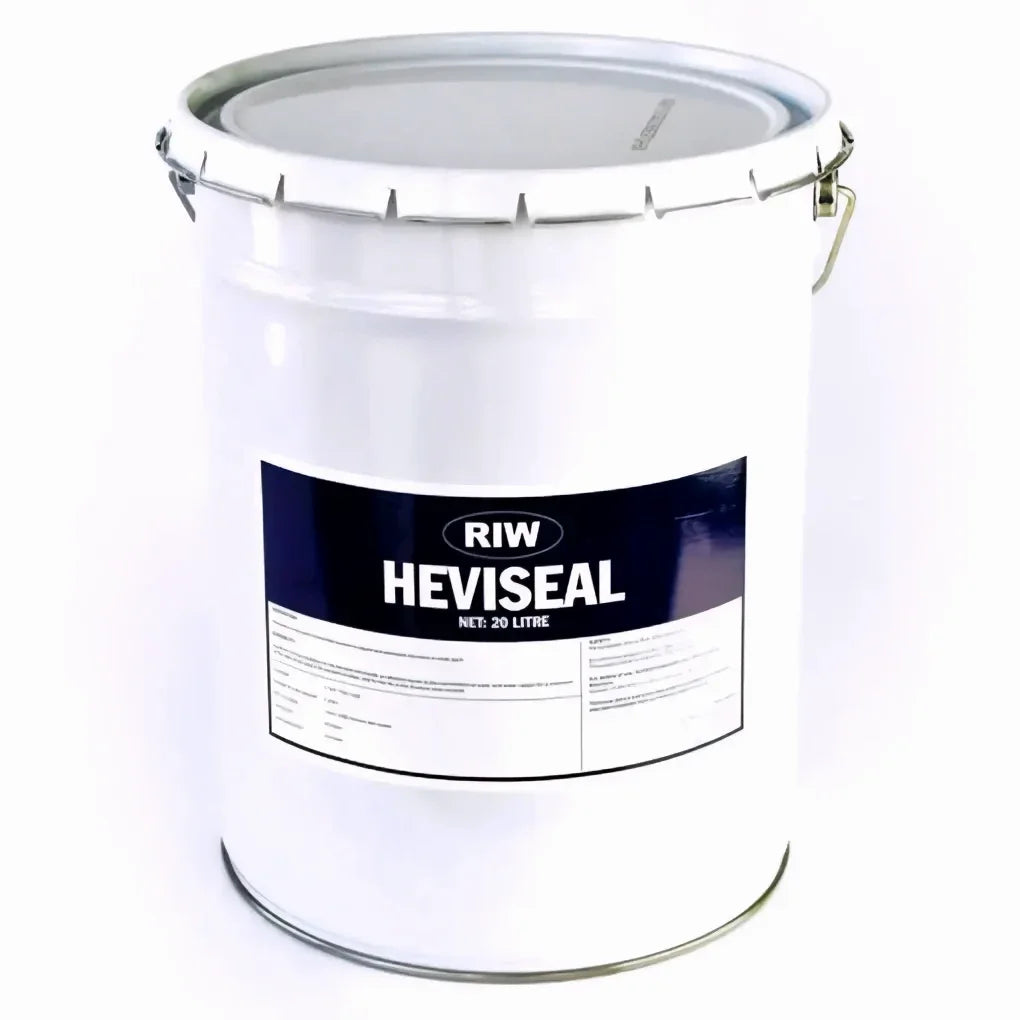

RIW Heviseal 20L Bituminous Damp Proof Membrane
RIW Heviseal 20L is a cold-applied, heavy-bodied bituminous damp proof membrane formulated from natural and petroleum bitumens with fibre and mineral fillers in white spirit. It cures to a uniform black finish, forming a durable barrier against water and water vapour.
Suitable for application to concrete, masonry and steel, Heviseal is designed for waterproofing, tanking and protective coating applications, including basements, sub-structures, retaining walls, flat roofs, gutters, parapet walls, planters, ponds and water storage tanks.
The flexible membrane provides resistance to UV exposure, frost after application and sulphate attack. It can be left exposed for a period or covered as part of a suitable waterproofing construction.

Key Benefits
- Cold-applied, heavy-bodied bituminous damp proof membrane
- Provides a barrier against water and water vapour
- Dries to a uniform black finish
- UV resistant
- Tough yet flexible with 100% elongation
- Can be applied by stiff brush or medium-pile roller
- Adapts to difficult details and surface profiles
- Resistant to sulphate attack up to 50,000ppm
- Remains undamaged by frost after application
- Good resistance to UV exposure, with a stated minimum of 5–7 years in exposed conditions
- Suitable for concrete, masonry and steel
- Can be used for exposed protective coatings and covered waterproofing applications
- Suitable for flat roof maintenance and refurbishment
Applications
RIW Heviseal can be used for waterproofing and protective coating applications, including:
- Basement waterproofing and sub-structures
- Retaining walls and plinths
- Above-ground concrete and steel structures
- Flat roof waterproofing and refurbishment
- Temporary waterproof membranes on new or existing flat roofs
- Gutters and gutter repairs
- Parapet walls
- Planters and retaining structures
- Ponds and pond lining
- Water storage tanks
- Protective coating for concrete and steel structures
Suitable substrates:
- Concrete
- Masonry
- Steel
Important: RIW Heviseal must not be used in contact with potable water systems.
Technical Information
| Property | Specification |
| Product | RIW Heviseal |
| Pack size | 20 litres |
| Product type | Fibre and mineral-filled bitumen solution |
| Colour | Black |
| Specific gravity | 0.95g/ml |
| Solids content | 70% w/w |
| Flash point | 39°C |
| Water vapour resistance | 590 MN s/g |
| Water vapour permeability | 0.43g/m² per 24 hours |
| Theoretical coverage | 1.5m² per litre per coat |
| Number of coats | 2 |
| Total dry film thickness | 1mm for two coats |
| Touch-dry time | Approximately 24 hours |
| Minimum overcoating time | 24 hours |
| Elongation | 100% |
| Sulphate resistance | 50,000ppm |
| UV resistance | Good, minimum 5–7 years |
| Shelf life | 12 months in a temperate climate |
| Packaging | 20 litre container |
Technical values are typical manufacturer figures and should not be considered a product specification. Theoretical coverage may vary depending on the nature and condition of the substrate.
Coverage and Packaging
RIW Heviseal is supplied in a 20 litre container. The manufacturer's theoretical coverage is approximately 1.5m² per litre per coat, with two coats required to achieve the specified total dry film thickness.
| Application | Approximate coverage |
| 20L pack – first coat | 30m² |
| 20L pack – second coat | 30m² |
| 20L pack – complete two-coat system | 15m² |
These are theoretical figures. Actual coverage will depend on substrate texture, porosity, surface preparation and application technique. Additional material may be required for detailing, corners, joints and reinforcement.
Surface Preparation
All surfaces must be smooth, clean, dry to a depth of 1–2mm, sound and free from frost, oil, grease, condensation and other contamination.
Any voids or hollows must be made good to a flush finish using a suitable repair material. Sharp edges and high points should be eliminated, and powdery or flaking surfaces removed.
Internal and external corners: Internal corners should be eased with a cement fillet approximately 20mm high. External corners should be chamfered or rounded where required.
Concrete: Horizontal concrete surfaces should preferably be smooth. Lightly tamped, brushed or floated finishes may also be suitable.
Masonry: Masonry must be sound, with joints flush-pointed or bagged out using Cementfill or a suitable alternative. Open-textured surfaces should be sealed using RIW Cementfill FC or a sand/cement slurry. Very rough surfaces may require rendering.
Steel: Metal surfaces should be wire-brushed or sandblasted and treated with a suitable steel primer before applying Heviseal. Corroded steel must also be treated with an anti-corrosive primer. RIW identifies alkyd, chlorinated rubber and epoxy-based steel primers as compatible options.
Application
Application should not be attempted at temperatures below +5°C. Heviseal should normally be applied as supplied. Under certain circumstances, such as cold weather, the manufacturer states that up to 10% white spirit may be added to ease application. Always follow the manufacturer's instructions before making any adjustment.
Thoroughly stir the product before application to ensure even distribution of the fibres and mineral fillers.
Apply two coats at a minimum theoretical application rate of 1.5m² per litre per coat. Heviseal can be applied using a stiff brush or medium-pile roller.
Transfer the material into a suitable container and work it vigorously into the substrate in all directions to achieve uniform coverage. Do not pour the material directly onto the surface or allow it to pool in serrations, depressions or low areas.
Allow a minimum of 24 hours before recoating. Good ventilation is necessary to achieve proper curing. Do not heat or sand the liquid material.
Specific Applications
Flat Roofs and Roof Refurbishment
Heviseal can be applied to new or existing flat roofs to provide a temporary waterproof membrane or help extend the service life of existing roofing materials, including mastic asphalt and roofing felt.
Before application, repair cracks and depressions in asphalt. Open laps in roofing felt should be taped using a suitable bitumen-impregnated tape.
Solar-reflective coatings can be applied directly over Heviseal to provide additional protection and reduce heat absorption and thermal movement.
Retaining Walls and Planters
Heviseal can be applied to new or existing retaining walls and planter structures to prevent moisture egress. The membrane should be protected against damage during backfilling using a suitable protection board or RIW Double Drain system.
Gutters and Gutter Repairs
Heviseal can be used on existing gutters constructed from galvanised steel and precast concrete units. All defects must be repaired before application, and junctions between sections should be sealed.
New galvanised steel gutters must be degreased before application. Where movement is expected between gutter sections, reinforcement should be incorporated in accordance with the manufacturer's pond-lining reinforcement details.
Ponds and Water Storage Tanks
Heviseal is suitable for pond lining and, according to RIW, will not harm pond life when applied in accordance with the manufacturer's instructions.
At all internal angles, apply three coats, incorporating 0.13mm thick bitumen-coated glassfibre fabric between the second and third coats for reinforcement.
Once the membrane has cured throughout its full thickness, wash it down 2–3 times with water to remove remaining traces of solvent.
Important: Heviseal must not be used in contact with potable water systems. Follow the manufacturer's pond-lining instructions and ensure the membrane is fully cured and washed before introducing pond water.
Durability and Protection
RIW states that, under normal conditions of use, Heviseal provides an effective barrier against water and water vapour for a minimum of five years in exposed applications and for the life of the structure once covered.
Where the membrane is to be covered or backfilled, suitable protection should be installed to prevent mechanical damage. Follow RIW's detailing recommendations for the particular construction.
Ancillary RIW Products
RIW produces a range of products that can be used alongside Heviseal, including:
- RIW Cementfill FC – cement-based waterproof fairing coat and repair mortar for filling minor holes, voids and surface defects.
- RIW Cementfill HB – cement-based waterproof high-build repair mortar for profiling surfaces and forming fillets.
- RIW Sheetseal 9000 DPC – polymeric damp-proof course products and pre-formed cavity trays.
- RIW Double Drain – drainage and protection membrane for suitable below-ground applications.
Frequently Asked Questions
What is RIW Heviseal used for?
RIW Heviseal is a heavy-bodied bituminous damp proof membrane used to provide water and water vapour protection to applications including basements, sub-structures, retaining walls, flat roofs, gutters, planters, ponds and water storage tanks.
How many coats of RIW Heviseal are required?
The manufacturer specifies two coats, applied at a minimum theoretical coverage rate of 1.5m² per litre per coat.
What coverage does RIW Heviseal provide?
The theoretical coverage is 1.5m² per litre per coat. A 20L container therefore provides approximately 30m² per coat, or 15m² for the complete two-coat application.
Can Heviseal be applied to damp surfaces?
The manufacturer specifies that surfaces must be clean, sound and dry to a depth of 1–2mm before application. It should not be applied to wet or contaminated surfaces.
Can RIW Heviseal be used for pond lining?
Yes. The manufacturer specifies three coats at internal angles, with 0.13mm bitumen-coated glassfibre fabric incorporated between the second and third coats. Once fully cured, the membrane must be washed down 2–3 times with water to remove remaining solvent traces.
Can Heviseal be used for flat roof refurbishment?
Yes. It can be applied to new or existing flat roofs as a temporary waterproof membrane or to help extend the life of existing roofing materials such as mastic asphalt and roofing felt. The substrate and existing roof covering must be properly prepared first.
Is RIW Heviseal UV resistant?
Yes. The manufacturer describes its UV resistance as good, with a minimum stated period of 5–7 years in exposed conditions. RIW also states a minimum five-year effective barrier life in normal exposed service conditions.
Can Heviseal be used in drinking water tanks?
No. RIW Heviseal must not be used in contact with potable water systems.
Downloads
Important Safety Information
RIW Heviseal is a solvent-based, flammable product. Use only in well-ventilated areas and keep away from sources of ignition. Appropriate gloves and protective clothing should be worn. Avoid skin contact and follow the manufacturer's safety data sheet before handling or application.
Do not allow the product to enter drains or watercourses. Refer to the current Safety Data Sheet for full handling, storage and disposal requirements.
Important Product Information
Clever Shield supplies products only and does not design or specify waterproofing systems for individual buildings or projects. The purchaser and installer must establish the suitability of the product for the intended application, substrate and site conditions. Always read and follow the latest manufacturer's technical data sheet, application instructions and safety information before use.
