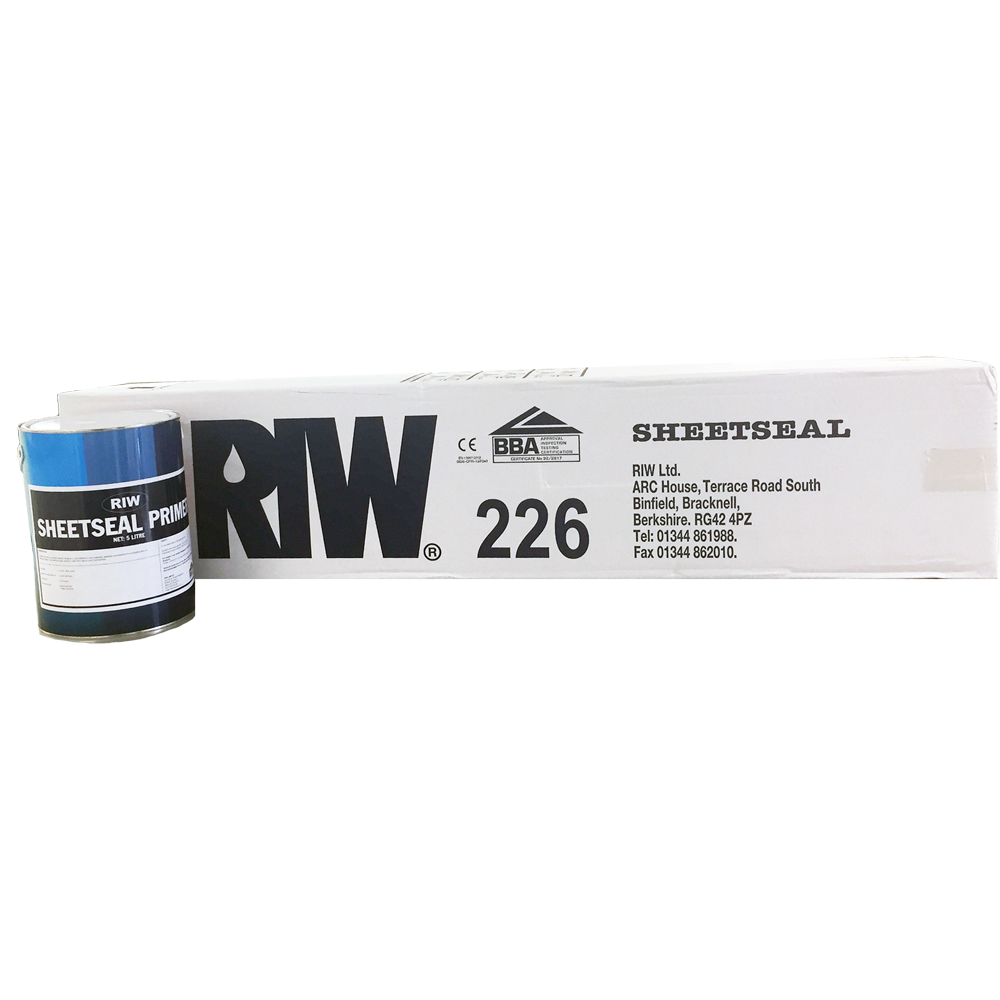

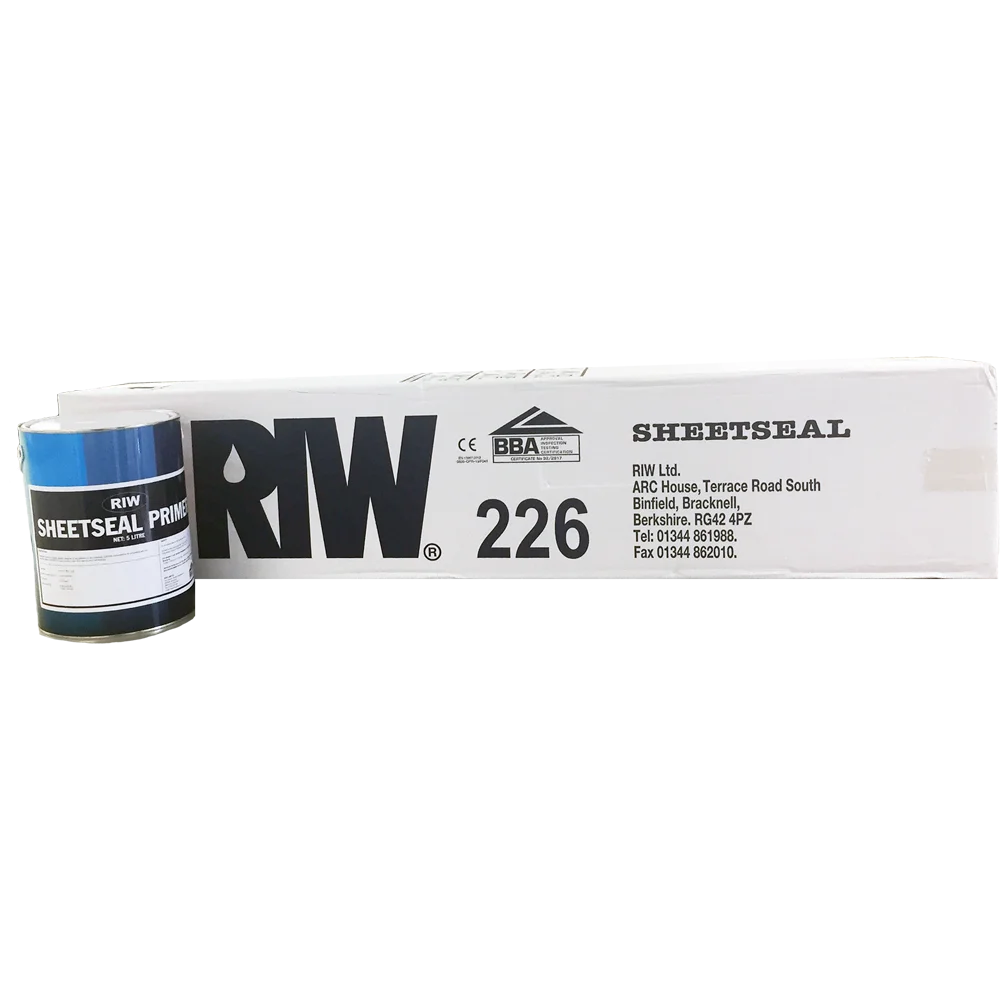

RIW Sheetseal 226 – Self-Adhesive Waterproofing Membrane

RIW Sheetseal 226 is a cold-applied, self-adhesive waterproofing membrane comprising a high-density polyethylene film coated with a bitumen/rubber adhesive layer and protected by removable reinforced silicone paper. It provides a reliable barrier against liquid water and water vapour, with factory-controlled thickness and no drying time after installation.

Designed for Type A barrier protection, RIW Sheetseal 226 is suitable for basements, sub-structures, ground floors, retaining walls and reservoirs. It can be applied to concrete, masonry, steel and suitable insulation board/ICF systems, with the membrane available in full-width and narrower rolls for detailing around corners and projections.

Key Benefits

• Cold-applied self-adhesive waterproofing membrane
• Provides a water and water vapour barrier
• Factory-controlled thickness
• Elastic and flexible
• No drying time for the membrane itself
• Damage can be easily repaired
• Sulphate resistant
• High elongation of 300%
• 230 N puncture resistance
• Selvedge strip helps improve lap sealing
• Suitable for Type A barrier protection
• BBA certified for waterproofing above, at or below ground level
• CE marked to EN 13967
• Suitable for Grades 1, 2 and 3 basements when correctly designed and installed

Applications

RIW Sheetseal 226 is suitable for a range of waterproofing and damp-proofing applications, including:

• Basement tanking
• External basement waterproofing
• Internal basement tanking
• Sub-structures
• Retaining walls
• Ground floor damp proof membranes
• Floating floor systems
• Reservoirs
• Large unobstructed floor areas
• Waterproofing at or below ground level
• Waterproofing above ground level

When used for tanking, the membrane must be fully supported to resist hydrostatic pressure and should be protected from permanent exposure.

Technical Information

• Product type: Self-adhesive sheet
• Backing material: Cross-orientated polyethylene
• Overall thickness: 1.60mm
• Applied thickness: 1.50mm
• Weight: 1.7 kg/m²
• Membrane strength: 5.0 N/mm (ASTM D1000)
• Elongation: 300% (ASTM D1000)
• Puncture resistance: 230 N (ASTM E154)
• 180° peel adhesion: 4.0 N/mm (ASTM D1000)
• Water vapour transmission: <0.3 g/m²/24h (ASTM E96)
• Water penetration at joint: NIL (MOAT 27-5.1.4)
• Minimum application temperature: 5°C
• End laps: 100mm
• Side laps: 50mm
• Roll sizes: 1050mm x 19.05m, 300mm x 20m and 150mm x 20m

Application & Installation

Substrates should be smooth, clean, dry, sound and free from frost, oil, grease, condensation and other contamination. Voids and hollows should be made good, while sharp edges and high points should be removed. Internal corners should be eased with a suitable cement fillet and external corners chamfered or rounded where required.

RIW Sheetseal Primer should be applied to vertical or inclined surfaces to aid adhesion. The primer has a coverage of approximately 7m² per litre and should dry for approximately 2–4 hours before the membrane is applied. Sheetseal Primer should not be used on insulation boards or ICF systems.

The Sheetseal 226 separating paper is progressively removed as the membrane is pressed firmly onto the prepared substrate. The membrane should be smoothed from the centre towards the edges to remove air pockets and then firmly rolled. Damaged areas should be patched with sufficient overlap.

The membrane should be protected from UV exposure within 28 days of application and is not designed to remain permanently exposed. Suitable protection can include screed, paving slabs, insulation, Protection Board or Double Drain, depending on the application.

Frequently Asked Questions

What is RIW Sheetseal 226 used for?

RIW Sheetseal 226 is a self-adhesive waterproofing membrane used to create a barrier against water and water vapour, particularly in basements, retaining walls, ground floors and other large, unobstructed areas.

What sizes is RIW Sheetseal 226 available in?

The technical data sheet specifies 1050mm x 19.05m, 300mm x 20m and 150mm x 20m rolls. The narrower rolls are particularly useful for detailing and reinforcing angles and projections.

Does Sheetseal 226 require a primer?

RIW Sheetseal Primer is used on vertical and inclined surfaces to aid adhesion of the membrane. It is applied at approximately 7m² per litre and normally takes 2–4 hours to dry, depending on site conditions.

What are the required overlaps for Sheetseal 226?

The technical data sheet specifies 50mm minimum side laps and 100mm end laps. Overlaps should be firmly rolled to ensure good adhesion.

Can Sheetseal 226 be used for basement tanking?

Yes. Sheetseal 226 is designed for basement and sub-structure waterproofing and can be used for Type A barrier protection. When used for tanking, the membrane must be fully supported to resist hydrostatic pressure and appropriately protected.
