Description
RIW Waterstop Hydrophilic Bentonite Waterbar

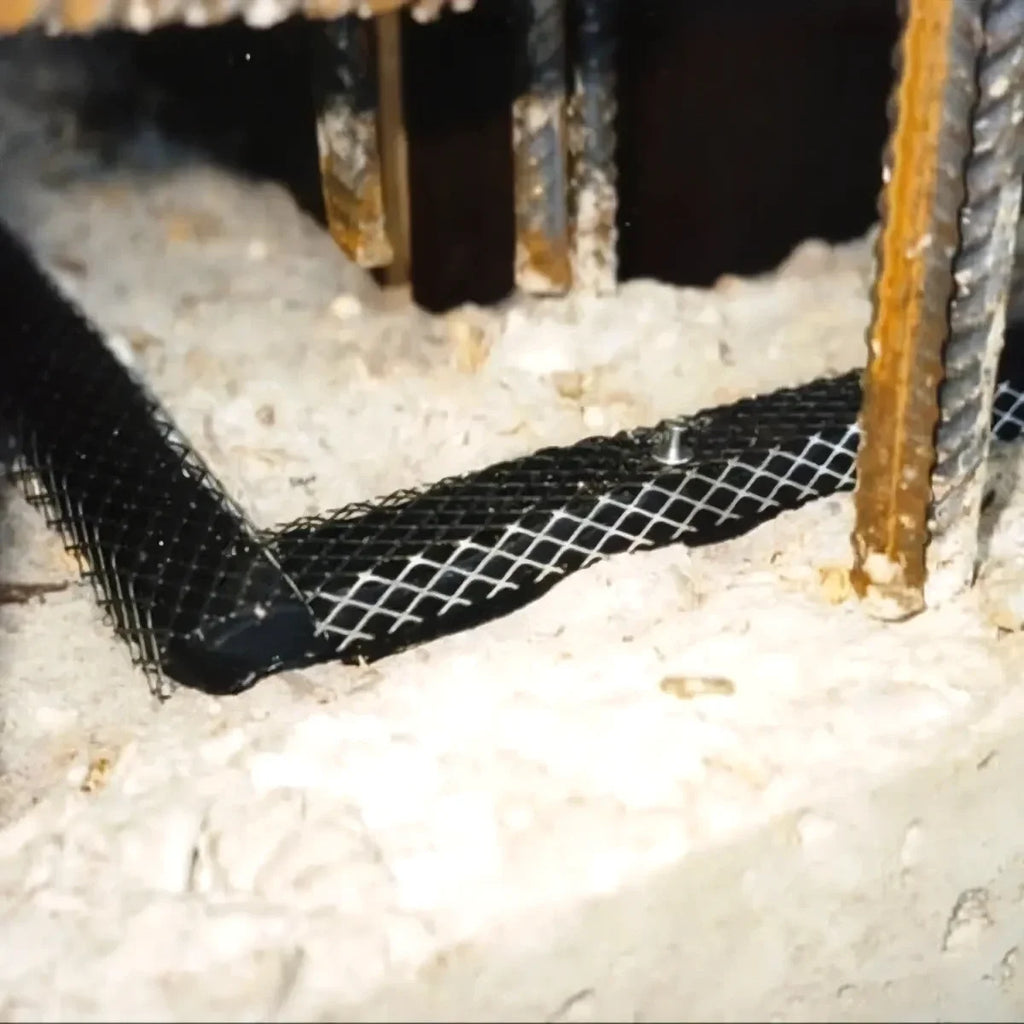

RIW Waterstop is a high-performance sodium bentonite hydrophilic waterbar designed to prevent water ingress through non-moving concrete construction joints. When exposed to water, the bentonite core expands to form a permanent watertight seal, filling voids and creating an effective barrier against water migration. It is specifically designed for reinforced concrete structures and provides a modern alternative to traditional PVC and rubber waterbars, eliminating the need for complicated joint welding and pre-formed corner pieces.
Containing approximately 75% sodium bentonite, RIW Waterstop delivers exceptional expansion properties while remaining easy to install on both vertical and horizontal construction joints. Suitable for use in Type A and Type B waterproofing systems in accordance with BS 8102, it is ideal for basements, retaining walls, lift pits, tunnels, water-retaining structures and service penetrations where long-term waterproof performance is essential.
Key Benefits
- Hydrophilic sodium bentonite waterbar
- Expands on contact with water
- Creates a permanent watertight seal
- Eliminates water migration through construction joints
- Simple installation with no welding required
- Replaces traditional PVC and rubber waterbars
- Suitable for horizontal and vertical joints
- Ideal for new to existing concrete connections
- Suitable for service penetrations and puddle flanges
- High bentonite content for superior sealing performance
- BBA Approved
- Suitable for BS 8102 Type A and Type B waterproofing systems
Applications
- Reinforced concrete construction joints
- Basement waterproofing
- Lift pits
- Retaining walls
- Concrete slabs
- Concrete walls
- Water retaining structures
- New to existing concrete joints
- Pipe penetrations
- Service penetrations
- Puddle flanges
- Structural waterproofing
Technical Information
- Product Type: Hydrophilic bentonite waterbar
- Material: Sodium bentonite
- Bentonite Content: Approximately 75%
- Profile Size: 25mm × 19mm
- Coil Length: 5m
- Pack Size: 6 coils per box
- Total Coverage per Box: 30 linear metres
- Minimum Concrete Cover: 75mm
- Fixing Centres: 300mm maximum
- Certification: BBA Certificate No. 02/3953
- Standards: Suitable for BS 8102 Type A & Type B waterproofing systems
Frequently Asked Questions
What is RIW Waterstop used for?
It seals non-moving reinforced concrete construction joints, preventing water ingress by expanding when it comes into contact with water.
How does the Waterstop work?
The sodium bentonite core swells when exposed to moisture, filling gaps and creating a permanent pressure seal within the concrete joint.
Can it replace PVC waterbars?
Yes. RIW Waterstop is designed as an alternative to traditional PVC and rubber waterbars, offering a simpler installation without welding or specialist joint pieces.
Can it be used for expansion joints?
No. It is intended for non-moving construction joints only and should not be used as an expansion joint seal.
How is RIW Waterstop supplied?
It is supplied in 25mm × 19mm profiles on 5m coils, with six coils per box providing a total of 30 linear metres.
