Description
SumpFlush Overview
- Application: Residential, PS, Commercial, Hospitality & Retail
- Max Vertical: 6.8m
- Max Flow Rate: 2.9 l/sec
- Discharge Size: 1 1/4"
- Number of Pumps: 1
Please Note: The SumpFlush packages include;
- Chamber, pump/s
- Internal pipework/fitting

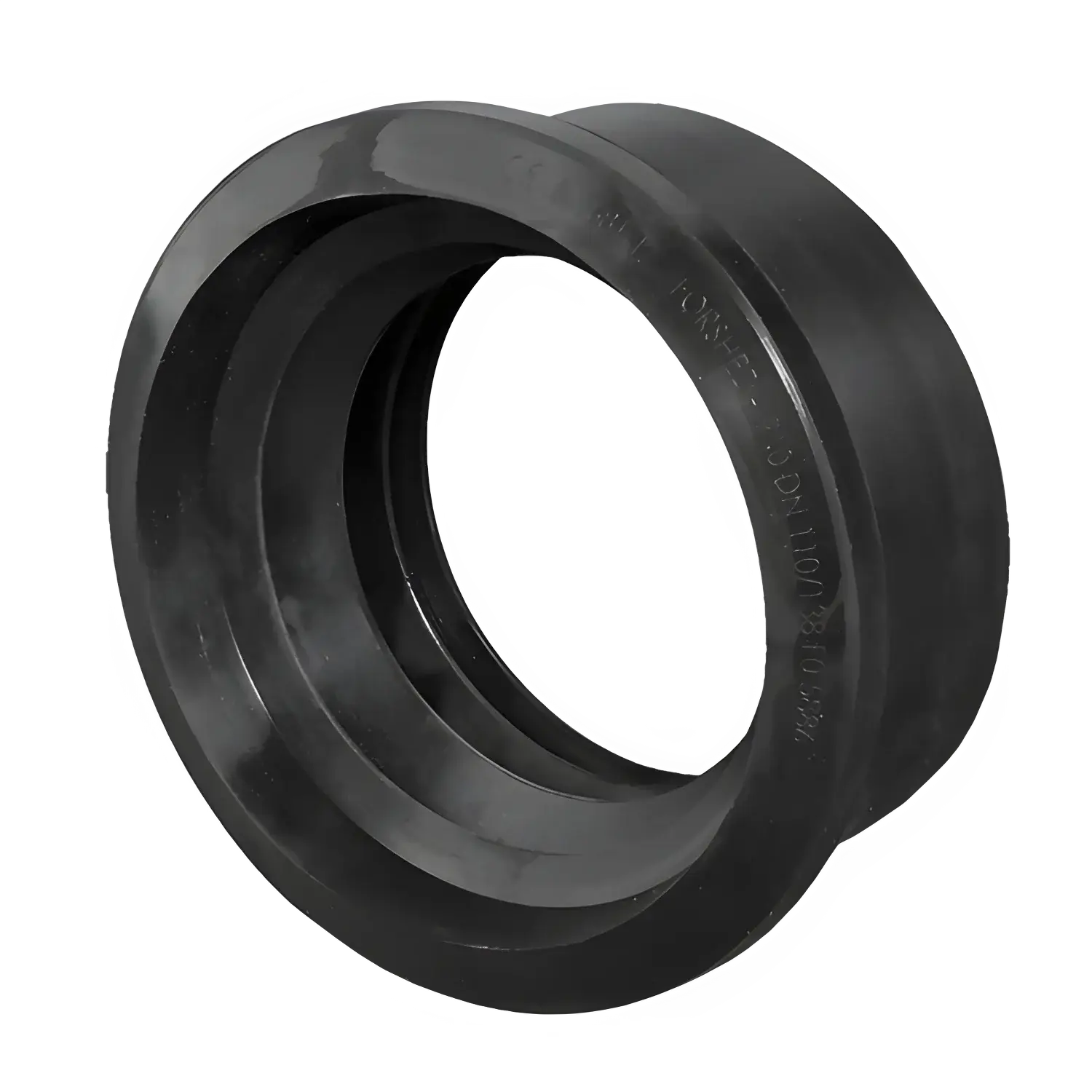

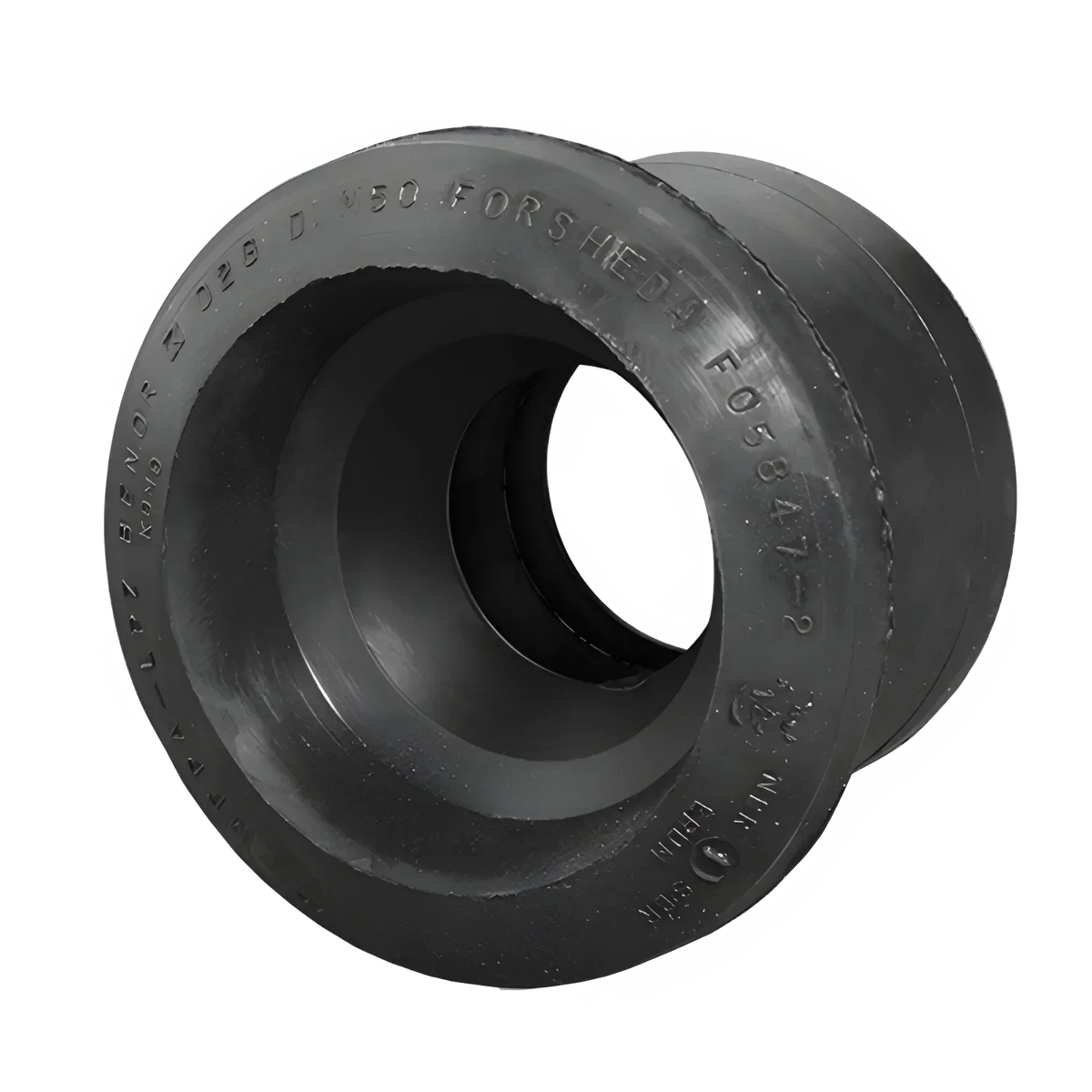

- Rubber Wall Seal 50mm, Rubber Wall Seal 110mm
The SumpFlush is a fully automatic wastewater pumping system suitable for pumping surface and/or ground water to a higher level when gravity drainage is not possible and/or economical to install.
The system provides up to 65 litre storage capacity depending inlet depth. It can accept waste from car parks, car washes, floor areas, down pipes, cavity membrane systems or similar.
It is not suitable for receiving foul waste. Contact our Sales Team for advice on a suitable foul water packaged pumping stations for your property.

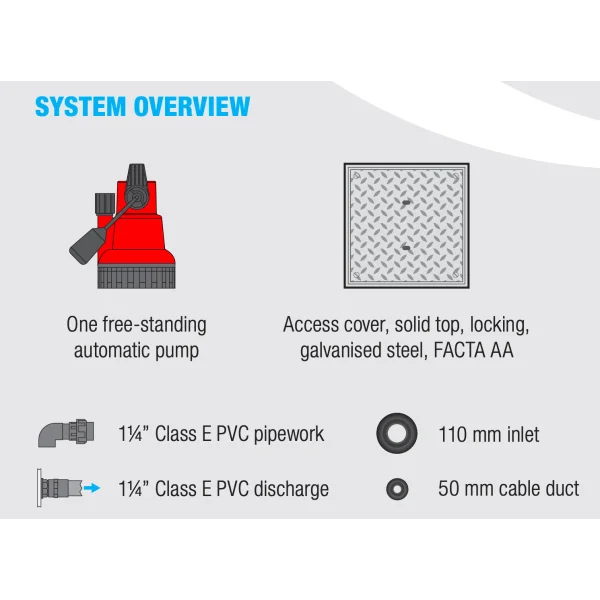

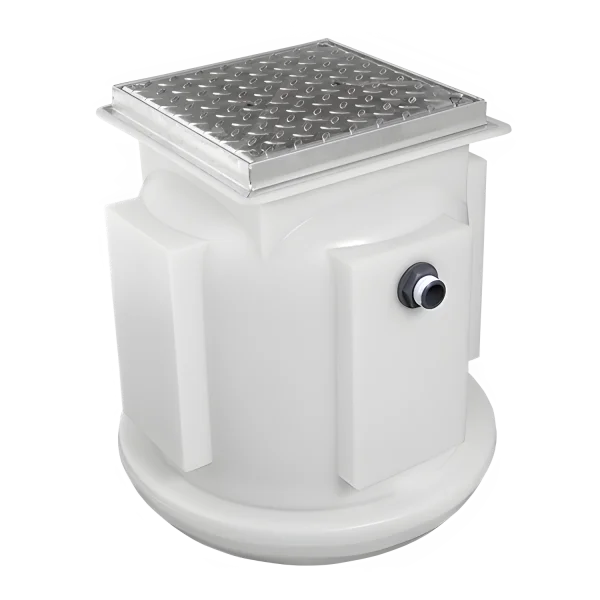

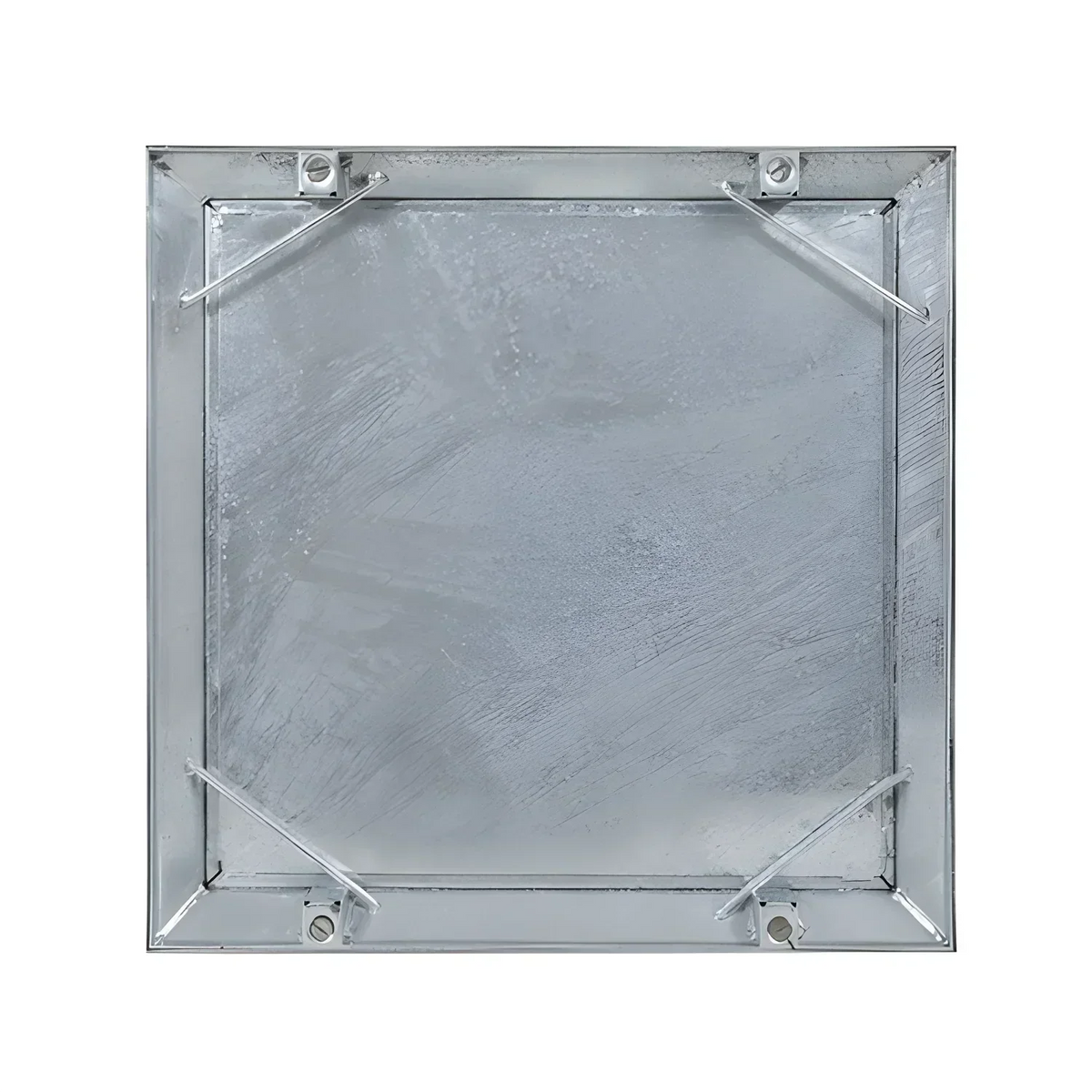

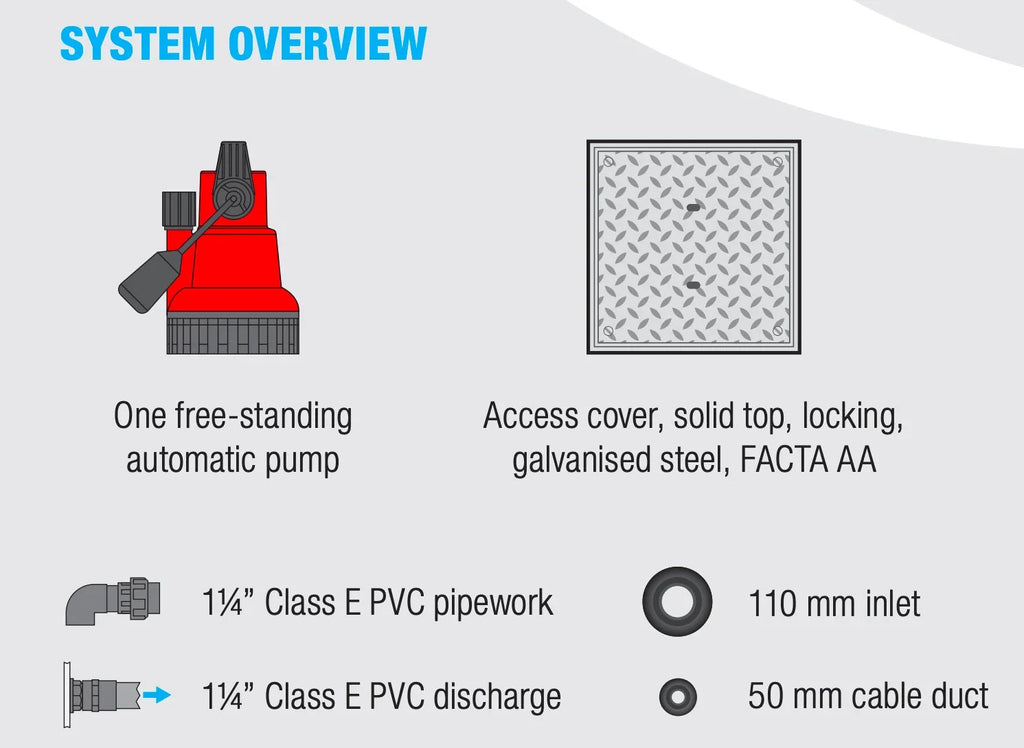

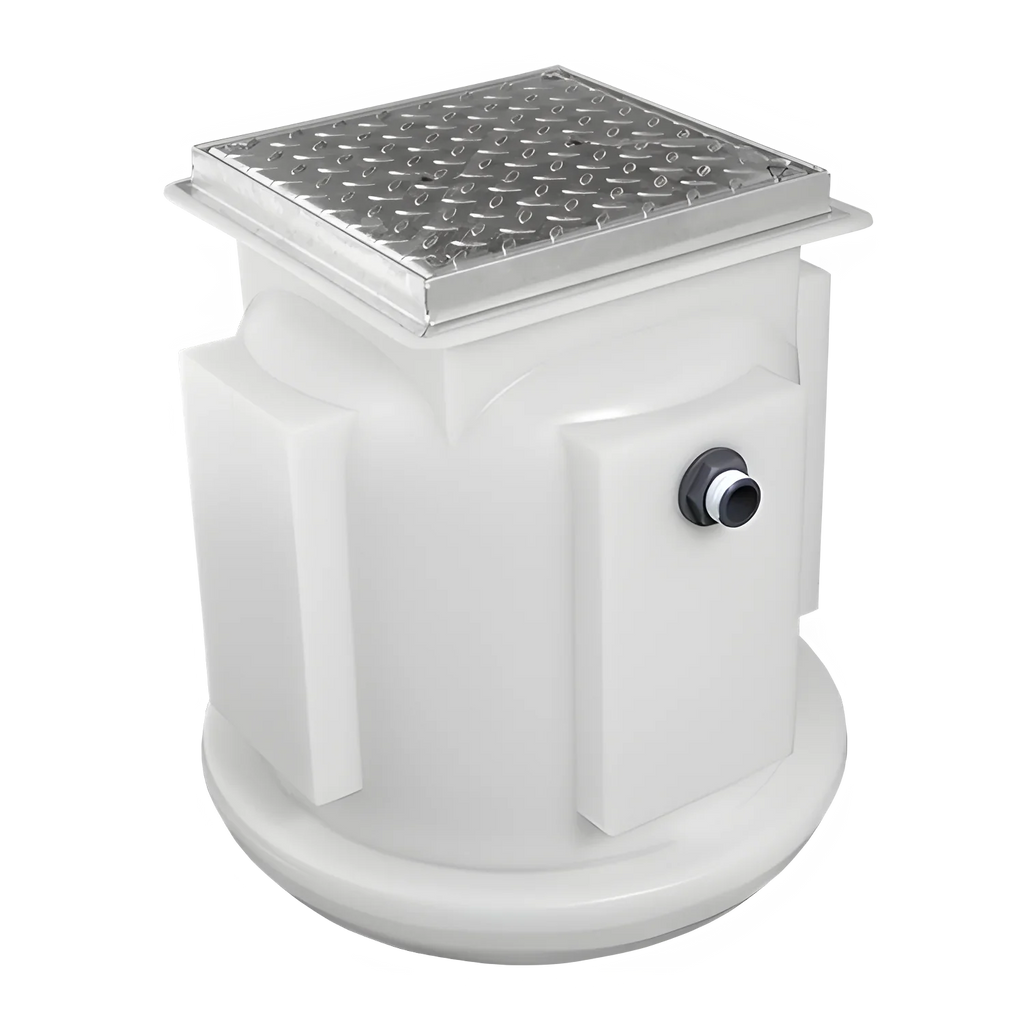

The system consists of a polyethylene tank, an automatic wastewater submersible pump and solid top, locking, galvanised steel access cover (FACTA AA).
It discharges to solvent welded 1¼” Class E PVC. Optional discharge reducer kits can increase external discharge diameter to 1½” or 2” to reduce friction loss.
It is easy to install as inlets can be positioned to your site’s requirements.
Inlet information to be supplied at time of order, or can be drilled on site.
For groundwater and surface water applications where inflow cannot be controlled, twin pump systems complete with a high level alarm and battery backup system should be used, in accordance with BS 8102:2022 and PCA Guidelines. High level alarms and battery backup systems can be purchased to your specification.
KEY FEATURES
- Vortex impellor for high flow rates
- Up to 65 litres storage capacity
- Compact chamber for limited space installations
- Ideal for an extension, outbuilding, basement or similar
- 350 mm x 350 mm clear opening
- Variable inlet positions to suit site
- A range of battery backup systems are available
- A range of alarms and remote alerts are available
- Quick and simple to install
