Description
Edincare SumpFlush 800-1250 – 325 Litre Wastewater Pumping System
The Edincare SumpFlush 800-1250 is a fully automatic wastewater pumping system designed to collect and pump surface water and groundwater to a higher discharge level where gravity drainage is not possible or economical.
Featuring a large polyethylene chamber with up to 325 litres of storage capacity, the system incorporates an automatic submersible pump with a vortex impeller for effective water transfer. It is suitable for applications including basements, car parks, car washes, floor drainage, downpipes and cavity drainage membrane systems.
With flexible inlet positioning, a range of discharge accessories and optional alarm and battery backup arrangements, the SumpFlush 800-1250 provides a versatile pumping solution for residential and commercial drainage applications.

Key Features and Benefits
- Fully automatic wastewater pumping system.
- Up to 325 litres of storage capacity, depending on inlet depth.
- Vortex impeller pump for effective water transfer.
- Maximum flow rate of 2.9 litres per second.
- Maximum vertical pumping height of 6.8 metres.
- Single automatic 230V submersible pump.
- Variable inlet positions to suit site requirements.
- Structurally reinforced, tank-grade polyethylene chamber.
- Class E PVC internal pipework with brass valves.
- Solid-top, locking galvanised steel access cover with polypropylene frame.
- Pedestrian-duty FACTA A access cover.
- Optional battery backup systems, high-level alarms and remote alerts.
- Optional discharge reducer kits and MDPE compression fittings.
Applications
The SumpFlush 800-1250 is designed to collect and pump surface water and groundwater where gravity drainage is impractical or unavailable.
Typical applications include:
- Basements and below-ground structures.
- Cavity drainage membrane systems.
- Residential extensions and outbuildings.
- Car parks and vehicle washing areas.
- Commercial buildings.
- Car washes.
- Floor drainage and downpipe connections.
- Hospitality and retail premises.
- Public sector buildings.
- Surface water and groundwater collection systems.
Chamber Construction and Components

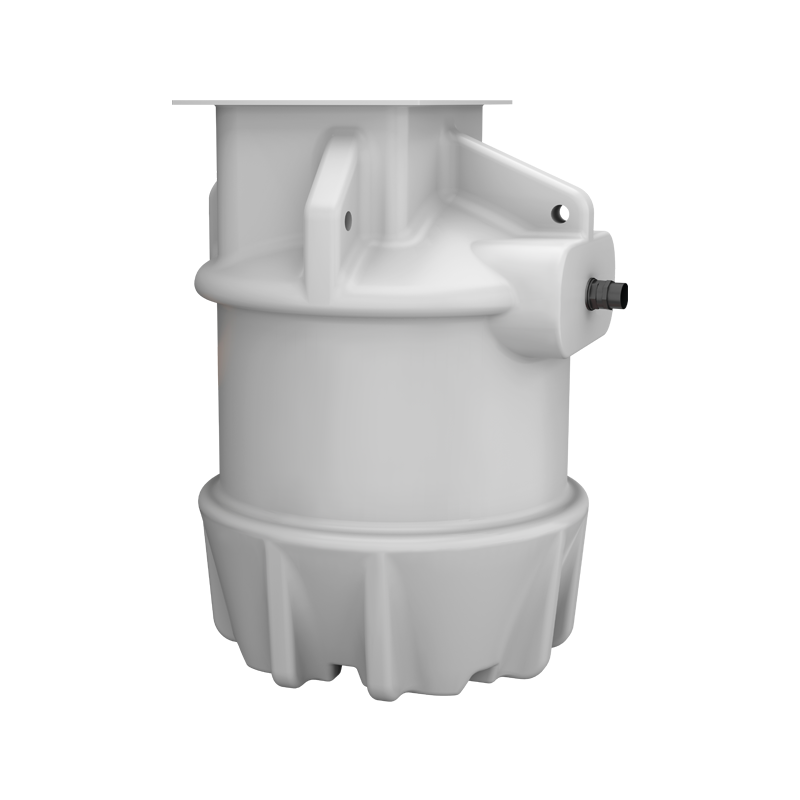

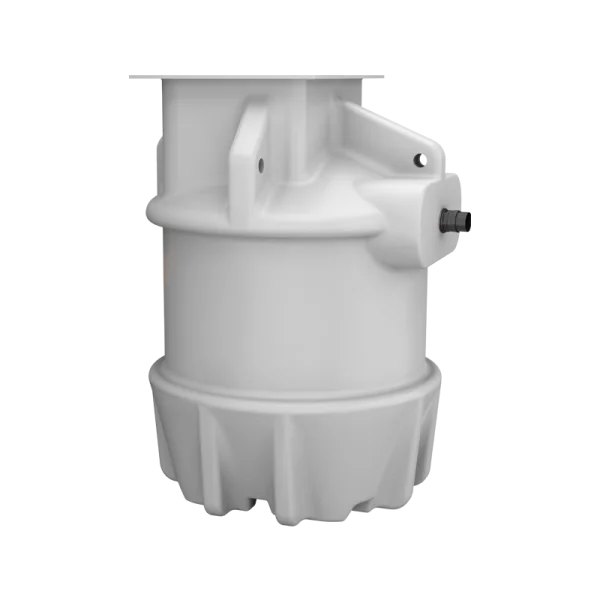

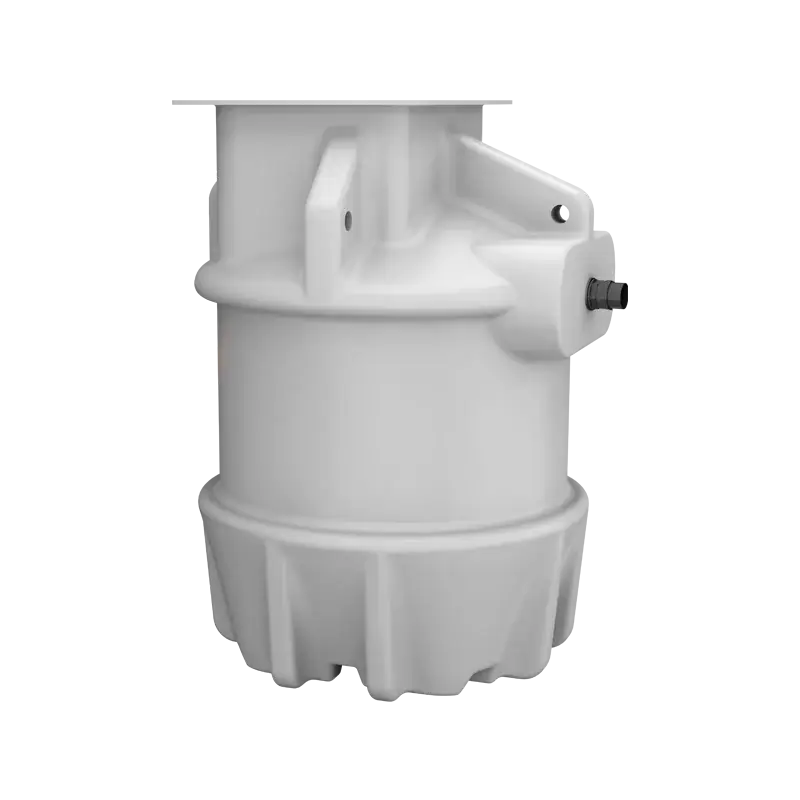

The SumpFlush 800-1250 comprises a structurally reinforced, virgin tank-grade polyethylene chamber designed to provide substantial water storage capacity.
The system includes:
- Polyethylene pumping chamber.
- One automatic 230V submersible wastewater pump.
- Vortex impeller.
- Class E PVC internal pipework.
- Brass gate valve.
- Brass swing check valve.
- Solid-top, locking galvanised steel access cover with polypropylene frame.
- Four lifting eyes.
The access cover has a 600mm x 450mm clear opening and is classified as pedestrian duty FACTA A.
Pump Performance
The integrated vortex impeller pump provides a maximum flow rate of 2.9 litres per second and a maximum vertical output of 6.8 metres.
Actual flow depends on the required pumping head and discharge pipework configuration. As the pumping height increases, the available flow rate decreases. Refer to the manufacturer's pump performance curve when assessing the operating requirements.
Connections and Discharge Options
The standard discharge connection is 1¼-inch Class E PVC, designed for solvent welding to suitable high-pressure PVC pipework.
Optional accessories are available to suit different discharge arrangements, including:
- 1½-inch discharge reducer kit.
- 2-inch discharge reducer kit.
- Compression fittings for connection to MDPE pipework.
Increasing the external discharge diameter can help reduce friction losses in the discharge pipework, subject to the installation design.
Installation Flexibility
The SumpFlush 800-1250 allows inlet positions to be arranged to suit site requirements. Required inlet positions should be confirmed when ordering.
Edincare provides permitted connection-position information within its manufacturer's documentation. Inlet openings may be drilled on site only where permitted by the manufacturer's chamber drawings and installation instructions.
The chamber has nominal dimensions of 900mm diameter x 1250mm height, with a 600mm x 450mm clear access opening.
Optional Accessories and Upgrades
Battery Backup Systems
Battery backup options are available to provide additional protection in the event of a mains power interruption. The appropriate arrangement should be selected according to the installation and operational requirements.
High-Level Alarms and Remote Alerts
Optional high-level alarms and remote alert systems are available to provide warning if the water level rises above the normal operating level.
Twin Pump Configurations
For groundwater and surface water applications where incoming water cannot be controlled, Edincare recommends considering a twin-pump system with a high-level alarm and battery backup arrangement.
Edincare advises that these applications should be considered in accordance with BS 8102:2022 and relevant PCA guidance. A twin-pump configuration provides additional pumping capacity and backup should one pump fail.
Please contact us if you require information about the available pumping configurations and accessories.
Important Waste Type Guidance
The SumpFlush 800-1250 is not suitable for receiving foul waste or sewage.
It is designed for surface water and groundwater applications. If you require a packaged pumping station for foul water, please contact us before ordering so that a suitable alternative can be identified.
Technical Specifications
Pump Specifications
| Product | Edincare SumpFlush 800-1250 |
| Product Code | 2806 |
| Number of Pumps | 1 |
| Impeller Type | Vortex |
| Control | Automatic |
| Power Supply | 230V AC |
| Rated Current | 1.9A |
| Motor Rating (P2) | 180W |
| Motor Speed | 2,800rpm |
| Maximum Vertical Output | 6.8m |
| Maximum Flow Rate | 2.9 litres/second |
| Discharge Connection | 1¼-inch Class E PVC |
| Free Passage | 10mm |
| Maximum Liquid Temperature | Below 40°C |
| Pump Cable Length | 5m |
| Pump Weight | 5.2kg |
Chamber Specifications
| Maximum Storage Capacity | 325 litres |
| Chamber Material | Tank-grade polyethylene |
| Chamber Dimensions | 900mm diameter x 1250mm height |
| Internal Pipework | 1¼-inch OD Class E PVC |
| Discharge Pipework | 1¼-inch OD Class E PVC |
| Lifting Eyes | 4 |
| Access Cover | Solid-top galvanised steel with polypropylene frame |
| Cover Locking | Four screws |
| Cover Loading Classification | Pedestrian duty FACTA A |
| Clear Access Opening | 600mm x 450mm |
Storage capacity: The maximum 325-litre capacity depends on the inlet depth and configuration. Refer to the manufacturer's chamber drawings for the available capacity at different inlet positions.
Frequently Asked Questions
1. What is the Edincare SumpFlush 800-1250 used for?
It is used to collect and pump surface water and groundwater to a higher discharge level where gravity drainage is not practical. Typical applications include basements, car parks, car washes, floor drainage and cavity drainage membrane systems.
2. How much water can the chamber hold?
The chamber provides up to 325 litres of storage capacity, depending on the depth and position of the inlet connection.
3. What is the maximum pumping flow rate?
The integrated pump has a maximum flow rate of 2.9 litres per second. Actual flow depends on the pumping head and discharge pipework arrangement.
4. How high can the pump discharge water?
The maximum vertical output is 6.8 metres. The actual operating flow will reduce as the required pumping head increases.
5. Can the SumpFlush 800-1250 receive sewage?
No. This system is designed for surface water and groundwater and is not suitable for foul waste or sewage. A suitable foul water pumping station is required for those applications.
6. Can the inlet positions be changed?
Yes. Inlet positions can be arranged to suit site requirements. The required positions should be confirmed when ordering, or checked with Edincare regarding permitted on-site drilling.
7. Are battery backup and alarm systems available?
Yes. Optional battery backup systems, high-level alarms and remote alert options are available to suit the installation.
8. When should a twin-pump system be considered?
For groundwater and surface water applications where incoming water cannot be controlled, Edincare recommends considering a twin-pump arrangement with a high-level alarm and battery backup system.
9. What discharge connection does the system use?
The standard discharge is 1¼-inch Class E PVC. Optional reducer kits and compression fittings are available for alternative pipework arrangements.
Downloads and Manufacturer Documentation
Download the manufacturer's technical datasheet for full pump specifications, chamber dimensions, performance information, accessories and installation details.
Supplied by Clever Shield
Clever Shield supplies Edincare pumping systems and accessories throughout the UK, supporting residential, commercial and specialist waterproofing projects.
For product availability, pricing, optional alarms, battery backup systems or alternative pumping configurations, contact our team.
Clever Shield supplies products and does not provide project-specific design or specification. Pump selection, installation and system suitability should be assessed by the responsible project designer or installer against the manufacturer's current technical documentation and project requirements.
