Super Spiro Crack Stitching Bars

Clever Shield Super Spiro Bars & Super Grout – Masonry Repair & Reinforcement

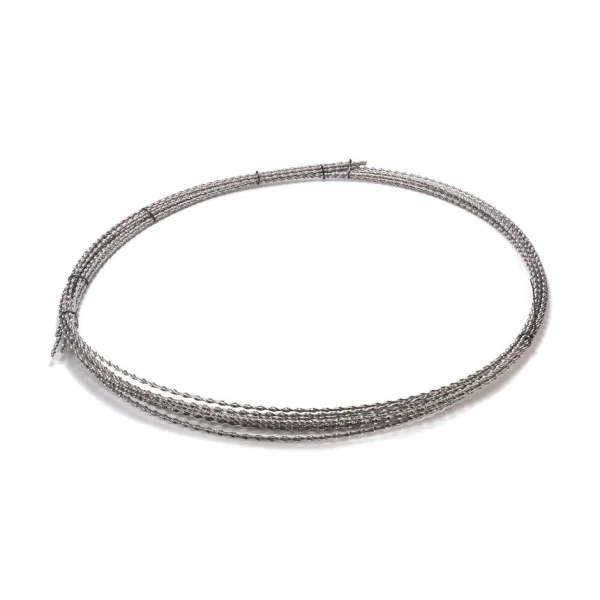

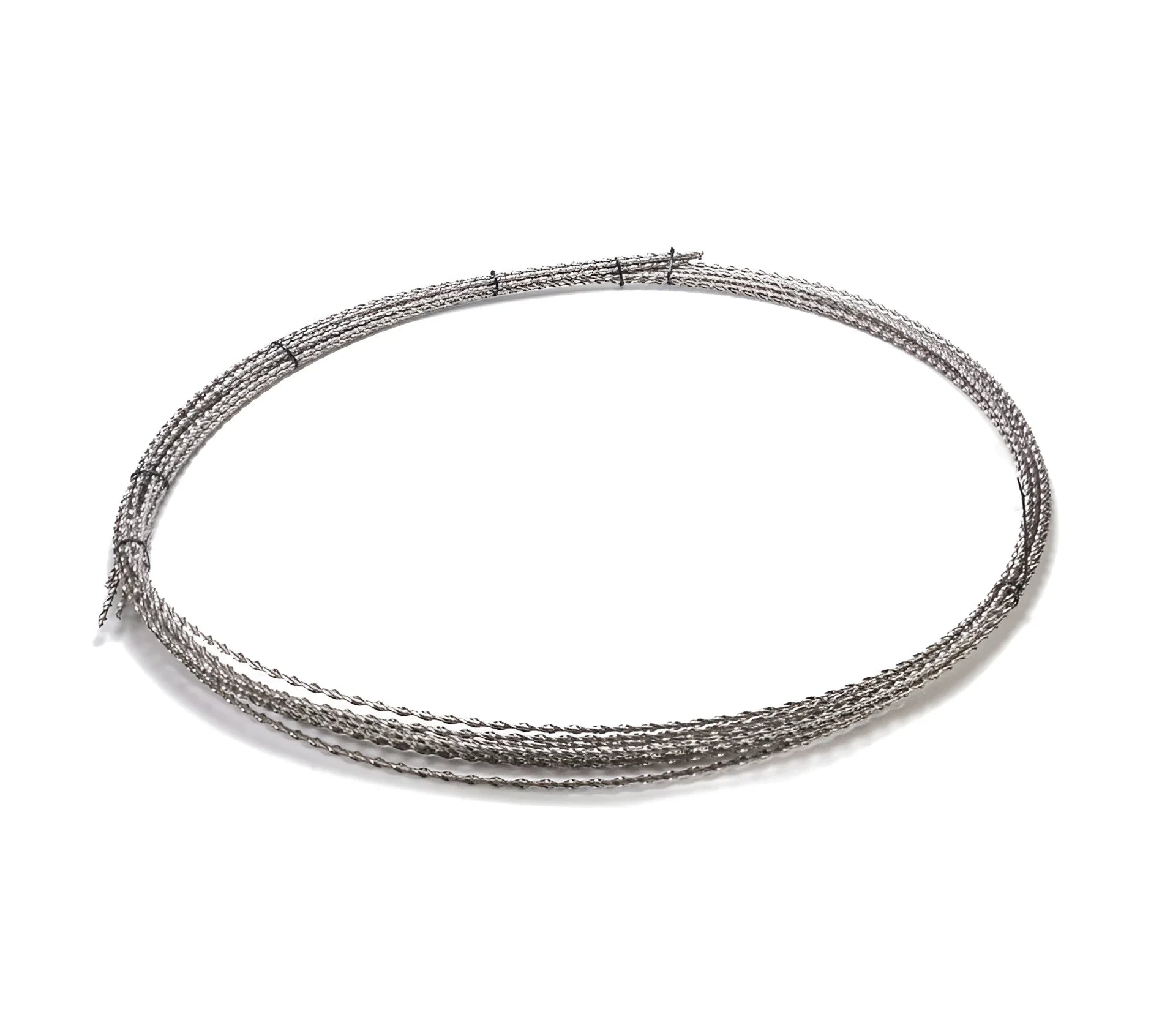

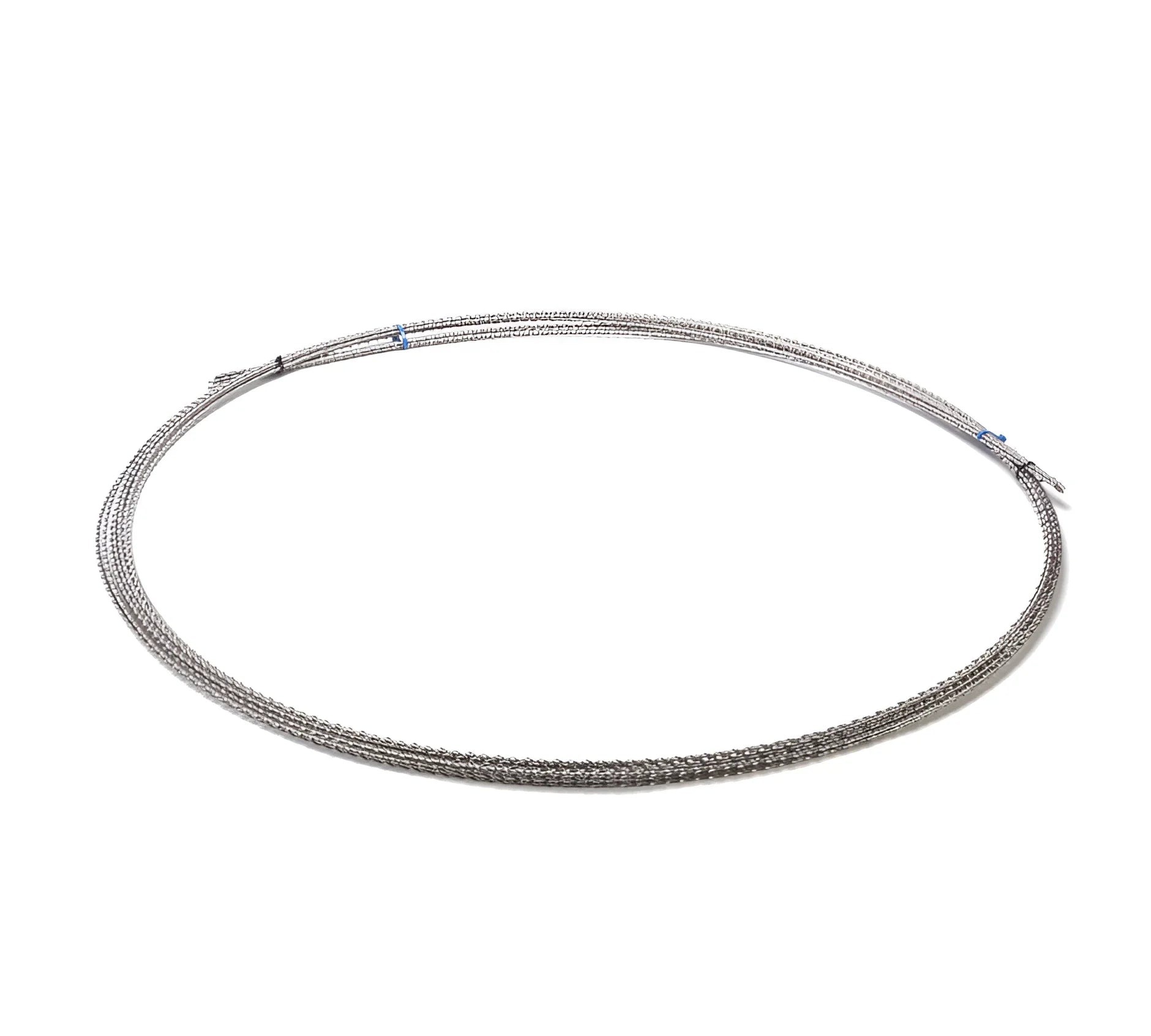

Clever Shield Super Spiro Bars and Clever Shield Super Grout deliver a cost-effective, permanent solution for repairing and stabilizing cracked masonry. These high-strength stainless steel reinforcement bars, combined with non-shrink, thixotropic grout, restore and maintain the structural integrity of lintels, bed joints, and cracked walls.

Key Benefits

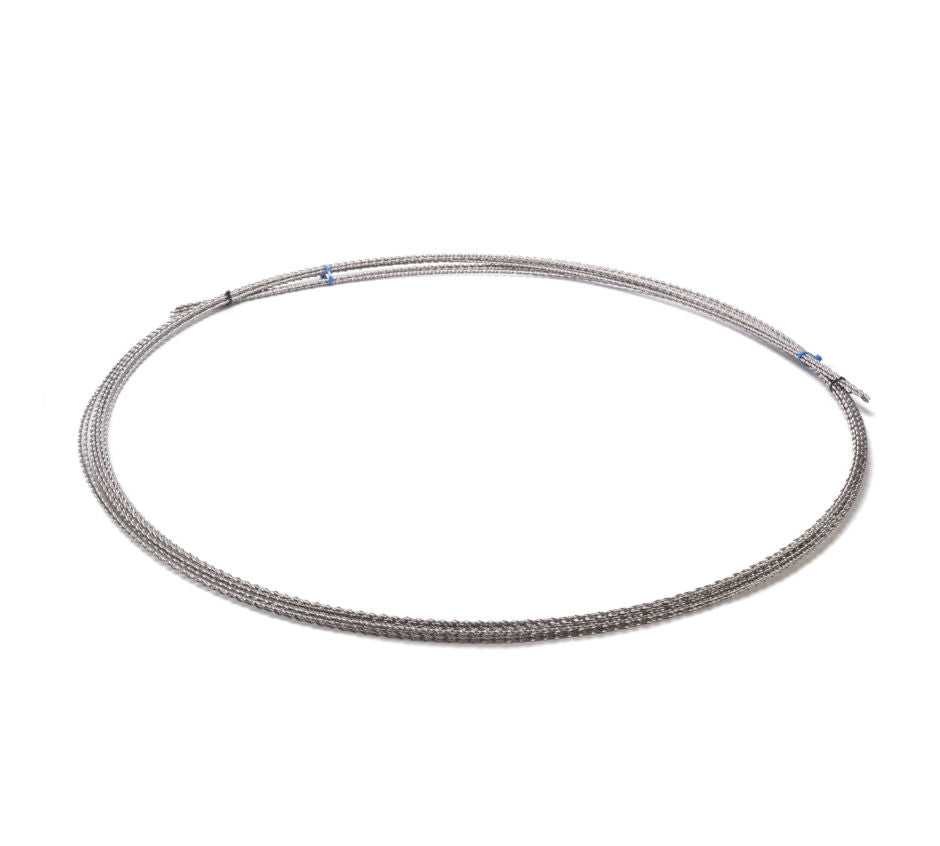

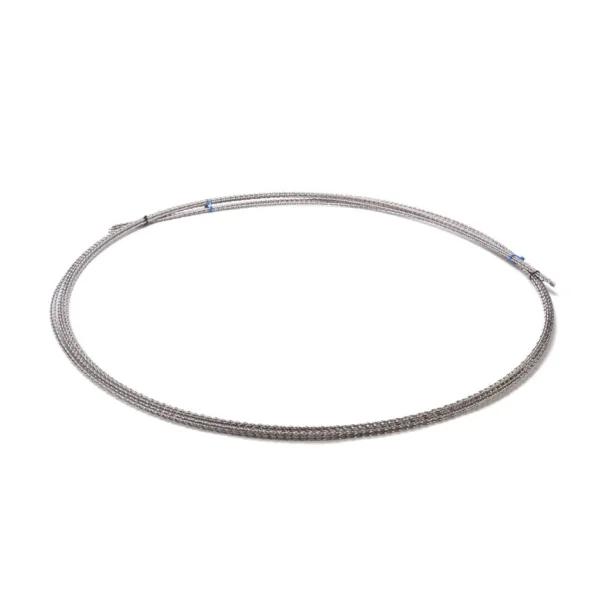

✅ High-Strength Stainless Steel – Type 304 austenitic stainless steel for superior rust protection.
✅ Flexible Sizing Options – Available in 6mm & 8mm widths and 1m, 1.5m, and 3m lengths.
✅ Customizable On-Site – Easily cut to any length for tailored applications.

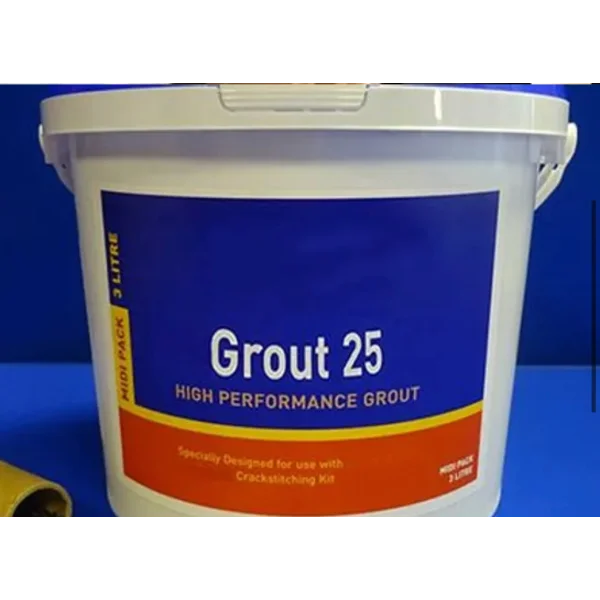

✅ Superior Bonding Performance – Works seamlessly with Clever Shield Super Grout for maximum adhesion and durability.
✅ Versatile Structural Applications – Perfect for lintel reinforcement, crack stitching, and bed joint strengthening in both repairs and new builds.

Installation Guide

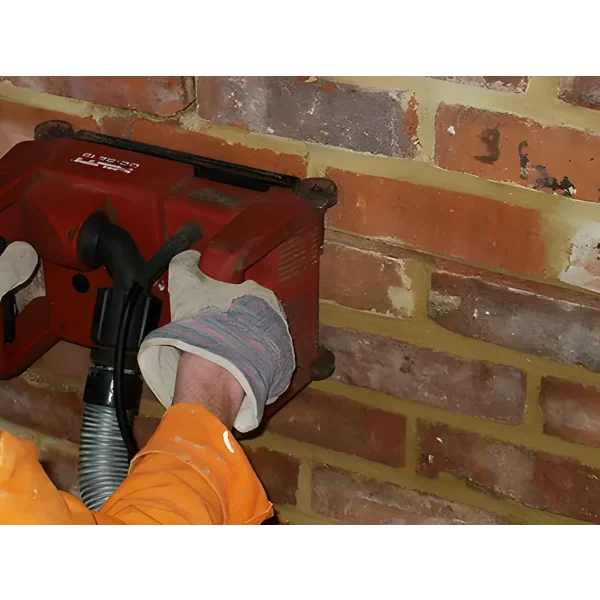

1. Cut the Mortar Joint – Extend at least 500mm beyond the crack using a disc cutter.

2. Clean & Flush the Slot – Remove debris and flush thoroughly with water.

3. Determine Vertical Spacing – Position reinforcement every 4–6 brick courses (300–450mm apart).

4. Set Depth of Slot

   • Single cavity wall: 25mm depth

   • Solid wall: 45mm depth

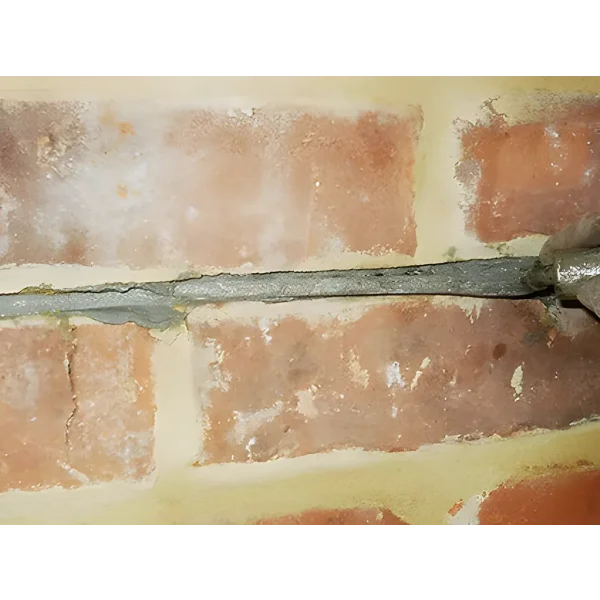

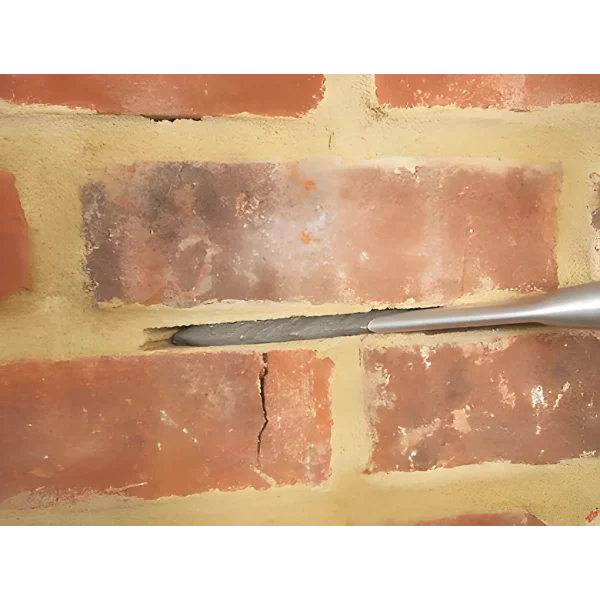

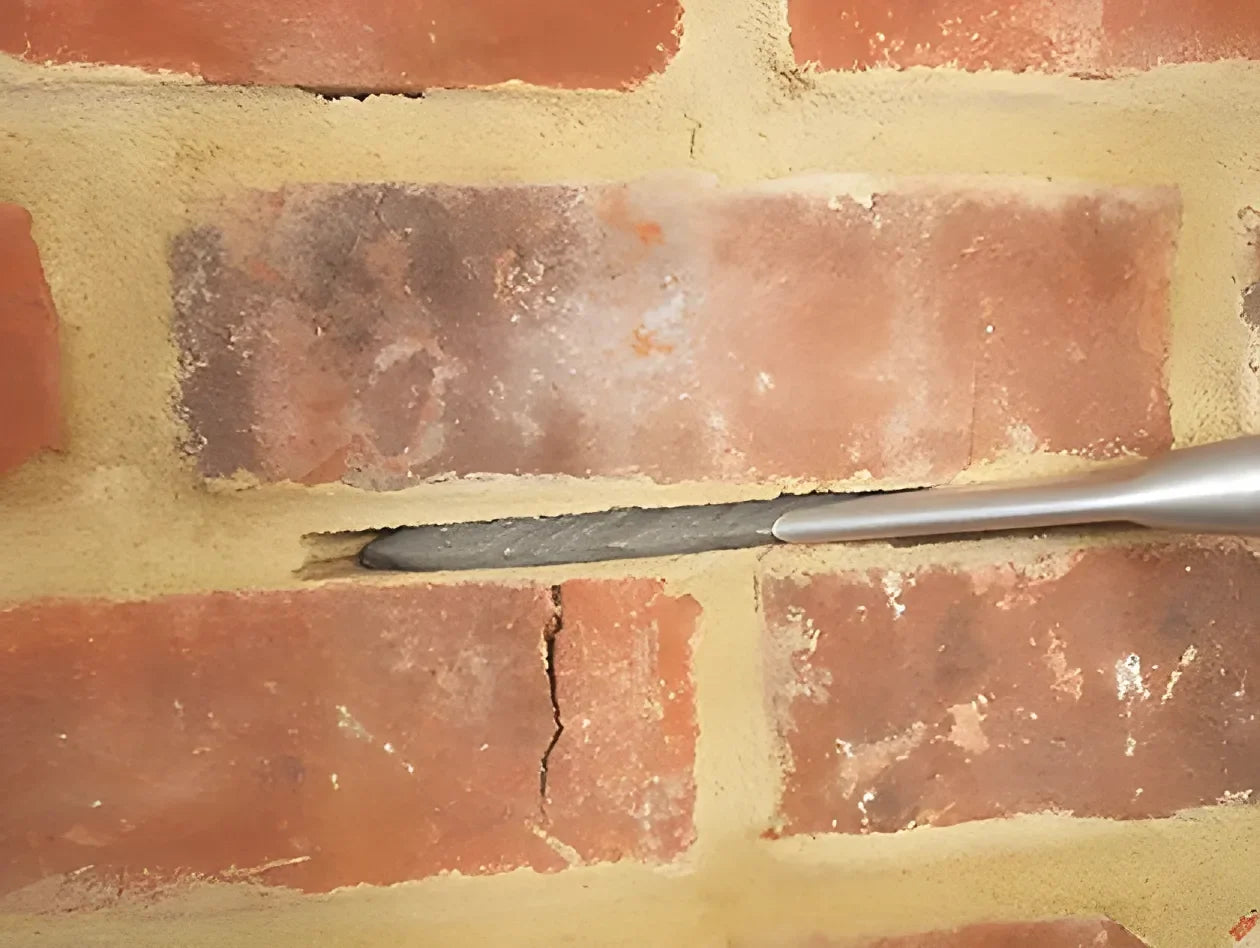

5. Inject Super Grout – Apply using the Clever Shield Grout Injection Gun.

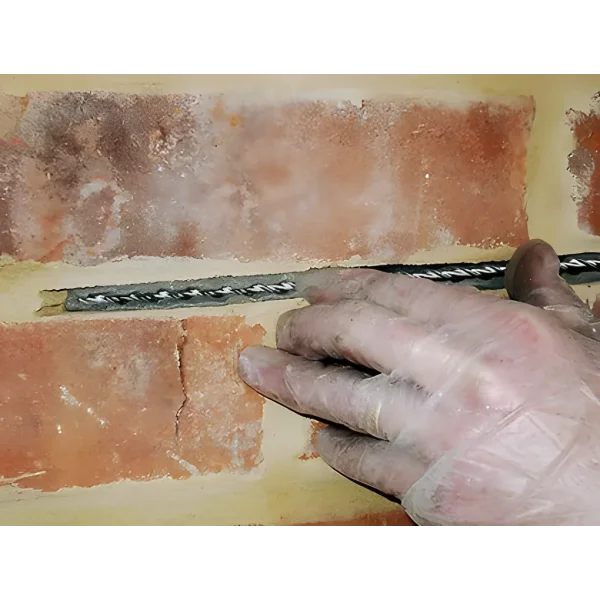

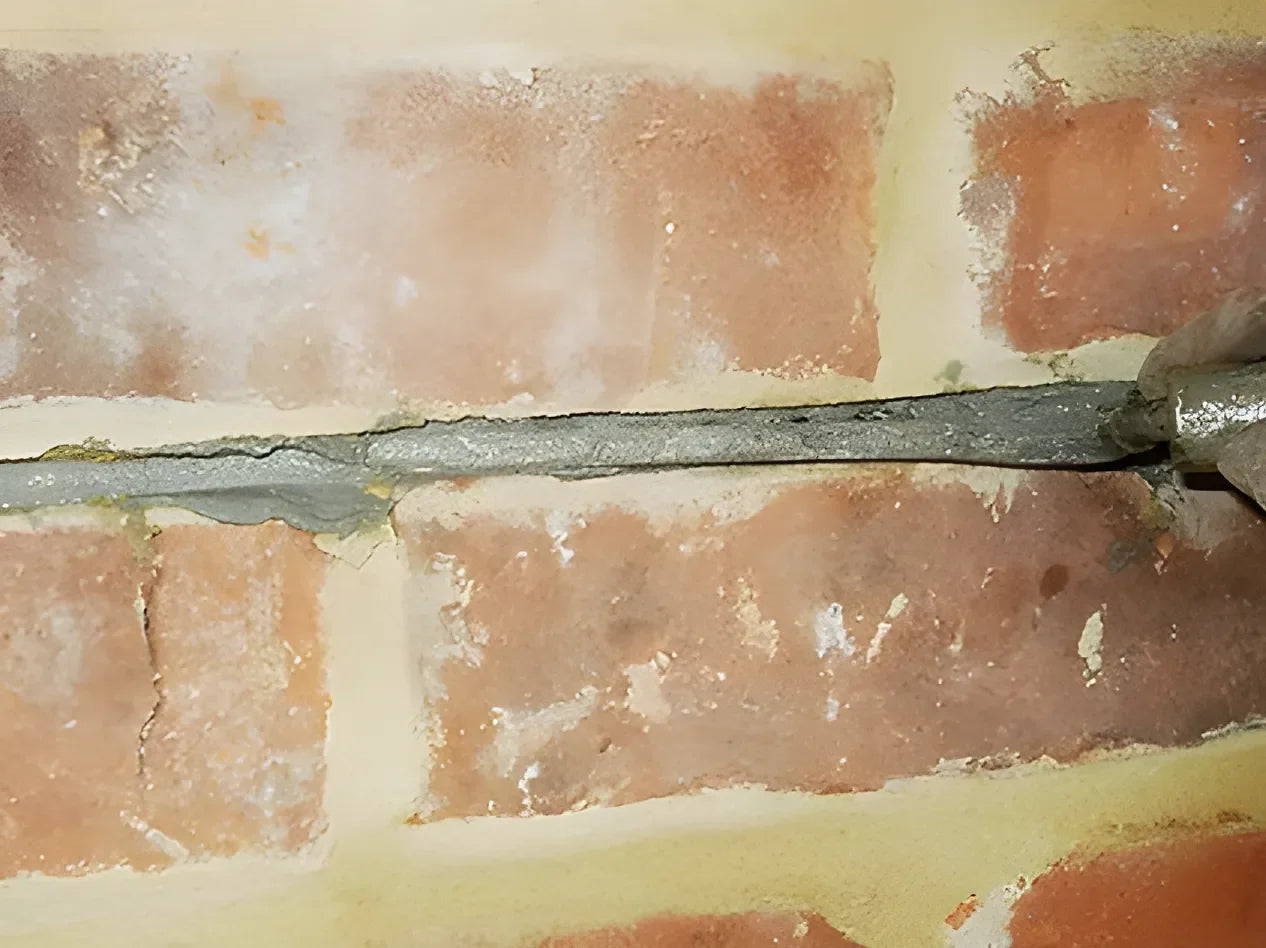

6. Insert the Bar – Push the Clever Shield Super Spiro Bar into the grout, ensuring full embedment.

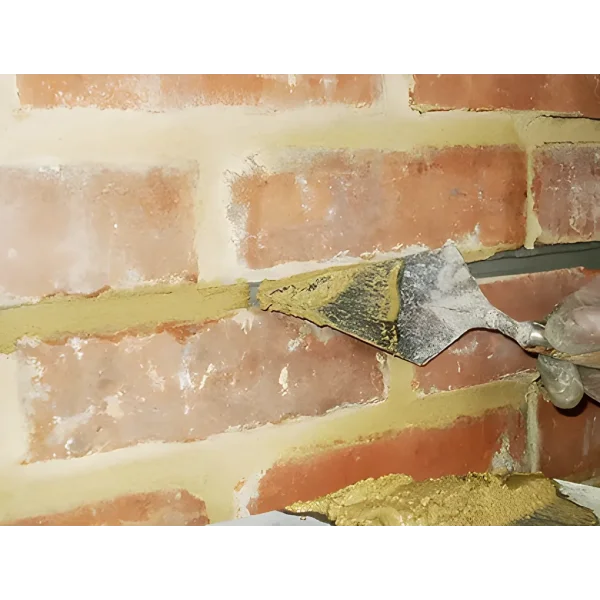

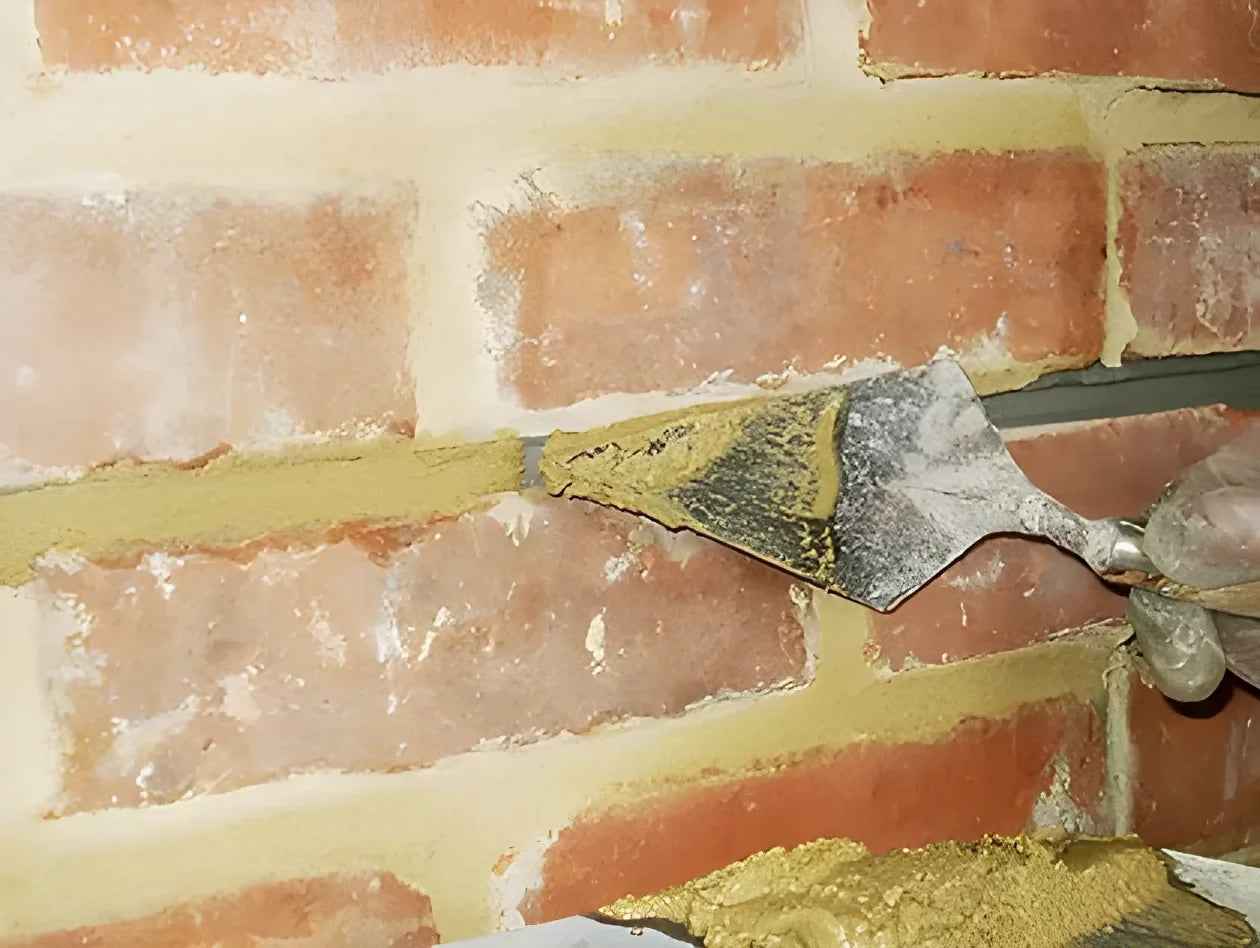

7. Fill & Finish – Add more Super Grout, leaving 10–15mm from the face, then repoint the mortar bed.

8. Reinforce Corners & Openings – For cracks within 500mm of an external corner, bend the bar around the corner and bond into the return wall for extra strength.

Applications

✔ Crack Stitching & Masonry Repair – Strengthens cracked or failing brickwork.
✔ Lintel & Bed Joint Reinforcement – Enhances load-bearing capacity and long-term stability.
✔ New Build Reinforcement – Provides additional strength in masonry construction projects.

Order Clever Shield Super Spiro Bars & Super Grout Today

A professional-grade structural repair system for permanent, high-strength masonry reinforcement.
