Description

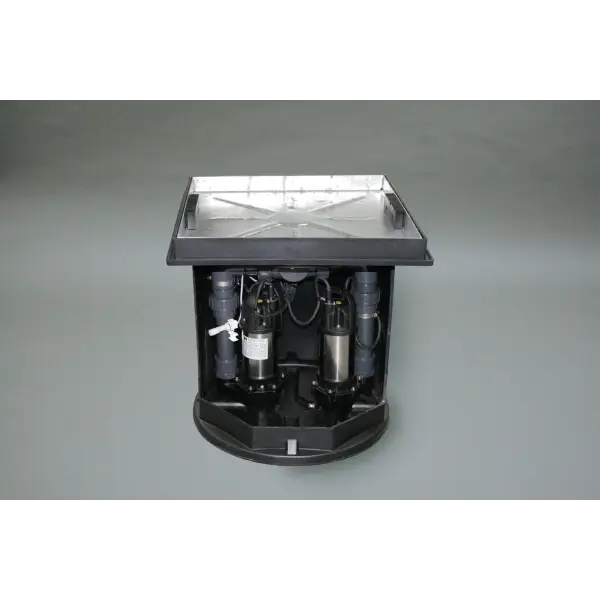

Compact pumping system incorporating an octagonal sump chamber, class-leading pumps, a lock & seal lid and frame, a Newton High Water Level Alarm, internal pipework, one-way valves, and a quick-release shut-off valve for quick release of the pumps for servicing.
The Newton Titan is ideally suited for receiving connections from rainwater gullies and surface slot drainage entering the sump through optional 110 mm wall flanges for connection to incoming pipework.
Sump, pre-drilled ready for all incoming and outgoing connections
Key Benefits
- Compatible with Newton CP pumps
- Compact size allows installation to locations that are too tight for larger pumping systems
- Supplied with sealed and locked recessed lid. High-end finish lids and frames are available as cost options (see the data sheet)
- Flat areas to side of chamber ready for wall flanges to receive incoming 110mm drainage pipes. Wall flanges are available as cost options (see the data sheet)
- Large foot to base of chamber to prevent floatation
Typical Applications
The Titan is specifically designed for the pumping of water from:
- Basements and cellars
- Light-wells
- Surface water pumping receiving water from gullies and surface slot drainage
For more information on the individual pump units that can be ordered with the Titan-Pro chamber, call our Technical Team on 0800 7022176
Titan-Pro Spare Parts
Pump Configurations & Product Codes
Sump Chambers & Pumps
If you only need a chamber or want to order your pumps separately, choose from our Titan chambers, and our built Titan pumping systems.| Titan Sump Chamber | ||||
| Purchase Code | ||||
| Chamber only | T2C | |||
| Chamber plus lid & frame | T2C&L | |||
| Built Pumping Systems | ||||
| Pump(s) | Number of pumps | Purchase Code | ||
| CP150 or MAS250 | 1 | T1 | ||
| CP250 or TAS250 | 1 | T2 | ||
| CP250 or TAS250 | 1 | T3 | ||
| CP400 | 2 | T4 | ||
Downloads
Sump and Pump Spare Parts
Pipe Fittings, Valves and Accessories
Pipe Fittings, Valves and Accessories
Warranty
Newton pumps prefixed NP are supplied by Newton Waterproofing Systems with a 3-year back-to-base warranty. This is increased to 5-years if under a servicing regime by a Newton approved servicing company/engineer.
