Description

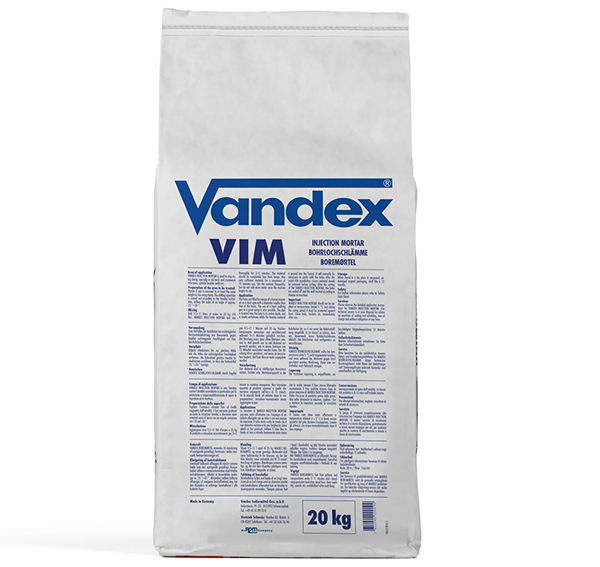

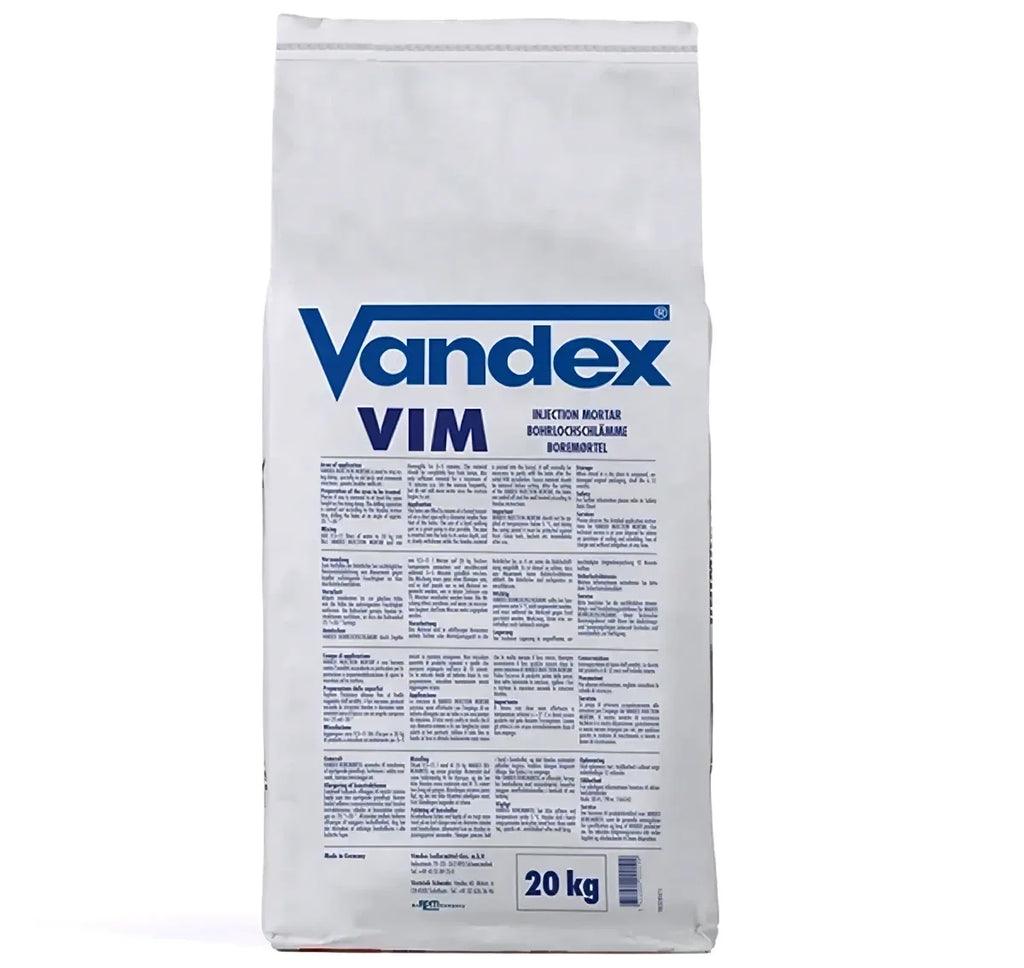

VANDEX INJECTION MORTAR (VIM) Retroactive Damp Proof Course Injection Mortar
VANDEX INJECTION MORTAR (VIM) is a high-performance cementitious injection mortar designed to create a permanent retroactive damp proof course (DPC) in existing masonry walls. Formulated with Portland cement, graded quartz sand and active waterproofing chemicals, it reacts with moisture and naturally occurring salts within the masonry to form insoluble crystals that block capillaries, pores and fine cracks, preventing rising damp.
Suitable for brick, stone, rubble-filled walls and historic masonry, VANDEX INJECTION MORTAR (VIM) is injected into pre-drilled holes where it expands its crystalline action beyond each injection point, creating a continuous moisture barrier throughout the wall. As well as forming a waterproof barrier, the mortar fills voids left by drilling, creating a solid plug for long-lasting protection against rising damp.
Key Features & Benefits
- Creates a permanent retroactive damp proof course
- Stops rising damp in existing masonry
- Suitable for brick, stone and rubble-filled walls
- Crystalline waterproofing technology
- Fills pores, capillaries and fine cracks
- Ready-mixed cementitious injection mortar
- Forms a permanent waterproof barrier
- Also fills drilled injection holes
- Easy to mix and inject
- Suitable for refurbishment and heritage projects
- Can be applied using a grout pump or hand injection gun
- Long-lasting protection against moisture ingress
Applications
- Retroactive damp proof courses (DPC)
- Rising damp treatment
- Brick walls
- Stone walls
- Historic buildings
- Granite masonry
- Rubble-filled walls
- Heritage restoration
- Basement refurbishment
- Masonry waterproofing
- Damp remediation
- Building renovation
Technical Information
- Product Type: Cementitious crystalline injection mortar
- Colour: Cement Grey
- Form: Powder
- Pack Size: 20kg
- Water Addition: 9.5–11 litres per 20kg bag
- Mixing Time: 3–5 minutes
- Working Time: Approximately 15 minutes
- Setting Time: Approx. 60 minutes
- Bulk Density: Approx. 1.0kg/L
- Minimum Application Temperature: +5°C
- Shelf Life: 12 months in unopened packaging
- Application Equipment: Hand caulking gun, grout pump or gravity feed system
Frequently Asked Questions
What is VANDEX INJECTION MORTAR (VIM) used for?
It is used to install a retroactive damp proof course in existing masonry by preventing rising damp through crystalline waterproofing technology.
Can it be used in stone walls?
Yes. It is suitable for brickwork, natural stone, granite and rubble-filled masonry walls.
How does it stop rising damp?
The active chemicals react with moisture and salts within the masonry to form crystals that block water pathways inside the wall.
How is the product installed?
Holes are drilled along the desired damp proof course line before the mixed mortar is injected using a hand gun, grout pump or gravity feed system.
Can it be used in heritage buildings?
Yes. It is ideal for refurbishment and restoration projects where a new physical damp proof course cannot easily be installed.
