Description
Visqueen Self Adhesive Membrane and Primer – Type A Tanking, Waterproofing and Radon Barrier
Visqueen Self Adhesive Membrane is a modified bitumen rubber waterproofing membrane with a self-adhesive coating protected by a removable polyethylene release film. Supplied in 1m x 20m rolls, it provides a Type A barrier for waterproofing below-ground structures and can also act as a radon and damp proof membrane.

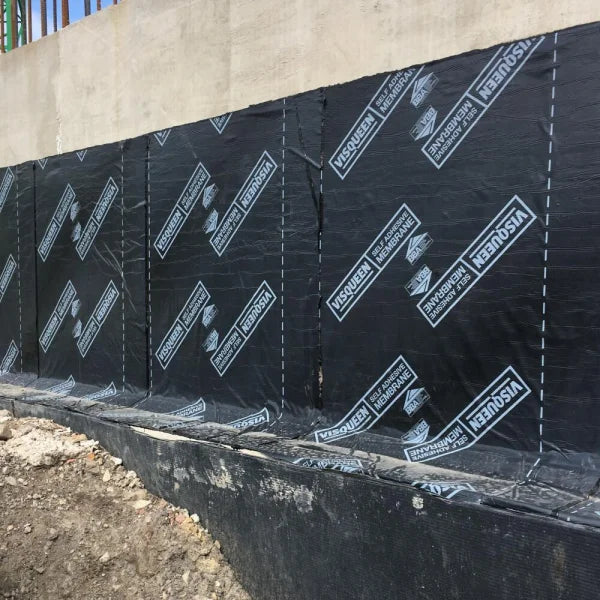

Designed for above and below-ground applications, the membrane is suitable for areas including basements, retaining walls and lift pits. It can be applied to a range of prepared substrates, including concrete, flush-pointed masonry, particle boards and steelwork, in both vertical and horizontal applications.

Key Benefits
- BBA Accredited: Third-party accreditation under BBA Certificate 15/5208.
- Type A Tanking Membrane: Suitable for use as a Type A barrier membrane in accordance with BS 8102:2022.
- Multifunctional Protection: Also provides radon and damp proof membrane functionality.
- Self-Adhesive Application: Cold-applied membrane with no additional bonding method required.
- Flexible Installation: Can be detailed and installed on vertical and horizontal surfaces.
- No Jointing Tape Required: Self-adhesive lap joints are formed by overlapping, pressing and rollering the membrane.
Available Product Options
Select the required product option from the variants above:

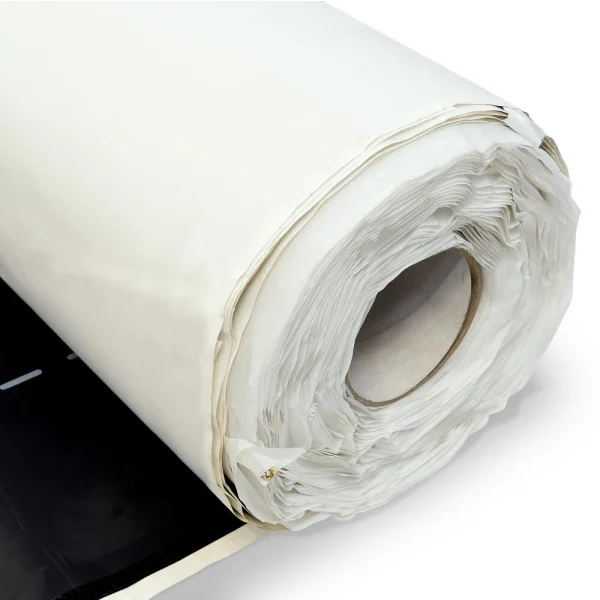

- Visqueen Self Adhesive Membrane: 1m x 20m roll.
- Visqueen HP Tanking Primer: 5 litre tin, shown with an approximate coverage of 35m².

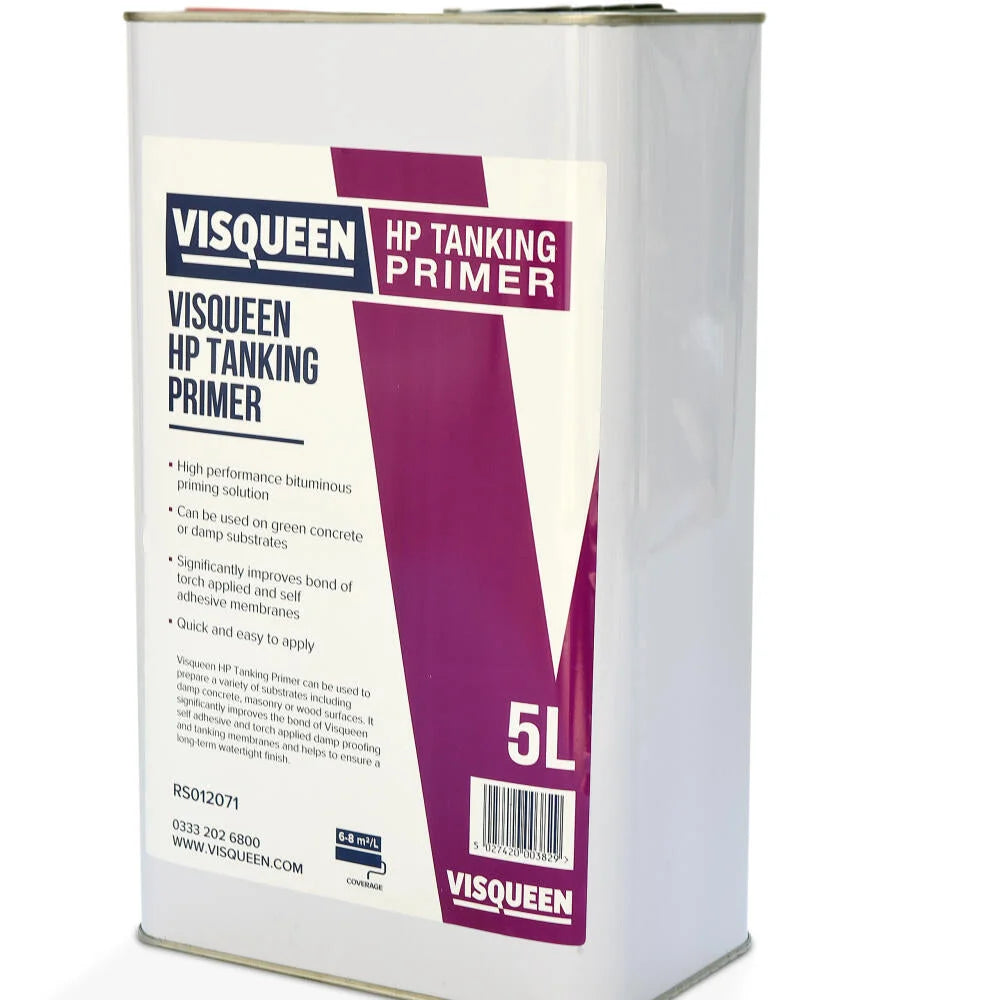

Visqueen HP Tanking Primer
Visqueen HP Tanking Primer is the specified primer for preparing concrete, masonry and metal surfaces before installing Visqueen Self Adhesive Membrane. The primer helps prepare the substrate for adhesion of the self-adhesive membrane.
Surfaces must be smooth, dry, clean and free from dust, loose particles, frost, cavities and projections. Apply the primer and allow it to dry thoroughly before installing the membrane. Refer to the primer's own technical datasheet for its application instructions and drying requirements.
Suitable Applications
- Basement waterproofing and tanking.
- Retaining walls.
- Lift pits.
- Below-ground structures.
- Above-ground waterproofing applications where suitable.
- Radon and damp proof membrane applications.
Technical Information
| Manufacturer | Visqueen |
| Membrane type | Modified bitumen rubber, self-adhesive |
| Roll size | 1m x 20m |
| Membrane thickness | 1.5mm |
| Colour | Dark grey upper surface |
| Application | Cold applied, self-adhesive |
| Waterproofing type | Type A barrier membrane |
| Standard | BS 8102:2022 |
| BBA Certificate | 15/5208 |
| CE marking | EN 13969:2004 |
| Primer option | Visqueen HP Tanking Primer, 5L |
Installation Guidance
- Ensure the substrate is smooth, dry, clean and free from dust, loose particles and frost.
- Prime concrete, masonry and metal surfaces with Visqueen HP Tanking Primer and allow to dry thoroughly.
- For brickwork and blockwork, joints must be flush pointed or the surface rendered before membrane application.
- Provide minimum 150mm lap joints. Press and roller the laps to form a continuous bond.
- At 90-degree changes of direction, form a Visqueen Axiom UniSeal fillet before installing the membrane.
- Seal around service entry points using suitable Visqueen detailing components.
- Protect the membrane immediately after installation. For external retaining walls, use suitable protection such as Visqueen TreadGUARD 1500 or Visqueen Protect&Drain where external drainage is required.
- Do not install below 5°C. Refer to the current manufacturer instructions for full installation guidance.
Frequently Asked Questions
What is Visqueen Self Adhesive Membrane used for?
It is used as a Type A barrier membrane for waterproofing applications, including basements, retaining walls and lift pits. It can also provide radon and damp proof membrane functionality.
Does the membrane need a primer?
Yes. The manufacturer specifies Visqueen HP Tanking Primer for concrete, masonry and metal substrates. The primer must be allowed to dry thoroughly before the membrane is applied.
What size is the membrane roll?
Each roll is 1m wide and 20m long, providing a nominal roll area of 20m² before allowing for laps and detailing.
Can the membrane be installed below 5°C?
No. The manufacturer recommends that the membrane and associated system components should not be installed below 5°C.
Does the membrane need protecting after installation?
Yes. The membrane should be fully protected immediately after installation. Use suitable protection appropriate to the application and follow the manufacturer's guidance.
Technical Downloads
Download the manufacturer's technical datasheet for product specifications, preparation requirements and installation guidance.
Buy Visqueen Self Adhesive Membrane and Primer from Clever Shield
Order Visqueen Self Adhesive Membrane and HP Tanking Primer from Clever Shield Coatings UK. Select the required product option above or contact our team for product availability and assistance with your order.
For product enquiries, contact info@clevershield.co.uk.
Product Supply Notice
Clever Shield supplies waterproofing products and materials only. We do not design or specify waterproofing systems for individual buildings or projects. Customers must establish product suitability for their application and follow the latest manufacturer technical datasheets and installation instructions.
