Description

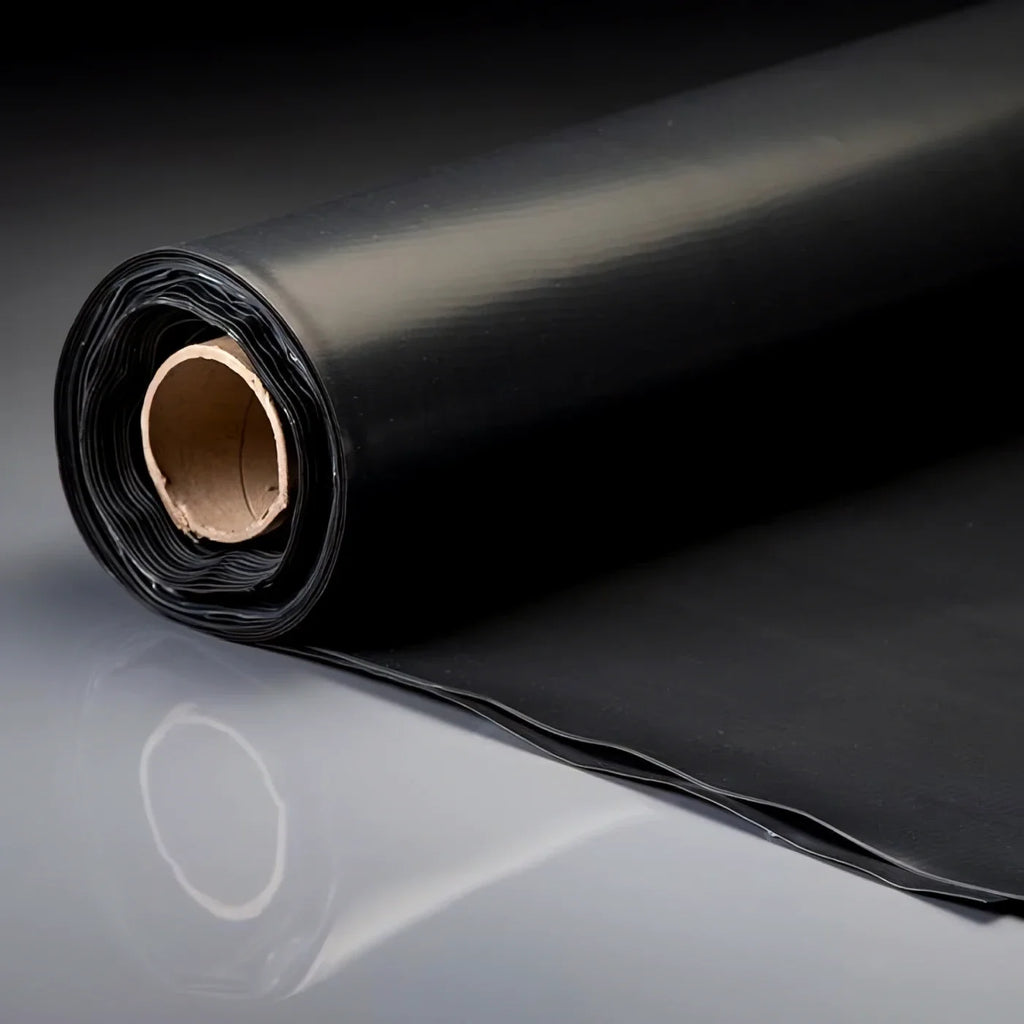

Visqueen Urban Drainage Geomembrane
Visqueen Urban Drainage Geomembrane is a flexible, 100% recycled polyethylene geomembrane designed for use in stormwater attenuation systems and as an impermeable membrane within permeable paving systems. The black, 0.5mm thick membrane is supplied in multi-folded 4m x 12.5m rolls, providing 50m² per roll.
Suitable for a range of urban drainage and geomembrane applications, it can be used to line and wrap underground stormwater attenuation crates in light-duty situations, up to a maximum of two units deep. It can also be installed over the subgrade formation level and to the sides of the sub-base within System C permeable paving applications where an impermeable membrane is required.
The membrane is flexible and easy to detail on site. When correctly jointed using the recommended Visqueen accessories, it provides a continuous waterproof barrier. Lap joints can be bonded using Visqueen UDG Double Sided Jointing Tape, additionally sealed with Visqueen GR Lap Tape where required, or heat welded to form an effective seal.
Key Benefits
- 100% recycled polyethylene geomembrane
- Flexible and easy to detail and install
- Suitable for stormwater attenuation applications
- Suitable as an impermeable membrane in permeable paving systems
- Suitable for light-duty attenuation crate wrapping up to two units deep
- 0.5mm nominal thickness
- 4m wide rolls provide efficient coverage
- Jointed membrane tested for watertightness at 60kPa and 250kPa
- 400% elongation at break in both machine and cross directions
- Can be bonded or heat welded at laps
- Recyclable and classified under LDPE recycling code 4
Applications
Visqueen Urban Drainage Geomembrane is suitable for:
- Underground stormwater attenuation systems
- Wrapping stormwater attenuation crates in light-duty applications
- Impermeable lining within permeable paving systems
- Membrane installation over subgrade formation levels
- Membrane installation to the sides of sub-base within permeable paving systems
- Urban drainage and associated geomembrane applications
Technical Information
| Property | Specification |
|---|---|
| Material | 100% recycled polyethylene |
| Colour | Black |
| Thickness | 0.5mm |
| Roll size | 4m x 12.5m |
| Coverage per roll | 50m² |
| Puncture resistance | 135N |
| Impact resistance | 200mm |
| Tensile strength MD | 15N/mm² |
| Tensile strength CD | 15N/mm² |
| Elongation at break MD | 400% |
| Elongation at break CD | 400% |
| Jointed membrane watertightness @ 60kPa | Pass |
| Jointed membrane watertightness @ 250kPa | Pass |
| Installation temperature | Do not install below 5°C |
| Recycling classification | LDPE recycling code 4 |
Technical values are taken from the supplied Visqueen datasheet.
Standards & Approvals
Visqueen Urban Drainage Geomembrane is suitable for use as an impermeable membrane in permeable paving systems to BS 7533-13:2009, System C – no infiltration.
The datasheet also identifies the manufacturer's management systems as:
- ISO 9001:2015 Quality Management
- ISO 45001:2018 Occupational Health and Safety
- ISO 14001:2015 Environmental Management
Installation & Jointing
The membrane should be clean and dry when jointing. Laps should normally be a minimum of 150mm and bonded using Visqueen UDG Double Sided Jointing Tape. In demanding site conditions, Visqueen GR Lap Tape can also be used. Lap joints should be pressed and rollered to achieve a completely sealed joint.
Alternatively, lap joints can be heat welded. Welded laps may be less than 150mm where the integrity of the joint is not compromised. Pipe penetrations should be sealed using Visqueen Preformed Top Hat Units or VisqueenPro Detailing Strip.
When used around stormwater attenuation crates, the trench base should be level and free from voids and protrusions, with a minimum 100mm sand blinding specified before installation. The geomembrane should be protected on both faces with Visqueen TreadGuard 300 protection layer.
For System C permeable paving applications, the geomembrane should be installed over a smooth, continuous blinded subgrade free from irregularities. The upper face should be protected with Visqueen TreadGuard 300 before the sub-base aggregate is installed.
System Components
Recommended associated Visqueen components include:
- Visqueen UDG Double Sided Jointing Tape – 100mm x 15m
- Visqueen GR Lap Tape – 150mm x 10m
- Visqueen Top Hat Units
- VisqueenPro Detailing Strip – 300mm x 10m and 500mm x 10m
- Visqueen Medium Duty Protection Board
- Visqueen TreadGUARD 300 – 2m x 75m
Storage & Handling
Store horizontally, under cover and in the original packaging. The membrane can be cut using a sharp retractable safety knife or robust scissors. The product and associated system components should not be installed below 5°C.
Frequently Asked Questions
What is Visqueen Urban Drainage Geomembrane used for?
It is designed for geomembrane applications including stormwater attenuation systems and as an impermeable membrane in permeable paving systems.
What size is Visqueen Urban Drainage Geomembrane supplied in?
It is supplied in multi-folded 4m x 12.5m rolls, providing approximately 50m² per roll.
Can it be used around stormwater attenuation crates?
Yes. It can be used to wrap underground stormwater attenuation crates in light-duty situations, with the datasheet specifying a maximum of two units deep.
How are the membrane joints sealed?
The membrane can be overlapped by at least 150mm and bonded using Visqueen UDG Double Sided Jointing Tape. Visqueen GR Lap Tape can provide additional sealing, while heat welding is also an alternative method.
What temperature can the membrane be installed at?
The datasheet recommends that the membrane and associated system components should not be installed below 5°C.
