Description

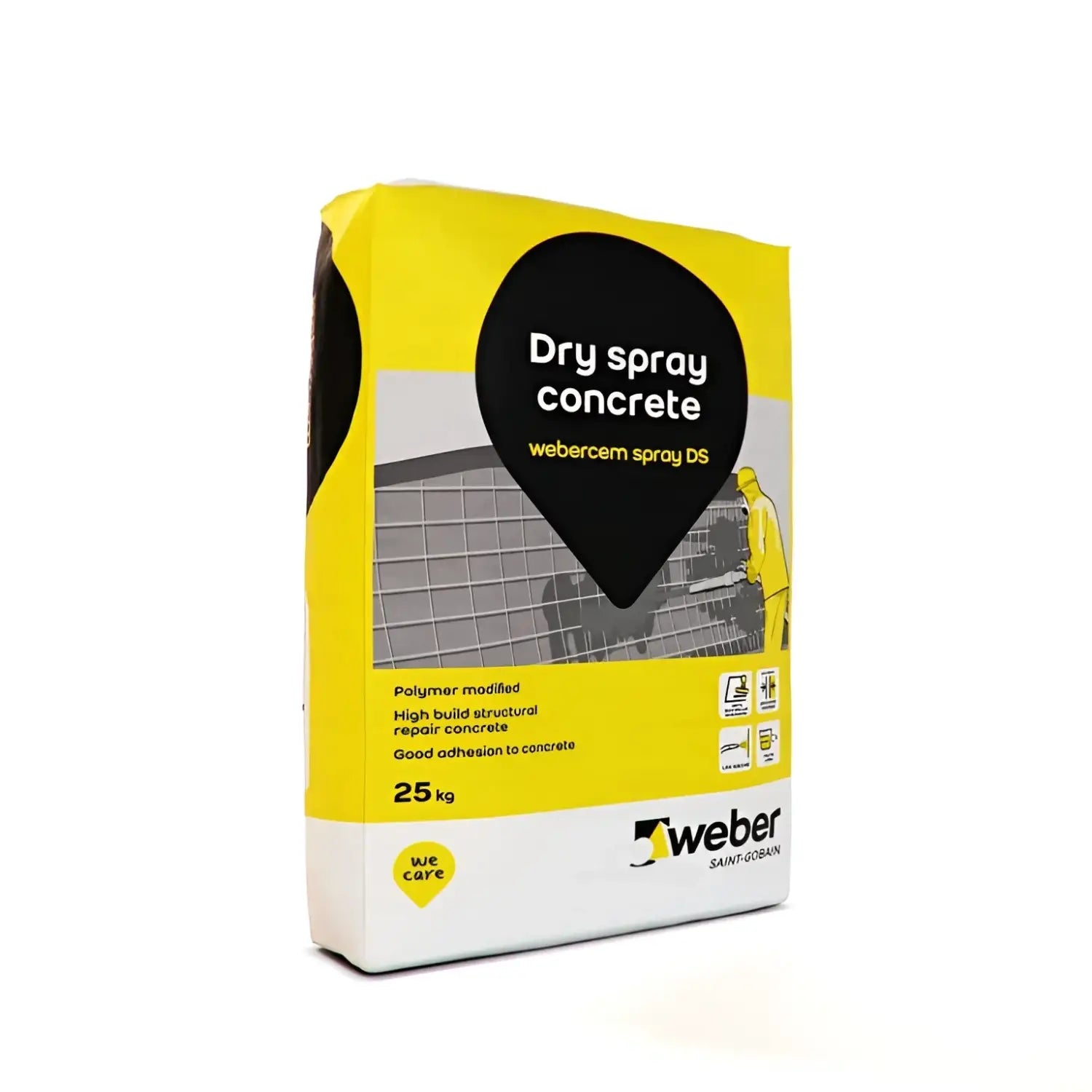

Webercem Spray DS – R4 High-Build Structural Spray Concrete
Webercem Spray DS is a pre-bagged, ready-to-use, polymer-modified cementitious structural repair concrete specifically developed for dry-process spray application. Classified as an R4 repair product under BS EN 1504-3, it is designed for high-strength, large-scale concrete repairs where high build, low rebound and durable performance are required.
Containing graded inert limestone aggregates and dust-suppressing ingredients, Webercem Spray DS has been formulated to provide high strength, reduced rebound and low material wastage during application. It can be applied in thicknesses of up to 150mm in a single pass on suitable vertical and overhead surfaces, including around existing steel reinforcement.
It is particularly suited to infrastructure, highway, marine and heavy civil engineering repairs, including bridges, tunnels, retaining walls, piers, seawalls and other large concrete structures.

Need pricing or bulk quantities?
Contact our team on 01268 472358.
Key Features and Benefits
- R4 Structural Repair Classification: Meets the requirements of Class R4 under BS EN 1504-3.
- Dry-Spray Application: Specially formulated for dry-process concrete spraying equipment.
- High-Build Application: Up to 150mm can be applied in one pass on suitable vertical and overhead surfaces.
- Low Rebound: Formulated to reduce material rebound and application wastage.
- High Compressive Strength: Meets the 45 MPa minimum requirement at 28 days, with a reported laboratory result of 63.5 MPa.
- Low Permeability: Provides resistance to water and chloride penetration.
- Polymer-Modified Formulation: Designed to provide good adhesion to concrete.
- Reduced Dust Emission: Contains graded limestone aggregates and dust-suppressing ingredients, with no siliceous aggregates or caustic accelerators.
- Overhead and Vertical Repairs: Suitable for high-build application on appropriate vertical and overhead surfaces.
- Class A1 Reaction to Fire: Classified as A1 in the manufacturer's technical documentation.
Typical Applications
Webercem Spray DS is designed for large-scale structural concrete repairs and infrastructure maintenance, including:
- Highway Structures: Bridge columns, piers, deck soffits, beams, abutments, parapets and retaining walls.
- Marine Structures: Jetties, piers, quays, seawalls, offshore concrete structures, docks and dry docks.
- Tunnels and Viaducts: Structural concrete repairs and reinstatement.
- Fire-Damaged Concrete: Repair of concrete structures affected by fire.
- Mining Infrastructure: Sealing mine roadways and tunnels and structural enhancement of mineshafts.
- Steel Encapsulation: Structural encasement of steel sections, pylons, chimneys and cooling towers.
- Ground Stabilisation: Rock and embankment stabilisation applications.
Technical Data
| Product | Webercem Spray DS |
| Product Type | Polymer-modified cementitious dry-spray structural concrete |
| Classification | Class R4 – BS EN 1504-3 |
| Application Method | Dry-process spray application |
| Recommended Minimum Thickness | 25mm |
| Maximum Single-Pass Thickness | Up to 150mm on suitable vertical and overhead surfaces |
| Compressive Strength | Minimum requirement ≥45 MPa at 28 days; reported laboratory result 63.5 MPa |
| Adhesive Bond Strength | Requirement ≥2.0 MPa; reported test result 2.6 MPa |
| Dry Density | Approximately 2,160 kg/m³ |
| Yield | Approximately 12 litres per 25kg bag |
| Initial Setting Time | Approximately 2–3 hours |
| Reaction to Fire | Class A1 |
| Packaging | 25kg polylined paper sacks |
| Application Temperature | 5°C to 30°C |
| Shelf Life | 12 months from manufacture when stored unopened in a dry place above 5°C |
Technical note: The 63.5 MPa compressive strength and 2.6 MPa adhesive bond are reported manufacturer laboratory test results. The 45 MPa and 2.0 MPa figures are the respective performance requirements. Yield is approximately 12 litres per bag, but additional allowance must be made for rebound and surface profiling.
Application and Installation Guidance
Webercem Spray DS is designed specifically for application using dry-process spraying equipment. Correct substrate preparation, spray equipment adjustment and application technique are important to achieve the intended performance.
1. Substrate Preparation
Concrete surfaces must be clean, sound and free from grease, oil, dust and loose material. Prepare the concrete using an appropriate mechanical method, such as scabbling, grit blasting, water jetting or needle gunning. The outer limits of repair areas should be cut square to avoid feather edges.
2. Preparing the Substrate
The manufacturer recommends thoroughly pre-wetting the concrete substrate for at least 30 minutes before application, followed by removal of surplus water. Water from the spray nozzle followed by high-pressure air is a commonly adopted method.
3. Spray Application
Empty the bags directly into the hopper of the dry-process spraying machine. Equipment should be balanced to produce a steady stream of material with minimal pulsing. The nozzle operator controls the water addition at the spray nozzle. Too little water increases rebound and dust emission, while too much water can cause slump.
4. Application Thickness
The recommended minimum application thickness is 25mm. Up to 150mm can be applied in a single pass on suitable vertical and overhead surfaces. Where there are no exposed reinforcement bars and the sprayed thickness is 50mm or greater, additional mesh reinforcement must be provided in accordance with the relevant guidance.
5. Finishing and Curing
Any necessary trowelling or profiling should be carried out immediately after spraying. An as-sprayed finish is recommended. Where overcoating is required, the manufacturer recommends a wooden float or damp sponge finish rather than steel floating.
Webercem Spray DS must be properly cured to achieve its optimum properties. The manufacturer recommends immediate curing with a high-efficiency curing membrane unless the surface is to be overcoated or chemically impregnated. In those cases, use polythene sheeting and/or wet hessian for a minimum of three days.
Important Application Restrictions
- Do not apply when frost is forecast within 24 hours of use.
- Do not apply at temperatures below 5°C or above 30°C.
- Protect freshly applied material from frost.
- Allow for rebound and profiling when calculating material quantities.
- Follow the manufacturer's instructions for reinforcement exposure, encapsulation and additional mesh reinforcement.
- Application should follow the Concrete Society's Code of Practice for Sprayed Concrete.
Why Choose Webercem Spray DS?
Webercem Spray DS provides a specialist solution for large-scale structural concrete repairs where conventional hand-applied repair mortars may not be suitable for the required application method or build thickness.
Its dry-spray formulation, low-rebound characteristics and ability to achieve high build in a single pass make it suitable for demanding infrastructure, marine and civil engineering repair projects. Its R4 classification under BS EN 1504-3 and low-permeability characteristics provide further performance benefits for appropriate structural repair applications.
Frequently Asked Questions
What is Webercem Spray DS used for?
Webercem Spray DS is used for large-scale structural concrete repairs, including bridges, highway structures, tunnels, viaducts, marine structures, retaining walls and fire-damaged concrete.
What does R4 classification mean?
R4 is a classification under BS EN 1504-3 for structural repair products. It identifies a higher performance category with specified requirements for properties such as compressive strength, bond strength and elastic modulus. It is not a universal guarantee of suitability for every structural repair.
How thick can Webercem Spray DS be applied?
The manufacturer recommends a minimum thickness of 25mm. Up to 150mm can be applied in a single pass on suitable vertical and overhead surfaces.
Is Webercem Spray DS suitable for overhead repairs?
Yes. It is designed for dry-spray application on suitable vertical and overhead surfaces, with the ability to build up to 150mm in one pass.
Can Webercem Spray DS be applied by hand?
No. Webercem Spray DS is specifically formulated for dry-process spray application using suitable spraying equipment. It should not be treated as a conventional hand-applied repair mortar.
What is the compressive strength of Webercem Spray DS?
The manufacturer specifies a minimum compressive strength requirement of 45 MPa at 28 days. Its published laboratory test results report 63.5 MPa.
How much does a 25kg bag of Webercem Spray DS cover?
The approximate yield is 12 litres per 25kg bag. Allowances must be made for rebound, surface profiling and application conditions when calculating quantities.
What temperature can Webercem Spray DS be applied at?
The manufacturer states that it should not be applied below 5°C or above 30°C. It should also not be applied if frost is forecast within 24 hours of use.
Technical Documentation
Download the official Saint-Gobain Weber technical datasheet for full product specifications, preparation instructions, spray application guidance, curing requirements and performance information.
Manufacturer: Saint-Gobain Weber
Product Supply Information
Clever Shield supplies construction, repair and waterproofing products. We do not design or specify products for individual buildings or projects. The purchaser or installer must establish product suitability for the intended application, check compatibility with other materials and follow the latest manufacturer's technical datasheet and installation instructions.
For product availability, pricing or further information, contact our team.
