Newton CDM 503 Mesh Membrane

Save £106.74 inc.VAT

Size: 2m x 20m
Price:
Sale price£242.26 inc.VAT Regular price£349.00 inc.VAT

Description

BBA certified, 3mm meshed cavity drain membrane for below ground – the meshed surface provides an excellent ’key’ for lime mortars, renders, plasters or dabbed plasterboard.

With its 3mm stud, Newton CDM 503 Mesh Membrane is just 3.5mm in overall thickness, and is the preferred meshed membrane where space is at a premium.

Its meshed surface provides an excellent ‘key’ for lime mortars, renders, plasters or dabbed plasterboard. Please see the CDM 503 Mesh Membrane Installation Instructions for details on fixing and finishing of the product.

Newton CDM 503 Mesh Membrane holds BBA certification (94/3010).



Key Benefits
  • Newton CDM 503 Mesh Membrane is guaranteed against deterioration for 30 years, and has a life expectancy of at least 50 years (DIN 9001:2000)
  • It is inert with high compressive loading stability
  • It is highly resistant to water, alkalies, saline solutions and organic acids, and it is not effected by minerals. It is also resistant to bacteria, fungi and other small organisms
  • BBA Certified Number 94/3010
  • CDM 503 Mesh Membrane is supplied in a roll size of 2mx 20m, achieving 40m2 (M11)
Typical Applications
  • With its 3mm stud, CDM 503 Mesh Membrane is just 3.5mm in overall thickness, and is the preferred meshed membrane where space is at a premium

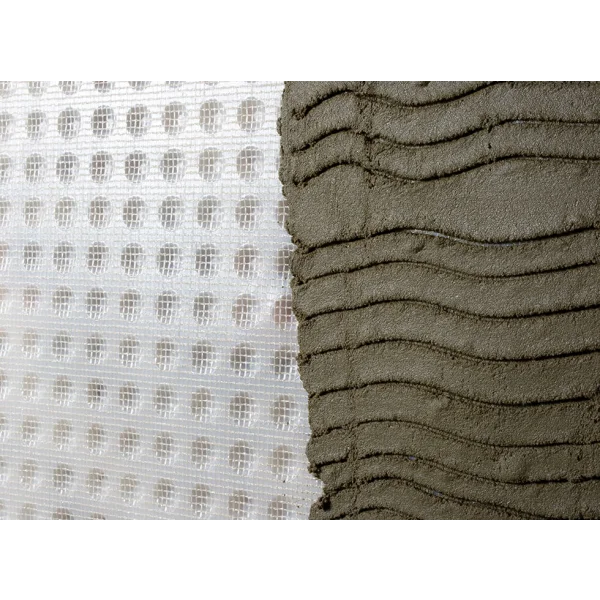

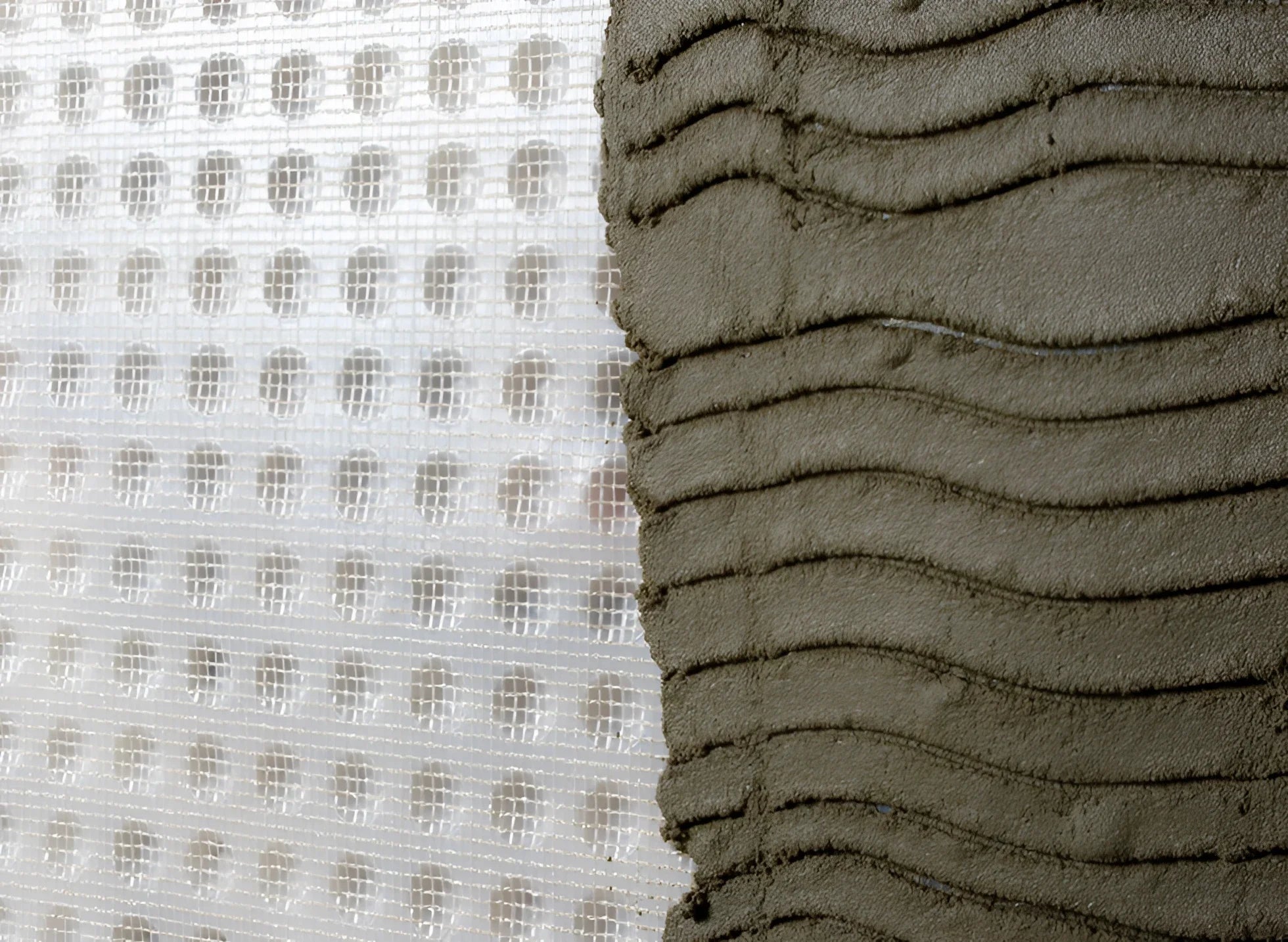

  • The high quality meshed surface provides an excellent ’key’ for lime mortars, renders, plasters or dabbed plasterboard
BS 8102:2009

The British Standard 8102:2009 Code of Practice for Protection of Below Ground Structures Against Water From the Ground is the main design guide for structural waterproofing in the UK.

The Newton CDM System is a maintainable system, so complies with BS 8102 requirements. The standard also specifies that: “a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”

Therefore it is our recommendation that the Newton CDM System is installed by a Newton Specialist Contractor (NSBC).

Product Data

Code: M11

Packaging: Roll 2.0m x 20.0m

Colour: White/Translucent

Area: 40m²

Downloads
Technical Data
Installed Performance Result
Compressive strength – Temporary loading 320 kPa
Thermal conductivity 0.461 W/mK
Water vapour diffusion resistance – Sd value >604m
Water vapour diffusion resistance – µ value >1208000µ
Water vapour diffusion resistance >3020 MNs/g
Resistance to fire Euroclass E
Chemical resistance – Excellent 100%
Oxidation resistance – Excellent 100%
