Description
Fibran XPS-500C is a 50mm deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS).
The product is manufactured in accordance with EN 13164 – “Thermal insulation products for buildings – Factory made products of extruded polystyrene (XPS)-specification.”
Note: Due to the physical size of this product it is palletised and it is shipped via lorry. Delivery charges apply accordingly. Collection is possible and can be arranged by calling customer services 01268 472358.

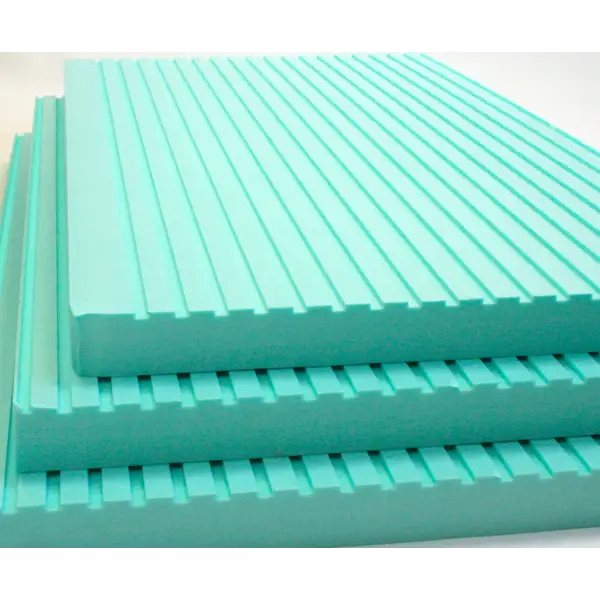

Produced exclusively for Newton Waterproofing Ltd, CDM Fibran XPS-500C insulation boards are used to form a 50mm spacer adjacent to the CDM BaseDrain and CDM FloorDrain drainage channels within the Newton CDM System cavity drain waterproofing system. The insulation boards are rated at 500 kPa and feature specifically designed slots to the underside of the boards, that in combination with the perimeter and spine drainage channels of the Newton CDM System form a fully drained supporting spacer below the floor drainage membrane.
The insulation boards can also be used as a protection for Newton liquid applied waterproofing membranes applied externally to new earth-retained structures or retained walls, uniquely offering protection, insulation and drainage within one product.
Key Benefits
- Excellent thermal insulation characteristics with a very low coefficient of thermal conductivity
- Closed cell structure with no connecting capillaries resulting in extremely high resistance to water absorption and diffusion of water vapour
- Capable of permanent submersion in water
- Fully inert when subjected to climatic variations
- High mechanical and compressive strength and high dimensional stability
- Contains no CFC or HCFC’s
- Life expectancy is equivalent to the building in which it is installed (estimated 50 years)
- 100% recyclable
- Easy to transport, cut and apply
- Completely rot proof and does not develop any mould or other efflorescence
- No nutritional value for rodents, insects, etc
- Good resistance to acids, alkalines, aggressive ground containments and inorganic gases
Typical Applications

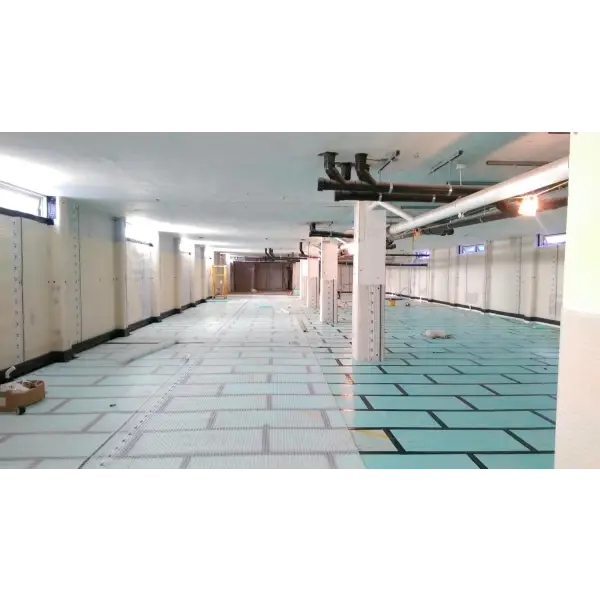

As the spacer below Newton cavity drain waterproofing floor membranes
Protection of Newton liquid applied waterproofing membranes applied externally to retained walls.
Insulated support below HydroBond 403 Plus
Parking decks and green roofs
Full external envelope insulating of subterranean structures sited permanently within the water table
Suitable Substrate
- Compacted, clean, and level surfaces
- Basement concrete floor slabs and rafts
- Earth retained walls of concrete, mortar or ICF
- Compacted blinding
Product Data
Code: 500C
Packaging: 50mm x 1000mm x 600mm
Colour: Green
Area: 0.6m²
Downloads
Technical Data
| Properties | Result |
| Compressive strength at 10% deformation | 500 kPa |
| Compressive creep over 50 years at < 2% deformation |
165 kPa |
| Service temperature | -50°C to +75°C |
| Thermal conductivity* | 0.035 W/mk |
| Thermal conductivity when fully immersed** | 0.040 W/mk |
| Thermal resistance (after 25 years)*** | 1.29 m2K/W |
| Specific heat capacity | 1.5 kJ/(kg.K) |
| Long term water absorption by immersion**** | 0.7% |
| Water absorption by diffusion | 3% |
| Reaction to fire (Euroclass) | Class E |
| Global Warming Potential (GWP) | < 5 kg CO2 (Eq) |
*After 25 years
**When permanently and totally immersed in water for 25 years
***Calculated using nominal thickness of 45mm due to grooved surfaces
****Smooth surface
