Use Clever Shield Remedial Wall Ties for Quick and Reliable Wall Tie Replacement and Brick Pinning Solutions
Clever Shield's stainless steel helical ties are the go-to choice for professionals when reinforcing and securing existing walls. Our ties are specially designed to provide dependable and efficient solutions for cavity wall tie failure. The optional setting tool is available separately and ensures a fast, simple, and secure installation process.

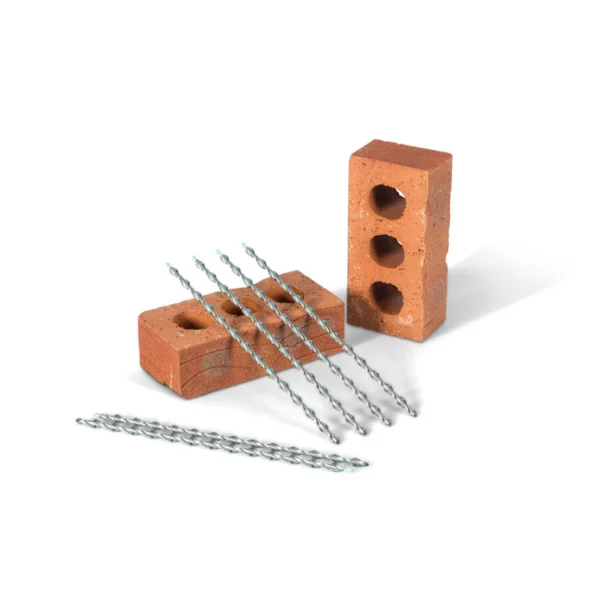

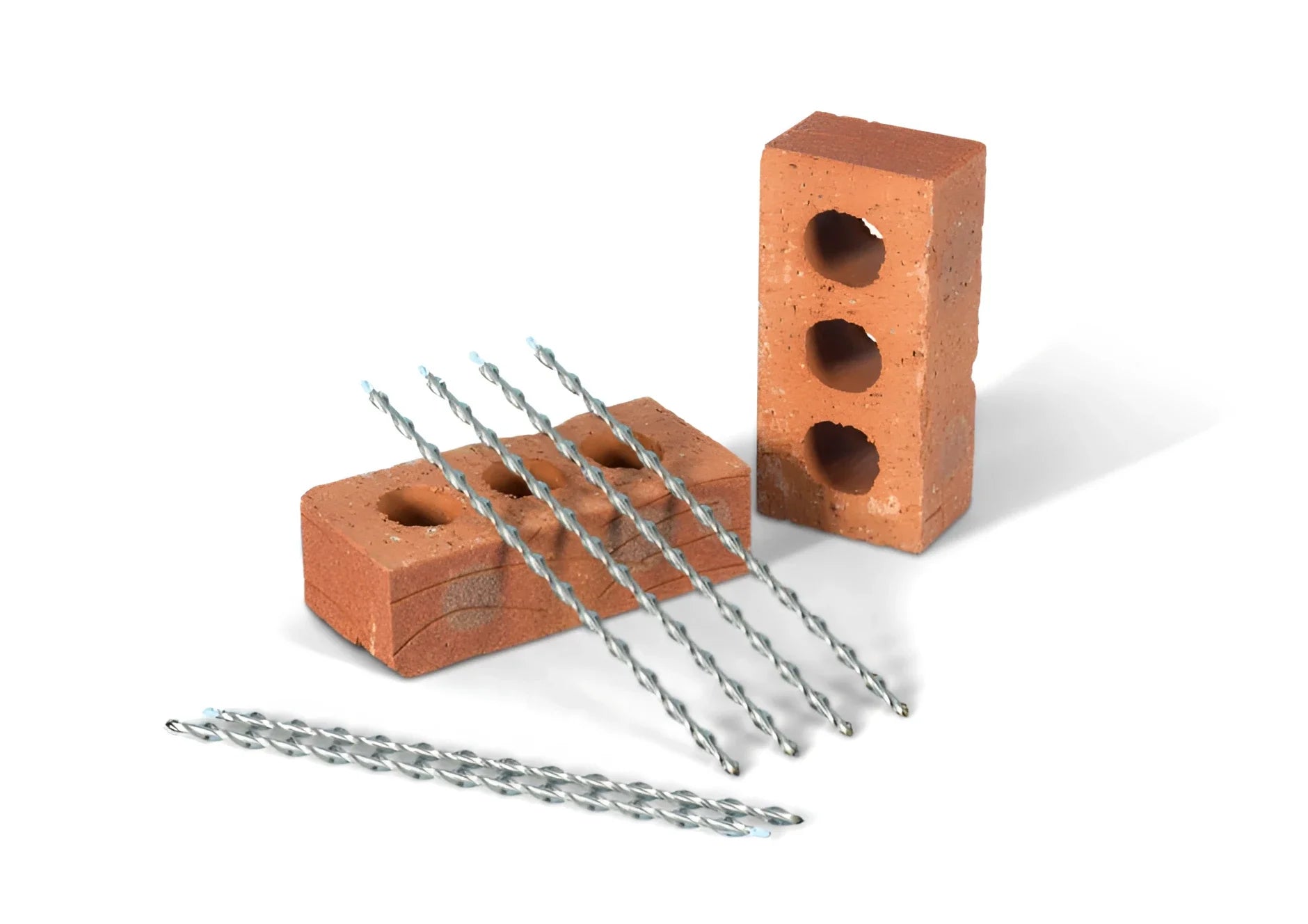

Clever Shield Helical Remedial Wall Ties feature a 8mm diameter, engineered to screw into brick, masonry, or concrete when hammered into pilot holes using a hammer drill's impact action. These ties anchor securely within undercut helical grooves, applying minimal stress to the surrounding brickwork. The clever design ensures a quick, effective solution for wall tie replacement.
What Wall Tie Length Do You Need?
The following table shows the recommended wall tie lengths based on cavity width:
Cavity Width (mm) |
Recommended Tie Length (mm) |
0 – 25 |
195 |
25 – 45 |
220 |
50 – 70 |
230 |
75 – 95 |
245 |
100 – 120 |
255 |
125 – 145 |
270 |
150 – 170 |
280 |
175 – 200 |
295 |
These lengths are recommended for walls constructed with 110 mm bricks. If you are working with 100 mm metric bricks, be sure to adjust the measurements accordingly.
Choose Your Desired Tie Length From the Drop-Down Menu.
To Install Clever Shield Remedial Wall Ties, You Will Need:
-

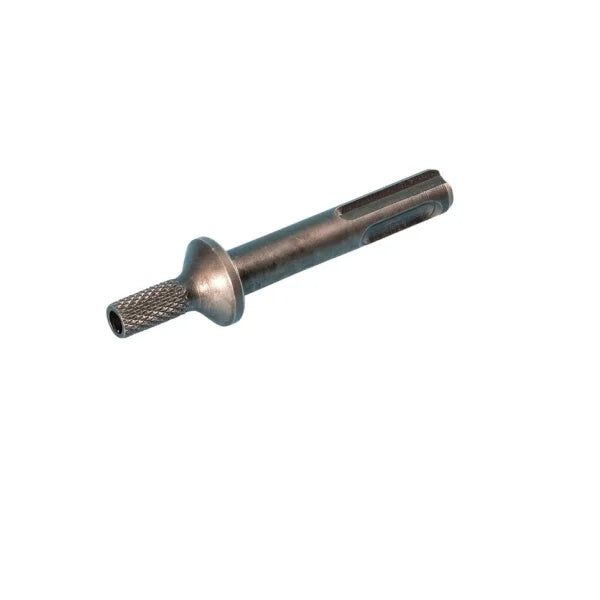

A Remedial Wall Tie Setting Tool
-
SDS Drill Bits
-
Use a 6 mm x 360 mm SDS drill bit for 195–255 mm ties.
-
Use a 6 mm x 450 mm SDS drill bit for 270–295 mm ties.
-
For engineering bricks or structural-grade concrete, a 7 mm drill bit is required.
-
For perforated bricks, use a 5 mm pilot hole.
Be sure the pilot hole is 10 mm deeper than the tie length to allow proper recessing for secure anchoring.
Clever Shield helical wall ties are perfect for all types of cavity walls. Our 8mm remedial ties are UKCA and CE Mark approved and conform to BS EN 845-1:2013 standards across a wide range of masonry materials.
